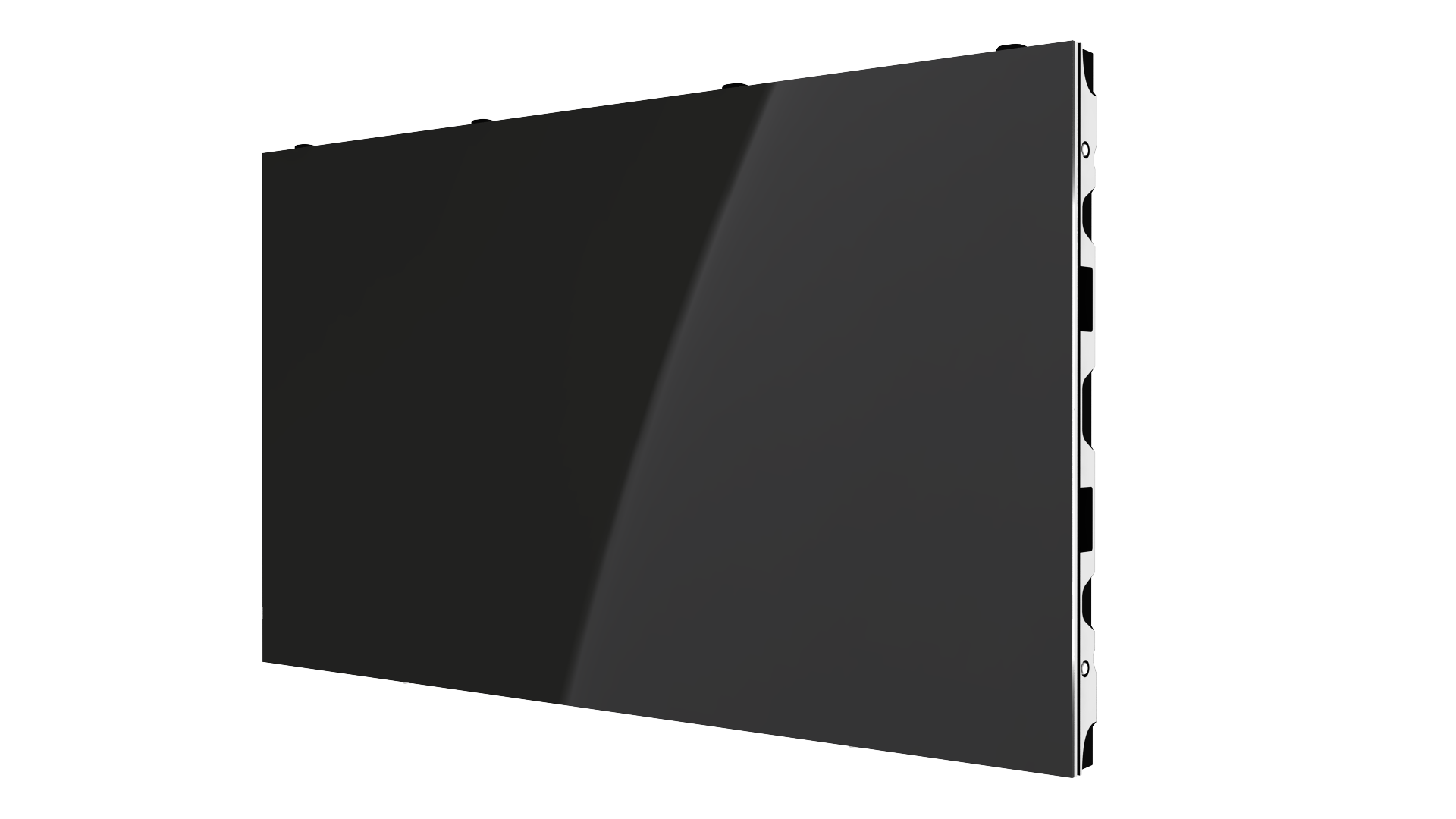

AirTV-Pro
All Flip-chip
Anti-stress and anti-collision, high stability, real world tested
No space display, UHD display Stunning visual experience
All Flip-chip
Higher Stability and Reliability Higher pixel density reliability
Higher Contrast Ratio
Excellent Thermal Management
Wider Viewing angle without Color Shift
Lower Heat Generation
Super Slim, Super Lightweight
Multi-functional, suitable for various applications
Unlimited possibilities
Unlimited vision
Energy efficient
Efficient heat dissipation
AirTV-Pro / Specifications | AirTV-Pro 0.78 | AirTV-Pro 0.93 | AirTV-Pro 1.25 | AirTV-Pro 1.56* | AirTV-Pro 1.87* |
Physical Pitch | 0.78125 mm | 0.9375 mm | 1.25 mm | 1.5625 mm | 1.875 mm |
Pixel Configuration | Flip-chip RGB LED | ||||
Pixel Density | 1,638,400 pixels/m² 331,776 pixels/panel | 1,137,777 pixels/m² 230,400 pixels/panel | 640,000 pixels/m² 129,600 pixels/panel | 409,600 pixels/m² 82,944 pixels/panel | 284,444 pixels/m² 57,600 pixels/panel |
LED Module Dimensions (mm) | 150 × 168.75 | ||||

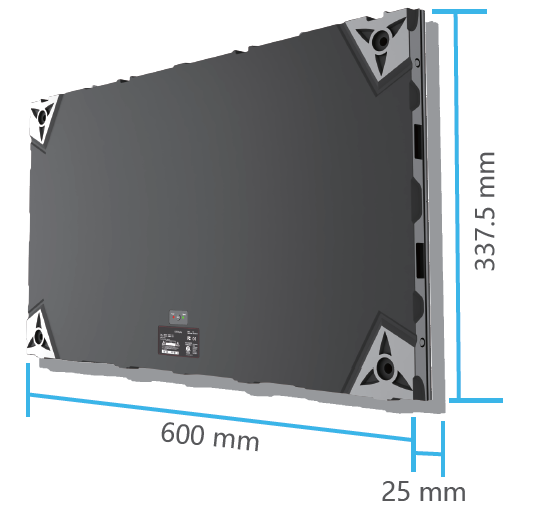

Panel Dimensions (W × H × D) (mm) | 600 × 337.5 × 25 | ||||
No. of Modules Per Panel (W × H) | 4 × 2 | ||||
Physical Resolution of Module (W × H) | 192 × 216 | 160 × 180 | 120 × 135 | 96 × 108 | 80 × 90 |
Physical Resolution of Panel (W × H) | 768 × 432 | 640 × 360 | 480 × 270 | 384 × 216 | 320 × 180 |
Weight Ib (kg)/Panel | 10.58 (4.8) | 10.36 (4.7) | 9.92 (4.5) | 9.92 (4.5) | 9.92 (4.5) |
Weight Ib (kg) Per m² | 52.25 (23.7) | 51.80 (23.5) | 49.60 (22.5) | 49.60 (22.5) | 49.60 (22.5) |
Processing | 16 bit | ||||
Colours | 281 trillion | ||||
Contrast Ratio | 20,000 : 1 | ||||
Average Power Consumption | 38 - 63 w/panel | ||||
Max Power Consumption | 126 w/panel | ||||
Operating Temp/Humidity | -10 - 40 ℃/ 10% - 90% | ||||
Storage Temp/Humidity | -20 - 50 ℃/ 10% - 95% | ||||
Brightness | ≥1000nits | ||||
Refresh Rate | ≥3840 Hz | ||||
Horizontal Viewing Angle | 170° | ||||
Vertical Viewing Angle | 170° | ||||
Expected LED Lifetime (Max) | 100,000 Hrs | ||||
Max Stacking | 12 panels | ||||
Servicing | Front | ||||
IP Rating | IP30 | ||||
Certification | CE*, EMC* ,ClassA*, ETL*, RoHS* |
