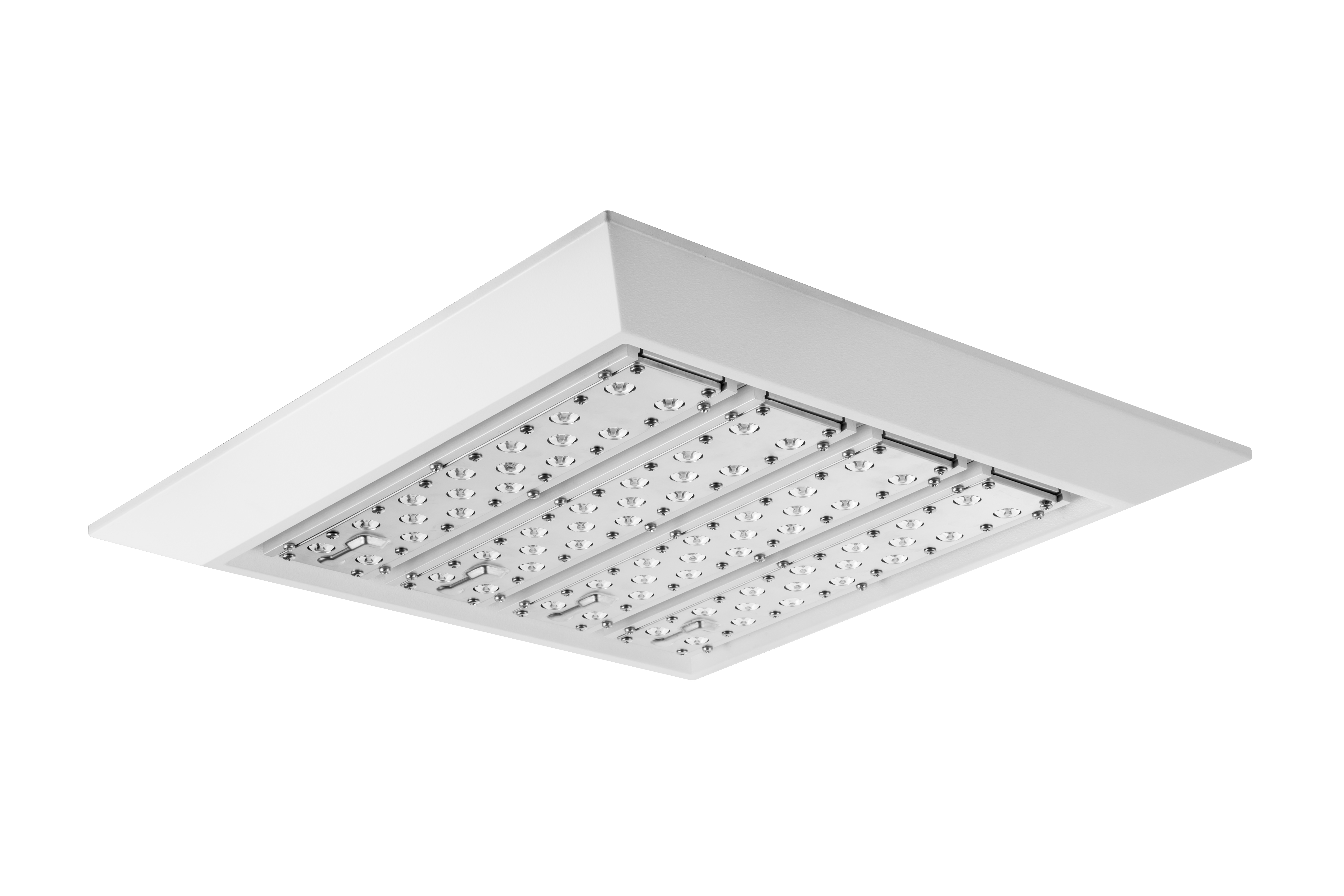

Our LED SHINE-E light is a new, low maintenance, energy-saving lighting option for these hard to access places. The need for high visibility during all hours of the day requires around the clock operation and reliability. Due to their long life and robust nature, luminaires designed with LEDs can reduce maintenance intervals and offer the added benefit of superior beam shaping capability which means you can put light where you need it.
• Complete product line, range from 120W to 160W.
Power | 120/160W |
Input | 120-277VAC or 220-240VAC or 347-480 VAC |
PF | >0.95 |
THD | <20% |
L70/L90 | >200,000H/>60,000H |
Operating Temperature | -40℃ ~ +50℃ |
Typical Efficacy | 120-160lm/W |
ANSI CCT | 3000K/4000K/5000K/5700K |
Min CRI | 70 (Standard) or 80 or 90 |
IP Rating | IP67 |
Color Options | White |
Product Dimensions | 15.75"x15.75"x2.89" |
Carton Dimensions | 19.49"x18.70"x5.71" |
Model No. | System Power | Voltage | Drive Current | Luminous Flux | Efficacy (lm/W) | |
3000K | 4000 /5000K | |||||
CKZ122 | 110W | 120-277VAC | 530mA | 13365lm | 14850lm | 135 |
CLA163 | 156W | 120-277VAC | 700mA | 18252lm | 20280lm | 130 |
CKZ124H | 110W | 347-480VAC | 530mA | 13365lm | 14850lm | 135 |
CLA165H | 156W | 347-480VAC | 700mA | 18252lm | 20280lm | 130 |
SunRise LED offers energy efficient LED lighting solutions for many applications. Featuring an innovative design, ONE lamp can be used in SIX types of brackets: canopy surface mount, canopy recessed mount, flood light tilt, tunnel light type, wall pack type, pendant mount type high/low bay. Available in 30 to 240watt (30W/module, range from 1 to 10 modules) models in 4000 to 6000K correlated color temperature (CCT), the Polara lights could be widely used in warehouse, factory, workshop, gym, shop, gas station, parking garage, building, corporate and school campuses and municipalities etc. Our advanced modular design structure helps to realize power savings by reducing the module quantity in order to meet different lumen requirements for street lighting. These lights deliver up to 26180 lumens to support main and ancillary streets, and are available in different IES beam distribution types for different projects.
For 10+ years, we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED Display is well covered.If you experience a hardware failure with a covered product during the plan’s term, simply call your distributor, report the issue, and if after basic troubleshooting the issue cannot be resolved over the phone, you will be given instruction for the next steps to making the necessary repairs.
• Replaceable and upgradeable modular design.
• Durable, die-cast aluminum housing
• Easy assembly, easy installation, and tool-free maintenance.
• Advanced modular structure design for excellent heat dissipation performance
• Universal (120 to 277) volt operation with no re-strike delay; 347-480volt models available by custom order
• High luminance uniformity with accurate light
• Advance light Distribution technology
• One lamp, six bracket types, could be used in many occasions.
• IP65 rating
• Dimmable
The modular die cast frame secures a thermally conductive extruded aluminum alloy heat sink to an independent electrical chamber. The revolutionary design allows for passive cooling and natural self-cleaning ensuring our LED street lights offer superior heat dissipation and eliminating any issues with dust or moisture.
The Polara Series LED light offers different optics manufactured from injection molded acrylic. Optics realize consistent distribution with the scalability to meet customized application requirements.
• Input Voltage: UNIV 100V – 277V
• Optional 347V-480V
• Power Factor: 95%
• Frequency Range: 50/60Hz
• Driver Current: 700Am
• Surge Protection: 4-10Kv
• LED Type: CREE XP-G/Philips Lumiled
• LED driver: Philips ADVANCED LED driver
• LED Lifetime: >50,000 hours
• Color Temperature: 4000K – 6000K
• Color Rendering Index: >70
Cold grey, matt white or matt black.
• Surface Mount
• Pendant Mount
• Recessed Mount
• Wall Mount
• IP Rating: 65
• Operating Temperature: -40° to 55°C
• Operating Humidity: 10-95%
• IES Data Available – LM79 & LM80 National Listed Lab
• Tests In Accordance with IES Standards.
• UL, cUL, CE, CB, RoHS, DLC
