PBOX100

Product Type ： Asynchronous controller
Supply Voltage ： 220V
Control Mode ： Cable
Receiving Card Cascading ： Support
Extension Storage ： U flash disk/SD card
Memory Space ： 512MB
Audio Output ： Supported
Loading Capacity Itself ： –
Network Access Way ： Cable network
Certification ： CE,ROHS,FCC,PSE

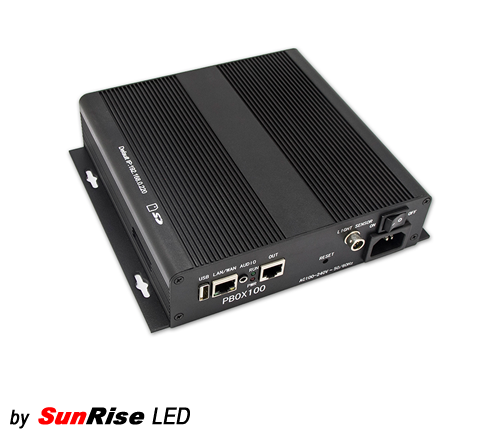

PBOX100 is Nova Asynchronous Controller, designed for industrial use, can be used in all kinds of application environments. It has the following characteristics:

1. Remote play-program publishing;
2. Remote Monitoring;
3. Remote power supply control;
4. Play as per time segment or according to date, week and time;
5. Display window auto-adapting;
6. Multiple LED screens displaying synchronization;
7. Support a variety of media formats, such as video, images, text, weather, clock, countdown, Flash(version 7 and above are not supported temporarily), Word, Excel, Txt etc;
8. Support emergency insert play and immediate notification;
9. Remote playback log managing;
10. USB disc import and Plug-and-Play;
11. Support remote upgrade of application software and firmware program;
12. Flexible driving capacity：512×1024, 960×600, 1024×570, 1536×384, 2048×256 ;
13. Full-scale drive IC support：TI, Toshiba, MBI, Siti, Sumacro, Mingyang, etc. Support DM13H, MBI5024/5036/5034, MBI5042/5041/5030, MBI5040, MBI5050, etc;
14. Support full-color LED screens, static to 1/32 scan, real pixel/virtual pixel;
15. Field frequency as 60Hz;
16. The gray level is configurable, and support 16 bit 65536 level gray scale maximum;
17. Refresh frequency：scanning screen can achieve 3840Hz and static screen can achieve 6000Hz;
18. Support brightness calibration and color calibration;
19. Support led open/short circuit detection of MBI5036, MBI5034, MBI5039, DM13H;
20. On-board temperature and voltage detection;
21. Support (with light sensor NS048C) automatic brightness adjustment；
22. Support multi-function card MFN300.
