High-Performance Outdoor LED Displays
Our outdoor LED displays feature lightweight, slim aluminum panels (1’x2’, 15.5 lbs, 3” thick) for easy transportation and installation. With tile-style assembly, simply frame, mount, insert the modules, and connect them—quick and efficient!
Advanced pixel technology, high gray scale, and refresh rate ICs ensure vivid, smooth visuals. Energy-efficient components deliver 40% energy savings and 50% more brightness than standard displays.
Each panel supports front-mount and back-mount service, offering flexibility for diverse applications. Durable, efficient, and easy to install, our LED displays are the ultimate solution for any project.
Project New Installation
VEM 9mm
Retrofit
VEM 6mm
Before Installation
After Installation
Easy Steps

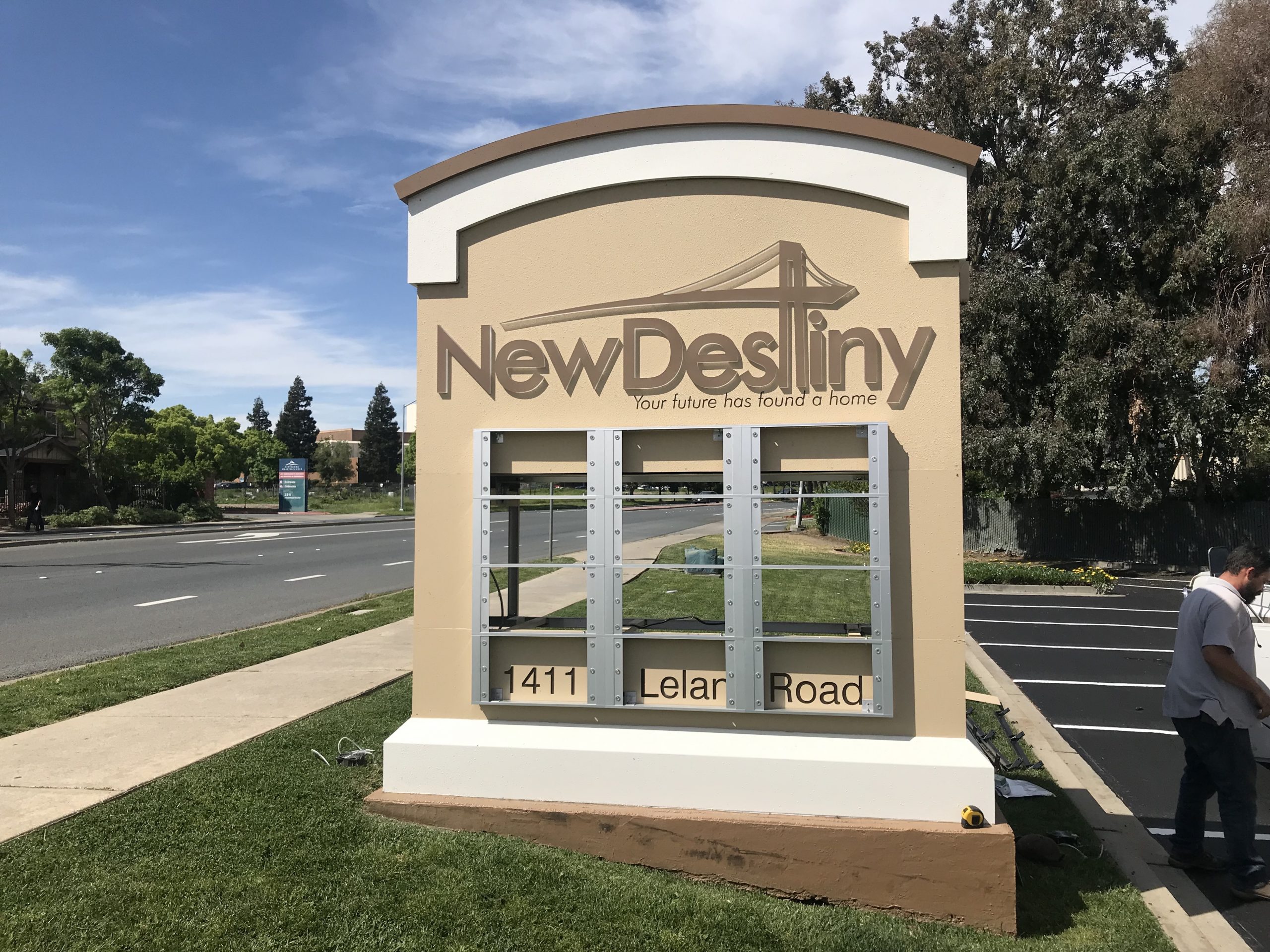

First Step (Installation of Frames)
2nd Step (Adding Modules)
3rd Step (Connecting cables and Controller)
4th Step (Final Test)
Wall Mount Project
VEM 9mm
More Projects
VEM 9mm
Specification
| Working Environment | SMD LED (Common cathode) | ||||||
| Product Name | VEM 9 | VEM 7 | VEM 6 | VEM 5 | VEM 4 | VEM 3 | VEM 2 |
| Pixel Pitch (mm) | 9.525 | 7.62 | 6.35 | 4.76 | 3.81 | 3.17 | 2.38 |
| Pixel configuration | 1R1G1B(SMD) | ||||||
| Density of pixel (Pixel/m2) | 11022 | 17222 | 24800 | 44089 | 6889 | 99225 | 176356 |
| Resolution / Cabinet (pixel) | 32x64 | 40x80 | 48x96 | 64x128 | 80x160 | 96x192 | 128x256 |
| Viewing angle / horizontal | 110° | ||||||
| Viewing angle / Vertical | 90° | ||||||
| LED (Common cathode) | 2727 Common cathode | 1921 Common cathode | 1415 | 1211 | |||
| Average Power / cabinet | 40W | 45W | 49W | 38W | 39W | ||
| Panel Material | Aluminum | ||||||
| Max power / Cabinet | 133W | 132W | 133W | 135W | 169W | 125W | 132W |
| Driving Method | 1/4 scan | 1/5 scan | ¼ scan | ¼ scan | 1/8 scan | 1/16 scan | 1/16 scan |
| Refresh rate | ≥3000Hz | ||||||
| Brightness | ≥8000cdc /m2 | ≥7500cdc /m2 | ≥6000cdc /m2 | ≥5000cdc /m2 | ≥5000cdc /m2 | ||
| Refresh frame frequency | ≥60Hz | ||||||
| Waterproof | IP66 | ||||||
| Cabinet size | 1’x2’ (304.8 x 609.6mm) x 3" Depth | ||||||
| Grey Scale / Display color | 65536/display 16.7m | ||||||
| Brightness adjustment | Manual RGB Each color 256, automatic 8 grades are adjustable | ||||||
| Input Signal | CAT 6 | ||||||
| Control System | SR-T series Controller & sunX Software | ||||||
| Data transmission | CAT6 - 300 FEET, Multi-mode fiber optics transmitter 1500FEET; Single-mode optic fiber 10km. | ||||||
| System Operation Platform | Windows | ||||||
| Average no failure time | ≥10000hrs | ||||||
| Lifetime of Led | ≥100000hrs | ||||||
| Malfunction do rate | <0.0001 | ||||||
| Working Voltage | AC 110v/220v ±15% 50-60HZ | ||||||
| Earth leakage current | <0.1mA | ||||||
| Working / Storage temperature | Working -30ºC~60ºC storage -40ºC~85ºC |
