WX Series
W4

WX Series

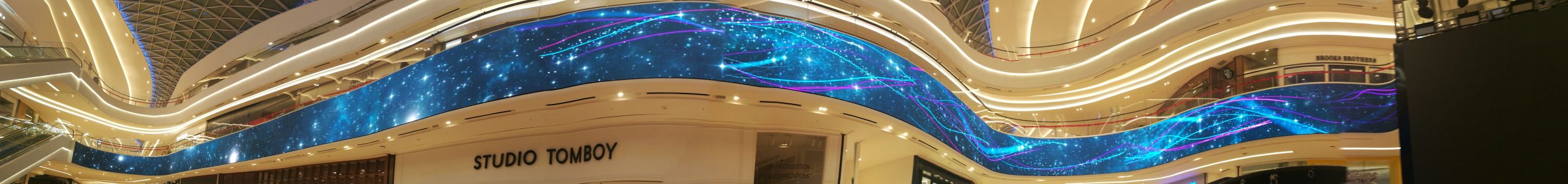

Application: shopping malls, museums, landscapes and bulletin boards etc.

WX2.9/3.9/4.8

Application: shopping malls, museums, landscapes and bulletin boards etc.

Large radian

Single module can form 45 °inner arc and outer arc

Fast and safe installation

The left and right of modules are designed with positioning posts and positioning holes, which makes installation faster and easier.

Ultra-light and ultra-thin

Module thickness: 32 mm (including magnet) Single module weight is only 2.75 Ib (1.25 Kg) (Including cable)

High protection level

The module’s IP rating is IP67, Excellent waterproof and dust-proof performance, Ensuring normal operation in most cases.

WX + LX Joining together

Can realize a variety of creative schemes

Specification


	Parameter	WX2.9	WX3.9	WX4.8
PhysicalParameter	Pixel Configuration	SMD1515	SMD1921	SMD1921
	Pixel Pitch （mm）	2.9	3.9	4.8
	Module Resolution	84X84	64X64	52X52
	Pixel density（pixels/sq.m.）	112896	65536	43264
	Module Dimensions (LxWxH)/（mm）	250x250x32	250x250x32	250x250x32
	Control box material	aluminum	aluminum	aluminum
	Module weight (kg/module)	1.24	1.24	1.24
	Control box Dimensions(LxWxH)/(mm)	340x150x63	340x150x63	340x150x63
	Control box weight(kg/control box)	2.27	2.27	2.27
	Load capacity/control box	6	6	6
	Inner arc minimum radius（mm）	318.5	318.5	318.5
	Outer arc minimum radius（mm）	318.5	318.5	318.5
ElectronicParameter	Color Grayscale (Bit)	14bit	14bit	14bit
	Gray Scale per Color （level)	16384	16384	16384
	Refresh Rate（Hz）	1920	1920	1920
	Driving Type	1/14	1/16	1/9
	Signal Transmission Distance （m）	CAT5 cable:＜100 m; Single mode fiber:＜10 km	CAT5 cable:＜100 m; Single mode fiber:＜10 km	CAT5 cable:＜100 m; Single mode fiber:＜10 km
OpticalParameter	Brightness（nit）	4000	5500	5500
	Optimal Horizontal Viewing Angle（°）	155	150	140
	Optimal Vertical Viewing Angle（°）	Up 45 / down 45	Up 60 / down 65	Up 55 / down 55
ElectricalParameter	AC Input Voltage（V）	AC: 100V～240V	AC: 100V～240V	AC: 100V～240V
	AC Input Frequency（Hz）	50/60	50/60	50/60
	AC Input Power Maximum Value（W/m²）	677.4	720	669
	AC Input Power Typical Value（W/m²）	255.8	240	223
CircumstanceParameter	Storage Temperature（℃）	‐40 ‐60	‐40 ‐60	‐40 ‐60
	Working Temperature (℃)	-30 - 50	-30 - 50	-30 - 50
	IP rating (Front/Rear)	IP67(Control box:IP65)	IP67(Control box:IP65)	IP67(Control box:IP65)
	Storage Humidity (RH)	10%~90% non‐condensing	10%~90% non‐condensing	10%~90% non‐condensing
	Working Humidity (RH)	10%~90% non-condensing	10%~90% non-condensing	10%~60% non-condensing
	Lifetime Typical Value（hrs）	≥100000	≥100000	≥100000
Installation Type	Cabinet installation type	Fix	Fix	Fix

W4 series can be widely used in various occasions, and it can be assembled into different shapes,high-definition and ultra-high definition are all available!

Simple design

Only one cable is connected to the module, which makes the LED screen seems tidy.

Updated protection

Connecting parts of module and cables are designed with rubber pad, which makes the module can reach IP65 for both front and rear sides;there are waterproof rubber rings between the plastic sheets, and they have been screwed with 4 screws to fasten the module, which is more sturdy adn safe.

High definition outdoor product

Pixel 4, High definition outdoor product which have better display effect. And it can achieve arc-shaped display project.

Wide viewing angle

Horizontal viewing angle all achieve 155°,vertical viewing angle all achieve 90°

High brightness

High Brightness reached to 5000 nits, the high brightness ensures good visibility in direct sunlight.

Specification


	Parameter	W4
PhysicalParameter	Pixel Configuration	SMD1921
	Pixel Pitch （mm）	4
	Pixel matrix per module	80X64
	Pixel density（pixels/sq.m.）	62500
	Module Dimensions (WxH)/（mm）	320x256
	Module weight (kg/module)	1.1
	Inner arc minimum radius（mm）	407
	Outer arc minimum radius（mm）	407
ElectronicParameter	Color Grayscale (Bit)	14bit
	Gray Scale per Color （level)	16384
	Refresh Rate（Hz）	1920-3840
	Driving Type	1/16
	Signal Transmission Distance （m）	CAT5 cable:＜100 m; Single mode fiber:＜10 km
OpticalParameter	Brightness（nit）	5000
	Optimal Horizontal Viewing Angle（°）	155
	Optimal Vertical Viewing Angle（°）	90
ElectricalParameter	AC Input Voltage（V）	AC: 100V～240V
	AC Input Frequency（Hz）	50/60
	AC Input Power Maximum Value（W/pcs）	49
	AC Input Power Typical Value（W/pcs）	16.4
CircumstanceParameter	Storage Temperature（℃）	‐40 ‐60
	Working Temperature (℃)	-20 - 50
	IP rating (Front/Rear)	IP65(Control box: IP65)
	Storage Humidity (RH)	10%~90% non‐condensing
	Working Humidity (RH)	10%~90% non-condensing
Installation Type	Cabinet installation type	Fix
