Versa Wave

Creation changes the world!

Always have unique structure
or for special use

WNX
WN Series

WNX

Creation changes the world

Application: shopping malls, museums, landscapes and bulletin boards etc.

Structure

8 modules completes a circle whose minimum radius is 318.5 mm

Quick and safe installation

Module bottom shell is designed with limits to prevent over bent PCB from snap and abnormal working.

Ultra-light, ultra thin

Module thickness 29 mm ( with magnetic pillar thickness) Single module weight is only 1.7Ib (0.79kg) (cables excluded)

Cost-effective

Single control box control 8 modules max. Simple control box and individual control box are optional for WNX soft module

High gray scale and high refresh rate

Refresh rate is up to 3840 HZ, gray scale 14-16 bit, displaying vividly.

Wide visible angle

Horizontal visible angle 155° , upward visible angle 65 °, downward visible angle 60 degree (WNX 2.6)


	Parameter	WNX1.9	WNX2.6	WNX2.9	WNX3.9
PhysicalParameter	Pixel Configuration	SMD1010	SMD2020
	Pixel Pitch （mm）	1.9	2.6	2.9	3.9
	Pixel matrix per module	129x129	96X96	94x94	64x64
	Pixel density（pixels/sq.m.）	262144	147456	112996	65536
	Module Dimensions (LxWxH)/（mm）	250x250x29	250x250x29	250x250x29	250x250x29
	Module weight (kg/module)	0.79
	Inner arc minimum radius（mm）		318.5
	Outer arc minimum radius（mm）		318.5
ElectronicParameter	Color Grayscale (Bit)	14-16 (Tentative)	14bit	14-16 (Tentative)	14-16 (Tentative)
	Gray Scale per Color （level)	16384 (Tentative)	16384	16384 (Tentative)	16384 (Tentative)
	Refresh Rate（Hz）	1920-3360 (Tentative)	3840	1920-3360 (Tentative)	1920-3360 (Tentative)
	Driving Type	1/32	1/24	1/21	1/16
	Signal Transmission Distance （m）	CAT5 cable:＜100 m; Single mode fiber:＜10 km
OpticalParameter	Brightness（nit）	900	1000
	Optimal Horizontal Viewing Angle（°）	170 (Tentative)	155	145 (Tentative)	150 (Tentative)
	Optimal Vertical Viewing Angle（°）	140 (Tentative)	Up 65 / down 60	110 (Tentative)	100 (Tentative)
ElectricalParameter	AC Input Voltage（V）	AC: 100V～240V
	AC Input Frequency（Hz）	50/60
	AC Input Power Maximum Value（W/m²）	508 (Tentative)	452.6	508 (Tentative)
	AC Input Power Typical Value（W/m²）	168 (Tentative)	151	168 (Tentative)
CircumstanceParameter	Storage Temperature（℃）	‐40 ‐60
	Working Temperature (℃)	0 - 40
	IP rating (Front/Rear)	IP40/IP20
	Storage Humidity (RH)	10%~90% non‐condensing
	Working Humidity (RH)	10%~90% non-condensing
Installation Type	Cabinet installation type	Fix

Creation changes the world

Application: shopping malls, museums, landscapes and bulletin boards etc.

Ultra slim and light

Made of polycarbonate materials, the display is ultra slim and light. For instance, WN4 weighs 1.76Ib (0.8kg) /module and 21.5Ib (9.76kg) /sqm and it is only 29mm thick; Wave series is so easy to be shaped and transported that it can satisfy variety of applications.

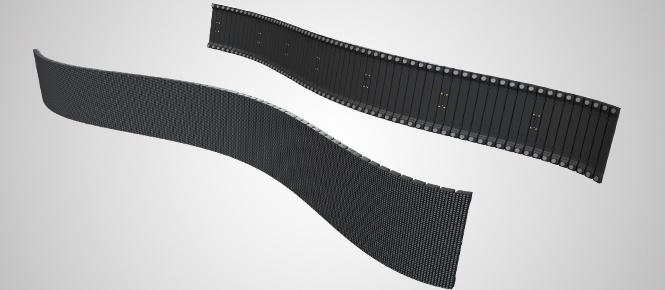

Creative curved displays, flexible and artistic

The creative “WN4” displays have unique artistic beauty. The excellent design contributes to the horizontal and vertical deformed bending installation, making it possible to achieve “S”shaped, round, concave, convex and curved screen.

Front and rear access for easy installation and maintenance

Front and rear access are available for easy and fast installation within one minute with the maintenance tool. Plug-gable power signal lines (hot-plugging available) are used to connect the modules and connect the module and the control box, thus achieving rapid maintenance and replacement of each module.

Seamless, safe and pretty

Our unique patented techniques ensure seamless splicing and concealed PCB as well as protect electronic parts, wires，power supplier, integrated signal lines,making the cabinet safe, pretty, and convenient to plug in and out.

Specification


	Parameter	WN2.6	WN3.2	WN4	W6
PhysicalParameter	Pixel Configuration	SMD1515	SMD1515	SMD2020	SMD3528
	Pixel Pitch （mm）	2.6	3.2	4	6.667
	Pixel matrix per panel	120X96	100X80	80X64	48x48
	Pixel density（pixels/sq.m.）	140625	97656	62500	22500
	Module Dimensions (LxWxH)/（mm）	320X256	320X256	320X256	320x320
	Panel material	PC	PC	PC	PC
	Module weight (kg/panel)	0.9	0.9	0.85	1
	Inner arc minimum radius（mm）	458.4	458.4	458.4	458.4
	Outer arc minimum radius（mm）	366.5	366.5	366.5	382
ElectronicParameter	Color Grayscale (Bit)	13-15bit	14bit	12bit	12-16bit
	Gray Scale per Color （level)	16384	16384	16384	4096‐65536
	Refresh Rate（Hz）	1920--3840	1920--3840	1920--3840	1920-3840
	Driving Type	1/24	1/20	1/16	1/8
	Signal Transmission Distance （m）	CAT5 cable:＜100 m; Single mode fiber:＜10 km	CAT5 cable:＜100 m; Single mode fiber:＜10 km	CAT5 cable:＜100 m; Single mode fiber:＜10 km	CAT5 cable:＜100 m; Single mode fiber:＜10 km
OpticalParameter	Brightness（nit）	800-1000	800-1000	800-1000	1000
	Optimal Horizontal Viewing Angle（°）	160	160	160	160
	Optimal Vertical Viewing Angle（°）	160	160	160	160
ElectricalParameter	AC Input Voltage（V）	AC: 100V～240V	AC: 100V～240V	AC: 100V～240V	AC: 100V～240V
	AC Input Frequency（Hz）	50/60	50/60	50/60	50/60
	AC Input Power Maximum Value（W/m²）	690	625	488	294
	AC Input Power Typical Value（W/m²）	230	208	162	98
CircumstanceParameter	Storage Temperature（℃）	‐40 ‐60	‐40 ‐60	‐40 ‐60	‐40 ‐60
	Working Temperature (℃)	0 - 40	0 - 40	0-40	0‐40
	IP rating (Front/Rear)	IP40/IP20	IP40/IP20	IP40/IP20	IP40/IP20
	Storage Humidity (RH)	10%~90% non‐condensing	10%~90% non‐condensing	10%~90% non‐condensing	10%~90% non‐condensing
	Working Humidity (RH)	10%~60% non-condensing	10%~60% non-condensing	10%~60% non-condensing	10%~60% non-condensing
	Lifetime Typical Value（hrs）	≥100000	≥100000	≥100000	≥100000
Installation Type	Cabinet installation type	Fix	Fix	Fix	Fix
