SolarWrap | Vertical Solar Cylinder
SolarWrap | Vertical Solar Cylinder
SolarWrap | Vertical Solar Cylinder
Designed in U.S.A and assembled in P.R.C, SolarWrap vertical solar cylinder represents an innovative solution tailored for pole-mounted applications. Distinguished from conventional solar panels, poles equipped with the SolarWrap cylinder exhibit exceptional aesthetic appeal, seamlessly integrating into serene environments while retaining the appearance of traditional poles, albeit enhanced with beauty. Its versatility extends to various applications including solar light poles, solar camera poles, and solar traffic signs.
Employing SUNPOWER cells manufactured in the U.S.A., the SolarWrap boasts remarkable power generation efficiency, capable of flexing without cracking and outperforming traditional monocrystalline solar panels by 10% in low-light conditions. Protected by tempered glass, it withstands wind, sand, and UV exposure, resisting dust accumulation and ensuring a service life exceeding 20 years. Multiple SolarWrap units can be mounted on a single pole to enhance power generation.

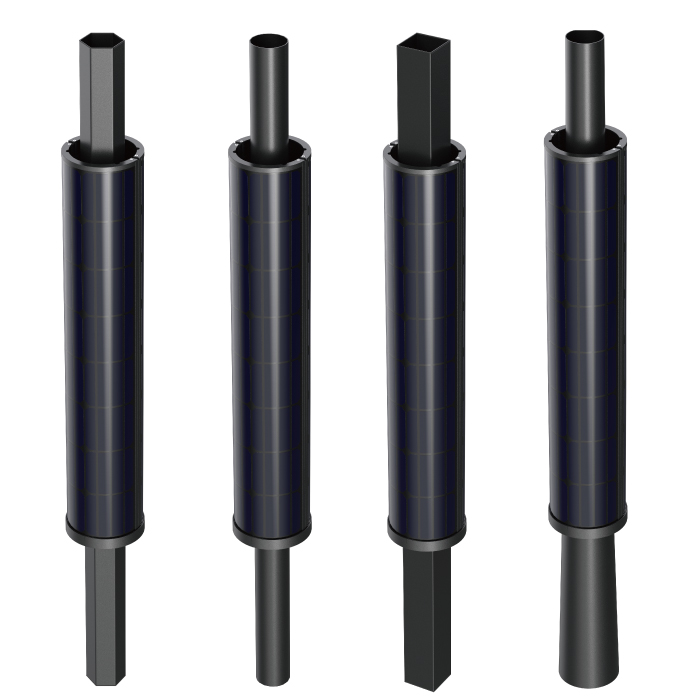

Featuring a modular design, the SolarWrap is easily installable and adaptable to diverse pole shapes such as round, hexagonal, octagonal, or conical, within specified diameter limits. Retrofitting existing poles, including traditional metal halide street lights into solar-powered poles is achievable with the SolarWrap. To cater to varied applications, three models of the SolarWrap are available, ensuring compatibility with diverse project requirements.
Key Componente & Advantages
Fit to Different Size
SolarWrap vertical solar cylinder is able to cater to different sizes and different shapes of mounting poles。
Snow Free in Winter
There is no risk of less or even no power generation from solar panel caused by snow accumulation in winter time.
Patented Design
Original designs of intellectual property are made by our team and protected with rich experience.
360° Full Day Charging
Half area of round solar tube is facing to sun all the time to ensure continous charging all day long, generating more power.
Dust & Sand Free
Sand & dust will not accumulate on the vertically installed solar panel. no need to clean the solar panels frequently
Modular Installation
It adopts modular concepts and uses male and female sliding installation structures to make the installation easier。
No Risk from Hailstone
There is no any risk of damage from hailstone which will smash the glass of solar panel.
Strong Wind Resistance
Smaller area facing wind, it has very great wind resistant performance up to 160km/H.
Aesthetics Appearance
The poles adopted vertical PV cylinder blend into environments perfectly without disturbing the beauty of the view.
Main Specification
Model
S80
S100
S140
Pmax
80W
100W
140W
Vmp
6V | 9V
6V | 9V
9V
Imp
13.3A | 8.9A
16.6A | 11.1A
15.56A
Dimension
D160*1080mm
D190*1080mm
D240*1080mm
Cell Type
SUNPOWER
●
●
Cell efficiency
>22.5%
●
●
Material
Tempered Glass
●
●
Max Pole Dia
90mm max
130mm max
180mm max
Net Weight
7.50kg
9.50kg
10.80kg
Cable & Connector
2.5mm with MC4 plugs
●
●
Lifetime
>20 years
●
●
Operating Temp.
-20℃ ~ +70℃
●
●
Warranty
5 Years
●
●
Certificates
CE RoHS IEC
●
●
You May Ask
What's the superiority of round solar modules compared with hexagon module?
More exquisite appearance and higher space utilization
Can this vertical solar module be used for other applications?
It can be used for solar monitors, solar signal light, solar powered speakers, etc
What is the IK rating of the module?
It uses 3.2mm tempered glass, reaching to IK08
Can you make the length of each solar module longer? For example: 2m per module?
Due to the tempered glass technology, for moment, we are not able to make it longer.
What is the use efficiency of round solar module comparing with regular flat solar panel?
It is only 25~30% depends on the latitude of the projects located in.
Can i use multi-modules in one pole?
Yes, Multi solar modules can be connected in parallel to get high power up to 2000W in one diagram.
Do you accept OEM for this SolarWrap?
Yes, MOQ 500 pcs per item
