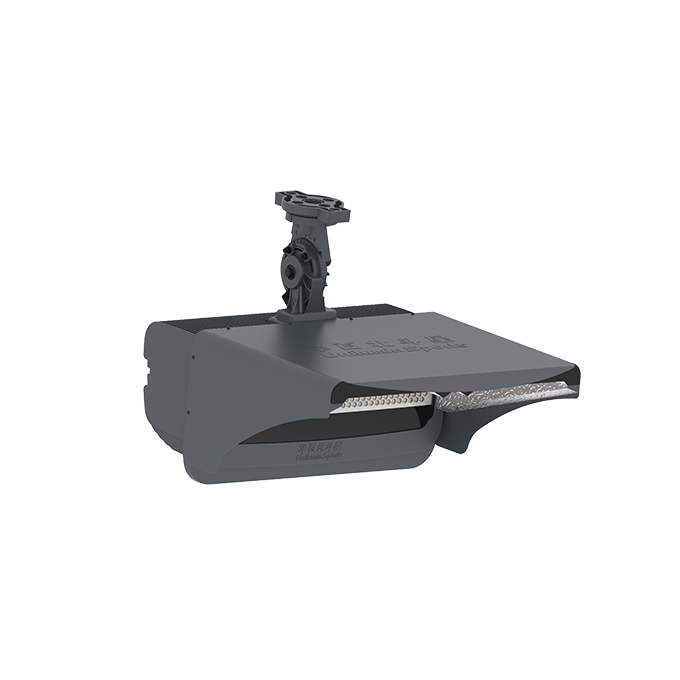

Ares Sports Light
Precision Optics, Built to Withstand
- Parameter table — Power
- 1000 / 1200 / 1500 W
- Parameter table — Luminous flux
- 130,000 / 156,000 / 180,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 140,000 hours
- Power factor / input
- ≥0.97 / AC100–240 V, 50/60 Hz
- CCT / CRI
- 5700K±200K, customizable · Ra = 80 with R9 > 0
Specifications
- Parameter table — Power
- 1000 / 1200 / 1500 W
- Parameter table — Luminous flux
- 130,000 / 156,000 / 180,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 140,000 hours
- Power factor / input
- ≥0.97 / AC100–240 V, 50/60 Hz
- CCT / CRI
- 5700K±200K, customizable · Ra = 80 with R9 > 0
- Family dimensions
- 650 × 570 × 761 mm with light cover and universal joint
- Optics
- Type I UNI-846; Type II UNI-595 / UNI-908; Type III UN-596; Type V UNI-518 / UNI-750
Applications
Widely Used in High-Mast LightingSports Stadiums of All LevelsParking Lots
Parameter table
Published model range
| Model | Power | Luminous flux |
|---|---|---|
| BDX-1000U | 1000 W | 130,000 lm |
| BDX-1200U | 1200 W | 156,000 lm |
| BDX-1500U | 1500 W | 180,000 lm |
Feature summary
Key features
- Extra visors
- Compact and light weight
- Horizontal aim 0–180° and vertical aim 0–160°
- WF2 corrosion resistance
- Die-cast aluminum with oxidation and thermal performance
- HDTV standard
- Flicker free
