LED Lighting / Flood Lights

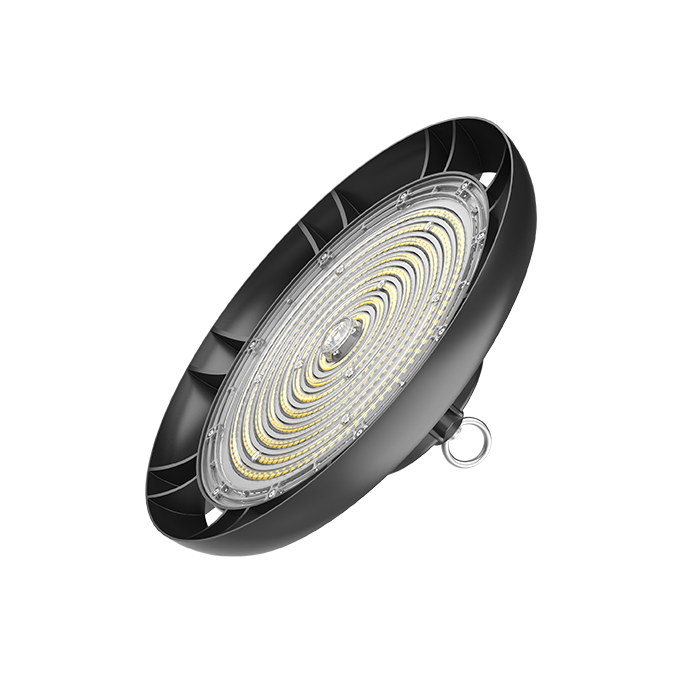

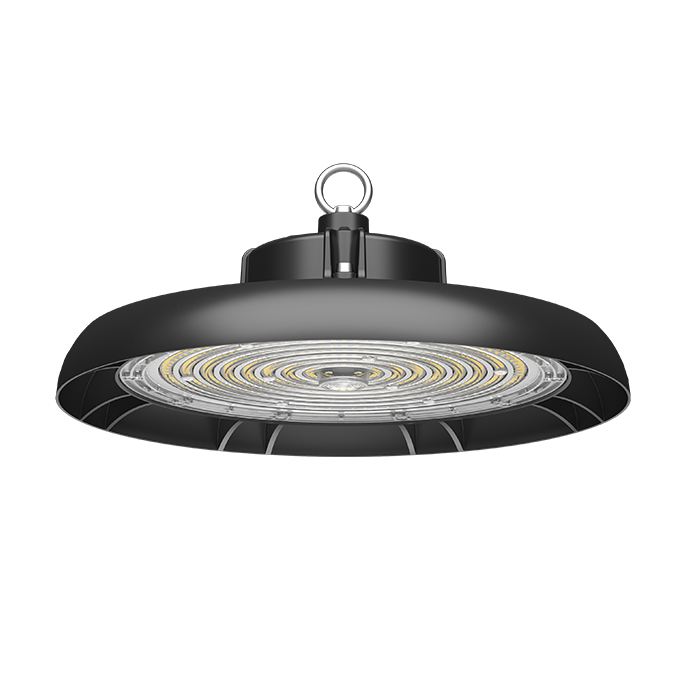

Edge II Large Area Light
Built to Last, Smarter by Design
- Feature summary — Power
- 100–240 W
- Feature summary — Max output
- 45,600 lm
- Feature summary — Efficacy
- up to 190 lm/W
- CCT
- 1800K–6500K
- IP / IK
- IP65 / IK08
- Feature summary — Working temperature
- −30°C to 50°C
Specifications
- Feature summary — Power
- 100–240 W
- Feature summary — Max output
- 45,600 lm
- Feature summary — Efficacy
- up to 190 lm/W
- CCT
- 1800K–6500K
- IP / IK
- IP65 / IK08
- Feature summary — Working temperature
- −30°C to 50°C
- Parameter table — Working temperature
- −35°C to 50°C
- Feature summary — Lifetime
- >100,000 hours
- Feature summary — warranty
- Warranty 5
- Parameter table — Lifetime
- 50,000 hours
- Humidity / storage
- 10–90% RH / −30°C to 50°C
- Housing / color
- die-cast aluminum + PC / black
- Surge protection
- L-N 6 kV / L/N-G 6 kV
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- Parameter table — Efficacy
- 150 / 170 / 190 lm/W at 5000K, Ra80, 90°, 25°C
- Parameter table — CCT / SDCM / CRI
- 3000 / 4000 / 5000 / 5700 / 6500K · ≤5 · 70 / 80
- Optics
- UNI-HBE7-60 / UNI-HBE7-90 / UNI-HBE7-120
- Accessory
- surface mount bracket / AL visor
Applications
FactoriesWarehousesLogistics CentersLarge SupermarketsIndoor Sports VenuesMaintenance Sheds
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-HBE7-1-100 | 100 W | 15,000 / 17,000 / 19,000 lm | φ259 × 106 mm | 1.8 kg |
| UNI-HBE7-2-150 | 150 W | 22,500 / 25,500 / 28,500 lm | φ285 × 111 mm | 2 kg |
| UNI-HBE7-3-200 | 200 W | 30,000 / 34,000 / 38,000 lm | φ341 × 120 mm | 2.4 kg |
| UNI-HBE7-4-240 | 240 W | 36,000 / 40,800 / 45,600 lm | φ373 × 137 mm | 2.55 kg |
| UNI-HBE7G2-1-100 | 100 W | 15,000 / 17,000 / 19,000 lm | Φ236 × H101 mm | 1.45 kg |
| UNI-HBE7G2-2-150 | 150 W | 22,500 / 25,500 / 28,500 lm | Φ286 × H106 mm | 1.85 kg |
| UNI-HBE7G2-3-200 | 200 W | 30,000 / 34,000 / 38,000 lm | Φ336 × H115 mm | 2.35 kg |
| UNI-HBE7G2-3-240 | 240 W | 36,000 / 40,800 / 45,600 lm | Φ336 × H115 mm | 2.45 kg |
Feature summary
Key features
- 100–240 W with up to 45,600 lm
- Up to 190 lm/W
- 60° / 90° / 120° PC optics

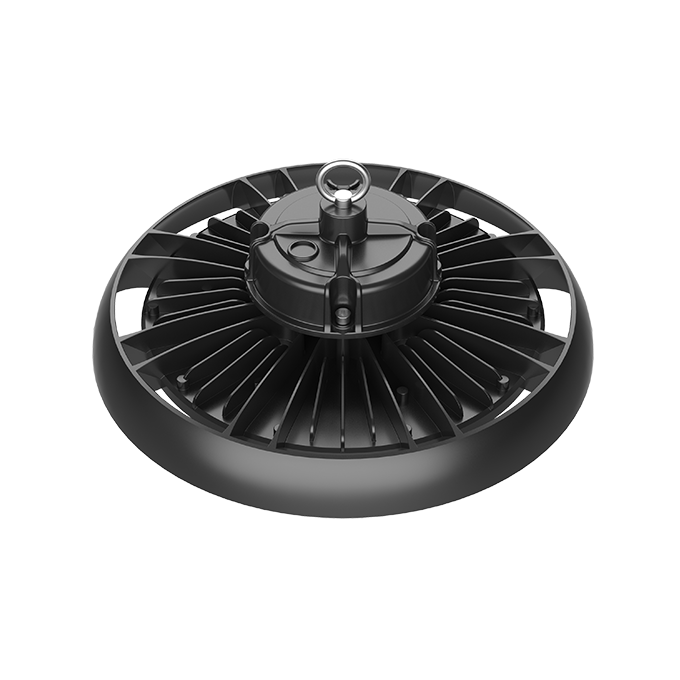

- Die-cast aluminum heat sinks
- Hanging chain, sag rod, or U-bracket mounting
- IP65 / IK08
- Lifespan >100,000 hours
Flood & Large Area Lights
Explore flood and large-area lighting
Specify the Edge II Large Area Light
Tell us your project requirements and our team will prepare a project-specific quote.
