LED Lighting / Street Lights

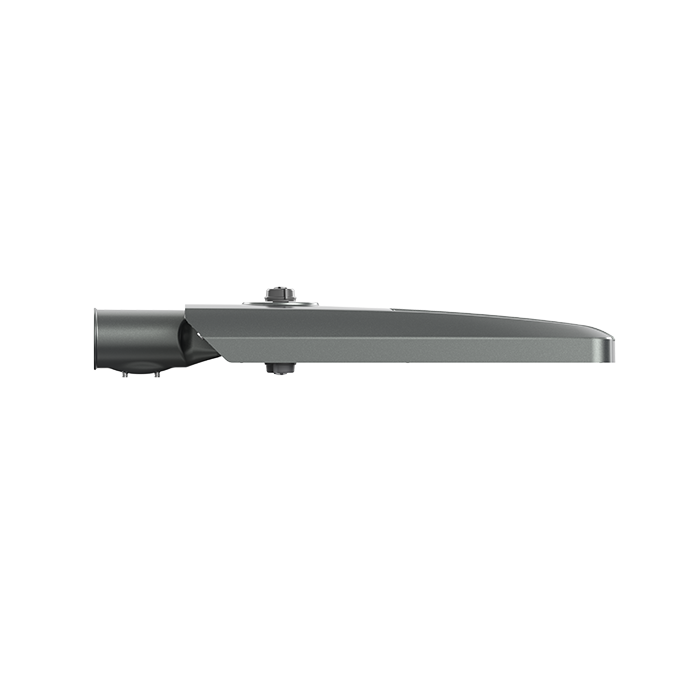

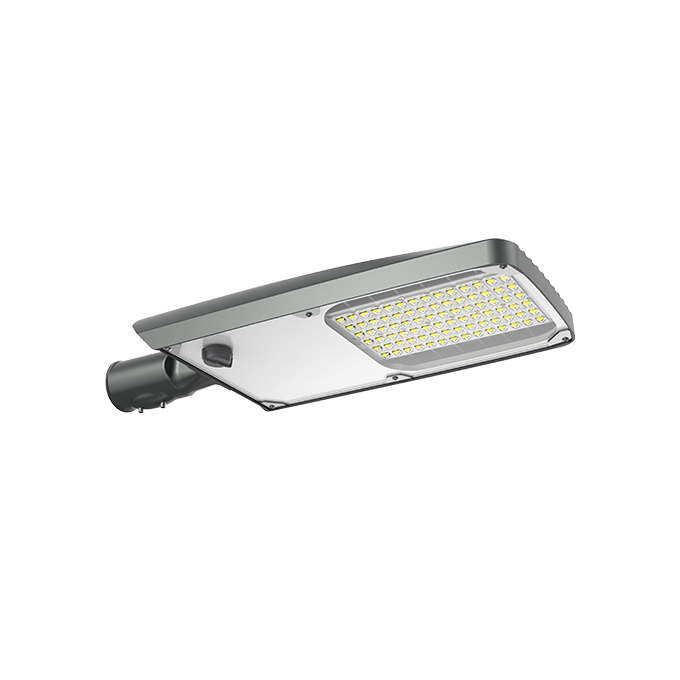

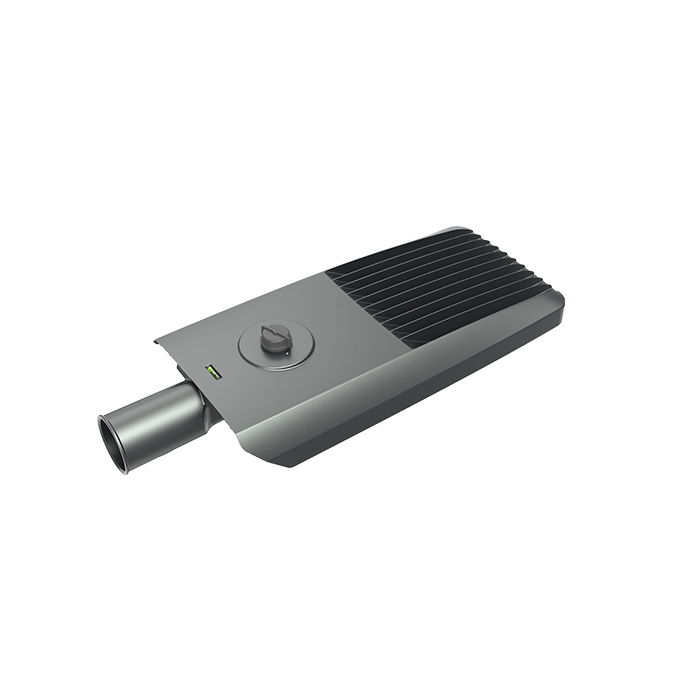

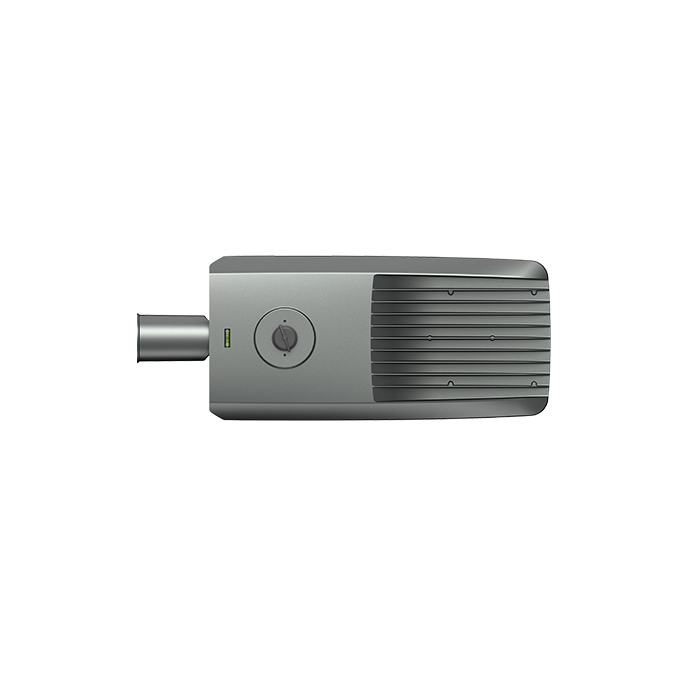

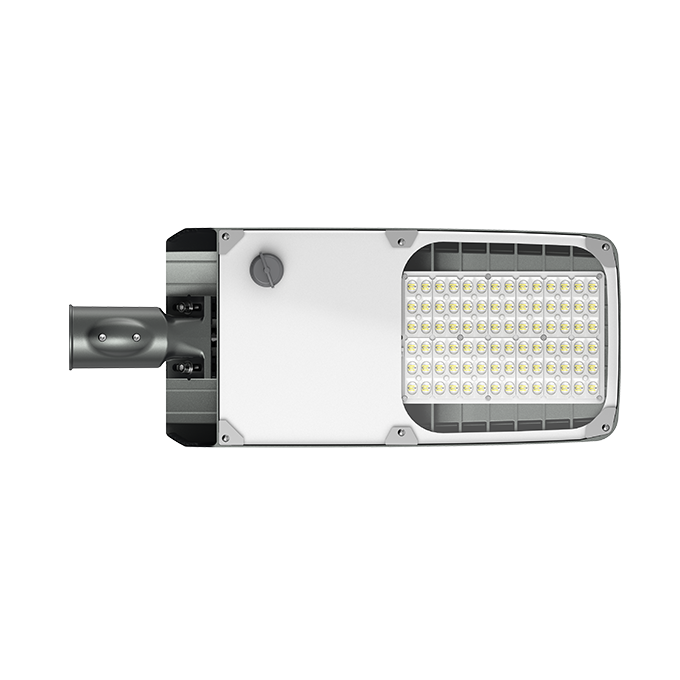

Mola Street Light
Best Value, Reliable Performance
- Parameter table — power ranges
- 10–40 W / 41–90 W / 91–150 W
- Input
- AC100–277V · 50/60Hz
- CCT
- 2200K–6500K · DarkSky 2200K–3000K
- Protection
- IP66 · IK09
- Parameter table — life
- 100,000 hrs
- Power factor
- ≥0.95
Specifications
- Parameter table — power ranges
- 10–40 W / 41–90 W / 91–150 W
- Input
- AC100–277V · 50/60Hz
- CCT
- 2200K–6500K · DarkSky 2200K–3000K
- Protection
- IP66 · IK09
- Parameter table — life
- 100,000 hrs
- Power factor
- ≥0.95
- Operating / storage
- −40 to 50°C / −40 to 55°C
- Humidity
- 10–90% RH
- Housing
- Die-cast + tempered glass + adjustable adaptor
- Drivers
- Tridonic / Inventronics / Philips / Sosen
- LED
- 5050 / 3030
- Family dimension
- 615.8 × 245.3 × 85.5 mm
- Optics
- Type II Short (618), Type II Medium (710), Type II Short (711), Type III Medium (712), Type III Short (718), Type III Medium (830), Type II Short (831), Type I Short (904), Type III Short (906)
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Dimensions |
|---|---|---|
| UNI-STF4-1 | 10–40 W | 615.8 × 245.3 × 85.5 mm |
| UNI-STF4-2 | 41–90 W | 615.8 × 245.3 × 85.5 mm |
| UNI-STF4-3 | 91–150 W | 615.8 × 245.3 × 85.5 mm |
Feature summary
Key features
- Wind Level 17
- PMMA and full-piece ultra-clear tempered glass with 10-year anti-yellowing
- Auto power-off switch and level gauge
- Optional NEMA and ZHAGA
- IP66 and IK09
