LED Lighting / Flood Lights

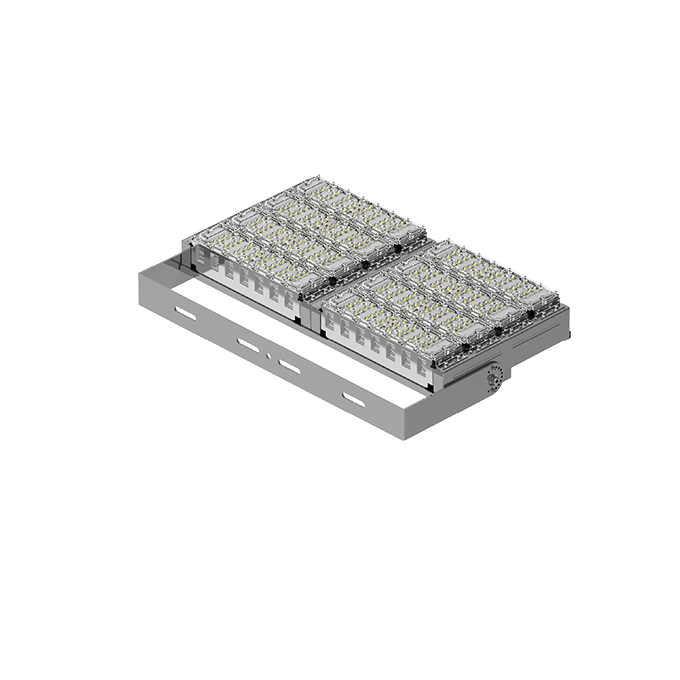

ModuLux Flood Light
Professional Modules, Energy-Smart Performance
- Feature summary — Power
- 40–480 W
- Feature summary — Max output
- 91,200 lm
- Parameter table — Max output
- 72,000 lm
- Feature summary — Efficacy
- up to 190 lm/W
- Parameter table — Efficacy
- Up to 150 lm/W @2300K 5050LED, Ta=25°C
- Feature summary — CCT
- 1800K–6500K
Specifications
- Feature summary — Power
- 40–480 W
- Feature summary — Max output
- 91,200 lm
- Parameter table — Max output
- 72,000 lm
- Feature summary — Efficacy
- up to 190 lm/W
- Parameter table — Efficacy
- Up to 150 lm/W @2300K 5050LED, Ta=25°C
- Feature summary — CCT
- 1800K–6500K
- Parameter table — CCT
- 3000±300 / 4000±300 / 5000±300 / 5700±500 / 6500±500K
- Feature summary — IP / IK
- IP66 / up to IK10
- Parameter table — IP
- IP66
- Feature summary — Lifetime
- >100,000 hours
- Parameter table — Lifetime
- 50,000 hours
- Operating / storage temperature
- −40°C to 45°C / −40°C to 55°C
- Humidity
- 10–90% RH
- Light source
- Philips / Osram / Samsung 3030 or 5050
- Input / power factor
- AC100–277 V, 50/60 Hz / ≥0.98
- Housing
- aluminum alloy + PC
- Install height / hardware
- 10–30 m / M10 screw and nut
- Tilt
- −50° to 140°
- CRI / beam angle
- >70 / Type II
- Max casting area
- 0.05 / 0.05 / 0.07 / 0.1 / 0.13 / 0.16 / 0.2 m²
- Optics
- Type I UNI-846 / Type II UNI-595 / Type II UNI-908 / Type III UNI-596 / Type V UNI-518 / Type V UNI-750
Applications
High-mast intersectionsAirport viaductsPorts and coastal areasLarge manufacturing and maintenance workshopsSports and entertainment venuesBillboardsLandscape and ground lightingOutdoor parking lots
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-PR05-1 | 40–60 W | 6,000–9,000 lm | 338 × 148 × 222 mm | 3.4±0.2 kg |
| UNI-PR05-2 | 80–120 W | 12,000–18,000 lm | 338 × 148 × 222 mm | 3.4±0.2 kg |
| UNI-PR05-3 | 150–200 W | 22,500–30,000 lm | 338 × 226 × 222 mm | 4.2±0.2 kg |
| UNI-PR05-4 | 220–240 W | 33,000–36,000 lm | 340 × 304 × 302 mm | 6.0±0.2 kg |
| UNI-PR05-5 | 300 W | 45,000 lm | 340 × 382 × 302 mm | 7.7±0.2 kg |
| UNI-PR05-6 | 360 W | 54,000 lm | 340 × 460 × 302 mm | 8.5±0.2 kg |
| UNI-PR05-8 | 480 W | 72,000 lm | 655 × 310 × 291 mm | 13.1±0.2 kg |
Feature summary
Key features
- 40–480 W with up to 91,200 lm
- Up to 190 lm/W
- CCT 1800K–6500K
- PC + die-cast aluminum construction
- −50° to 140° mounting
- Modular design
- IP66 / up to IK10
- Lifespan >100,000 hours
- CE / RoHS / IK08
