LED Lighting / Street Lights

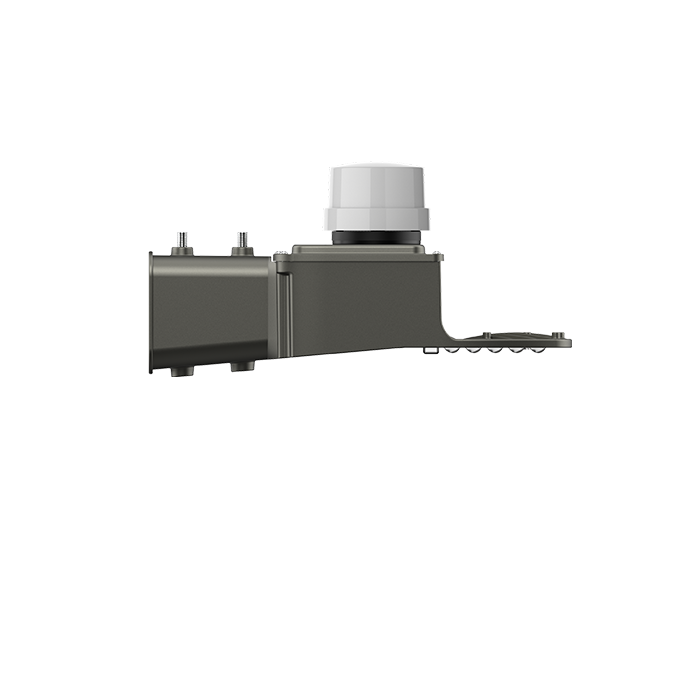

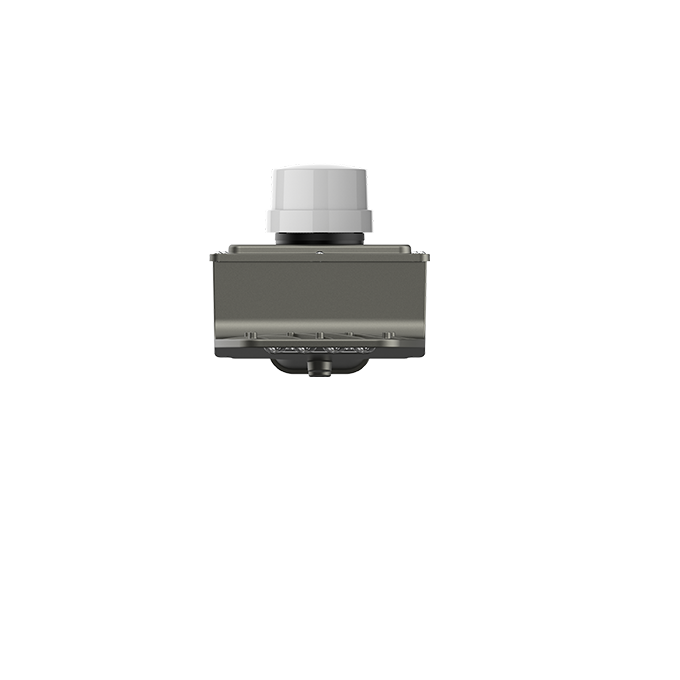

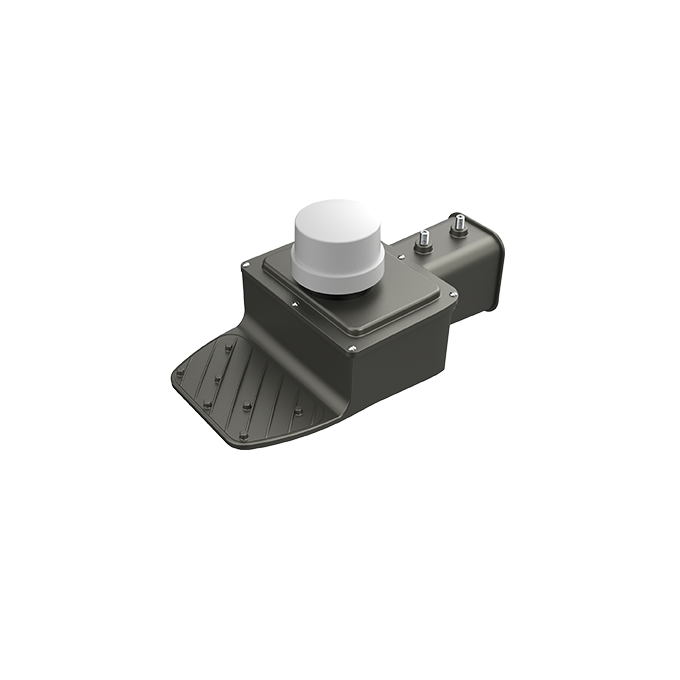

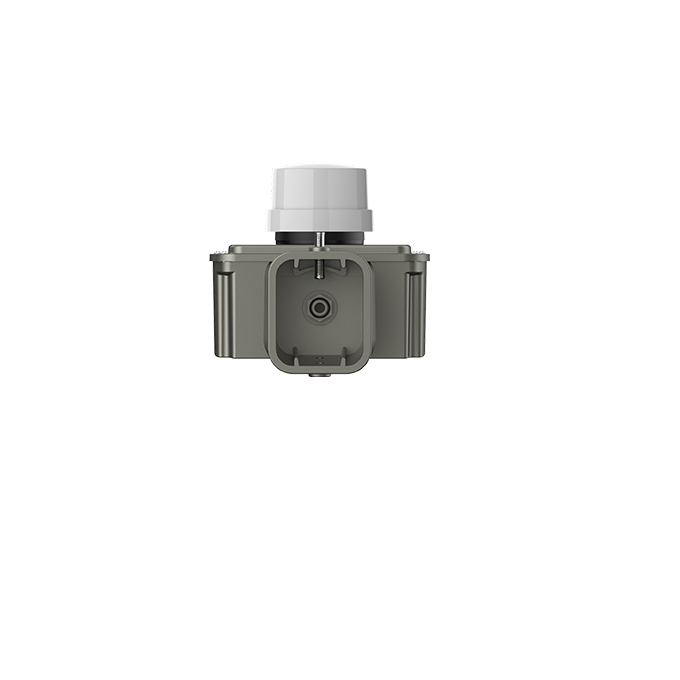

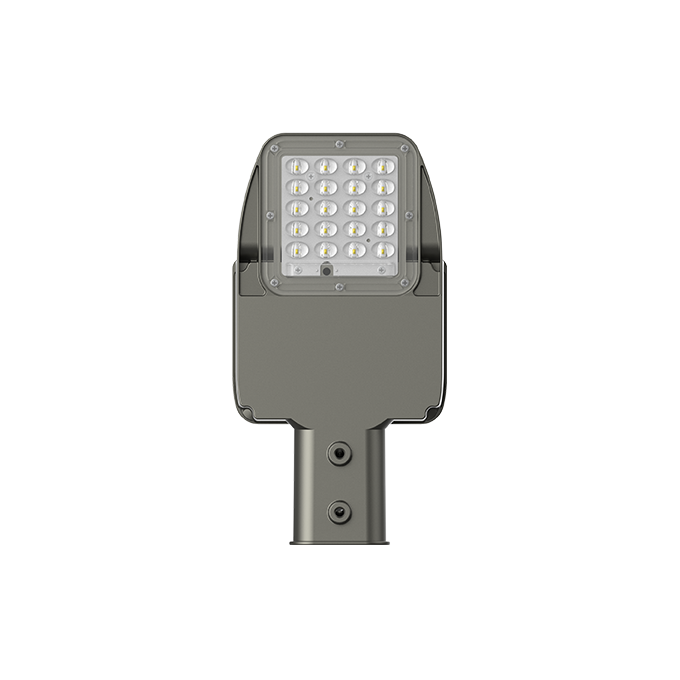

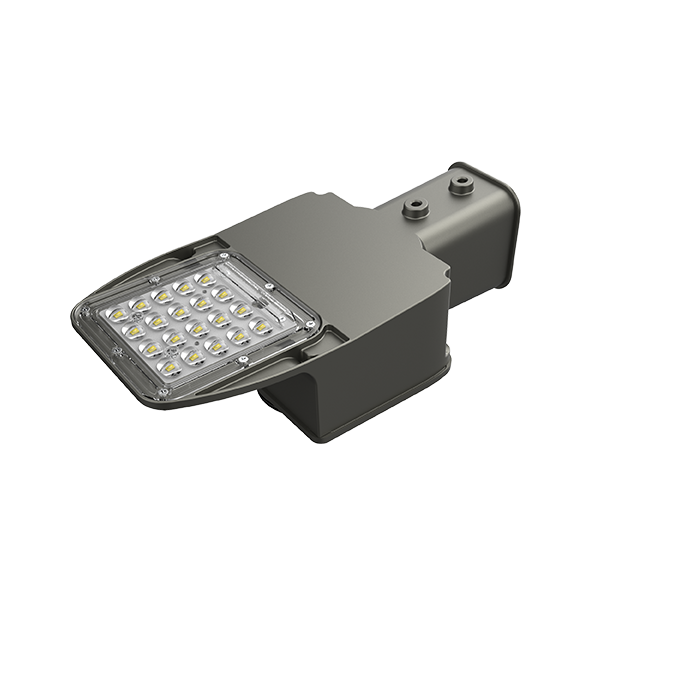

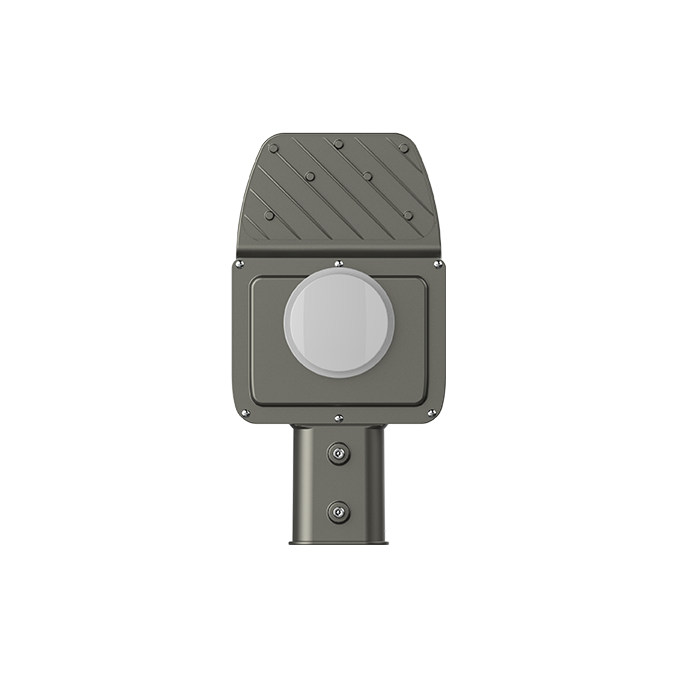

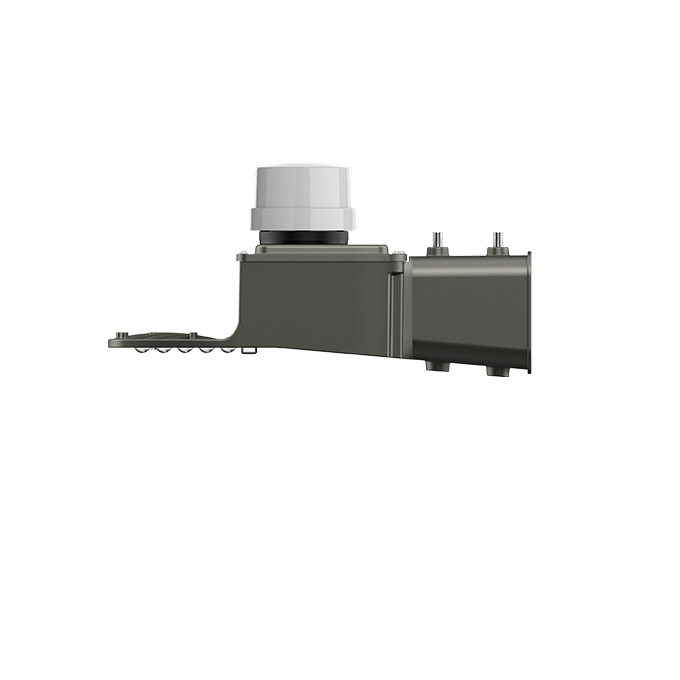

NanoLite Street Light
Professional Design, Efficient and Durable
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 190 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — power
- 20–200 W across five model ranges
- Parameter table — efficacy
- 130–160 lm/W at 4000K
Specifications
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 190 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — power
- 20–200 W across five model ranges
- Parameter table — efficacy
- 130–160 lm/W at 4000K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700K
- Protection
- IP66
- Feature summary — impact
- up to IK10
- Parameter table — impact
- IK08
- Feature summary — lifespan
- >100,000 hours
- Input
- AC100–277V · 50/60Hz
- Parameter table — PF
- Published values are 0.9, 0.90 / 0.95, and 0.95; they are not mapped one-to-one to all five models
- Operating / storage
- −40 to 50°C / −40 to 65°C
- Humidity
- 10–90% RH
- Housing
- Die-cast aluminum + PC
- Drivers / LED
- Inventronics / Philips / Moso / Sosen · Osram
- CRI
- 70
- EPA
- 0.05 / 0.1 / 0.12 / 0.14 / 0.16 m²
- Optics
- Type II UNI-677 / 700 / 717 / 732 / 839 / 840-00 / 840-01
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Dimensions | Net weight |
|---|---|---|---|
| UNI-STC5-1 | 20–30 W | 317 × 165 × 97 mm | 1.8±0.2 kg |
| UNI-STC5-2 | 40–60 W | 361 × 165 × 97 mm | 2.0±0.2 kg |
| UNI-STC5-3 | 80 W | 361 × 185 × 97 mm | 2.3±0.2 kg |
| UNI-STC5-4 | 90–120 W | 429 × 214 × 99 mm | 2.8±0.2 kg |
| UNI-STC5-5 | 150–200 W | 515 × 232 × 98 mm | 3.7±0.2 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Side entry Φ33–60 mm
- NEMA and Zhaga support
- Certifications: CE / CB / NOM / EPD / LM79 / TM21 / Salt spray / Vibration
- Type II optics UNI-677 / 700 / 717 / 732 / 839 / 840-00 / 840-01
