LED Lighting / Flood Lights

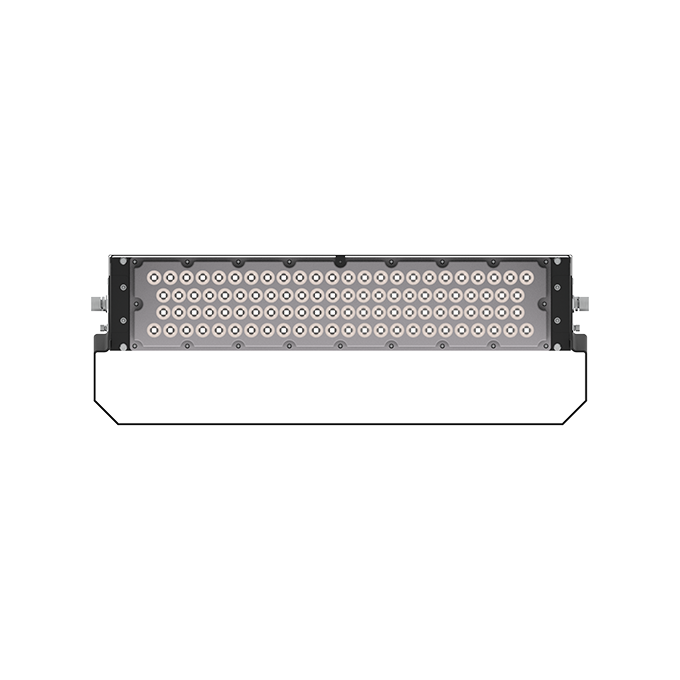

MS-A Sports Light
True Color, Rock-Solid Reliability
- Parameter table — Power
- 500 / 750 / 1000 / 1200 / 1500 W
- Parameter table — Luminous flux
- 65,000–195,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 90,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 5000±300K / 5700K±500K · Ra ≥ 80
Specifications
- Parameter table — Power
- 500 / 750 / 1000 / 1200 / 1500 W
- Parameter table — Luminous flux
- 65,000–195,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 90,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 5000±300K / 5700K±500K · Ra ≥ 80
Applications
Widely Used in High-Mast LightingSports Stadiums of All LevelsParking Lots
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| MS-500A | 500 W | 65,000 lm | 617 × 301 × 384 mm |
| MS-750A | 750 W | 97,500 lm | 618 × 404 × 440 mm |
| MS-1000A | 1000 W | 130,000 lm | 627 × 596 × 478 mm |
| MS-1200A | 1200 W | 156,000 lm | 627 × 720 × 478 mm |
| MS-1500A | 1500 W | 195,000 lm | 627 × 857 × 586 mm |
Feature summary
Key features
- High CRI for sports levels
- Optical-grade PC lens
- Anti-glare shield

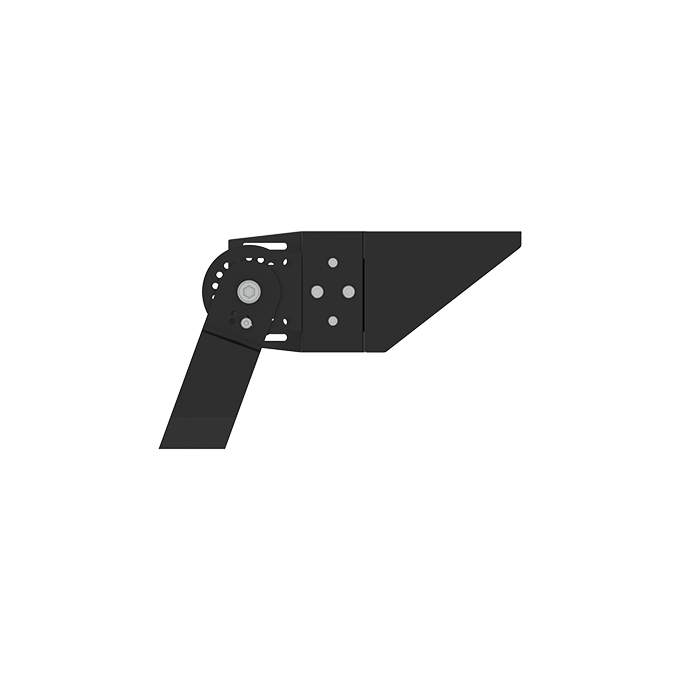

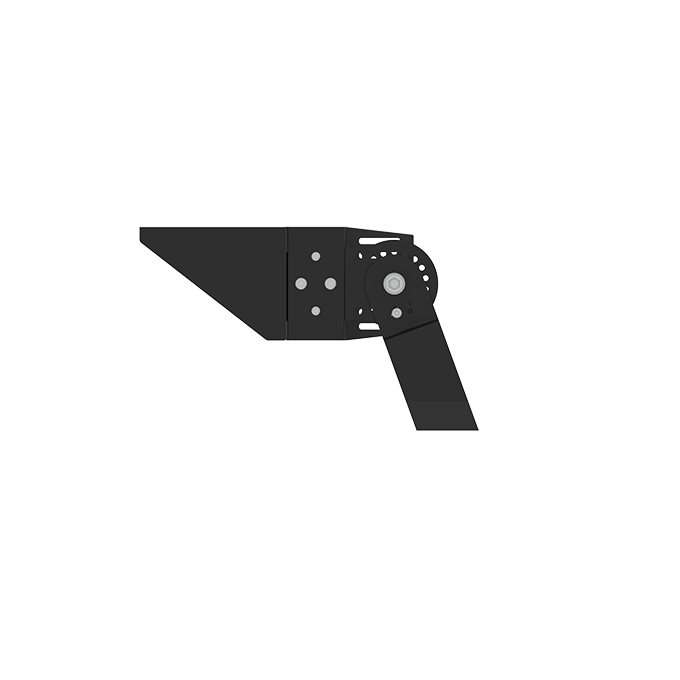

- U-bracket adjustable up to 180°
- IP67 / IK08
