BNXII Series
Free Splicing, Free Form
Indoor commercial LED display built for creative and custom-shaped installations. Ideal for retail flagship stores, shopping malls, exhibition halls, hotel lobbies and brand experience centers.
Build Your Screen
See your screen in the room before you buy it
Pick a BNX model and a size. See it to scale next to a 6 ft person, with the details — then get a quote with shipping.
Drawn to scale on an inside wall next to a 6 ft person. The picture stretches to your screen's shape — just like real content would. Pixels too fine to show at this zoom.
1. Pick a model
Panel size
2. Pick your size
Click the grid — each box is one 500 × 1000 mm panel.
8 × 2 panels = 13′ 1″ × 6′ 7″
3. How high on the wall?
Bottom of the screen, measured from the floor.
Bigger than 16 × 6? We build any size — ask in your quote.
Your screen details
- Model
- BNX P2.5 · 2.5 mm pitch
- Panels
- 8 across × 2 high = 16
- Size
- 13′ 1″ W × 6′ 7″ H (4.00 × 2.00 m)
- Display area
- 86.1 sq ft
- Resolution
- 1,600 × 800 px
- Total pixels
- 1,280,000
- Brightness
- 800 cd/m²
- Best viewing from
- about 8 ft and farther
- Weight
- ≈ 325 lb (147 kg)
- Power
- We'll include it in your quote
- Rating
- Indoor · front & rear service
4. Get a quote with shipping
Indoor Creative Solution
Free Splicing, Free Form
Loading…
BNXII SERIES — Modular indoor creative LED panels
BNX SERIES
Free Splicing, Free Form
Indoor commercial LED display built for creative and custom-shaped installations. Ideal for retail flagship stores, shopping malls, exhibition halls, hotel lobbies and brand experience centers.
1.5 / 1.9 / 2.5 / 3.9
Pixel Pitch (mm)
600–800
Brightness (nit)
409,600 max
Pixel Density (px/m²)
9.2 kg
Max Panel Weight
PRODUCT GALLERY
Creative Splicing in Action
PRODUCT OVERVIEW
High-integration design, efficient installation
Pixel Pitch
P1.5 / P1.9 / P2.5 / P3.9 mm
Max Panel Weight
9.2 kg
Standard Weight
5.2 kg / panel
Material
Die-cast Aluminum
Depth
40 mm
Panel Sizes
500×1000, 1000×250
Extended Sizes
500×500, 500×750, 750×250, 500×250
CREATIVE SPLICING

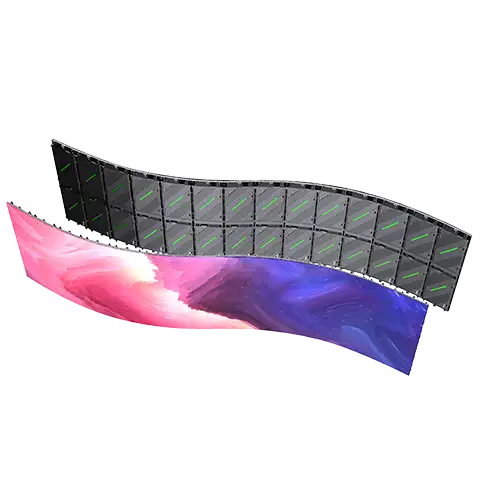

Curve, Combine, Compose — Freely

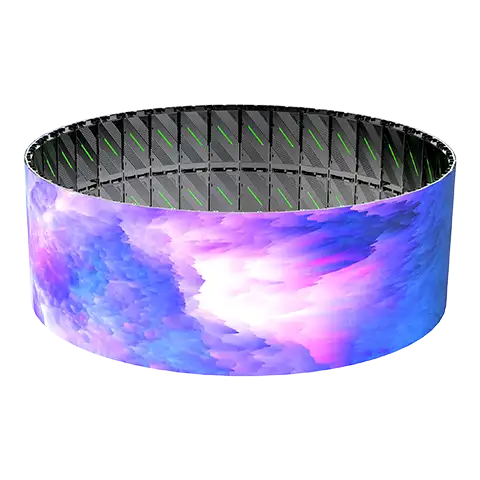

Curve possible — concave and convex assemblies.

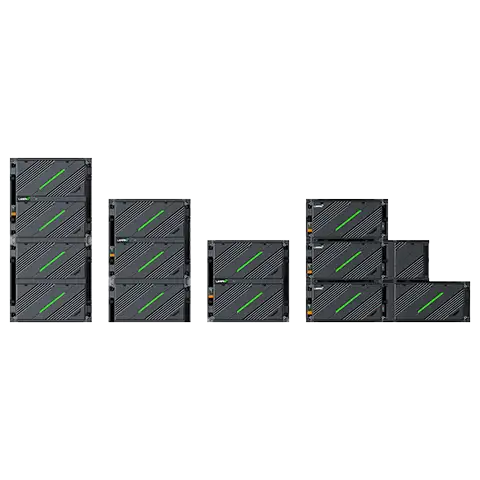

Make shapes freely — mix panel sizes to match any site requirement.
Different panel sizes can be mixed in a single screen.
Fits more on-site installation requirements than fixed-size systems.
PIONEERING PCB
Smart-IC PCB — Calibration That Travels With the Panel
Flash IC stores and manages calibration data on the panel itself, with auto-readback for easier distribution.
More optional functions
- Spot detection
- Smart PSU voltage detection
- Signal detection
- Module temperature monitoring
90 DEGREE ROTATION
Surprised Splicing
Cabinets and modules can be rotated 90 degrees for additional creative configurations. The cabinet rotates counterclockwise while the HUB card rotates clockwise; modules keep the same orientation as the HUB card.
Cabinet rotation: counterclockwise
HUB card rotation: clockwise
Modules: aligned with HUB card
INSTALLATION
Diverse Installation Methods
Built for any creative venue.
Stacking
Floor-stacked installations for retail floors, exhibitions and brand activations.
Hanging
Suspended panels for lobbies, atriums and event ceilings.
Shop Window
Front-mounted creative displays inside retail vitrines and storefronts.

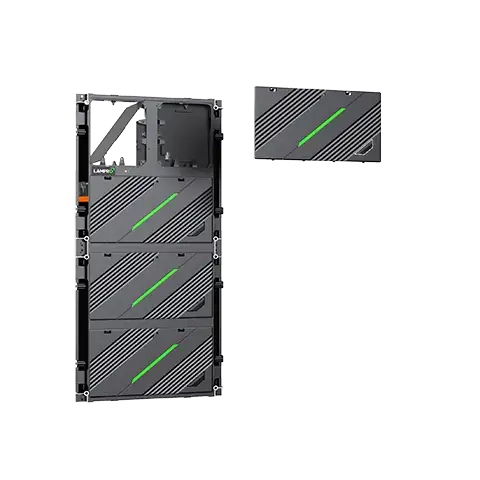

Full Front and Rear Maintenance
Magnetic modules with both-side service access keep operations efficient.
IN THE FIELD
Deployed Worldwide
Real BNX Series installations.
TRUE ICONSIAM Shopping Mall
Thailand · BNX equivalent · 230 sqm
TOYOTA 4S Shop
Thailand · BNX equivalent · 317 sqm
