LED Lighting / Flood Lights

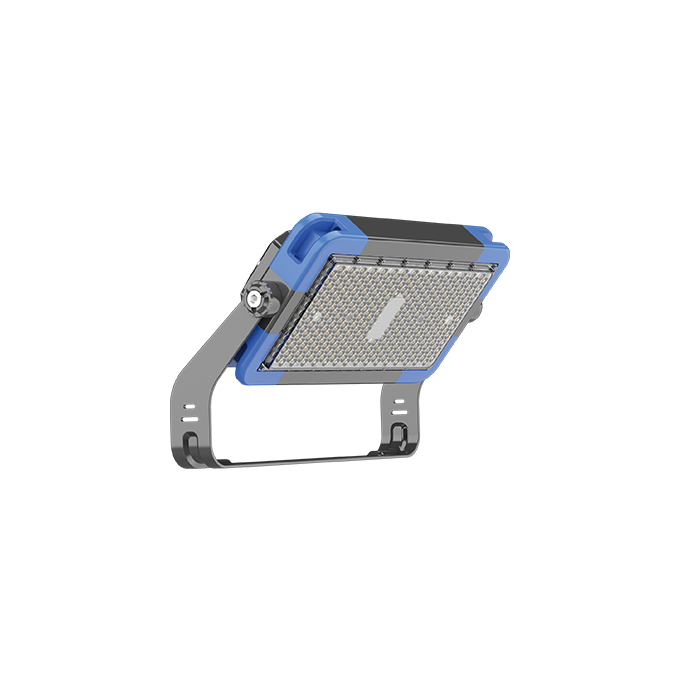

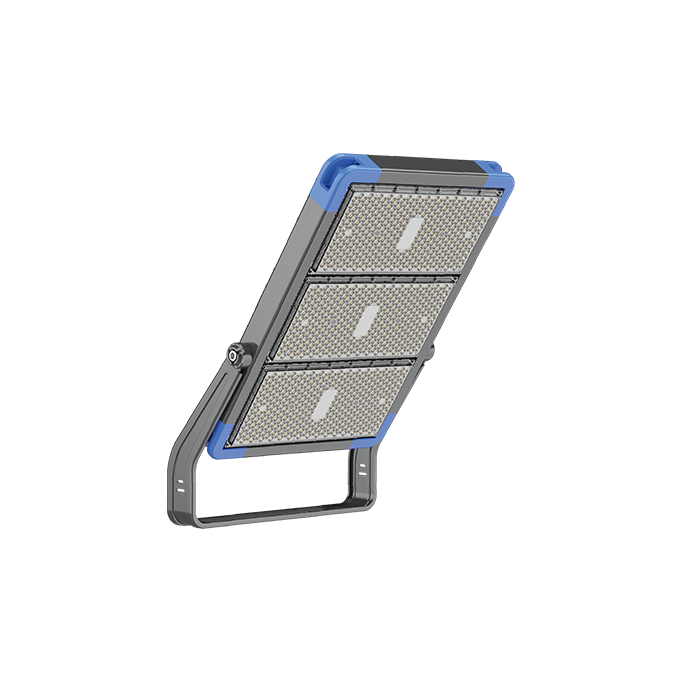

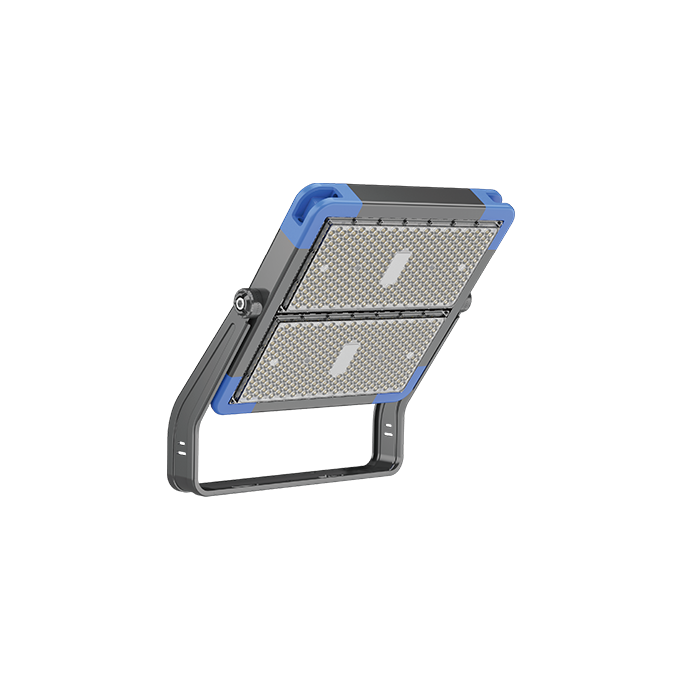

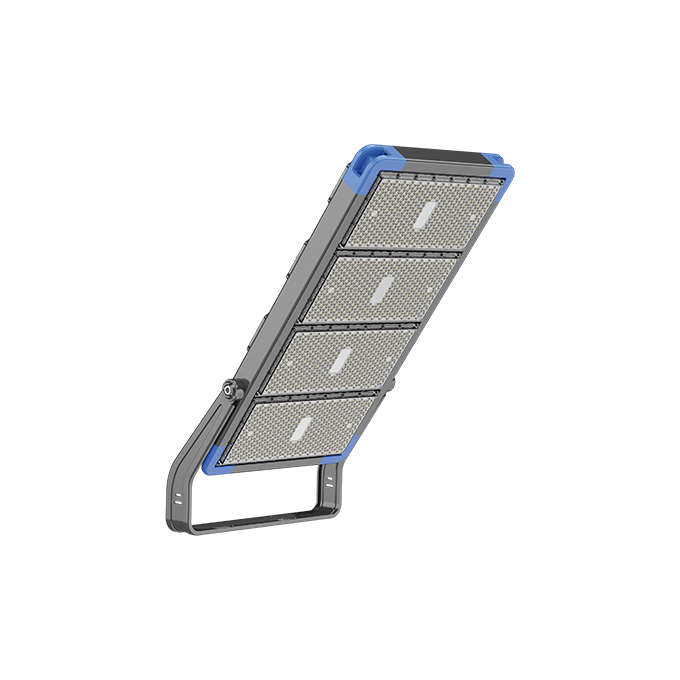

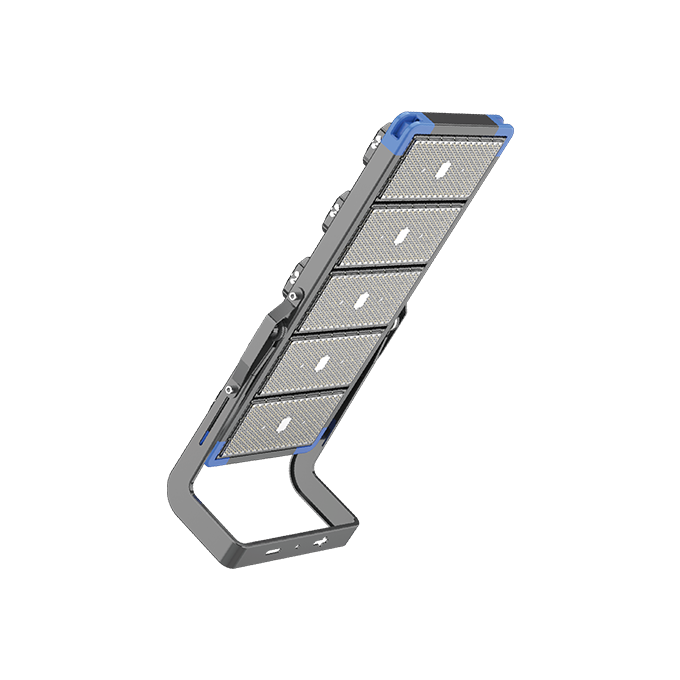

Unicorn Sports Light
Precision Lighting, Reliable Efficiency
- Parameter table — Power
- 250 / 500 / 750 / 1000 / 1250 W
- Parameter table — Luminous flux
- 32,500–175,000 lm
- IP / IK
- IP66 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 4000±300 / 5000±300 / 5700±500 / 6500±300 K · Ra 70 / 80
Specifications
- Parameter table — Power
- 250 / 500 / 750 / 1000 / 1250 W
- Parameter table — Luminous flux
- 32,500–175,000 lm
- IP / IK
- IP66 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 4000±300 / 5000±300 / 5700±500 / 6500±300 K · Ra 70 / 80
- Optics
- Type I UNI-846; Type II UNI-595 / UNI-908; Type III UN-596; Type V UNI-518 / UNI-750
Applications
Widely Used in High-Mast LightingSports Stadiums of All LevelsParking Lots
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| UNI-PRE5-1-250 | 250 W | 32,500–35,000 lm | 222 × 462 × 111 mm |
| UNI-PRE5-2-500 | 500 W | 65,000–70,000 lm | 399 × 462 × 111 mm |
| UNI-PRE5-3-750 | 750 W | 97,500–105,000 lm | 584 × 462 × 111 mm |
| UNI-PRE5-4-1000 | 1000 W | 130,000–140,000 lm | 761 × 462 × 111 mm |
| UNI-PRE5-5-1250 | 1250 W | 162,500–175,000 lm | 952 × 502 × 111 mm |
Feature summary
Key features
- Heavy-duty design
- Quick-adjustable modules ±30°
- Tool-free LED module replacement
- Optional visor
- Beam angles 10° / 25° / 45° / 60° / 90° / 130° × 30° × 60°
- Optional 10 / 20 kV surge protection
