LED Lighting / Street Lights

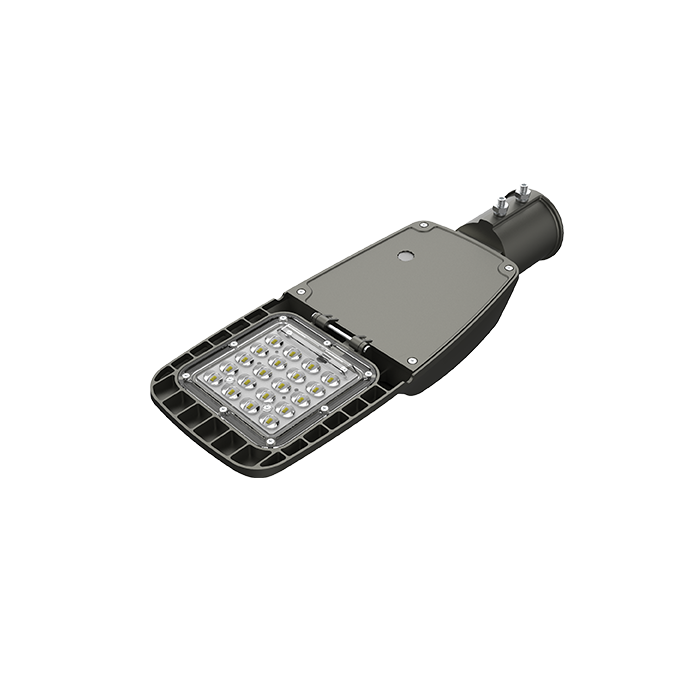

Nano Street Light
Accurate Optics, Popular and Complete
- Feature summary — power
- 20–280 W
- Feature summary — max output
- 50,400 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — power
- 15–300 W across five model ranges
- Parameter table — luminous flux
- Published dual ranges: 1,950–39,000 / 2,250–45,000 lm
Specifications
- Feature summary — power
- 20–280 W
- Feature summary — max output
- 50,400 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — power
- 15–300 W across five model ranges
- Parameter table — luminous flux
- Published dual ranges: 1,950–39,000 / 2,250–45,000 lm
- Parameter table — efficacy options
- 130 or 150 lm/W
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Protection
- IP66
- Feature summary — impact
- up to IK10
- Parameter table — impact
- IK08
- Feature summary — lifespan
- >100,000 hours
- Parameter table — life
- 50,000 hrs
- Input
- AC100–277V · 50/60Hz
- Power factor
- ≥0.92 / ≥0.92 / ≥0.95 / ≥0.95 / ≥0.95
- Operating / storage
- −40 to 45°C / −40 to 55°C
- Humidity
- 10–90% RH
- Housing
- Die-casting aluminum alloy
- Drivers / LED
- Inventronics / Philips / Moso / Sosen · Osram / Lumileds
- CRI
- 70
- EPA
- 0.08 / 0.08 / 0.145 / 0.18 / 0.18 m²
- Optics
- Type II UNI-677 / 695 / 700 / 717 / 732 / 733
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STA7-0 | 15–40 W | 1,950–5,200 / 2,250–6,000 lm | 430 × 155 × 91 mm | 2.0±0.2 kg |
| UNI-STA7-1 | 50–60 W | 6,500–7,800 / 7,500–9,000 lm | 490 × 176 × 86 mm | 2.0±0.2 kg |
| UNI-STA7-4 | 70–100 W | 9,100–13,000 / 10,500–15,000 lm | 605 × 240 × 89 mm | 3.7±0.2 kg |
| UNI-STA7-3 | 120–150 W | 15,600–19,500 / 18,000–22,500 lm | 715 × 270 × 94 mm | 6.5±0.2 kg |
| UNI-STA7-5 | 180–300 W | 23,400–39,000 / 27,000–45,000 lm | 800 × 318 × 91 mm | 6.8±0.2 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Side entry Φ33–60 mm
- NEMA and Zhaga support
- Certifications: CE / CB / NOM / EPD / LM79 / TM21 / Salt spray / Vibration
- Type II optics UNI-677 / 695 / 700 / 717 / 732 / 733
