LED Displays / LS Pro Series
LS Pro Series
Premium outdoor LED display series with waterproof IP65/IP54 module design, high brightness up to 7000 nits, and front maintenance capability. Engineered for 24/7 outdoor fixed installations, digital billboards, and large-scale signage.
GO BIG, STAY STRONG, BUILT TO LAST
Outdoor advertising LED screen designed for large-format commercial display environments. Ultra-high brightness, robust structure, and flexible installation make it the preferred choice for outdoor advertising screens, building wraps, highway billboards, and open-air commercial venues.
6.67 / 8 / 10
Pixel Pitch (mm)
7,500–10,000
Brightness (nit)
7,680 Hz
Refresh Rate

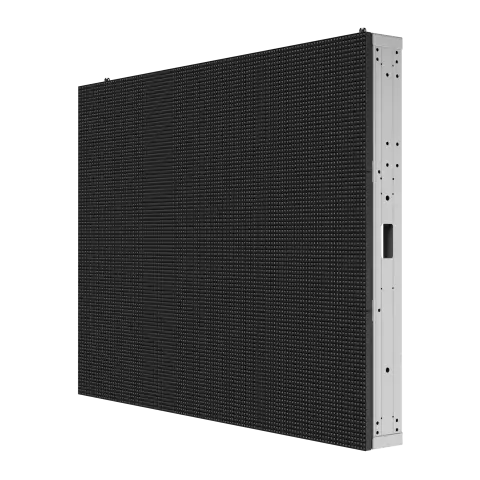

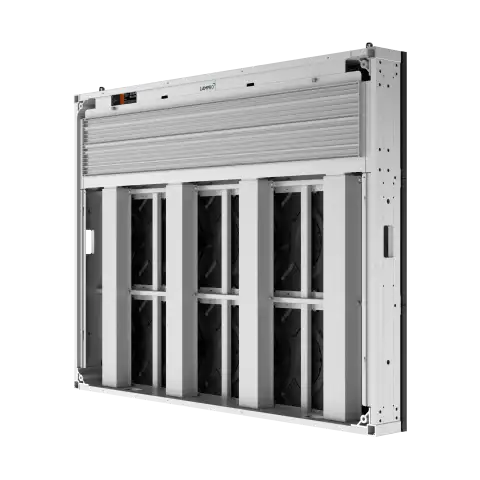

PRODUCT GALLERY
Built for Outdoor at Scale
KEY FEATURES
Brilliant Visuals. Heavy-Duty Build. Anywhere Installation.
Brilliant Visual Effect
10,000-nit ultra-high brightness, 7,680 Hz high refresh rate, and 14–16 bit grayscale combine for smooth, clear viewing in any daylight condition.
Flexible Installation
Seamless integration delivers outstanding performance across diverse installation environments.

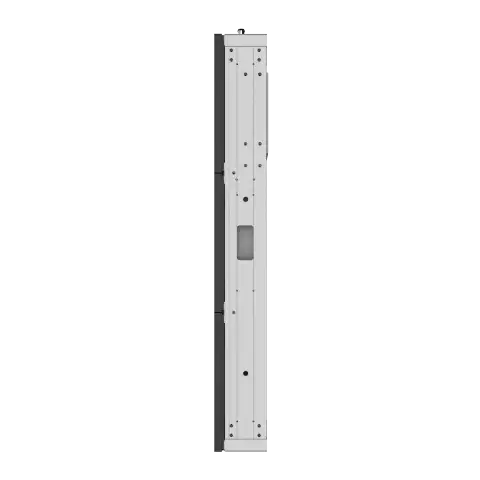

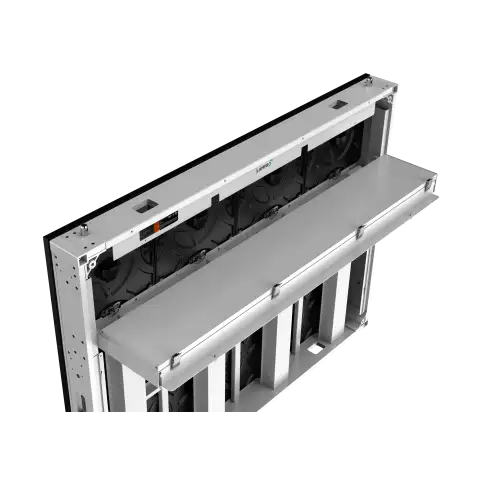

Steady & Solid Structure
Heavy-duty cabinet with reinforced construction — twice as strong as comparable products, purpose-built for billboards.
IP66 / IP65 Waterproof Protection
Fully enclosed structure and independent waterproof seals protect every panel against rain, dust, and salt air.
Crane Installation Support
Lift a single cabinet or a full screen with a crane. Hardware is engineered for safe rigging and quick deployment.
Independent Full-Seal Design
A dedicated waterproof seal on every cabinet adds an extra layer of protection and long-term stability.
Ease-of-Use Design
Service access is designed for technicians — safer rigging points and simpler maintenance routines.
Various Outdoor Applications
Outdoor advertising screens, building wraps, highway billboards, stadium perimeters, retail facades and open-air commercial venues.
IN THE FIELD
Deployed Worldwide
Real installations of the LS Pro Series in demanding outdoor environments.
LSK3.9 Outdoor LED Signage at the Port of Sweden
Sweden · LSK3.9 · 9 sqm
LST6 SCLR Highway, Mumbai
India · LST6 · 150 sqm
Key Features
Engineered for professional-grade visual performance.
- Waterproof Module Design — IP65 front / IP54 rear, no protection covers needed
- Front Maintenance — service achievable within one minute with maintenance tool
- Excellent Design — concealed wires, narrow-necked lock with good heat dissipation, stainless fast lock
- High Brightness — 5500–7000 nits (L10DS: 7000 nits), avg 185 W/m² on L10DS
Technical Specifications
| Specification | L5S | L6.67S | L8S | L10S | L10DS | L16S |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 5 | 6.667 | 8 | 10 | 10 | 16 |
| Pixel Config | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | SMD2727 |
| Pixel Matrix/Panel | 256×192 | 192×144 | 160×120 | 128×96 | 96×96 | 80×60 |
| Pixel Density (px/m²) | 40,000 | 22,500 | 15,652 | 10,000 | 10,000 | 3,906 |
| Cabinet Dimensions (mm) | 1280×960×127 | 1280×960×127 | 1280×960×127 | 1280×960×127 | 960×960×127 | 1280×960×127 |
| Module Dimensions (mm) | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 | 320×320 |
| Cabinet Weight (kg) | 32 | 32 | 32 | 32 | 42.3 | 32 |
| Brightness (nit) | 5500 | 5500 | 5500 | 5500 | 7000 | 5500 |
| Horiz Viewing Angle (°) | 160 | 160 | 160 | 160 | 120 | 160 |
| Vert Viewing Angle (°) | 100 | 100 | 100 | 100 | 60 | 130 |
| Refresh Rate (Hz) | 1920–3840 | 1920–3840 | 1920–3840 | 1920–3840 | 960–1920 | 1920–3840 |
| Max Power (W/m²) | 800 | 610 | 600 | 610 | 342 | 610 |
| Typical Power (W/m²) | 270 | 205 | 200 | 205 | 114 | 205 |
| IP Rating (F/R) | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Working Temp (°C) | -20~50 | -20~50 | -20~50 | -20~50 | -20~50 | -20~50 |
| LED Lifetime | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs | 100,000 hrs |
Ready to spec your project?
Tell us your size, pitch, and quantity — we'll confirm the right LS Pro Series configuration.
