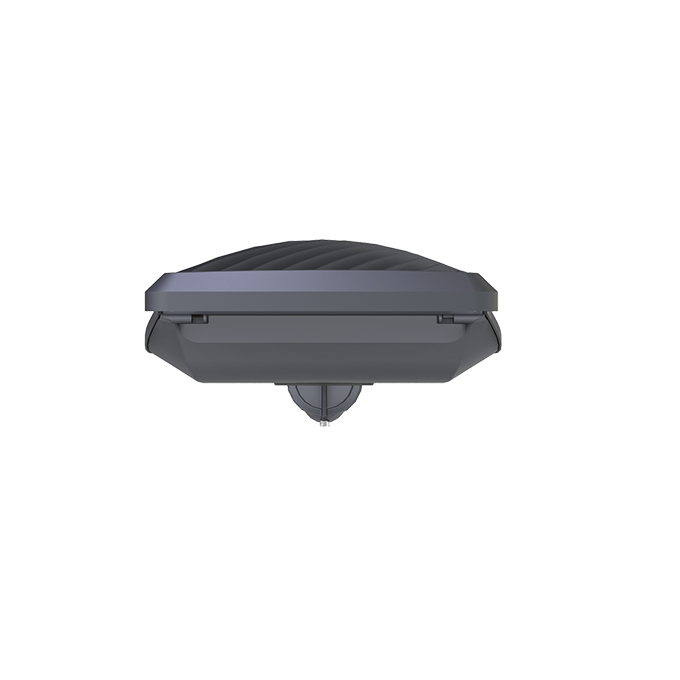

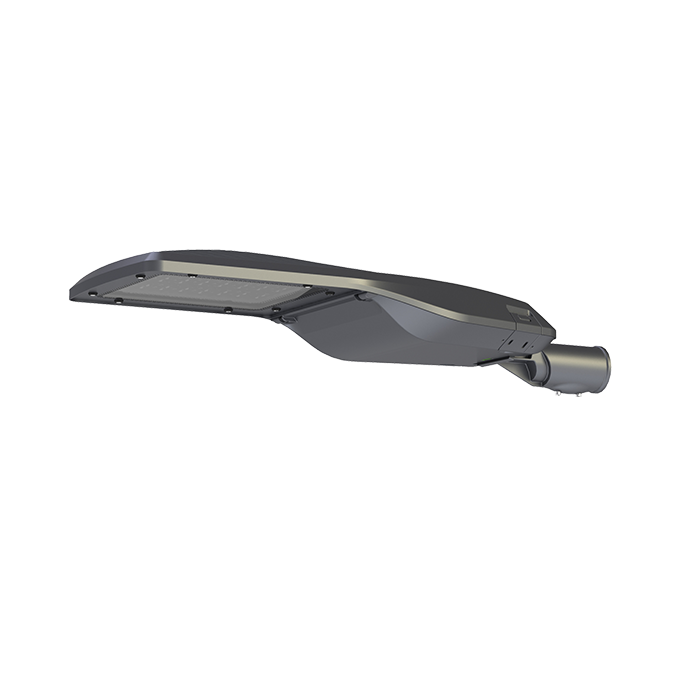

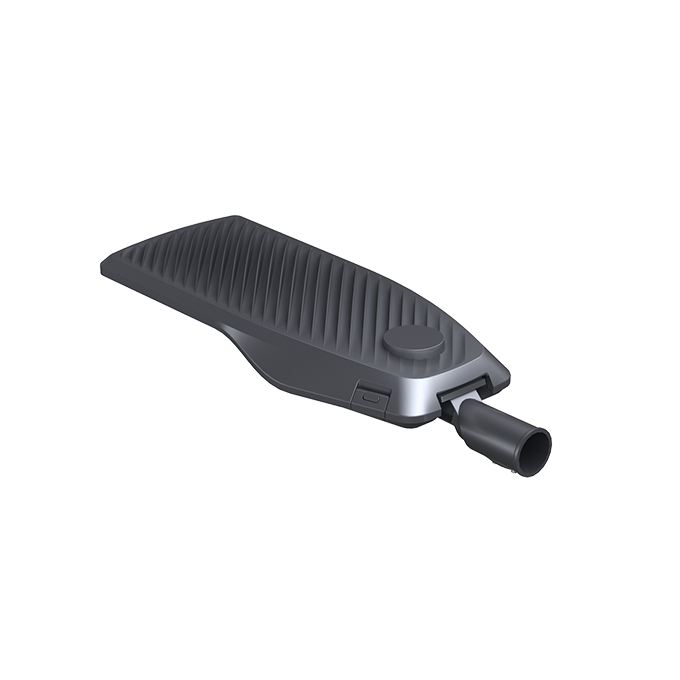

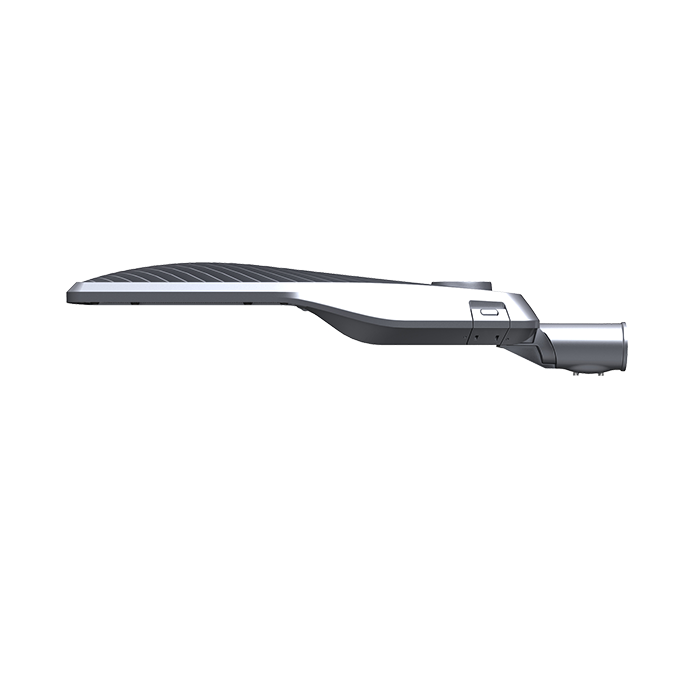

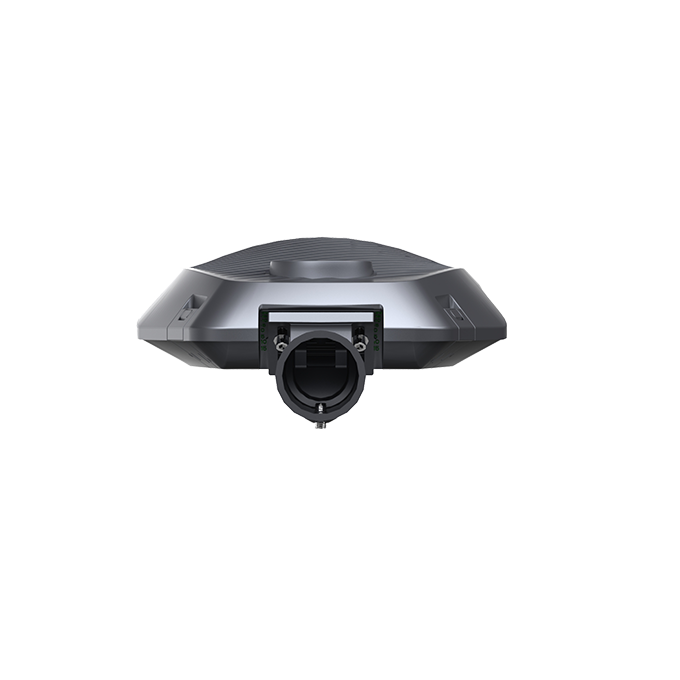

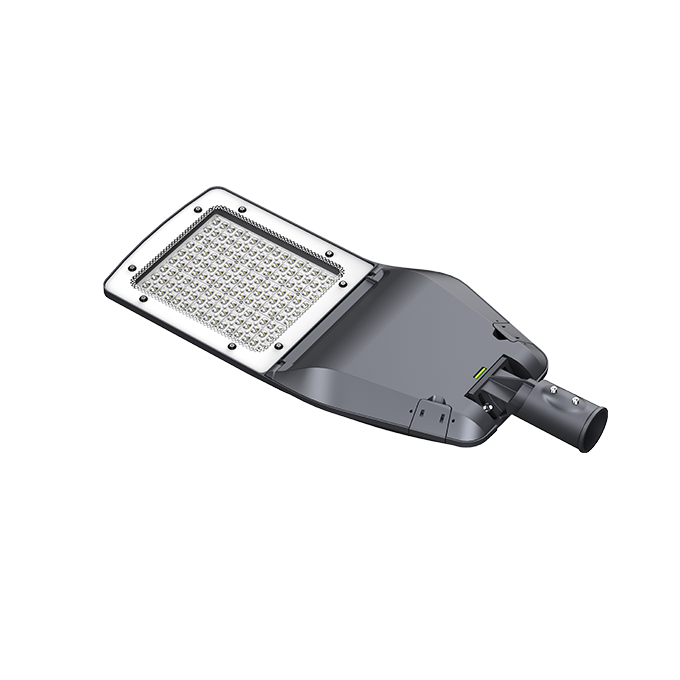

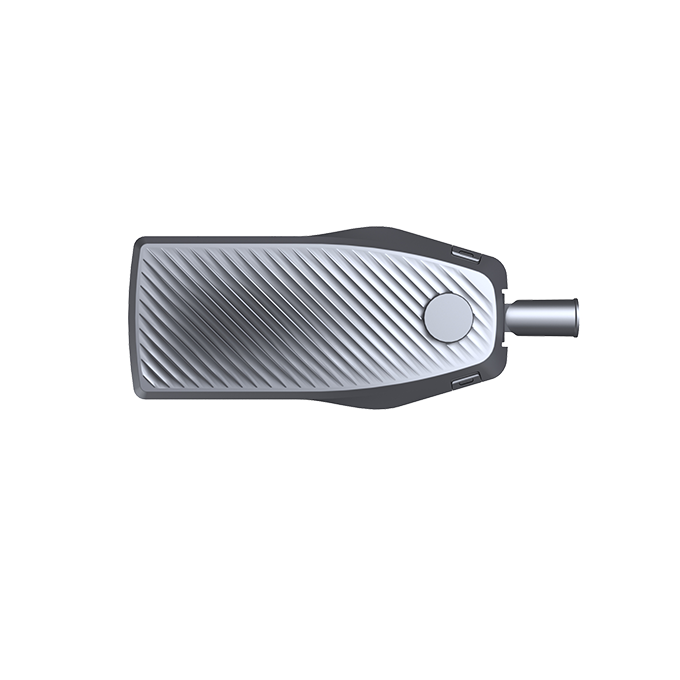

Manta Street Light
DFA Design, Stable Excellence
- Feature summary — power
- 15–240 W
- Feature summary — max output
- 38,400 lm
- Feature summary — efficacy
- up to 160 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66 / IK08–IK10
- Feature summary — lifespan
- >100,000 hours
Specifications
- Feature summary — power
- 15–240 W
- Feature summary — max output
- 38,400 lm
- Feature summary — efficacy
- up to 160 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66 / IK08–IK10
- Feature summary — lifespan
- >100,000 hours
- Parameter table — CCT
- 2200 / 2700 / 3000 / 4000 / 5000 / 5700K
- Parameter table — CRI
- 70
- Parameter table — materials
- Die-casting aluminum + tempered glass
- Parameter table — protection
- IP66 / IK08
- Mounting
- Side entry or post top, ±20°, Φ42/60/76 mm
- Optics
- Type I (UNI-691); Type II (UNI-540); Type II (UNI-618); Type III (UNI-712); Type V (UNI-685)
- Certifications & reports
- CE / CB / ENEC / ENEC+ / RoHS / EPD / LM79 / TM21 / Salt spray / Vibration / D4i
Feature summary lists IK08–IK10; the parameter table lists IK08. Input voltage is omitted because no voltage value was published.
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| Micro UNI-STC3-1 | 20–60 W | 2600–9600 lm | 576×240×138 mm | 4.0±0.5 kg |
| Mini UNI-STC3-2/3 | 60–90 W | 7800–14400 lm | 673×270×140 mm | 5.0/5.5±0.5 kg |
| Midi UNI-STC3-4 | 60–90 W | 15600–24000 lm | 713×310×165 mm | 7.0±0.5 kg |
| Maxi UNI-STC3-5 | 180–240 W | 23400–38400 lm | 840×345×170 mm | 9.0/9.2±0.5 kg |
Feature summary
Key features
- Tempered glass, PMMA lens, and anti-corrosion die-cast aluminum
- Tool-free optical and electrical module replacement
- NEMA and Zhaga smart-ready
- Side-entry or post-top mounting
