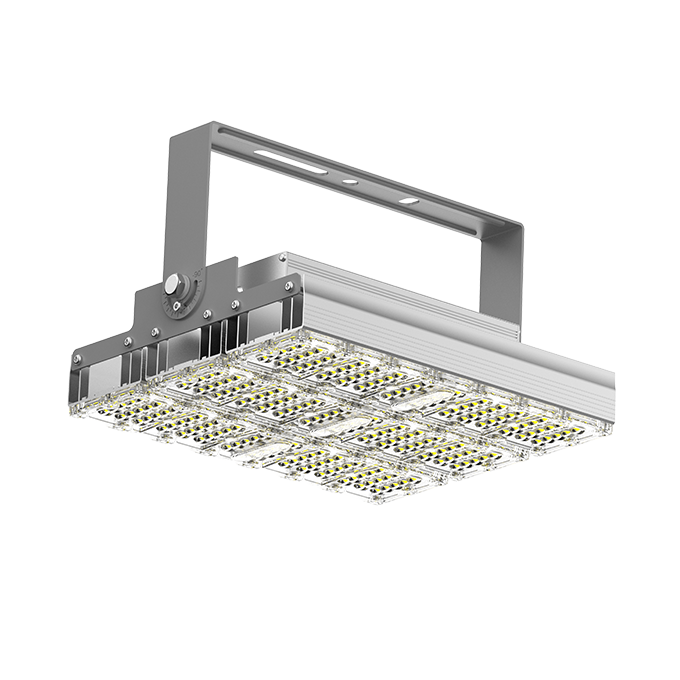

Jade Moon Tunnel Light
100β240 W, Up to 180 lm/W
- Feature summary β Power
- 100β240 W
- Parameter table β Power
- 40β240 W, depending on model and LED
- Feature summary β Max output
- 56,100 lm
- Parameter table β Max output
- 31,500 lm
- Feature summary β Efficacy
- up to 180 lm/W
- Parameter table β Efficacy
- 130 lm/W (3030); 180 lm/W (5050) where printed
Specifications
- Feature summary β Power
- 100β240 W
- Parameter table β Power
- 40β240 W, depending on model and LED
- Feature summary β Max output
- 56,100 lm
- Parameter table β Max output
- 31,500 lm
- Feature summary β Efficacy
- up to 180 lm/W
- Parameter table β Efficacy
- 130 lm/W (3030); 180 lm/W (5050) where printed
- Feature summary β CCT
- 1800Kβ6500K
- Parameter table β CCT
- 3000Β±300 / 4000Β±300 / 5000Β±300 / 5700Β±500 / 6500Β±500 K
- Feature summary β Lifetime
- >100,000 h
- Parameter table β Lifetime
- 50,000 h
- Protection
- IP66; feature summary up to IK10
- Power factor / input / CRI
- β₯0.95 / AC100β277 V, 50/60 Hz / 70

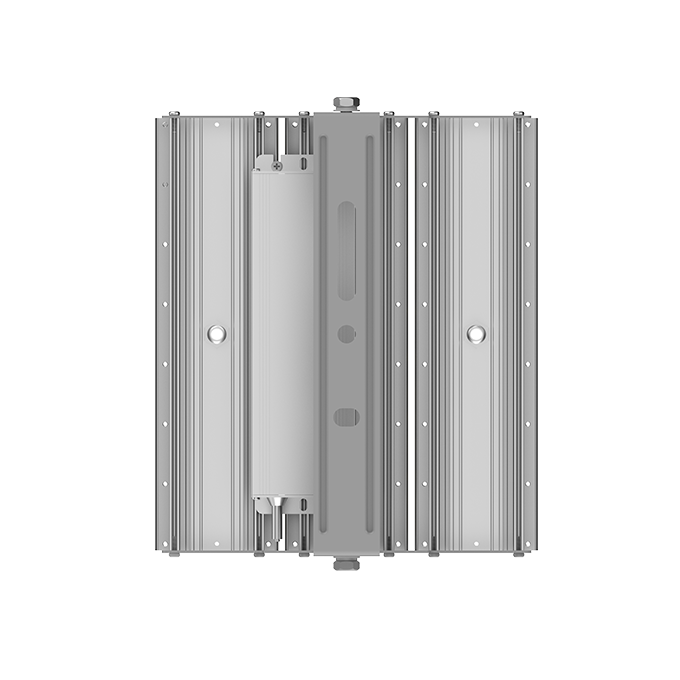

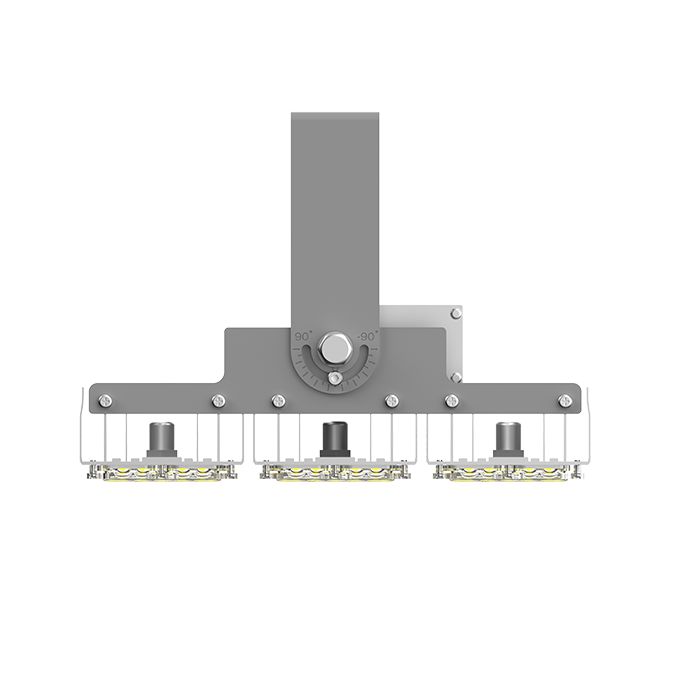

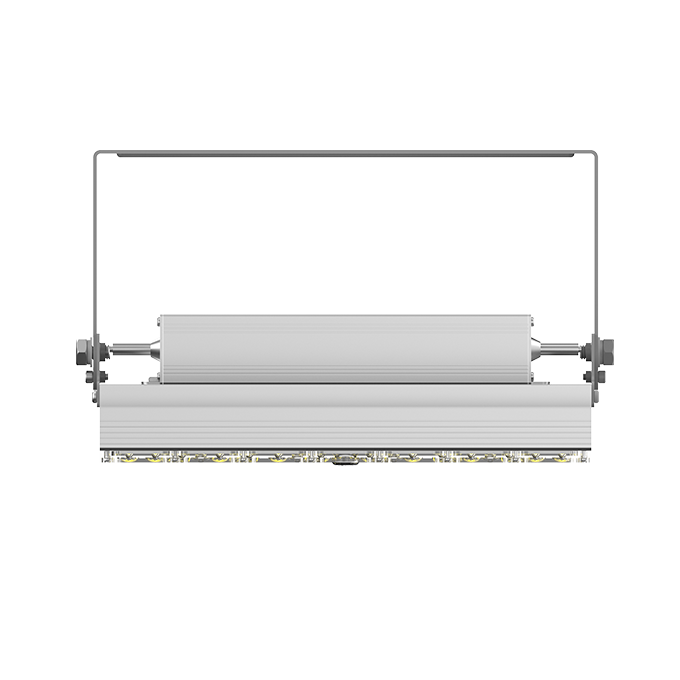

- Construction / mounting
- anti-UV PC lens + die-cast aluminum / wall or bracket
- Optics
- Type I UNI-876 / UNI-909; Type II UNI-850
- Certifications
- CE / RoHS
Applications
Urban tunnelHigh speed tunnel
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| TN06-1X | 40 W (3030) | 5,200 lm | 196 Γ 79 Γ 166 mm |
| TN06-2X | 80 W (3030) | 10,400 lm | 196 Γ 162 Γ 166 mm |
| TN06-1 | 60 W (3030) / 45 W (5050) | 7,800 / 8,100 lm | 284 Γ 74 Γ 167 mm |
| TN06-2 | 120 W (3030) / 90 W (5050) | 15,600 / 16,200 lm | 284 Γ 152 Γ 167 mm |
| TN06-3 | 200 W (3030) / 130 W (5050) | 26,000 / 23,400 lm | 284 Γ 230 Γ 167 mm |
| TN06-4 | 240 W (3030) / 175 W (5050) | 31,200 / 31,500 lm | 284 Γ 308 Γ 167 mm |
Feature summary
Key features
- 100β240 W with maximum 56,100 lm
- Up to 180 lm/W
- CCT 1800Kβ6500K
- Anti-UV PC lens and die-cast aluminum
- Wall or bracket mounting
- Smart controls
- IP66, up to IK10
- Lifespan >100,000 h
