LED Lighting / Garden Lighting

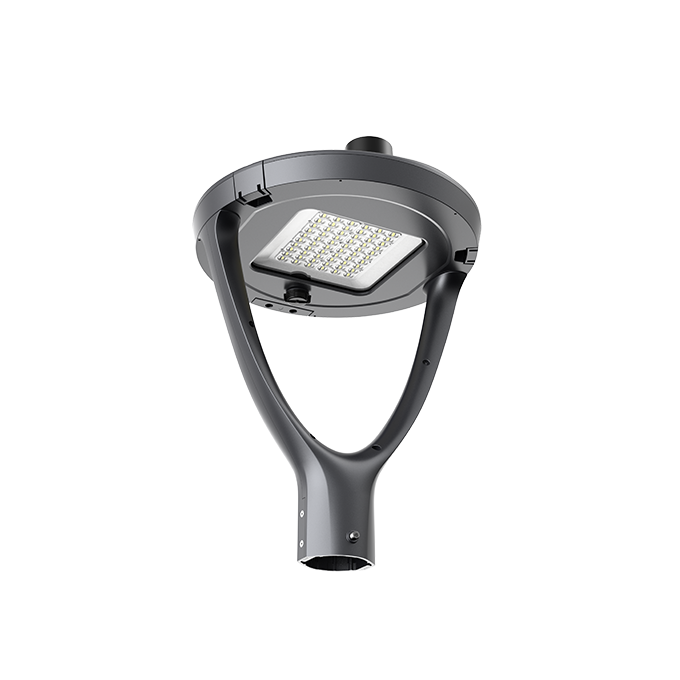

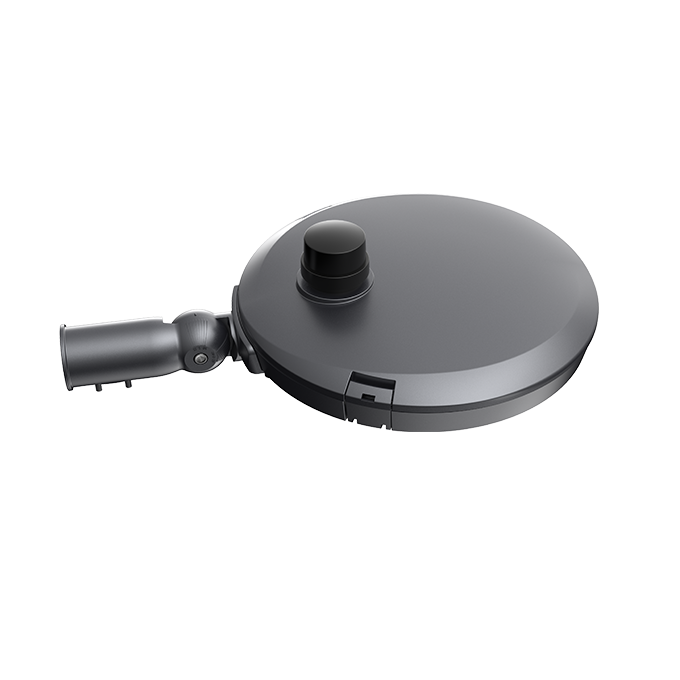

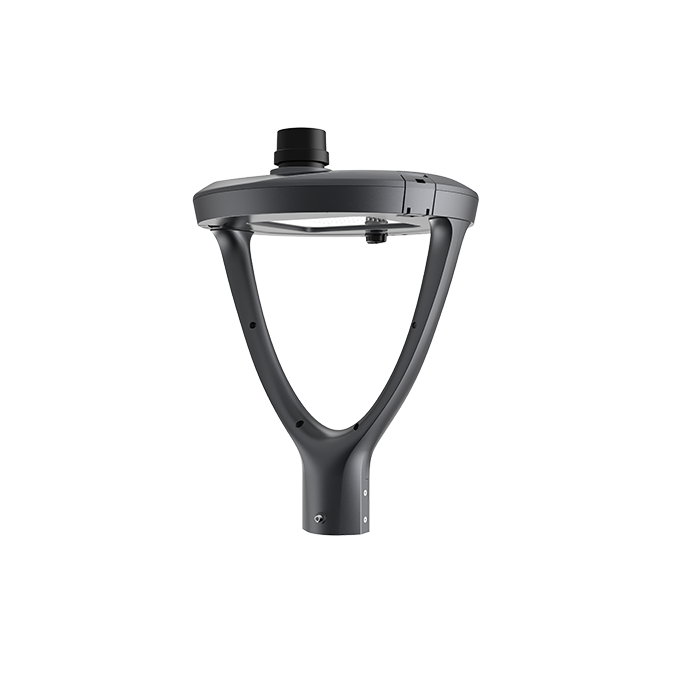

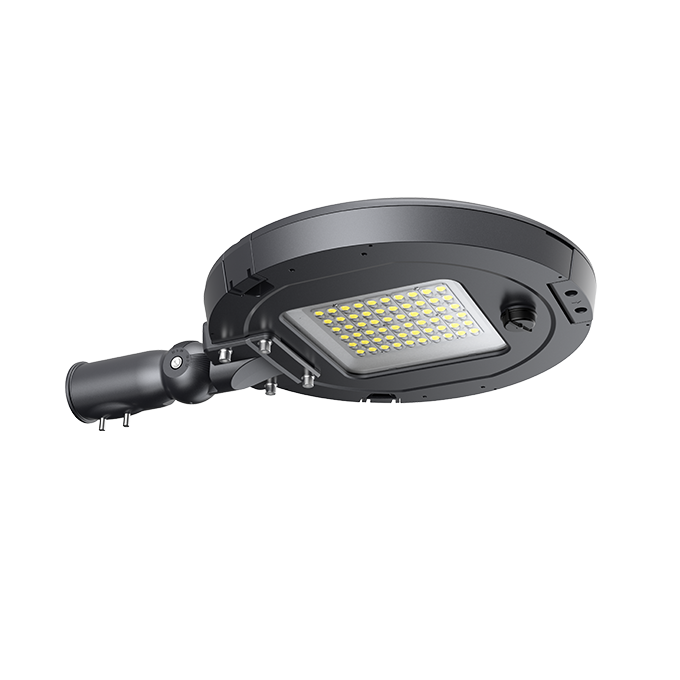

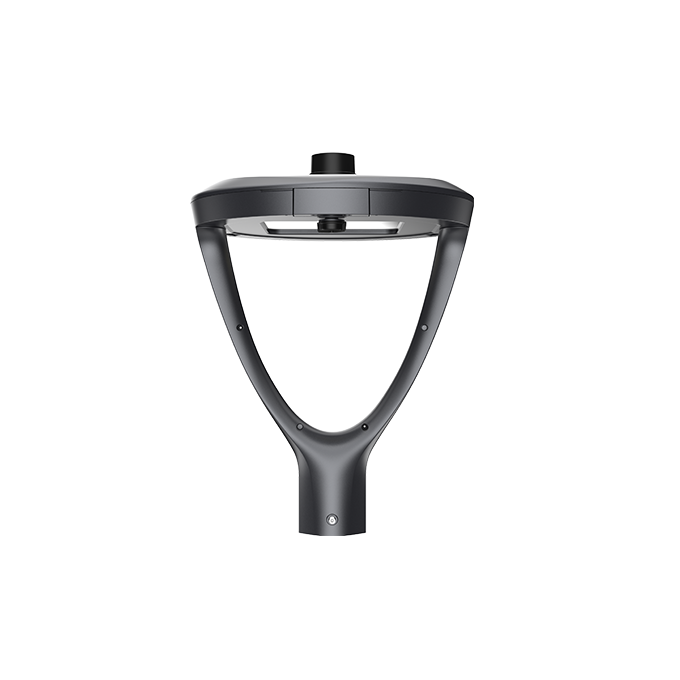

Zeta Garden Light
Flexible Setup, Intelligent Connection
- Feature summary — Power
- 20–80 W
- Feature summary — Max output
- 13,600 lm
- Parameter table — Max output
- 12,800 lm
- Feature summary — Efficacy
- up to 170 lm/W for street use
- Parameter table — Efficacy
- 145 lm/W for UNI-YA06-1; 160 lm/W for UNI-YA06-2
- Feature summary — CCT
- 1800K–6500K
Specifications
- Feature summary — Power
- 20–80 W
- Feature summary — Max output
- 13,600 lm
- Parameter table — Max output
- 12,800 lm
- Feature summary — Efficacy
- up to 170 lm/W for street use
- Parameter table — Efficacy
- 145 lm/W for UNI-YA06-1; 160 lm/W for UNI-YA06-2
- Feature summary — CCT
- 1800K–6500K
- Parameter table — CCT
- 3000 / 4000 / 5000K
- Feature summary — IP / IK
- IP66, up to IK09
- Parameter table — IP / IK
- IP66 / IK08
- Feature summary — Lifetime
- >100,000 h
- Parameter table — Lifetime
- 50,000 h
- Power factor
- ≥0.92 at 20 / 40 W; ≥0.95 at 60 / 80 W
- Input / CRI
- AC100–277 V / 70
- Mounting
- side entry for street / post top for garden
- Optics
- Type II UNI-618 / 710 / 711
- Certifications
- CE / CB / ENEC / ENEC+ / IP66 / IK08 / RoHS
Applications
Urban & Residential StreetPedestrian PathPark & SquareRural RoadBridge
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| UNI-YA06-1 — 20 W | 20 W | 2,900 lm | 430 × 430 × 532 mm |
| UNI-YA06-1 — 40 W | 40 W | 5,800 lm | 430 × 430 × 532 mm |
| UNI-YA06-1 — 60 W | 60 W | 8,700 lm | 430 × 430 × 532 mm |
| UNI-YA06-1 — 80 W | 80 W | 11,600 lm | 430 × 430 × 532 mm |
| UNI-YA06-2 — 20 W | 20 W | 3,200 lm | 635 × 430 × 111 mm horizontal / 519 × 430 × 225 mm vertical |
| UNI-YA06-2 — 40 W | 40 W | 6,400 lm | 635 × 430 × 111 mm horizontal / 519 × 430 × 225 mm vertical |
| UNI-YA06-2 — 60 W | 60 W | 9,600 lm | 635 × 430 × 111 mm horizontal / 519 × 430 × 225 mm vertical |
| UNI-YA06-2 — 80 W | 80 W | 12,800 lm | 635 × 430 × 111 mm horizontal / 519 × 430 × 225 mm vertical |
Feature summary
Key features
- 20–80 W with maximum 13,600 lm
- Up to 170 lm/W for street use
- CCT 1800K–6500K
- Tempered glass, PMMA, and die-cast construction
- Street side-entry and garden post-top mounting
- Tool-free access
- NEMA and Zhaga
- IP66, up to IK09
- Lifespan >100,000 h
