LED Lighting / Flood Lights

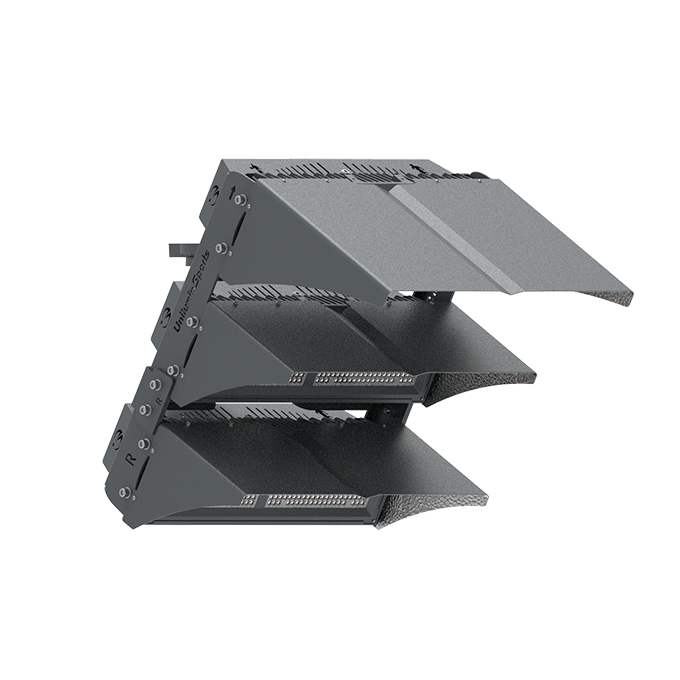

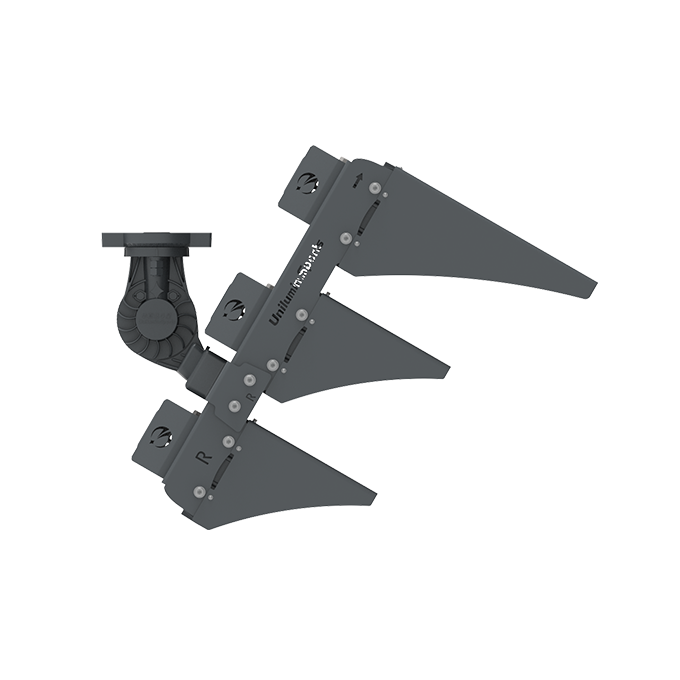

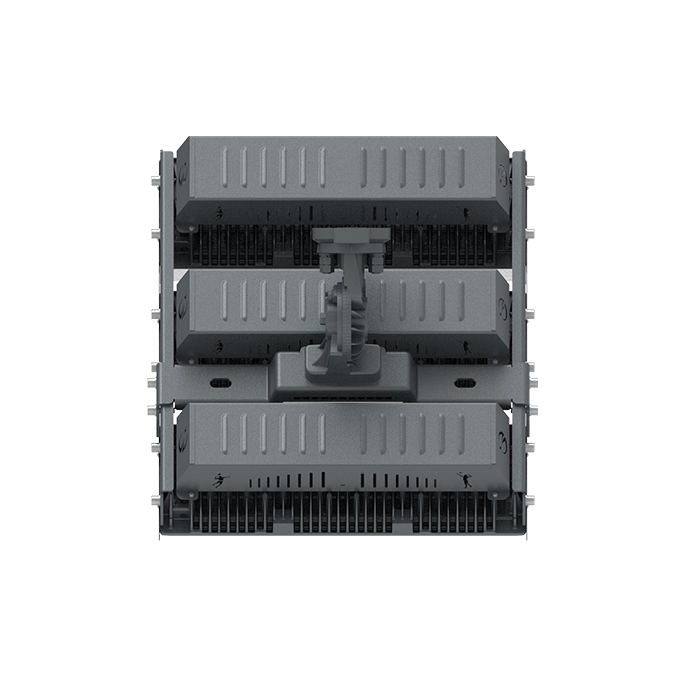

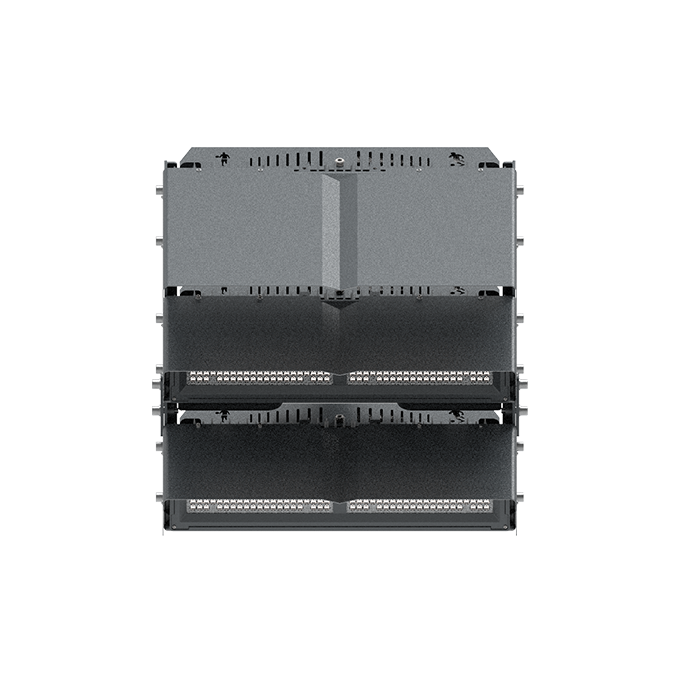

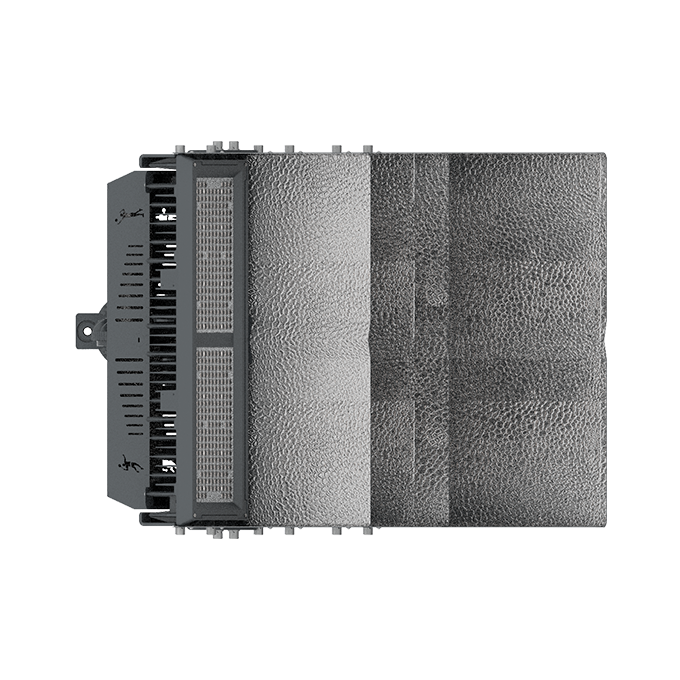

Venus II Sports Light
High CRI, True Color Rendering
- Parameter table — Power
- 500 / 600 / 1000 / 1200 / 1500 / 1800 W
- Parameter table — Luminous flux
- 75,000–252,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 3000±300 / 4000±300 / 5000±300 / 5700±500 K · Ra ≥ 80
Specifications
- Parameter table — Power
- 500 / 600 / 1000 / 1200 / 1500 / 1800 W
- Parameter table — Luminous flux
- 75,000–252,000 lm
- IP / IK
- IP67 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 3000±300 / 4000±300 / 5000±300 / 5700±500 K · Ra ≥ 80
- Optic captions
- BDX-1500U 20° / BDX-1500U 40°
Applications
Widely Used in High-Mast LightingSports Stadiums of All LevelsParking Lots
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| LK-500B | 500 W | 75,000 lm | 603 × 645 × 390 mm |
| LK-600B | 600 W | 90,000 lm | 603 × 645 × 390 mm |
| LK-1000B | 1000 W | 150,000 lm | 603 × 692 × 634 mm |
| LK-1200B | 1200 W | 180,000 lm | 603 × 692 × 634 mm |
| LK-1500B | 1500 W | 210,000 lm | 603 × 753 × 705 mm |
| LK-1800B | 1800 W | 252,000 lm | 603 × 753 × 705 mm |
Feature summary
Key features
- Reflective-aluminum visors
- 20° / 40° / 70° beams
- Compact size and light weight
- WF2 corrosion resistance
- 10 kV / 20 kV surge protection
