LED Lighting / Garden Lighting

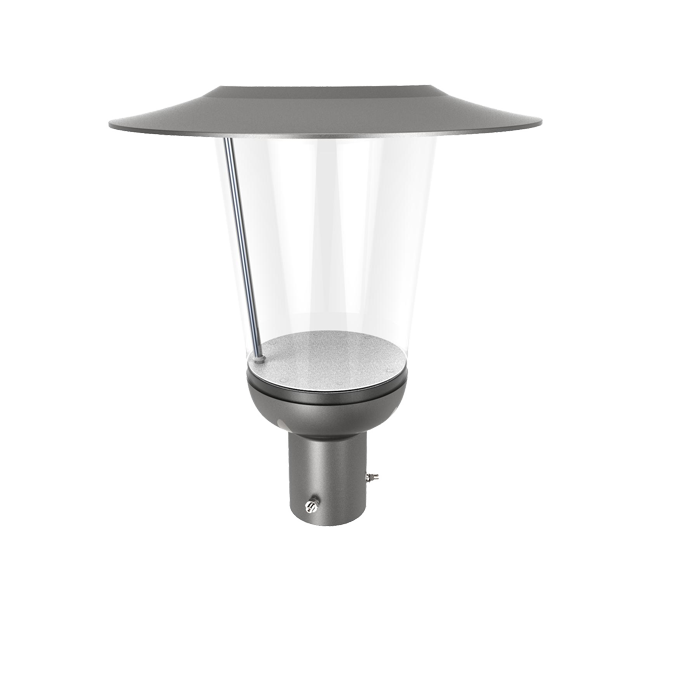

Beta Garden Light
Professional Optics, Smart Connectivity
- Feature summary — Power
- 15–80 W
- Parameter table — Power
- 15 / 25 / 35 / 45 / 60 / 80 W
- Feature summary — Max output
- 10,800 lm
- Parameter table — Max output
- 10,000 lm
- Feature summary — Efficacy
- up to 135 lm/W
- Parameter table — Efficacy
- 110 or 125 lm/W
Specifications
- Feature summary — Power
- 15–80 W
- Parameter table — Power
- 15 / 25 / 35 / 45 / 60 / 80 W
- Feature summary — Max output
- 10,800 lm
- Parameter table — Max output
- 10,000 lm
- Feature summary — Efficacy
- up to 135 lm/W
- Parameter table — Efficacy
- 110 or 125 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Feature summary — Lifetime
- >100,000 h
- Parameter table — Lifetime
- 50,000 h
- IP / IK
- IP66 / IK08
- Power factor
- ≥0.92, then ≥0.95
- Input / CRI
- AC100–277 V / 70
- Working temperature / EPA
- −40°C to 50°C / 0.22 m²
- Optics
- Type II UNI-540 / 618 / 710 / 711
- Certifications
- CE / CB / ENEC / ENEC+ / RoHS
Applications
Urban & Residential StreetPedestrian PathPark & SquareRural RoadBridge
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-YA04-1 — 15 W | 15 W | 1,650 / 1,875 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
| UNI-YA04-1 — 25 W | 25 W | 2,750 / 3,125 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
| UNI-YA04-1 — 35 W | 35 W | 3,850 / 4,375 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
| UNI-YA04-1 — 45 W | 45 W | 4,950 / 5,625 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
| UNI-YA04-1 — 60 W | 60 W | 6,600 / 7,500 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
| UNI-YA04-1 — 80 W | 80 W | 8,800 / 10,000 lm | 430 × 430 × 487 mm | 4.3±0.2 kg |
Feature summary
Key features
- 15–80 W with maximum 10,800 lm
- Up to 135 lm/W
- CCT 1800K–6500K
- Anti-UV, anti-yellow PC cover and die-cast construction
- NEMA and Zhaga
- IP66 / IK08
- Lifespan >100,000 h
Garden Lighting
Explore garden lighting
Specify the Beta Garden Light
Tell us your project requirements and our team will prepare a project-specific quote.
