LED Lighting / Street Lights

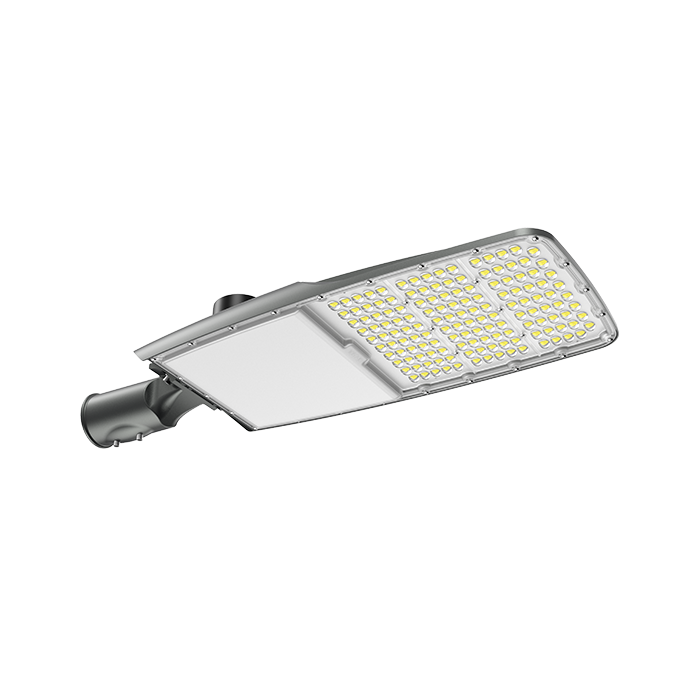

Ecoluzia Street Light
Future Proof, Superior Energy-Saving Option
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 40,000 lm
- Feature summary — efficacy
- up to 200 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 3,800–38,000 lm
- Parameter table — efficacy
- 190 lm/W at 4000K
Specifications
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 40,000 lm
- Feature summary — efficacy
- up to 200 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 3,800–38,000 lm
- Parameter table — efficacy
- 190 lm/W at 4000K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Protection
- IP66
- Feature summary — impact
- IK08, extendable to IK10
- Parameter table — impact
- IK08
- Feature summary — lifespan
- >100,000 hours
- Parameter table — life
- 100,000 hrs
- Input
- AC100–277V · 50/60Hz
- Power factor
- ≥0.92 at 20 W · ≥0.95 for remaining models
- Operating / storage
- −40 to 45°C / −40 to 55°C
- Humidity
- 10–90% RH
- Housing
- Die-cast aluminum + whole PC lens + adjustable adaptor
- Adjustment
- −15° to +15°
- Drivers / LED
- Moso / Inventronics / Sosen · Domestic / 5050
- CRI
- 70
- EPA
- 0.05 / 0.07 / 0.09 / 0.11 / 0.16 / 0.16 m²
- Optics
- UNI-STF3 (T2S)
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STF3-1-20 | 20 W | 3,800 lm | 413 × 158 × 94 mm | 1.9±0.5 kg |
| UNI-STDF3-2-40 | 40 W | 7,600 lm | 468 × 173 × 94 mm | 2.2±0.5 kg |
| UNI-STDF3-3-60 | 60 W | 11,400 lm | 529 × 203 × 93 mm | 2.6±0.5 kg |
| UNI-STDF3-4-100 | 100 W | 19,000 lm | 628 × 210 × 94 mm | 3.1±0.5 kg |
| UNI-STDF3-5-150 | 150 W | 28,500 lm | 688 × 276 × 95 mm | 5.5±0.5 kg |
| UNI-STDF3-5-200 | 200 W | 38,000 lm | 688 × 276 × 95 mm | 5.5±0.5 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Side entry or post top adjustment ±20°
- NEMA and Zhaga support
- Certifications: CE / CB / NOM / RoHS / LM-80 / IP66 / IK08 / 3G Vibration / Salt Spray
- UNI-STF3 (T2S) optic
