LED Lighting / Flood Lights

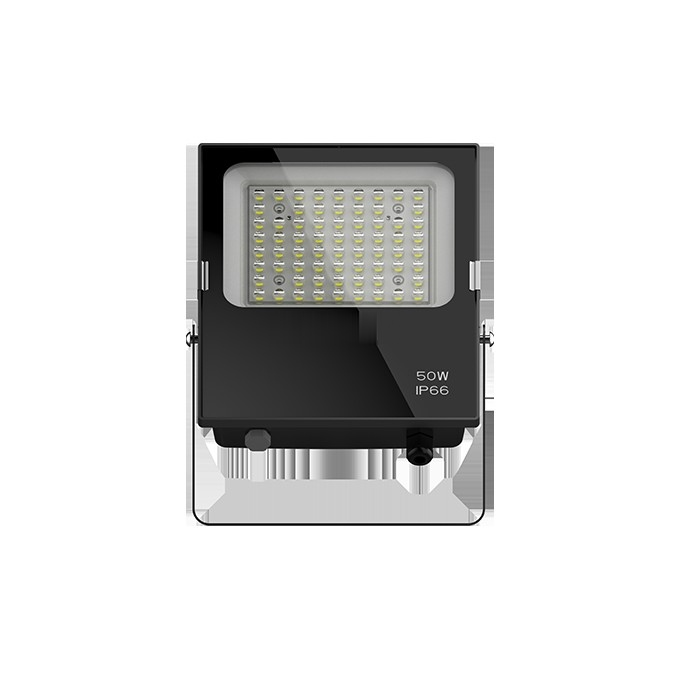

GeniFlood Flood Light
Built to Last, Value by Design
- Feature summary — Power
- 50–200 W
- Feature summary — Max output
- 31,000 lm
- Feature summary — Efficacy
- up to 155 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — IP / IK
- IP66 / IK08
- Parameter table — IP / IK
- IP66 / IK07
Specifications
- Feature summary — Power
- 50–200 W
- Feature summary — Max output
- 31,000 lm
- Feature summary — Efficacy
- up to 155 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — IP / IK
- IP66 / IK08
- Parameter table — IP / IK
- IP66 / IK07
- Feature summary — Lifetime
- >100,000 hours
- Parameter table — Lifetime
- 50,000 hours
- Working temperature / humidity
- −40°C to 45°C / 10–90% RH
- Storage temperature
- −40°C to 65°C
- Warranty
- 5 years
- Input / power factor
- AC100–240 V, 50/60 Hz / ≥0.90
- Parameter table — CCT
- 3000K±300 / 4000K±300 / 6500K±500
- SDCM / CRI
- <7 / 70 or 80
- EPA
- 0.046 / 0.075 / 0.12 / 0.14 m²
- Mounting-hole spacing
- 80 mm / 100 m / 120 mm / 160 mm
- Optics
- 30×80° (UNI-863) / 60° (UNI-861) / 90° (UNI-862) / 120°
Applications
High-mast intersectionsAirport viaductsPorts and coastal areasLarge manufacturing and maintenance workshopsSports and entertainment venuesBillboardsLandscape and ground lightingOutdoor parking lots
Parameter table
Published model range
| Model | Power | Dimensions | Net weight |
|---|---|---|---|
| UNI-PR13-1-050 | 50 W | 287 × 211 × 47 mm | 1.5±0.1 kg |
| UNI-PR13-2-100 | 100 W | 361 × 259 × 51 mm | 2.6±0.1 kg |
| UNI-PR13-3-150 | 150 W | 450 × 335 × 52 mm | 4±0.1 kg |
| UNI-PR13-4-200 | 200 W | 476 × 361 × 61 mm | 5.3±0.1 kg |
Feature summary
Key features
- 50–200 W with up to 31,000 lm
- Up to 155 lm/W
- CCT 1800K–6500K
- Die-cast aluminum heat sinks
- 0–270° mounting angle
- Modular design
- IP66 / IK08
- Lifespan >100,000 hours
- CE / CB / IEC 62471 / IP66 / IK07
