LED Lighting / Guardrail Lighting

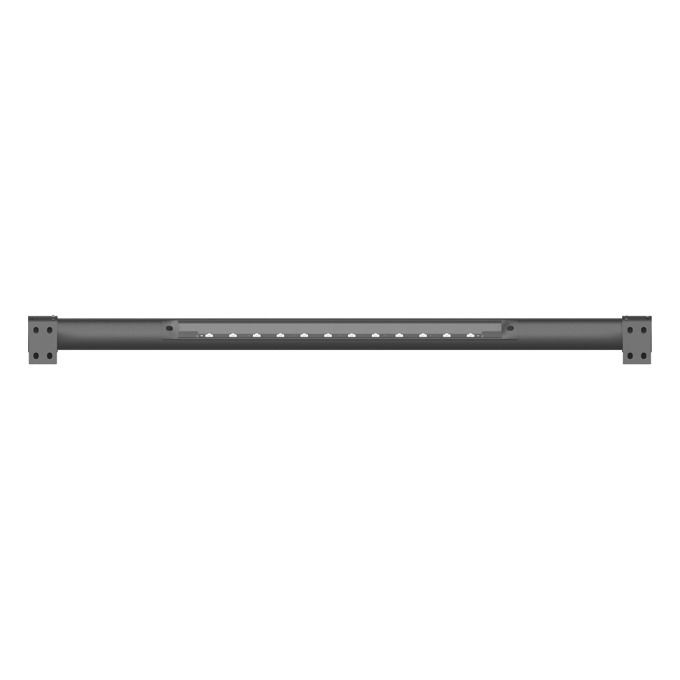

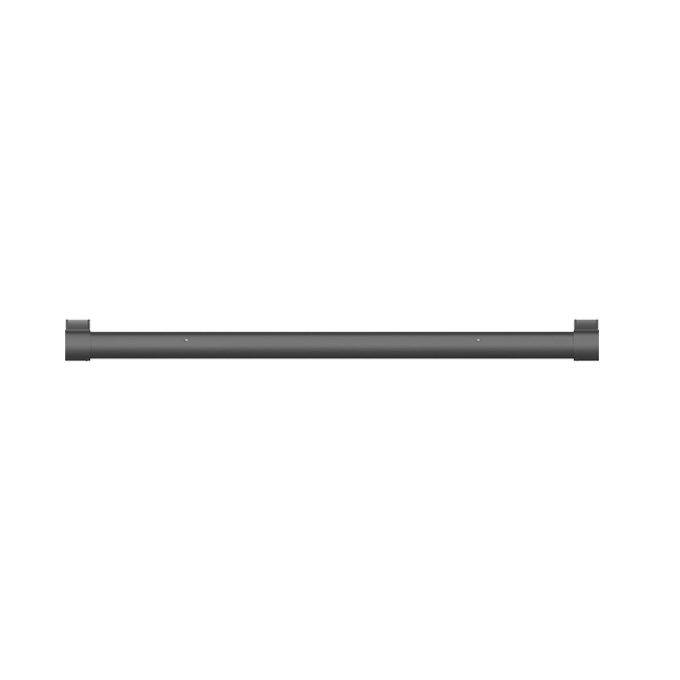

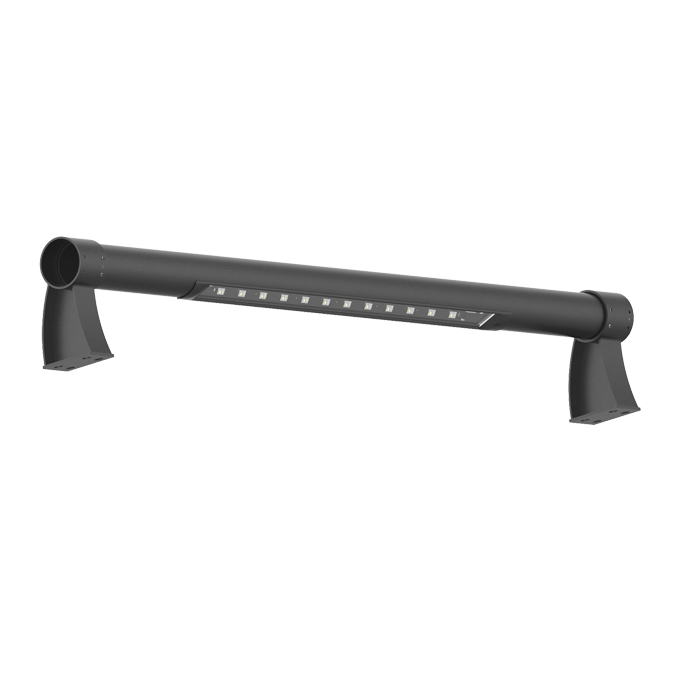

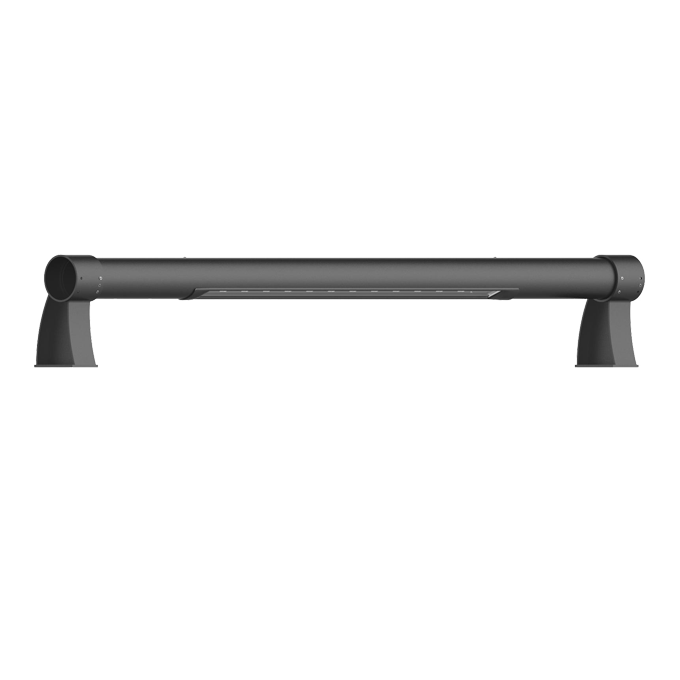

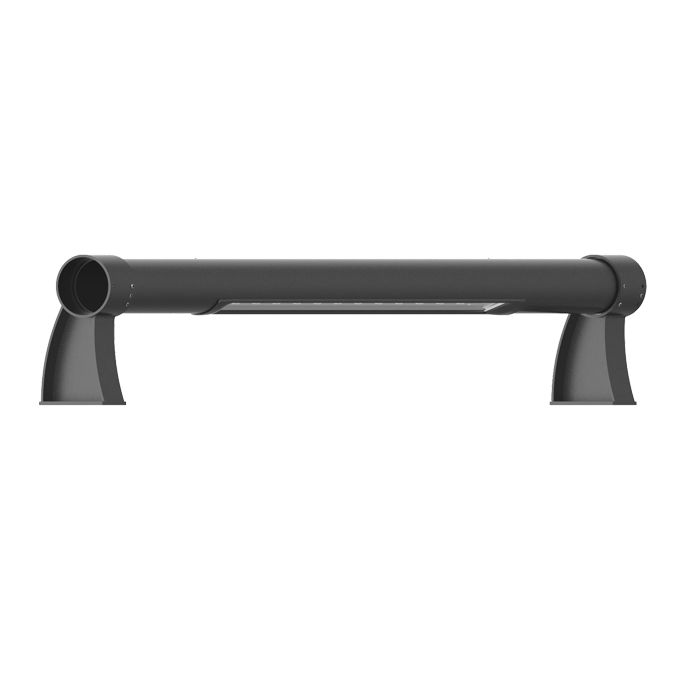

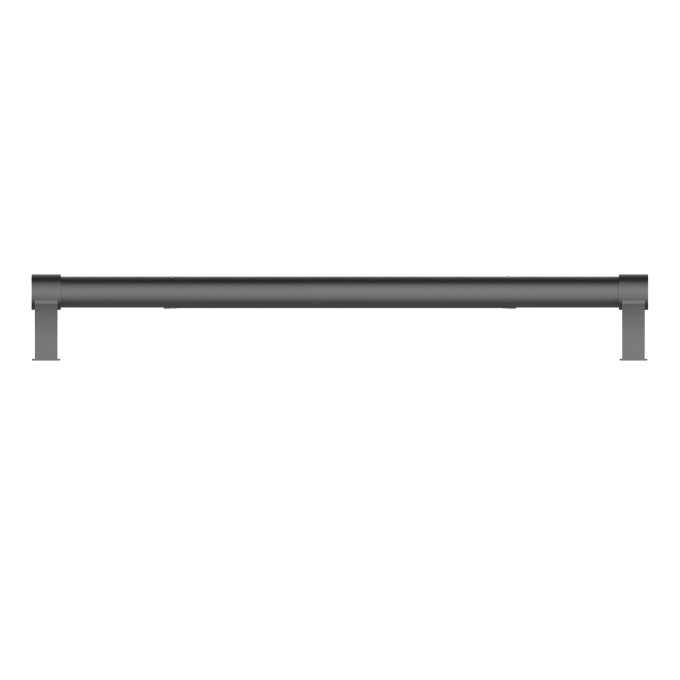

Guardlite L Guardrail Light
4β24 W, Up to 100 lm/W
- Feature summary β Power
- 4β24 W
- Feature summary β Max output
- 2,400 lm
- Feature summary β Efficacy
- up to 100 lm/W
- Parameter table β Efficacy
- 72 lm/W standard / 100 lm/W high-lumen at Ra 80
- Feature summary β CCT
- 1800Kβ6500K
- Parameter table β CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
Specifications
- Feature summary β Power
- 4β24 W
- Feature summary β Max output
- 2,400 lm
- Feature summary β Efficacy
- up to 100 lm/W
- Parameter table β Efficacy
- 72 lm/W standard / 100 lm/W high-lumen at Ra 80
- Feature summary β CCT
- 1800Kβ6500K
- Parameter table β CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Feature summary β IP / IK
- IP66, up to IK09
- Parameter table β IP / IK
- IP66 / IK08
- Feature summary β Lifetime
- >100,000 h
- Parameter table β Lifetime
- 50,000 and >72,000 hours at Ta 25Β°C
- Input / CRI
- DC24 V / 70
- Construction / mounting
- tempered glass + PMMA + die-cast / wall or bracket
- Light distribution
- unsymmetrical, TI <1%
Applications
BridgesInterchangesAirportsHigh-speed Rail StationsRamps
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STC7-1-004 | 4 W | 288 / 400 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
| UNI-STC7-1-006 | 6 W | 432 / 600 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
| UNI-STC7-1-008 | 8 W | 576 / 800 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
| UNI-STC7-1-012 | 12 W | 864 / 1,200 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
| UNI-STC7-1-016 | 16 W | 1,152 / 1,600 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
| UNI-STC7-1-024 | 24 W | 1,728 / 2,400 lm | 1200 Γ 73 Γ 48 mm | 2 kg |
Feature summary
Key features
- 4β24 W with maximum 2,400 lm
- Up to 100 lm/W
- CCT 1800Kβ6500K
- Unsymmetrical distribution with TI <1%
- Tempered glass, PMMA, and die-cast construction
- Wall or bracket mounting
- IP66, up to IK09
- Lifespan >100,000 h
