LC M Series
Versa LC-M Outdoor Fixed-Install Series
A modular, high-color-fidelity outdoor LED panel for fixed installations. Front and back serviceable, CNC-precise modules, and a die-cast aluminum cabinet that hangs or stacks for permanent storefront, building-facade, and stadium screens.
Pixel Pitch
3.9 / 4.6 / 5.2 mm
Panel Size
500 × 500 × 80 mm
Panel Weight
7.9 kg
Real-World Install
South Korea Project
Permanent outdoor LC M installation showcasing color uniformity, brightness, and modular flexibility.

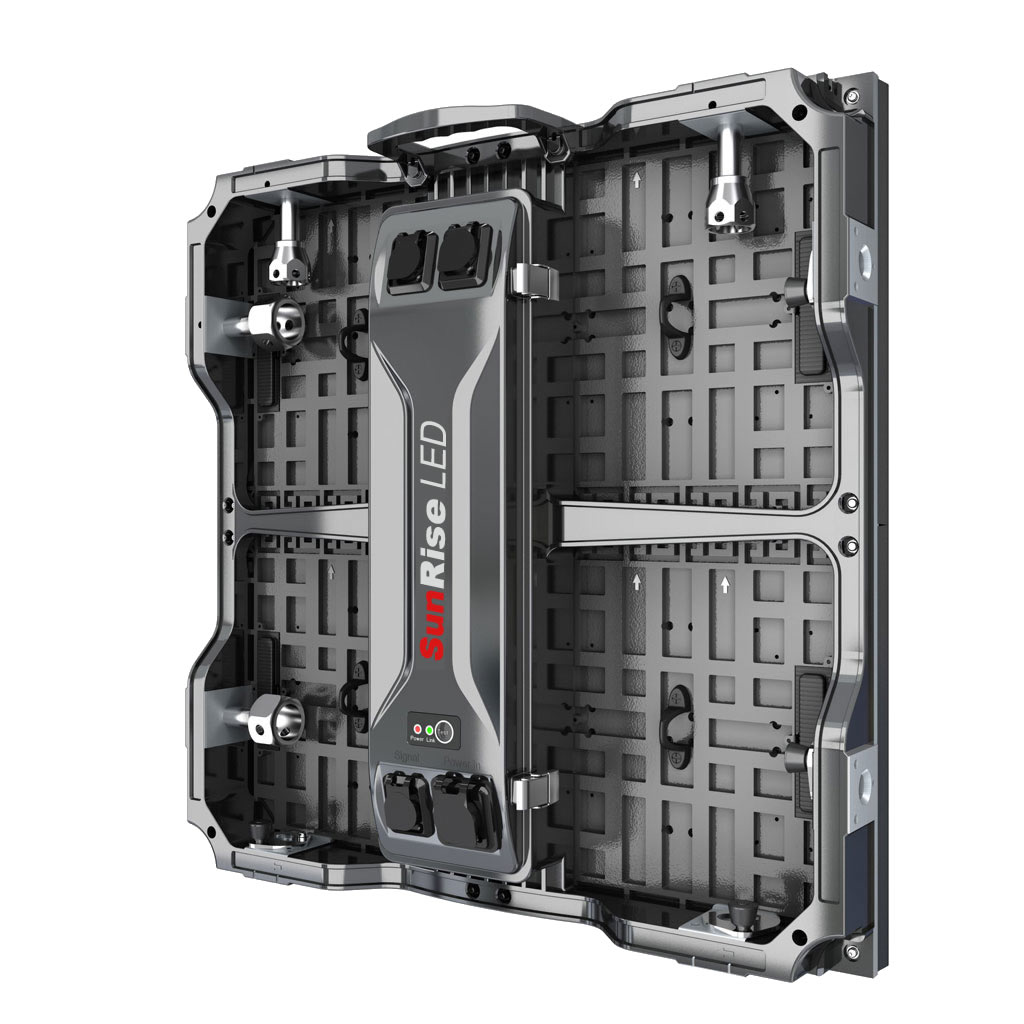

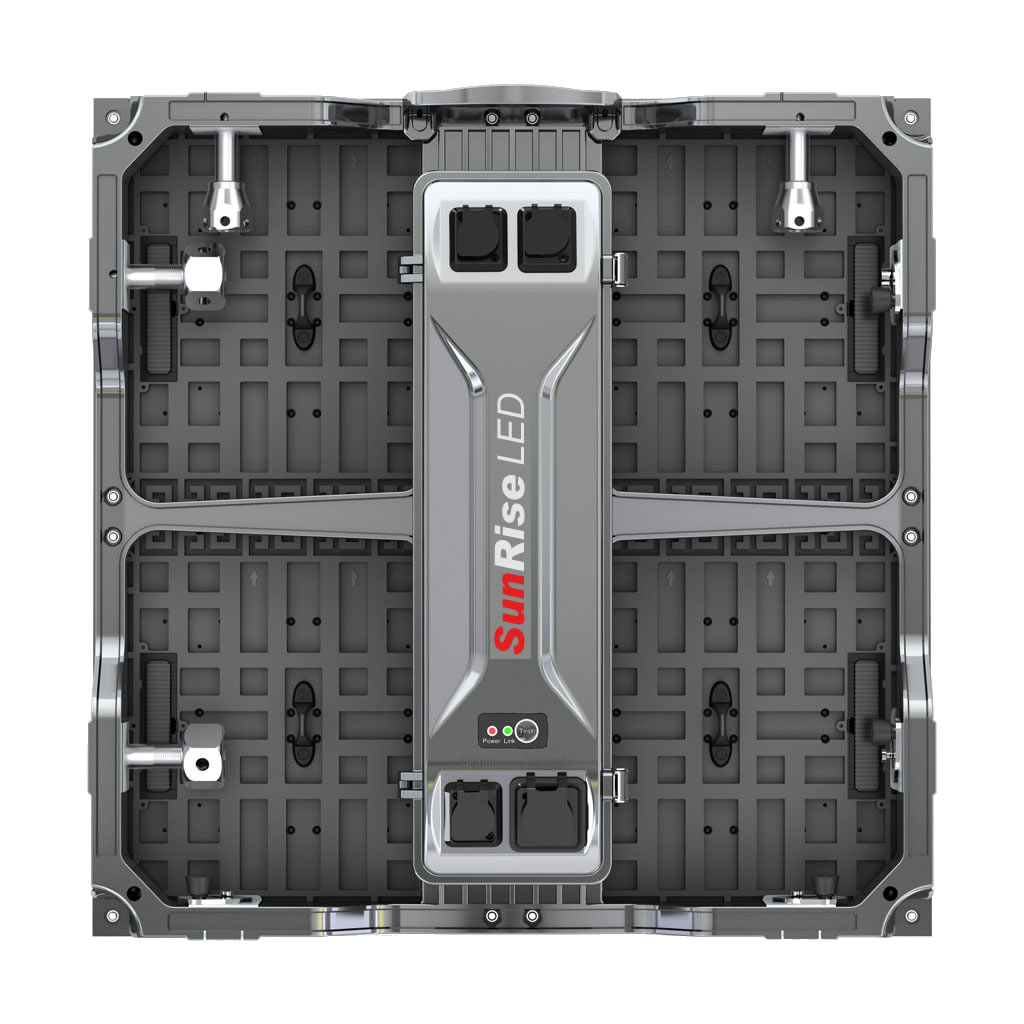

Cabinet Design
Built Around the LC M Cabinet
Die-cast aluminum chassis, magnetic front-serviceable modules, and a streamlined back panel with locking handles.
Small Pitch Big Screen
Pixel-Pitch That Disappears Across Massive Walls
Three pixel-pitch options (3.9, 4.6, 5.2 mm) let LC M scale from intimate retail walls to multi-story facades while keeping content crisp at typical viewing distances.
Key Features
Engineered for Permanent Outdoor Installs
Dual Backup System
Each system carries dual backup for power supply, signal cable, control system, and socket — for fail-safe operation across every panel.

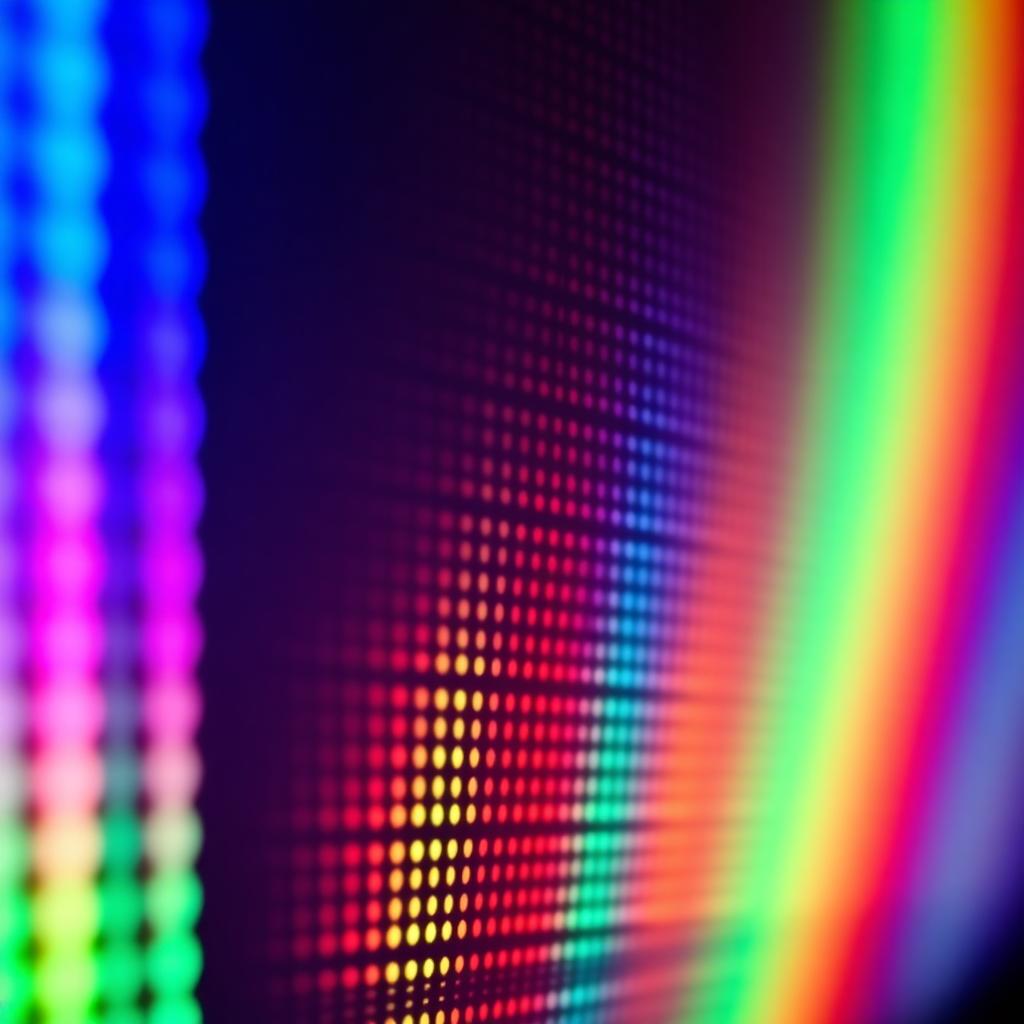

High Color Fidelity
All LED lamps are screened to meet proprietary RGB wavelengths and stringent quality standards. 16-bit signal processing produces 65,536 shades of each primary color — 281 trillion colors total — for smooth, crisp, vivid imagery.
Front Serviceable
Using the patented POP-in POP-out magnetic tool, any module within the screen matrix can be removed from the front in seconds with very little effort.
Mechanically Precise

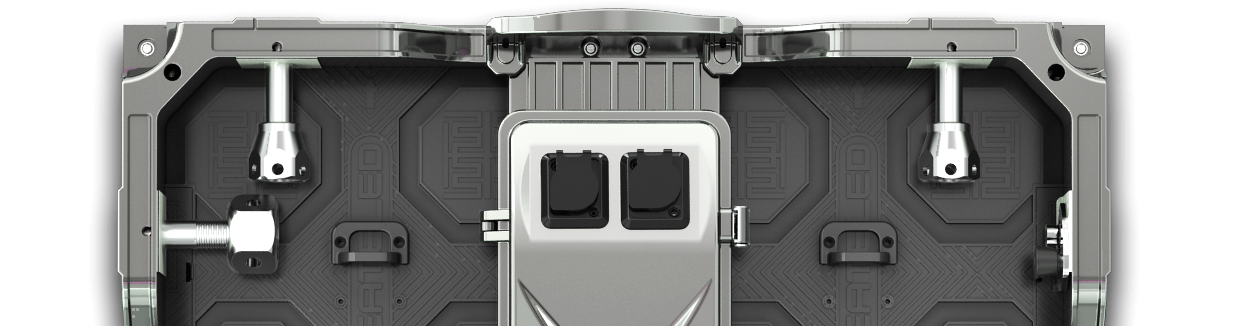

Panels are manufactured by a precision CNC process ensuring a tolerance of less than 0.1 mm — creating seamless panel-to-panel and module-to-module connections.
Specifications
LC M Series Specifications
Three models: LCM 3 / LCM 4 / LCM 5.
| Spec | LCM 3 | LCM 4 | LCM 5 |
|---|---|---|---|
| Physical Pixel Pitch | 3.9 mm | 4.6 mm | 5.2 mm |
| Pixel Configuration | SMD | SMD | SMD |
| Pixel Density per m² | 65,536 | 46,656 | 36,864 |
| Pixels per Panel | 16,384 | 11,664 | 9,216 |
| LED Module Dimensions | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Panel Dimensions W×H×D | 500 × 500 × 80 mm | 500 × 500 × 80 mm | 500 × 500 × 80 mm |
| Modules per Panel W×H | 2 × 2 | 2 × 2 | 2 × 2 |
| Module Resolution W×H | 64 × 64 | 54 × 54 | 48 × 48 |
| Panel Resolution W×H | 128 × 128 | 108 × 108 | 96 × 96 |
| Weight per Panel | 7.9 kg | 7.9 kg | 7.9 kg |
| Weight per m² | 31.6 kg | 31.6 kg | 31.6 kg |
| Processing | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 3,000:1 | 2,000:1 | 2,000:1 |
| Average Power | 54–90 W/panel | 45–75 W/panel | 45–75 W/panel |
| Max Power | 180 W/panel | 150 W/panel | 150 W/panel |
| Operating Temp/Humidity | -20–50°C / 10–90% | -20–50°C / 10–90% | -20–50°C / 10–90% |
| Storage Temp/Humidity | -30–60°C / 10–90% | -30–60°C / 10–90% | -30–60°C / 10–90% |
| Brightness | 5,000 nits | 5,000 nits | 5,000 nits |
| Refresh Rate | 1,920–3,840 Hz | 1,920–3,840 Hz | 1,920–3,840 Hz |
| Horizontal Viewing Angle | 160° | 140° | 140° |
| Vertical Viewing Angle | 140° | 120° | 120° |
| Expected LED Lifetime | 100,000 hrs | 100,000 hrs | 100,000 hrs |
| Max Stacking | 20 panels | 20 panels | 20 panels |
| Max Hanging | 16 panels | 16 panels | 16 panels |
| Servicing | Front and Back | Front and Back | Front and Back |
| IP Rating | IP65 | IP65 | IP65 |
| Certification | CE, EMC Class A, ETL, RoHS | CE, EMC Class A, ETL, RoHS | CE, EMC Class A, ETL, RoHS |
Applications
Where LC M Performs
Permanent outdoor and semi-outdoor fixed installations across commercial and entertainment venues.
Warranty
2 Year Free Parts and Factory Labor Warranty
For 15+ years we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED display is well covered.
If you experience a hardware failure with a covered product during the plan term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.
LC M Series ships with a 2 Year warranty (longer than the standard 1 Year on most other Versa series).
Spec your LC M Series install
Share your wall size and viewing distance — we'll confirm the right LCM configuration.
