Versa Mesh See-Through
Versa Mesh See-Through LED Panels
Versa Mesh LED display is particularly suited to the large format out-of-home media (OOHM) market. The lightweight large-panel design, high contrast ratio, superior color fidelity, and mechanical accuracy of the Versa Mesh range combine to form the ultimate high-resolution outdoor see-through LED display. Versa Mesh is used extensively in retail, broadcast, and entertainment industries and is available in three pixel pitch options for indoor and outdoor fixed installations.
Pixel Pitch
10.4 / 12.5 / 15.6 mm
Panel Size
500 x 1000 x 120 mm
Panel Weight
15 kg
Product Hero
Outdoor-Rated See-Through Display
The Versa Mesh range is designed to withstand the elements come rain or shine. Versa Mesh will stand by you.
Best Color Fidelity
Brilliant, Vivid, Outdoor-Bright
16-bit signal processing, 2000 Hz refresh rate, and 5500 nits brightness combine seamlessly to produce a brilliant and vivid display for daylight viewing.

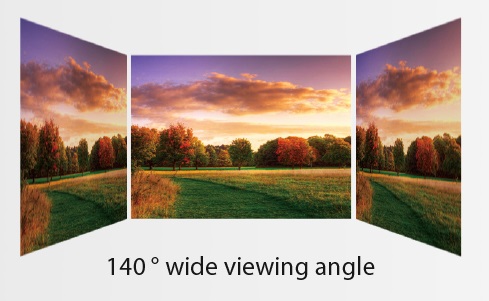

Surrounded by Vision
Adjustable-Angle Splicing for Curved Screens
Versa Mesh cabinet adopts a unique adjustable-angle design that lets the screen body be seamlessly spliced into inner-arc and outer-arc circular large screens, so the audience can fully integrate into the screen for complete immersion.
Light · Fast · Easy · Stable
Built for Speed and Stability
LIGHT — MINIMALIST DESIGN
Die-cast magnesium cabinet, 23.5 kg per sqm, 15 kg per panel.
FAST INSTALLATION

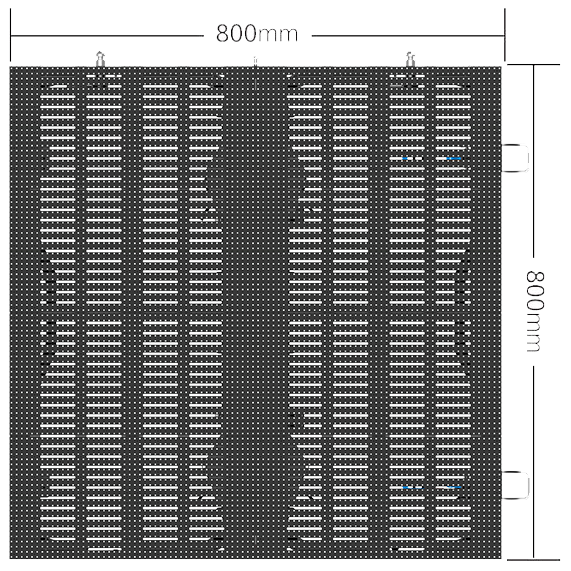

800 mm x 800 mm cabinet for higher installation efficiency. Locating pin for easy assembly. Single-assembly design lets more people assemble simultaneously.

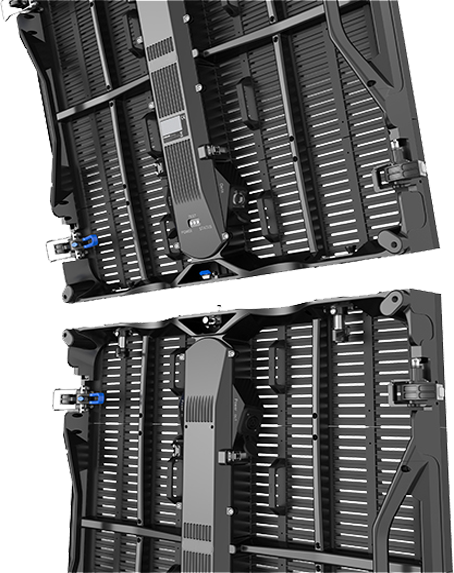

MODULAR ASSEMBLY
Snap-together panels and locating pins allow rapid stage-by-stage assembly with minimal tools and rigging.

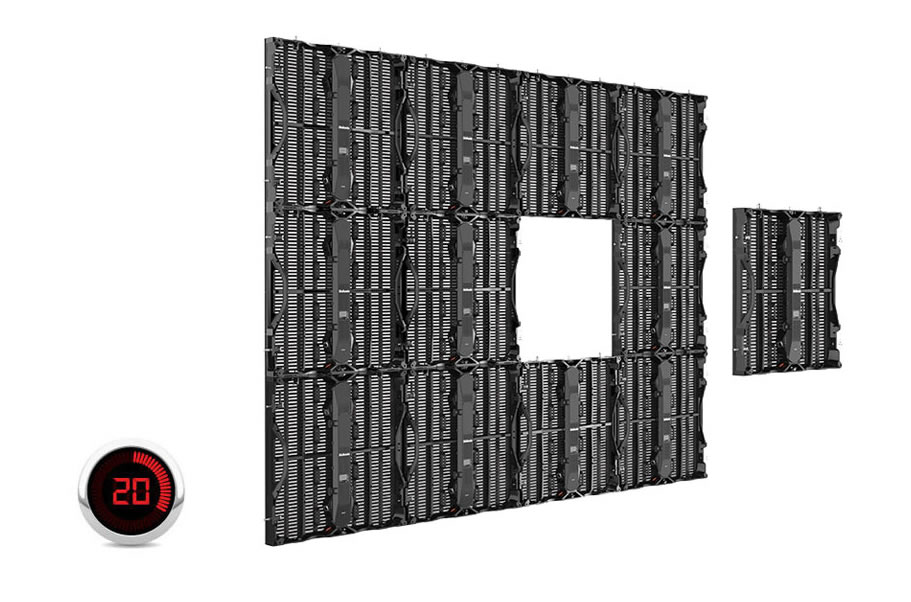

EASY FAST MAINTENANCE
Rear maintenance for module and whole cabinet. Replace the cabinet within 20 seconds.

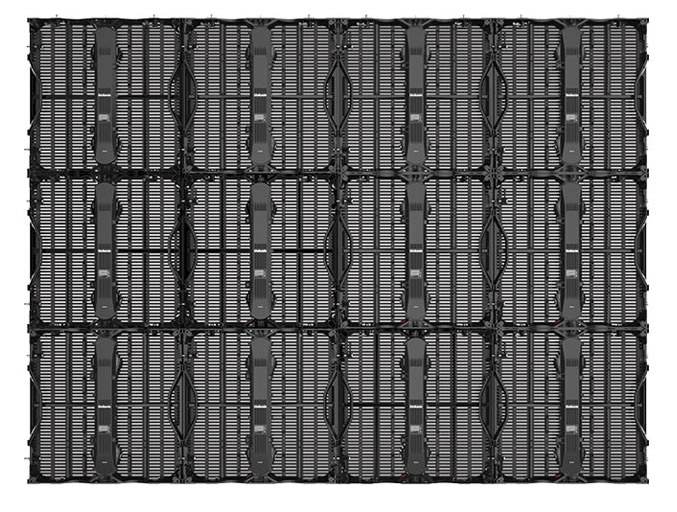

Stable
Engineered for Harsh Outdoor Environments
12% transparency provides strong wind resistance while maintaining visual openness behind the screen. Designed to operate fanless and noiseless at near zero dB with passive aluminum cooling.
Specifications
Versa Mesh Specifications
Three models available P10.4 / P12.5 / P15.6.
| Spec | Versa Mesh 10 | Versa Mesh 12 | Versa Mesh 15 |
|---|---|---|---|
| Physical Pitch | 10.4 mm | 12.5 mm | 15.6 mm |
| Pixel Configuration | SMD | SMD | SMD |
| Pixel Density per sqm | 9,216 | 6,400 | 4,096 |
| Pixels per Panel | 4,608 | 3,200 | 2,048 |
| LED Module Dimensions | 9.84 in x 19.68 in (250 x 500 mm) | 9.84 in x 19.68 in (250 x 500 mm) | 9.84 in x 19.68 in (250 x 500 mm) |
| Panel Dimensions WxHxD | 19.68 x 39.37 x 4.72 in (500 x 1000 x 120 mm) | 19.68 x 39.37 x 4.72 in (500 x 1000 x 120 mm) | 19.68 x 39.37 x 4.72 in (500 x 1000 x 120 mm) |
| Modules per Panel WxH | 2x2 | 2x2 | 2x2 |
| Module Resolution WxH | 24x48 | 20x40 | 16x32 |
| Panel Resolution WxH | 48x96 | 40x80 | 32x64 |
| Weight per Panel | 31.30 lb | 31.30 lb | 31.30 lb |
| Weight per sqm | 28.4 kg | 28.4 kg | 28.4 kg |
| Processing | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 3,000:1 | 3,000:1 | 3,000:1 |
| Average Power | 112 to 167 W per panel | 112 to 167 W per panel | 112 to 167 W per panel |
| Max Power | 335 W per panel | 335 W per panel | 335 W per panel |
| Operating Temp/Humidity | -20 to 50 C / 10 to 90% | -20 to 50 C / 10 to 90% | -20 to 50 C / 10 to 90% |
| Storage Temp/Humidity | -30 to 60 C / 10 to 90% | -30 to 60 C / 10 to 90% | -30 to 60 C / 10 to 90% |
| Brightness | 5,500 nits | 5,500 nits | 5,500 nits |
| Refresh Rate | 1,920 to 3,840 Hz | 1,920 to 3,840 Hz | 1,920 to 3,840 Hz |
| Horizontal Viewing Angle | 140 deg | 140 deg | 140 deg |
| Vertical Viewing Angle | 120 deg | 120 deg | 120 deg |
| Expected LED Lifetime | 100,000 hrs | 100,000 hrs | 100,000 hrs |
| Max Stacking | 14 panels | 14 panels | 14 panels |
| Max Hanging | 14 panels | 14 panels | 14 panels |
| Servicing | Front and Back | Front and Back | Front and Back |
| IP Rating | IP65 | IP65 | IP65 |
| Certification | CE RoHS EMC Class A | CE RoHS EMC Class A | CE RoHS EMC Class A |
Applications
Where Versa Mesh Performs
Versa Mesh is used extensively across retail, broadcast, and entertainment industries for indoor and outdoor fixed installations.
Warranty
1 Year Free Parts and Factory Labor Warranty
For 15+ years we have been supporting our products around the world. With more than 100 dealers in the US and around the globe, your SunRise LED display is well covered.
If you experience a hardware failure with a covered product during the plan term, simply contact your distributor to report the problem.
Spec your Versa Mesh install
Share your wall size and viewing distance — we'll confirm the right Versa Mesh configuration.
