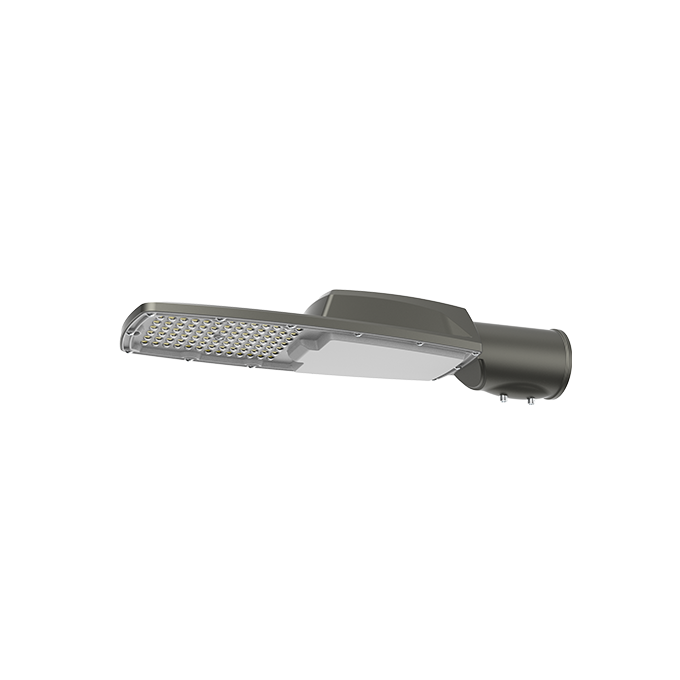

EconPlus II Street Light
Precision Optics, High Efficiency, Reliable Performance
- Feature summary — power
- 20–100 W
- Feature summary — max output
- 15,000 lm
- Feature summary — efficacy
- up to 150 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 2,600–13,000 lm
- Parameter table — efficacy option
- 130 lm/W
Specifications
- Feature summary — power
- 20–100 W
- Feature summary — max output
- 15,000 lm
- Feature summary — efficacy
- up to 150 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 2,600–13,000 lm
- Parameter table — efficacy option
- 130 lm/W
- Parameter table — CCT
- 4000±300K / 5000±300K
- Protection
- IP66
- Feature summary — impact
- up to IK10
- Parameter table — impact
- IK07
- Feature summary — lifetime
- >50,000 hours
- Parameter table — life
- 30,000 hrs
- Input
- AC100–277V · 50/60Hz
- Power factor
- ≥0.92 at 20 / 30 / 50 W · ≥0.95 at 60 / 80 / 100 W
- Operating / storage
- −40 to 50°C / −40 to 60°C
- Humidity
- 10–90% RH
- Housing
- Die-casting aluminum
- Drivers / LED
- Inventronics / Philips / Moso / Sosen · Ruifeng 3030
- CRI
- 70
- Optics
- Type II (UNI-929)
- Parameter table — packing 20 / 30 / 50 W
- 620 × 475 × 385 mm (10 in 1)
- Parameter table — gross 20 / 30 / 50 W
- 13.4 / 13.9 / 12.4 kg (10 in 1)
- Parameter table — packing 60 / 80 / 100 W
- 615 × 500 × 4758 mm (8 in 1)
- Parameter table — gross 60 / 80 / 100 W
- 16.24 / 16.64 / 17.04 kg (8 in 1)
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STC9-1 — 20 W | 20 W | 2,600 lm | 424 × 143 × 78 mm | 1.1 kg |
| UNI-STC9-1 — 30 W | 30 W | 3,900 lm | 424 × 143 × 78 mm | 1.15 kg |
| UNI-STC9-1 — 50 W | 50 W | 6,500 lm | 424 × 143 × 78 mm | 1.2 kg |
| UNI-STC9-3 — 60 W | 60 W | 7,800 lm | 564 × 192 × 80 mm | 1.8 kg |
| UNI-STC9-3 — 80 W | 80 W | 10,400 lm | 564 × 192 × 80 mm | 1.85 kg |
| UNI-STC9-3 — 100 W | 100 W | 13,000 lm | 564 × 192 × 80 mm | 1.9 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Side entry Φ48 and Φ60 mm
- Easy disassembly
- NEMA and Zhaga support
- Certifications: CE / CB / ENEC / RoHS / IK10
- Type II optic UNI-929
