LED Displays / Clear View Series

Clear View

Ultra-transparent LED mesh display preserves natural daylight and outside views while delivering vivid full-color content. Ideal for retail glass facades, showrooms, and architectural feature walls.

Request a Quote

CLEAR VIEW

Transparent LED Display

Up to 80% translucency. When the LED display is on, the marketing message and graphics appear to float on the glass. When powered down, it's nearly invisible. Installation of a SunRise Clear View display won't change the face of a building or interfere with indoor light.

80% Transparency8mm Thin12 kg/sqmIP62 / IP22

PIXEL PITCH

2.5 to 10 mm

BRIGHTNESS

>5500 nits

REFRESH

1920 to 3000 Hz

CVR SERIES

Clear View Rental Series

Lightweight rental-grade transparent cabinets for event production.

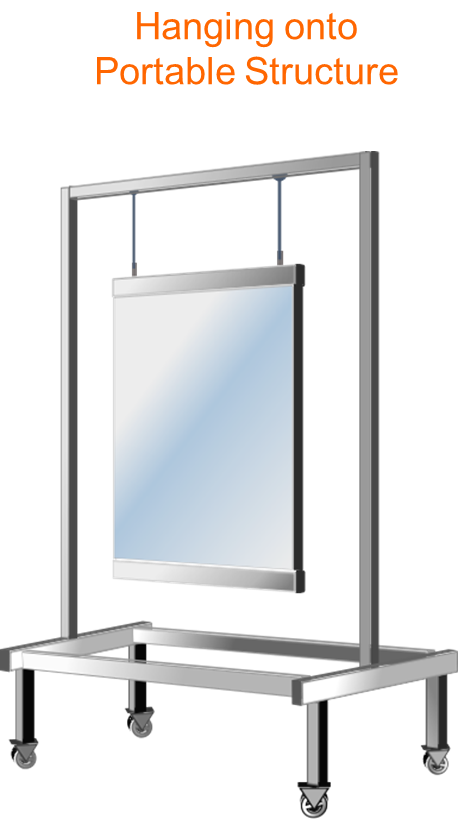

CVR3s rental cabinet in rolling case
CVR3s Portable Rolling Case

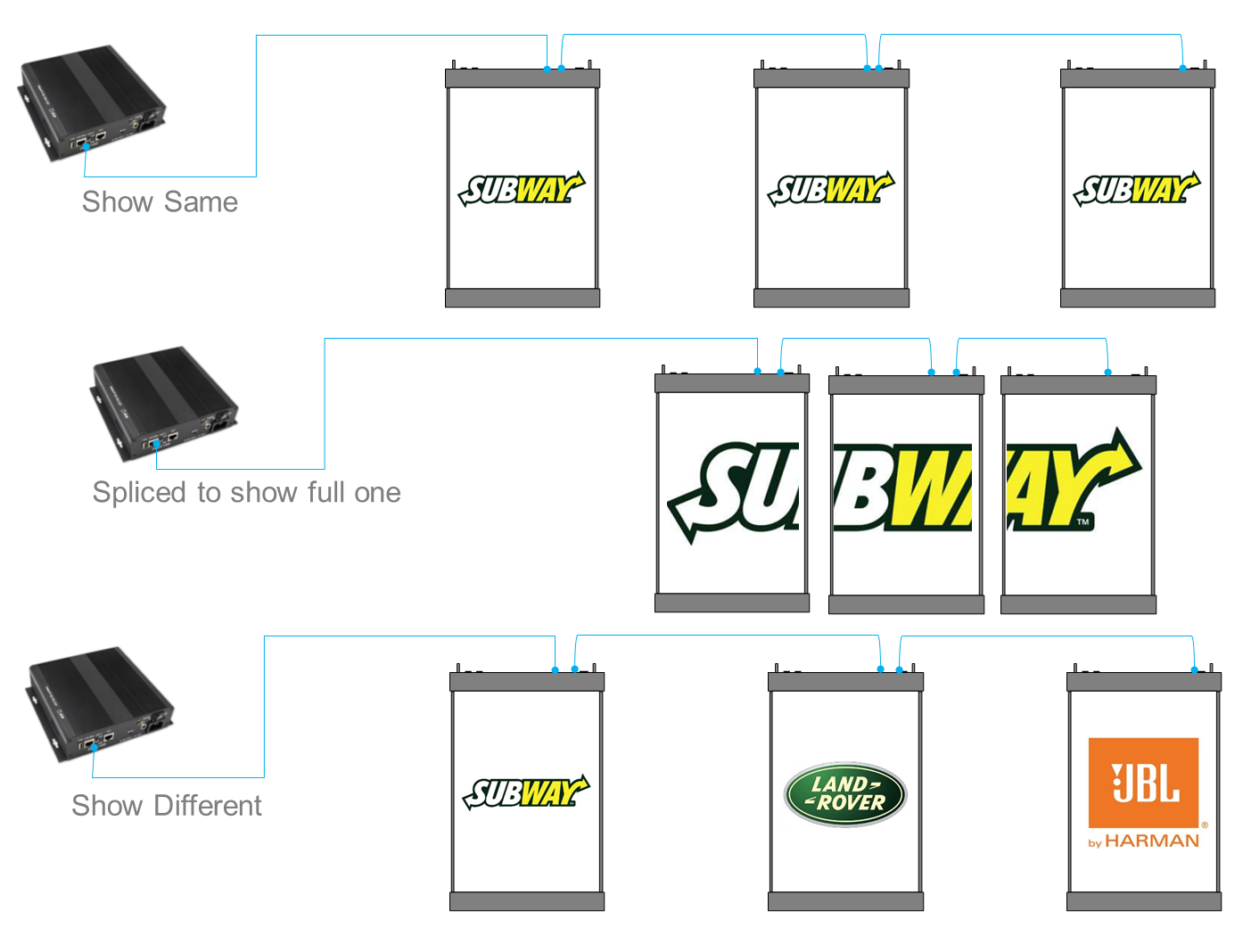

CVR3 storefront install
CVR3 Installation
CVR2.5 and CVR5 window mount installation
CVR2.5 / CVR5 Window Mount

CVR FEATURES

Designed for Live Events

High Transparency

Translucency up to 68%. When lit it's impossible to tell it's transparent; when powered down it's impossible to see at all. Doesn't change the face of a building or interfere with inside workflow.

High Brightness

>5500 nits for daylight readability behind glass.

Easy Installation

Modular design β€” components couple together to create a display to suit your needs.

Flexible Mounting

Hanging, stacking, window mount, or portable rolling case.

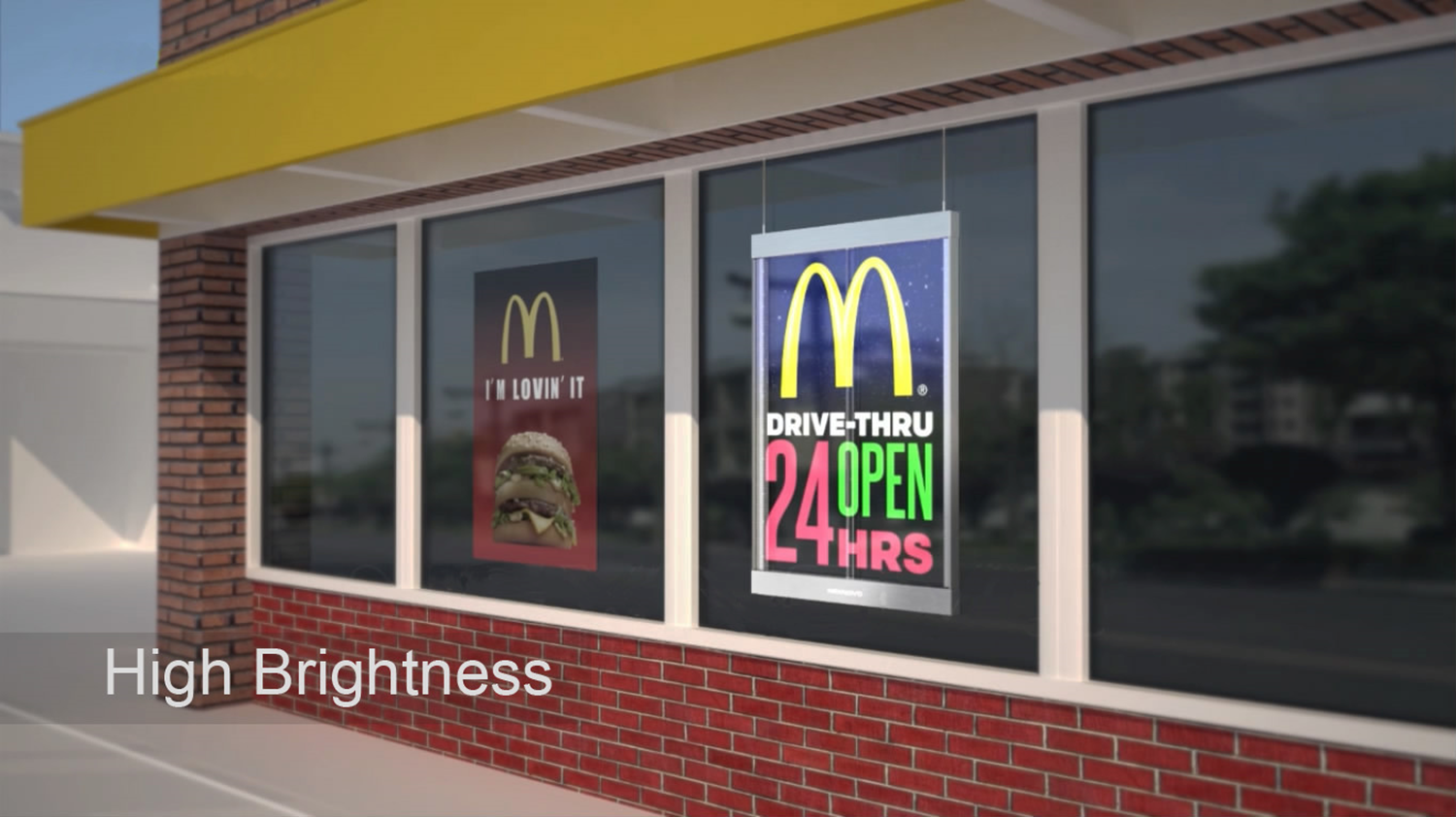

CVR high transparency demoCVR high brightness demo

REAL-WORLD CVR DEPLOYMENTS

Built for Versatile Installation

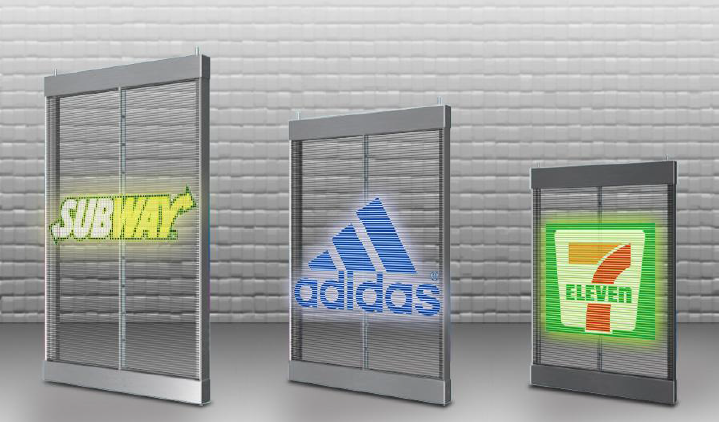

CVR full model family lineup
CVR Family
CVR storefront installation
Permanent Install
CVR portable rolling case configuration
Portable Rolling Case
CVR mounted on retail window
Window Mount

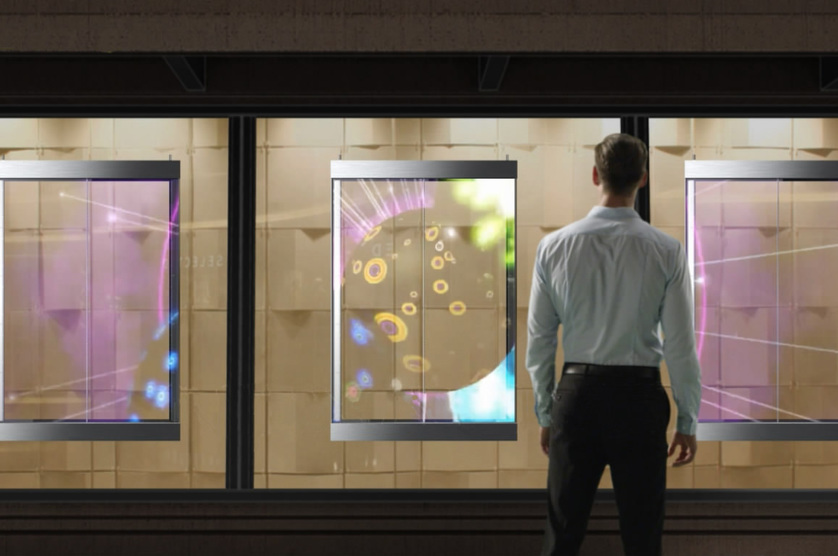

Clear View transparent LED on glass building facade

CVR SPECIFICATIONS

CVR Model Specifications

Four rental models from 2.5 mm to 5 mm pitch.

SpecCVR3sCVR3CVR2.5CVR5
Pixel Pitch (mm)3.33W x 6.66H3.33W x 6.66H2.5W x 5.71H5W x 5.71H
LED ModelSMD1921SMD1921SMD1921SMD1921
Brightness (nit)>5500>5500>5500>5500
Transparency68%68%64%64%
Display Area (W x H mm)640 x 852640 x 852960 x 1280960 x 1280
Cabinet (W x H x D mm)657 x 1014 x 51657 x 1014 x 51977 x 1440 x 51977 x 1440 x 51
Display Resolution (W x H)192 x 128192 x 128384 x 224192 x 224
Module Resolution (W x H)96 x 3296 x 32192 x 2896 x 28
Max Power (W/set)600600970942
Avg Power (W/set)180180290270
Ingress ProtectionIP62IP62IP62IP62
Refresh Rate (Hz)3000300030003000
Input PowerAC110V–AC240VAC110V–AC240VAC110V–AC240VAC110V–AC240V
Display Weight (kg/set)20204242
Package Weight (kg/set)44447676
Package Size (mm)1120 x 1040 x 2301120 x 1040 x 2301530 x 1240 x 2301530 x 1240 x 230
Package MaterialPlywood CasePlywood CasePlywood CasePlywood Case
Working Temp-10 to 40 C-10 to 40 C-10 to 40 C-10 to 40 C

CVM SERIES

Clear View Magnetic Series

Extruded aluminum cabinets with magnetic, front-serviceable modules for fixed installations on glass facades, shop windows, auto showrooms, and architectural glazing.

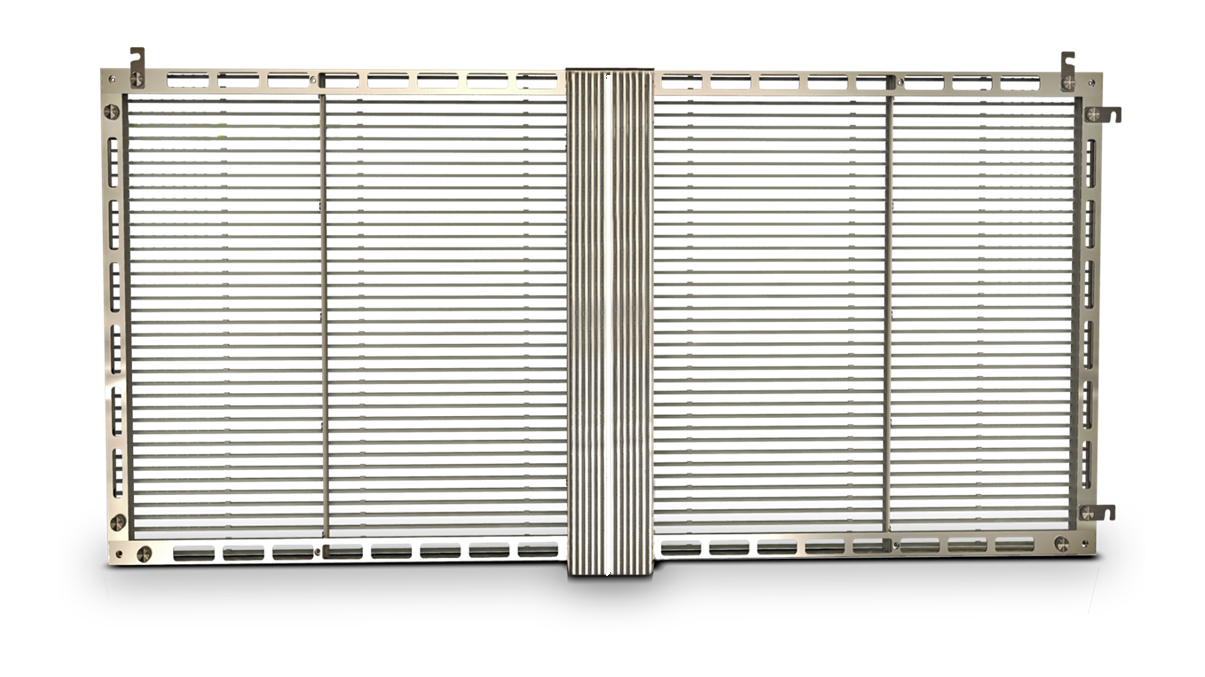

CVM family of transparent LED cabinets in commercial setting

CVM FEATURES

Engineered for Permanent Glass Installations

High Transparency

Translucency up to 80%. When the LED display is on, the marketing message and graphics appear to float on the glass.

Easy Installation & Maintenance

Modular design for components with front-serviceable modules.

Flexible Mounting

Hanging, stacking, window mount.

Fanless & Noiseless

Zero dB operation with passive aluminum cooling.

CVM IN ACTION

Modular Aluminum Cabinets for Storefronts and Auto Showrooms

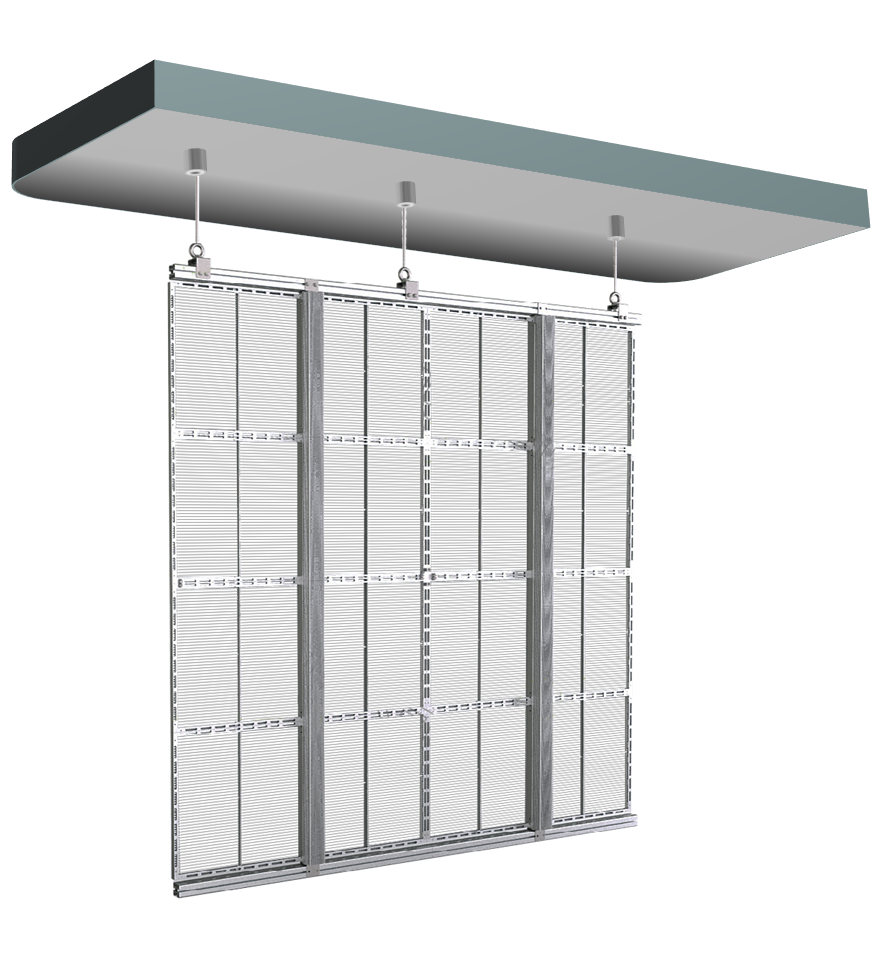

CVM top-mount install in retail
Top-Mount Hanging

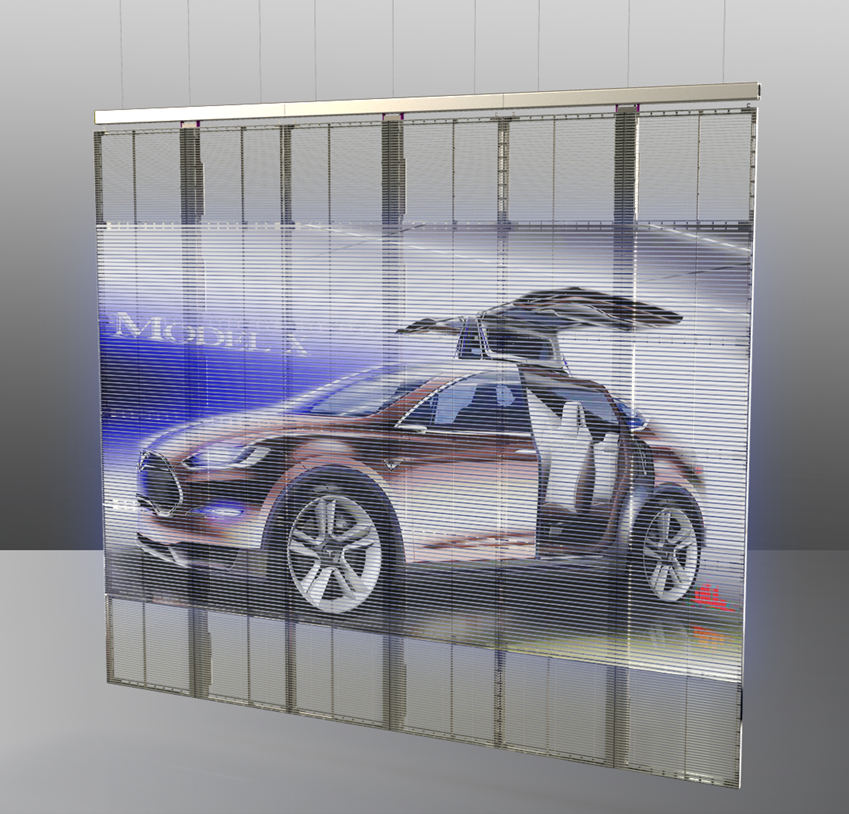

CVM transparent display behind car
Auto Showroom

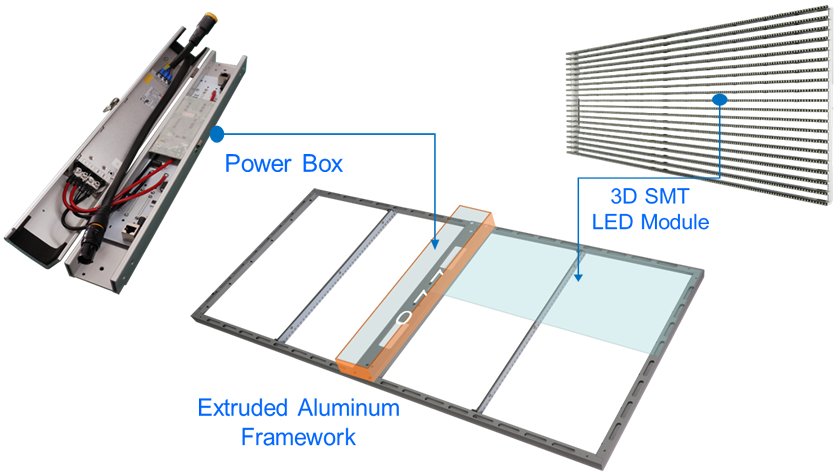

CVM front maintenance access
Front-Service Maintenance

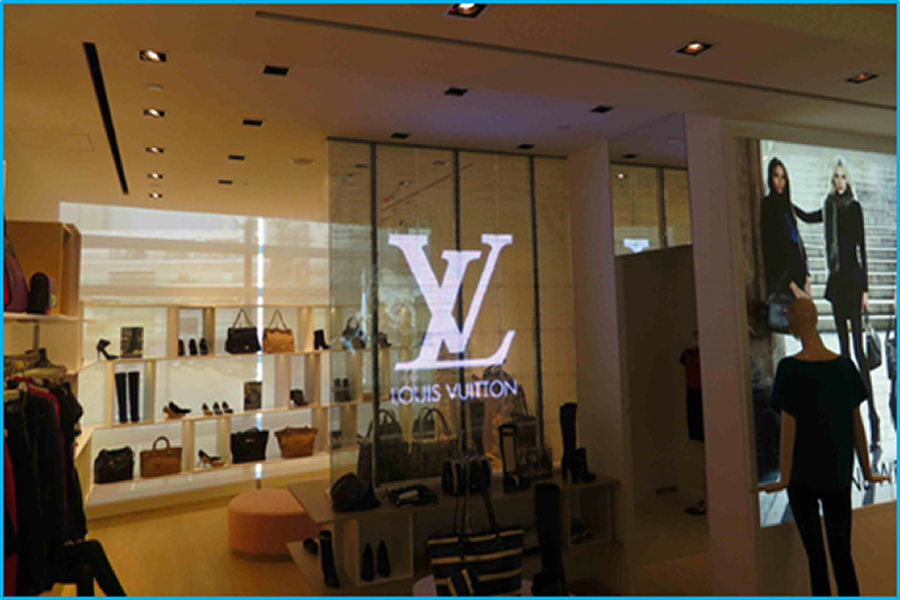

CVM transparent storefront installation
Storefront View

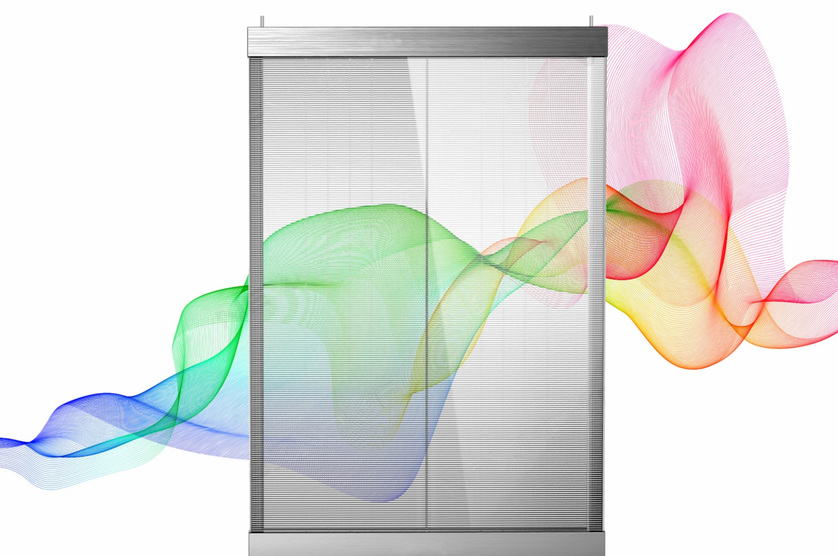

Transparent LED on multi-story glass building

CVM SPECIFICATIONS

CVM Model Specifications

Four magnetic models from 3.9 to 10 mm pitch.

SpecCVM-3CVM-5CVM-8CVM-10
LEDSMD1921SMD1921SMD1921SMD1921
Driving ICMBI5124 / SUM2016MBI5124 / SUM2016MBI5124 / SUM2016MBI5124 / SUM2016
Cabinet StructureExtruded AluminumExtruded AluminumExtruded AluminumExtruded Aluminum
Power SupplyHWAWAN 4.6V 80A (CE & UL)HWAWAN 4.6V 80A (CE & UL)HWAWAN 4.6V 80A (CE & UL)HWAWAN 4.6V 80A (CE & UL)
Pixel Pitch (mm)3.9W x 7.8H5W x 8H7.5W x 8H10W x 10H
Scanning Method1/4 scan1/3 scan1/2 scan1/3 scan
Cabinet Size (mm)1000 x 500 x 94960 x 480 x 94960 x 480 x 94960 x 480 x 94
Cabinet Resolution (px)256 x 64192 x 60128 x 6096 x 48
Brightness5500 nits5500 nits5500 nits5500 nits
Viewing Angle>120 deg>120 deg>120 deg>120 deg
Transparency75%75%75%80%
Max Consumption400 W/pc400 W/pc430 W/pc430 W/pc
Weight6 kg/pc6 kg/pc5.5 kg/pc5.5 kg/pc
Gray Scale14 bit14 bit14 bit14 bit
Frame Frequency50–60 Fps50–60 Fps50–60 Fps50–60 Fps
Refresh Rate1920 Hz1920 Hz1920 Hz1920 Hz
Protection GradeIP22IP22IP22IP22
Input Power110–240V110–240V110–240V110–240V
Working Temperature-10 to 40 C-10 to 40 C-10 to 40 C-10 to 40 C
Working Humidity10–90%10–90%10–90%10–90%

APPLICATIONS SHOWCASE

Eight Ways Clear View Transforms Glass

Real-world Clear View deployments across architecture, retail, and entertainment.

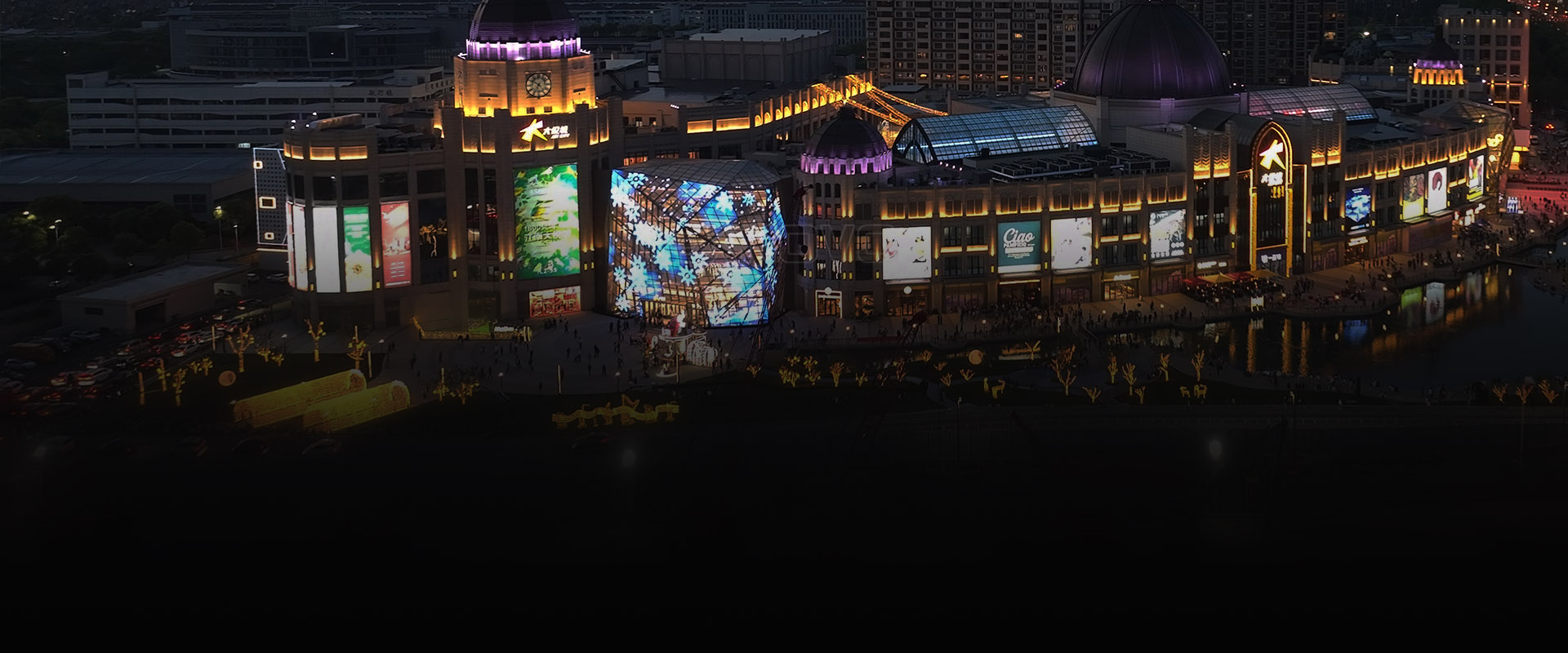

Transparent LED media curtain wall on a multi-story glass building facade

Building Facade

Multi-story media curtain walls that turn glass exteriors into stunning urban displays without blocking natural light.

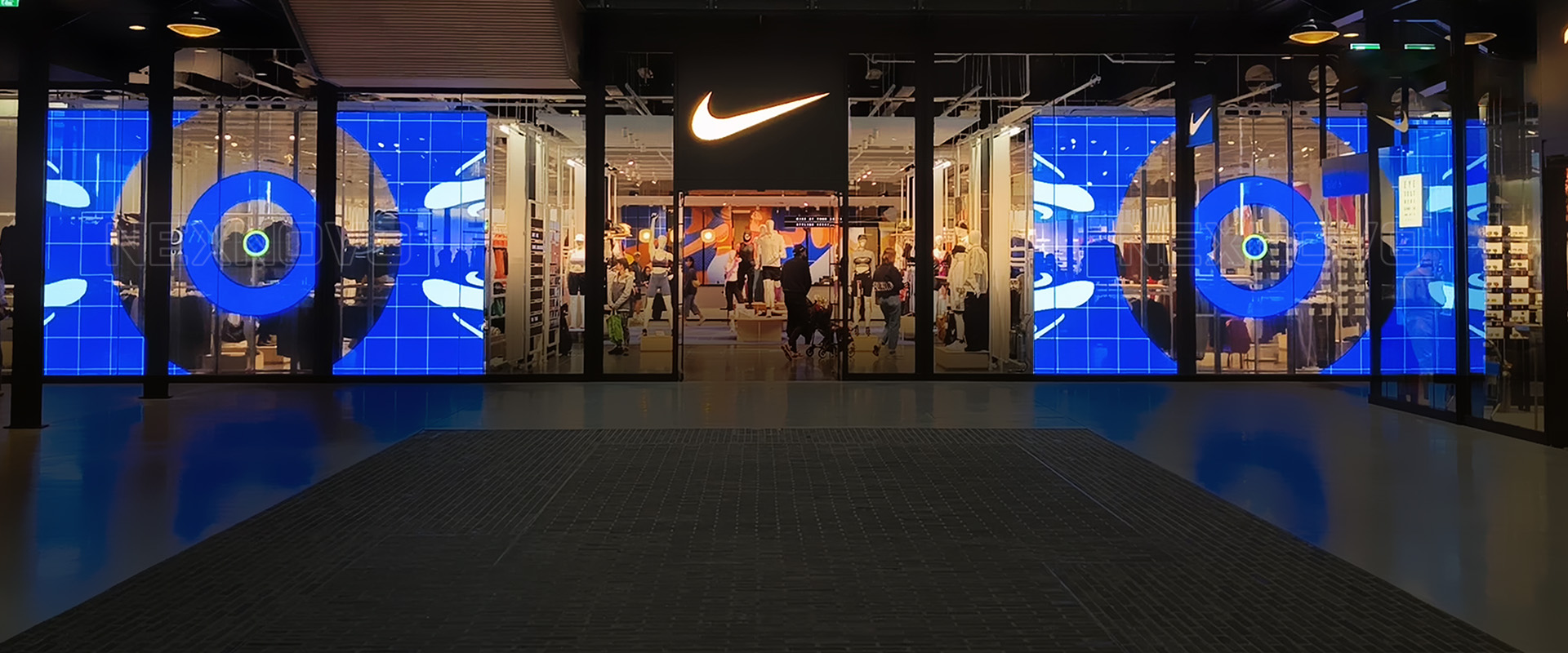

Transparent LED storefront window display

Retail Window

Dynamic storefront displays that captivate passersby while keeping the window transparent for inside views.

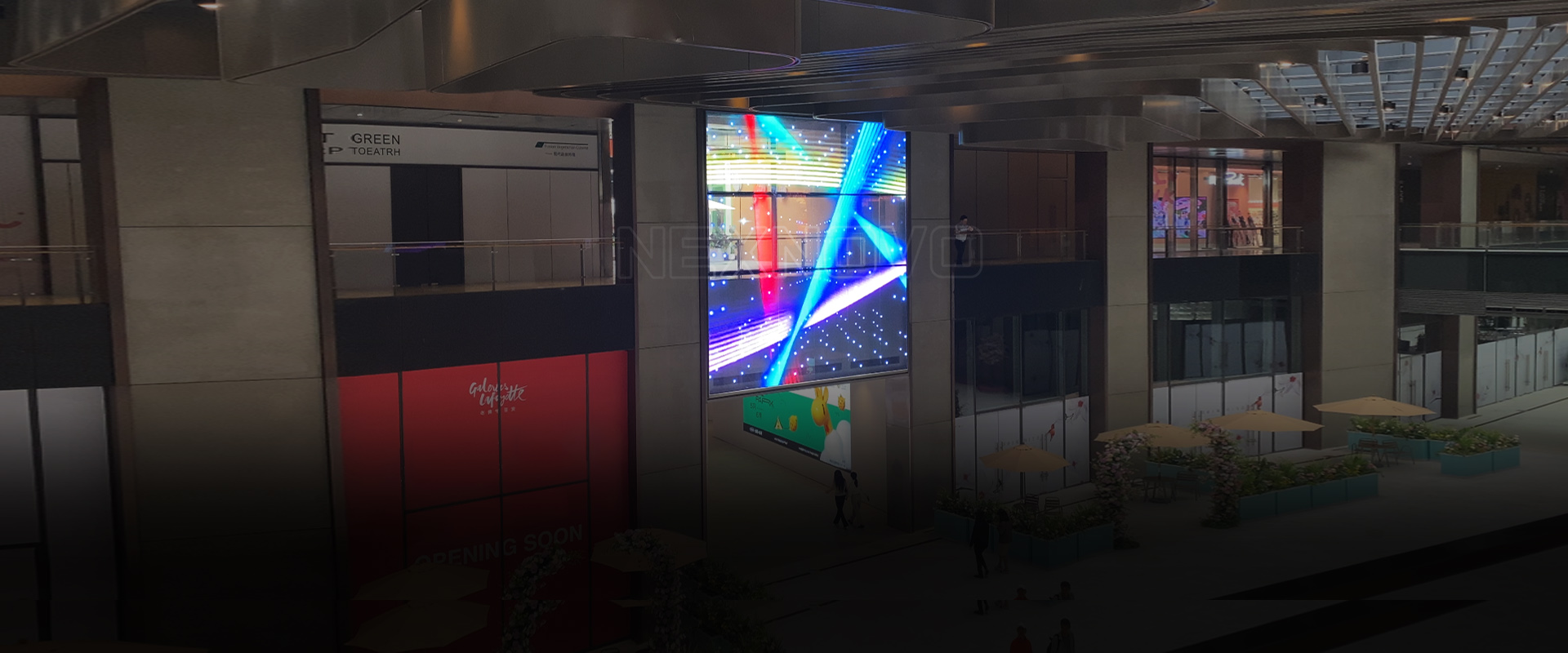

Transparent LED display in a shopping center atrium

Commercial Hub

Lobbies, shopping centers, and mixed-use atriums get immersive ground-floor visual content without sacrificing daylight.

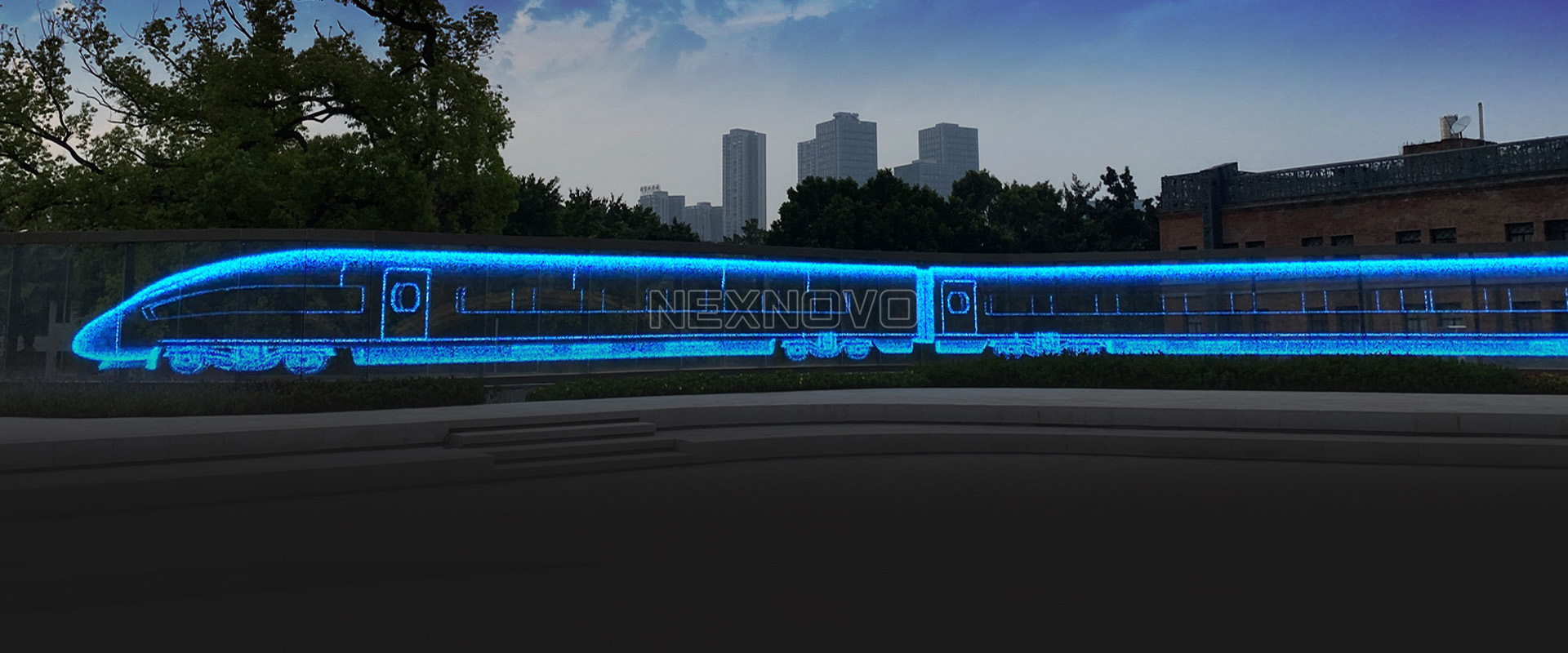

Architectural landscape lighting media surface

Landscape Lighting

Architectural lighting features that double as media surfaces for parks, plazas, and public landscapes.

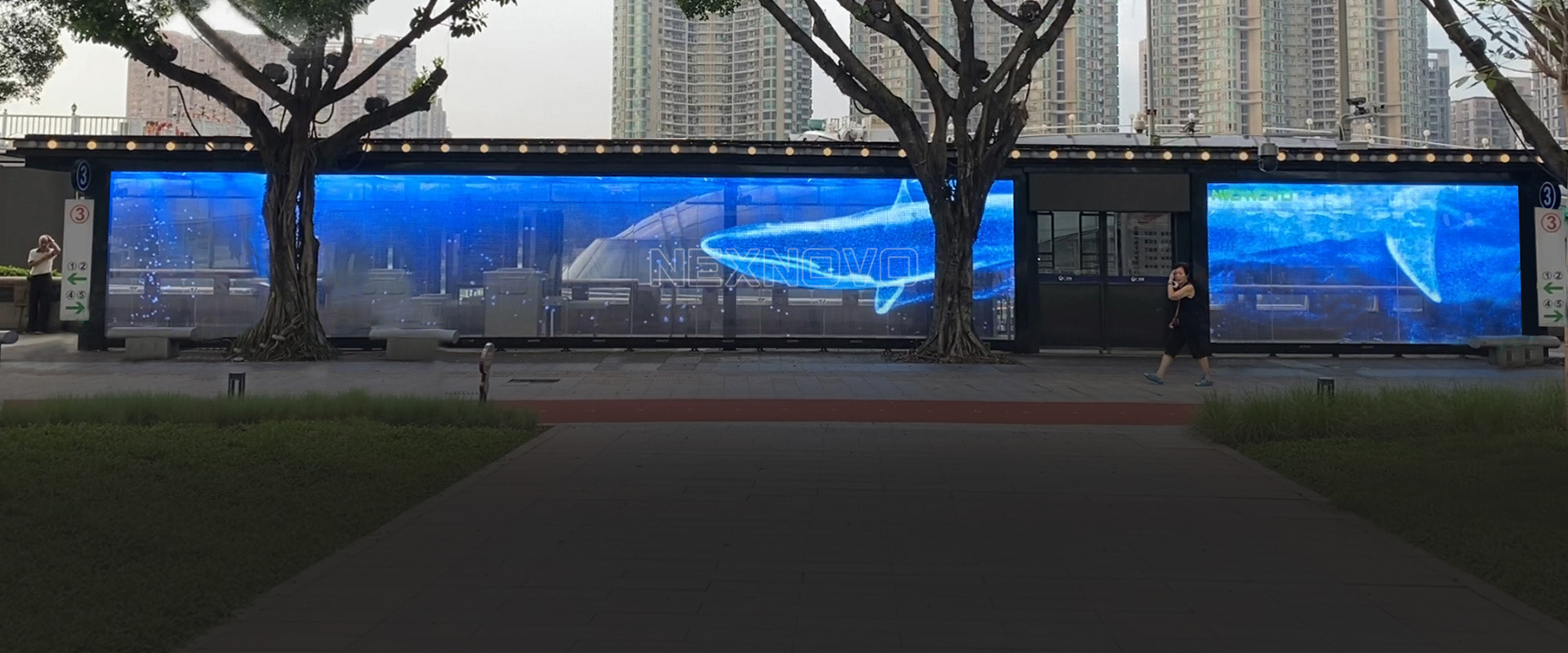

Transparent LED advertising media display

Advertisement Media

Eye-level transparent ad faces with seamless and special-shape splicing for outdoor and indoor signage networks.

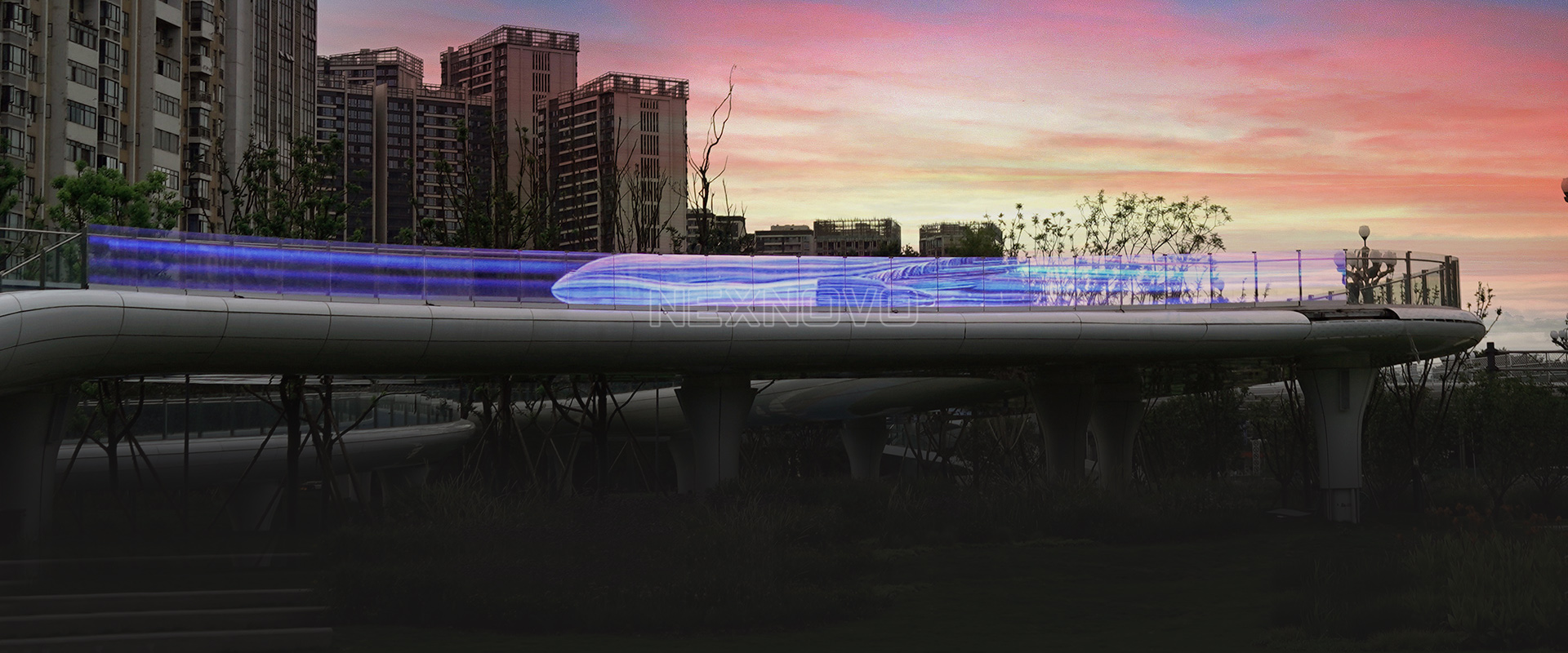

Transparent LED glass railing on an overpass

Balustrade Overpass

Glass railings on bridges, overpasses, and elevated walkways double as continuous video display surfaces.

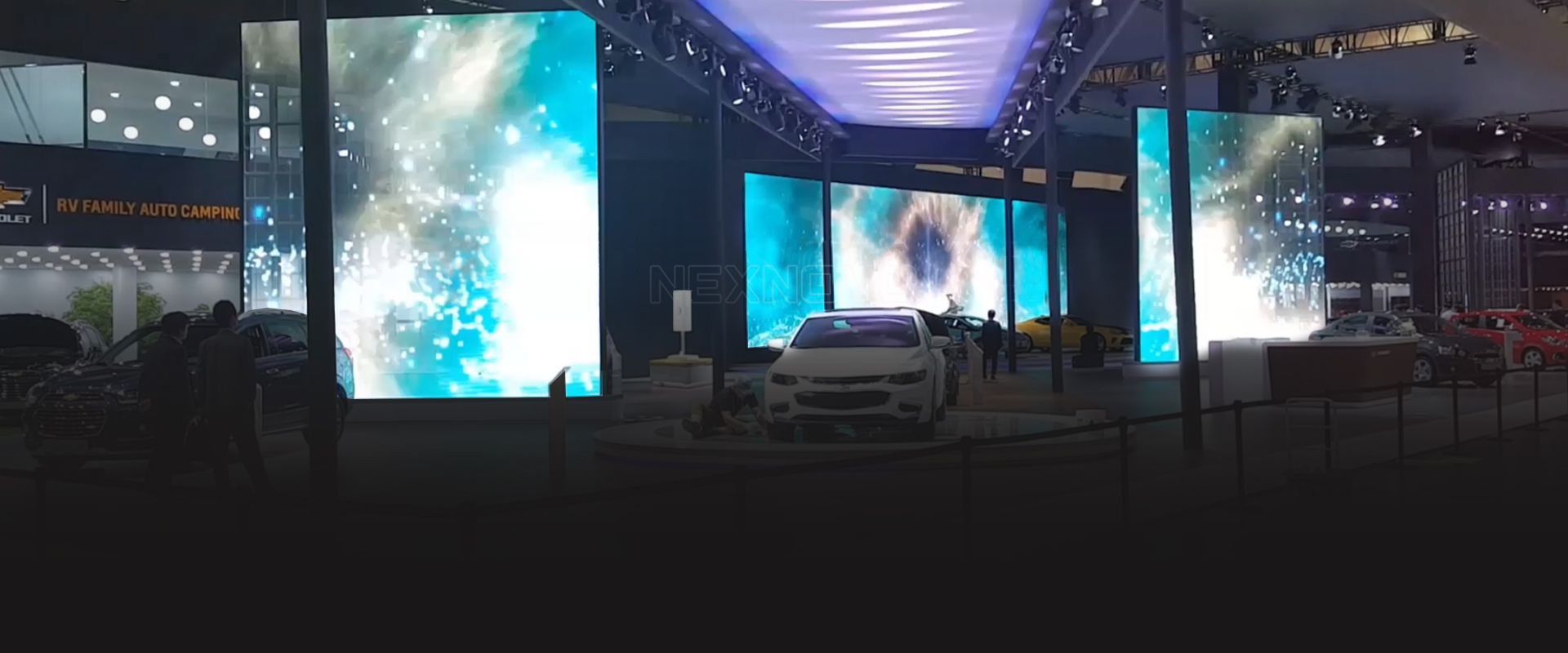

Transparent LED display in an exhibition showroom

Exhibition & Showroom

Auto showrooms, museum cases, and trade-show booths get show-stopping displays that preserve sightlines to the product.

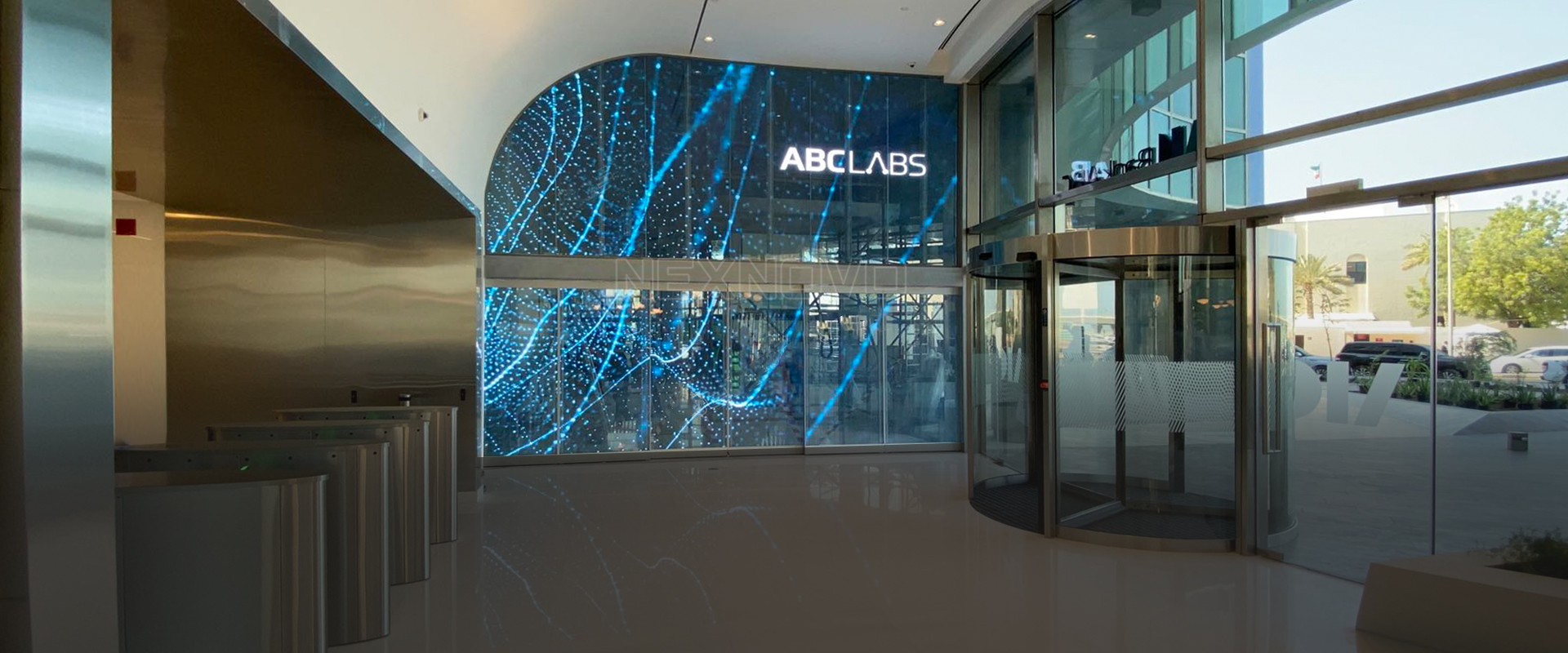

Curved and custom-shaped transparent LED creative installation

Irregular Creativity

Curved, custom-shaped, and creative installations for sculptural and brand-experience displays.

WIDE RANGE OF APPLICATIONS

Where Clear View Performs

Signboards, advertising screens in shop windows, city lights, bus stops, railway buildings, airport halls, shopping centers, office buildings, and wherever buildings have glass walls. Available in clear, all shades of gray up to black. Opaque design useful for city lights, glazed alcoves, windows and other places where transparency is not desirable.

Signboards
Shop Windows
City Lights
Bus Stops
Railway Stations
Airport Halls
Shopping Centers
Office Buildings
Auto Showrooms
Stage Events

CASCADING OPERATION + WARRANTY

Always-On Engineering with Full Support

Cascading Operation

Power supply, signal cable, control system, socket backup available for fail-safe operation across multi-panel installs.

1-Year Warranty

For 15+ years we have been supporting our products worldwide. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered. If you experience a hardware failure with a covered product during the plan term, simply contact your distributor to report the problem.

Ready to spec your project?

Tell us your size, pitch, and quantity β€” we'll confirm the right Clear View Series configuration.
