LED Lighting / Street Lights
Marlin Street Light
Awarded by iF, Trusted by Roads
- Feature summary — power
- 15–150 W
- Feature summary — max output
- 27,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK09
- Feature summary — lifespan
- >100,000 hours
Specifications
- Feature summary — power
- 15–150 W
- Feature summary — max output
- 27,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK09
- Feature summary — lifespan
- >100,000 hours
- Parameter table — protection
- IP66 / IK08
- Parameter table — life
- 100,000 hrs
- Working temperature
- -40 to 45°C
- Storage temperature
- -40 to 55°C
- Humidity
- 10–90% RH
- Input
- AC200–240V, 50/60Hz
- Power factor
- ≥0.90 / ≥0.95 by model
- Driver
- Osram / Tridonic / Inventronics / Moso
- LED
- Osram / 5050
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Housing
- Die-casting aluminum
- Mounting
- Side entry or post top, ±20°
- Optics
- Type I (UNI-691); Type II (UNI-540); Type II (UNI-618); Type III (UNI-712); Type V (UNI-685)
- Certifications & reports
- CE / CB / ENEC / ENEC+ / Darksky / EPD / RoHs / IP66 / IK09 / D4i
Feature summary lists up to IK09; the parameter table lists IK08.
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STD4-1-030 | 30 W | 4800 lm | 574×219×124 mm | 4.0±0.5 kg |
| UNI-STD4-2-060 | 60 W | 9600 lm | 665×250×125 mm | 5.0±0.5 kg |
| UNI-STD4-3-090 | 90 W | 14400 lm | 665×250×135 mm | 5.5±0.5 kg |
| UNI-STD4-4-120 | 120 W | 19200 lm | 695×285×140 mm | 7.0±0.5 kg |
| UNI-STD4-5-150 | 150 W | 24000 lm | 695×285×140 mm | 7.0±0.5 kg |
Feature summary
Key features
- Tempered glass, PMMA lens, and anti-corrosion die-cast aluminum

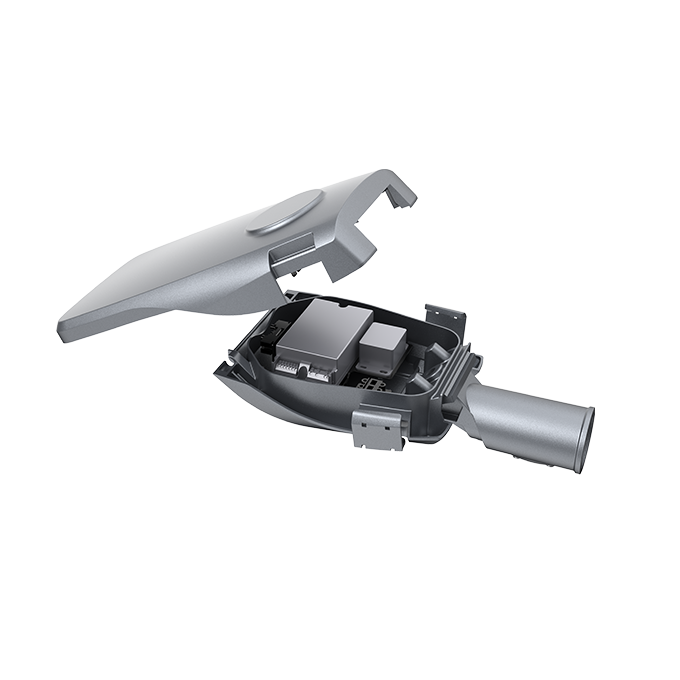

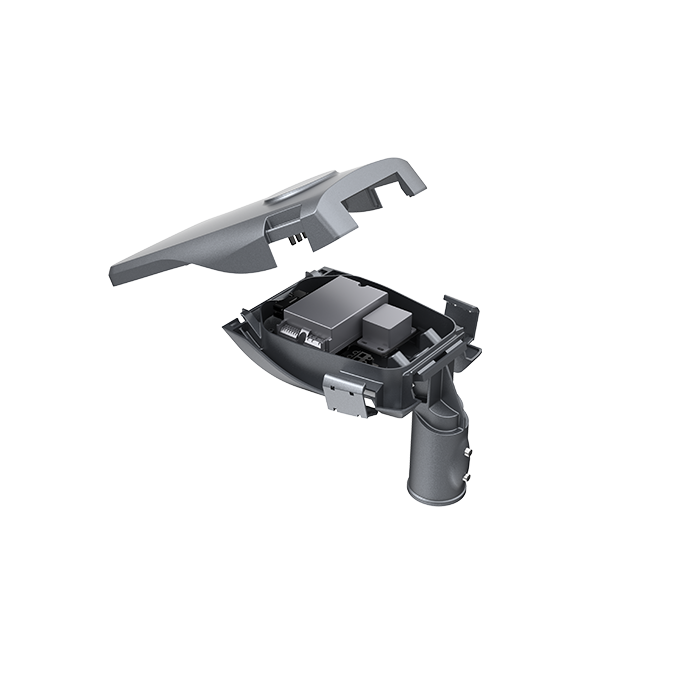

- Tool-free maintenance with detachable driver chamber
- NEMA and Zhaga smart-ready
- Side-entry or post-top mounting
