LED Lighting / Street Lights

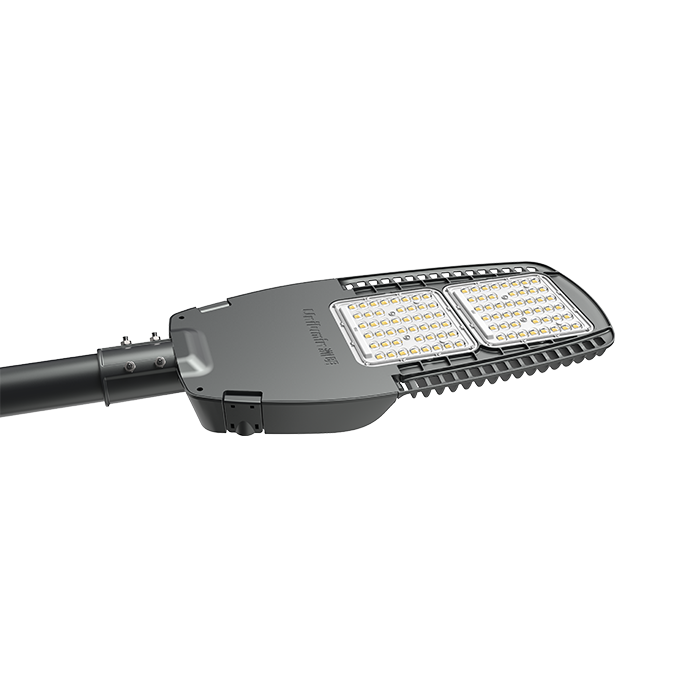

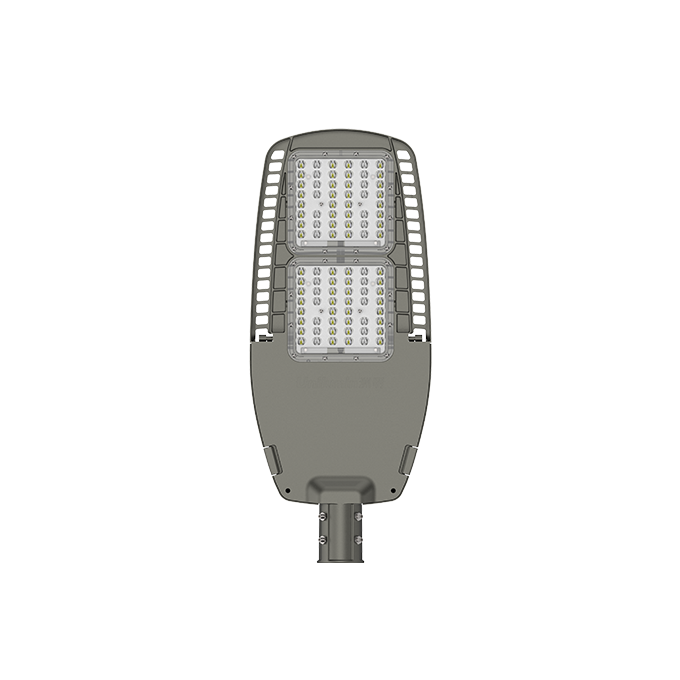

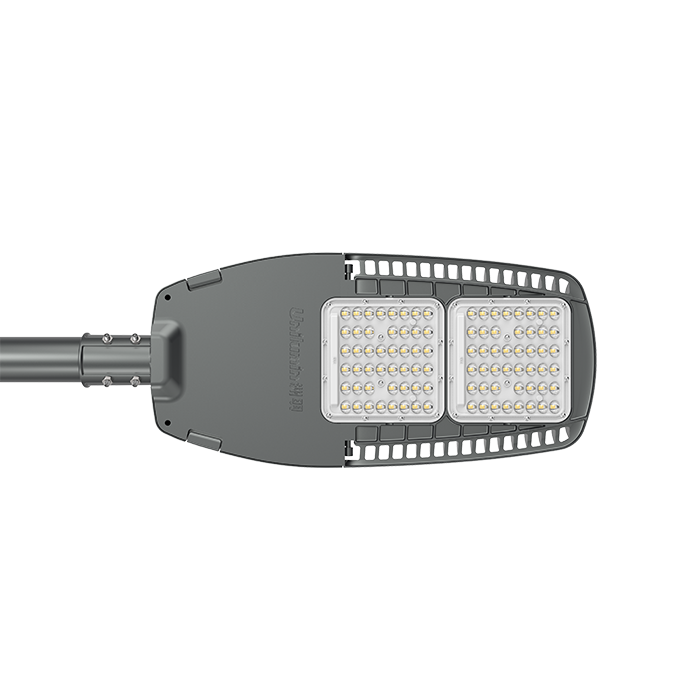

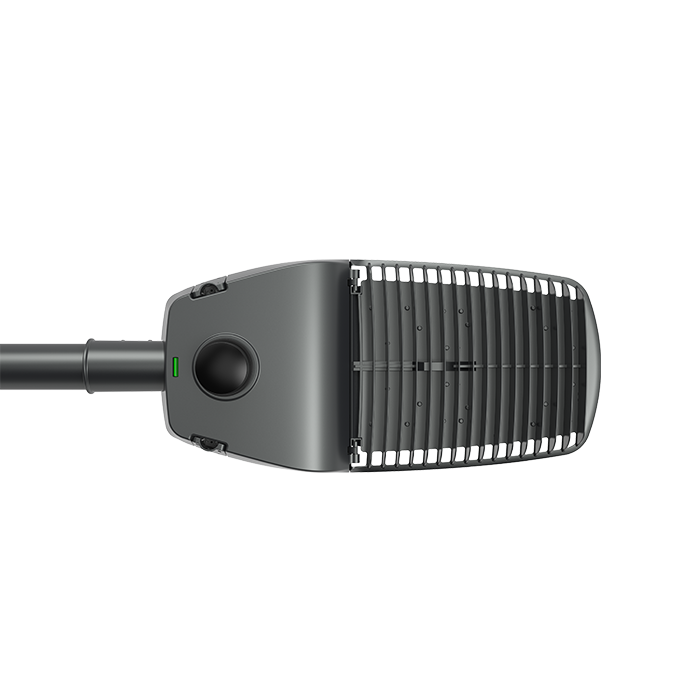

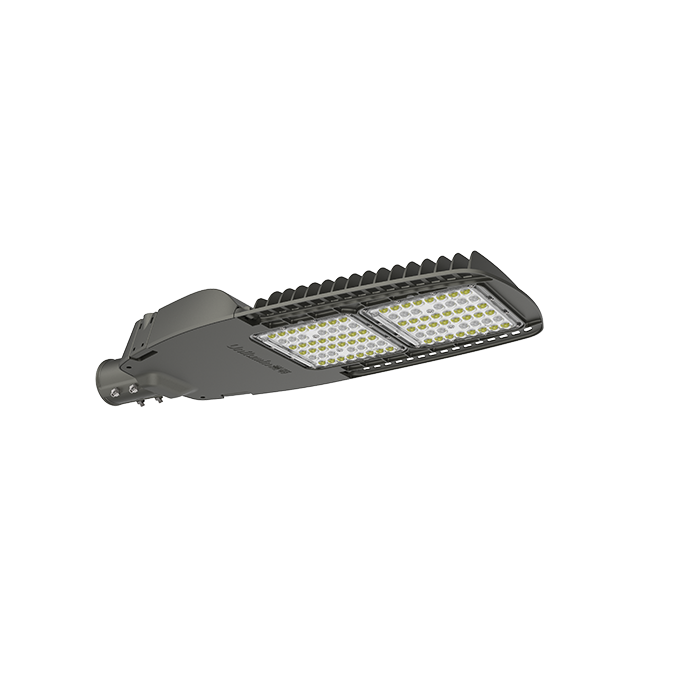

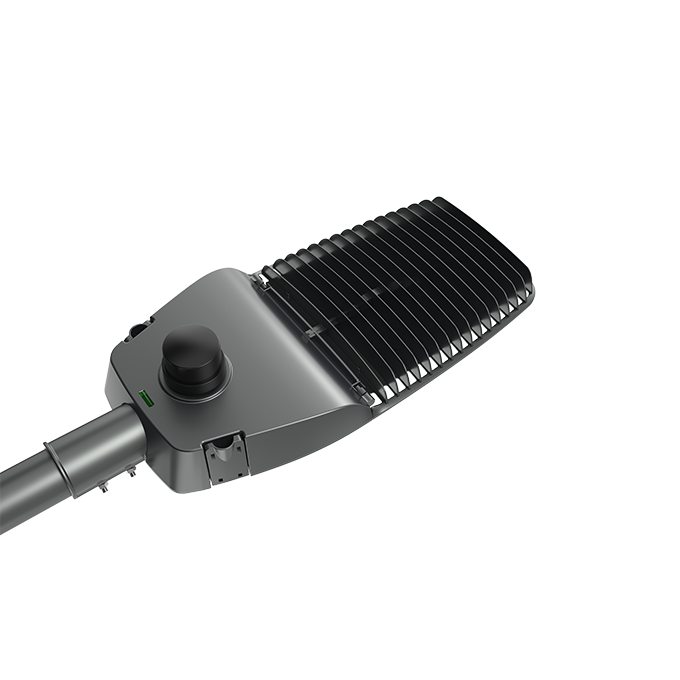

Napro Street Light
Flexible Access, Professionally Illuminating
- Feature summary — power
- 10–250 W
- Feature summary — energy savings
- up to 80%
- Input
- AC100–277V, 50/60Hz
- Protection
- IP66 / IK09
- Working temperature
- -40 to 55°C
- Storage temperature
- -40 to 55°C
Specifications
- Feature summary — power
- 10–250 W
- Feature summary — energy savings
- up to 80%
- Input
- AC100–277V, 50/60Hz
- Protection
- IP66 / IK09
- Working temperature
- -40 to 55°C
- Storage temperature
- -40 to 55°C
- Humidity
- 10–90% RH
- Life
- 100,000 hrs
- Power factor
- ≥0.95
- Driver
- Moso / Sosen / Inventronics / Philips
- LED
- 5050 / 3030
- CCT
- 2200K–6500K; 2200K–3000K comply with DarkSky
- Housing
- Die-casting aluminum alloy
- Family dimensions
- 742 × 311.2 × 93 mm
- Optics
- Type II Short (Optics 695); Type III Medium (Optics 726); Type II Short (Optics 733); Type II Medium (Optics 907)
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power |
|---|---|
| UNI-STD2-2 | 10–60 W |
| UNI-STD2-3 | 61–100 W |
| UNI-STD2-1 | 101–150 W |
| UNI-STD2-4 | 151–250 W |
Feature summary
Key features
- Streamlined integrated die-casting

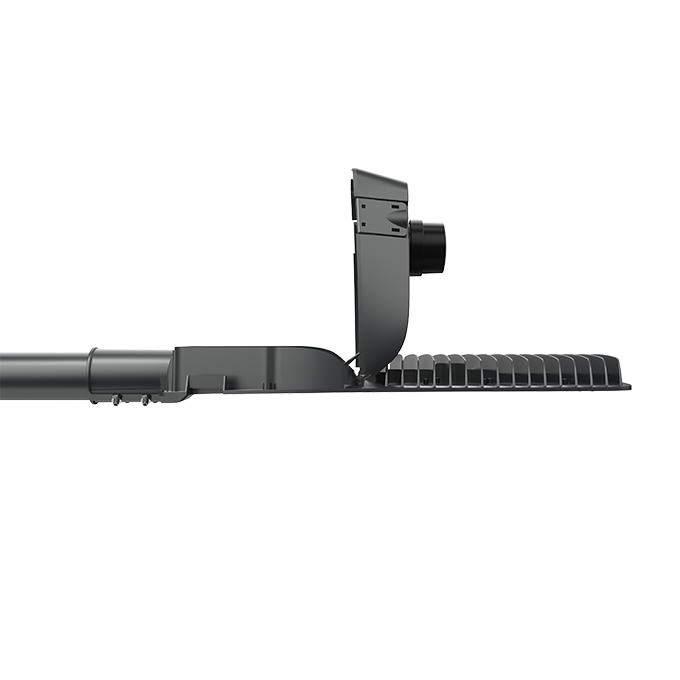

- Tool-free top opening
- Wind resistance up to Level 17
- IP66 and IK09 protection
