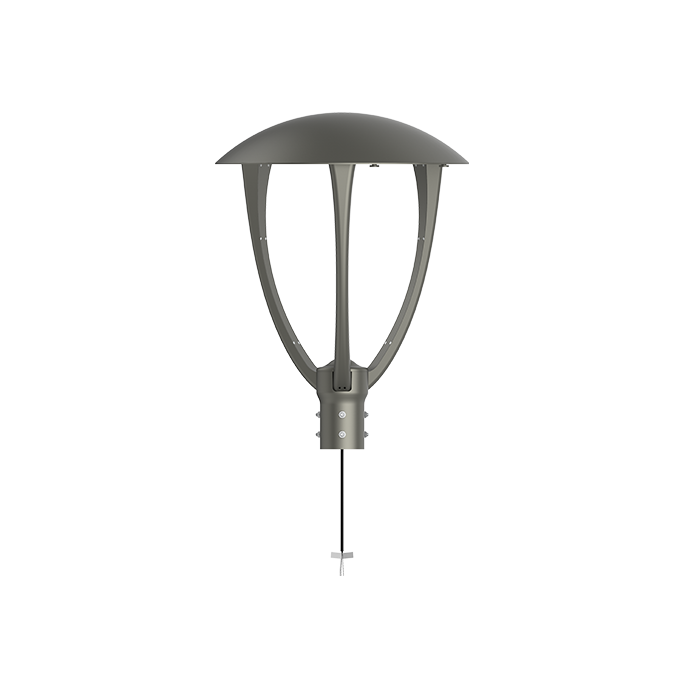

Opera Garden Light
Tool Free Access Design, Flexible Setup
- Feature summary — Power
- 15–80 W
- Parameter table — Power
- 18 / 25 / 35 / 45 / 65 / 80 W
- Feature summary — Max output
- 12,800 lm
- Parameter table — Max output
- 12,000 lm
- Feature summary — Efficacy
- up to 160 lm/W
- Parameter table — Efficacy
- 110 or 150 lm/W
Specifications
- Feature summary — Power
- 15–80 W
- Parameter table — Power
- 18 / 25 / 35 / 45 / 65 / 80 W
- Feature summary — Max output
- 12,800 lm
- Parameter table — Max output
- 12,000 lm
- Feature summary — Efficacy
- up to 160 lm/W
- Parameter table — Efficacy
- 110 or 150 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Feature summary — Lifetime
- >100,000 h
- Parameter table — Lifetime
- 50,000 h
- IP / IK
- IP66 / IK08
- Power factor
- ≥0.92, then ≥0.95
- Input / CRI
- AC100–277 V, 50/60 Hz / 70
- Optics
- Type II UNI-482 / 540 / 618 / 677
- Certifications
- CE / CB / ENEC / RoHS / LM-80 / IP66 / IK08
Applications
Urban & Residential StreetPedestrian PathPark & SquareRural RoadBridge
Parameter table
Published model range
| Model | Power | Luminous flux |
|---|---|---|
| UNI-YA03-1-18 | 18 W | 1,980 / 2,700 lm |
| UNI-YA03-1-25 | 25 W | 2,750 / 3,750 lm |
| UNI-YA03-1-35 | 35 W | 3,850 / 5,250 lm |
| UNI-YA03-1-45 | 45 W | 4,950 / 6,750 lm |
| UNI-YA03-1-65 | 65 W | 7,150 / 9,750 lm |
| UNI-YA03-1-80 | 80 W | 8,800 / 12,000 lm |
Feature summary
Key features
- 15–80 W with maximum 12,800 lm
- Up to 160 lm/W
- CCT 1800K–6500K
- Tempered glass, PMMA, and die-cast construction
- Tool-free thumb screw
- NEMA and Zhaga
- IP66 / IK08
- Lifespan >100,000 h
