Build Your Screen
See your sign before you buy it
Pick a LST model and a size. See it to scale next to a 6 ft person, with the details — then get a quote with shipping.
Drawn to scale on a wall next to a 6 ft person. The picture stretches to your screen's shape — just like real content would. Pixels too fine to show at this zoom.
1. Pick a model
2. Pick your size
Click the grid — each box is one 960 × 960 mm (about 3′ 2″ square) panel.
6 × 3 panels = 18′ 11″ × 9′ 5″
3. How high on the wall?
Bottom of the screen, measured from the ground.
Bigger than 16 × 8? We build any size — ask in your quote.
Your screen details
- Model
- LST P8 · 8 mm pitch
- Panels
- 6 across × 3 high = 18
- Size
- 18′ 11″ W × 9′ 5″ H (5.76 × 2.88 m)
- Display area
- 178.6 sq ft
- Resolution
- 720 × 360 px
- Total pixels
- 259,200
- Brightness
- 6,000–10,000 cd/m²
- Best viewing from
- about 26 ft and farther
- Weight
- ≈ 992 lb (450 kg)
- Max power
- 9,954 W
- Max current
- 83.0 A @ 120 V · 41.5 A @ 240 V
- Average power
- 3,312 W
- Rating
- IP66 outdoor · 3,840 Hz refresh
4. Get a quote with shipping
Stabilize Your DOOH in All Weather
High-Brightness Outdoor LED Billboard for DOOH
Engineered for optimal advertising performance and reliable 24/7 outdoor operation.
PIXEL PITCH
4.44 / 6.67 / 8 / 10 mm
PIXEL DENSITY
50,625 – 10,000 px/m²
BRIGHTNESS
7,500 – 10,000 nit
IP RATING
IP66 / IP65
Product Gallery
Built to Stand the Weather
Key Features
Engineered for Outdoor Performance
Green Technology, Energy Saving
Save over 40% power per m² — ideal for 24/7 outdoor use.
Excellent Stability, Timely Service
Stable operation in extreme weather, backed by responsive on-site support.
Gold Wire Lamps, Long-lasting Durability
Premium gold wire LEDs deliver longer lifespan and higher reliability.
Superior Waterproof IP66 / IP65
Fully enclosed cabinet withstands rain, dust, salt air & severe environments.
Maximize Advertising Value
Premium imagery at up to 10,000 nit attracts passers-by continuously.
Wide Viewing Angle
Larger horizontal and vertical viewing angle for a better experience for all audiences.
Perfect for Various Outdoor Applications

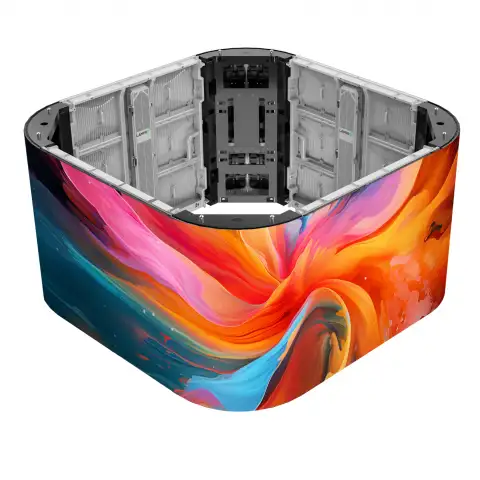

Flat screens or creative shapes — glasses-free 3D content supported.
Technical Specifications

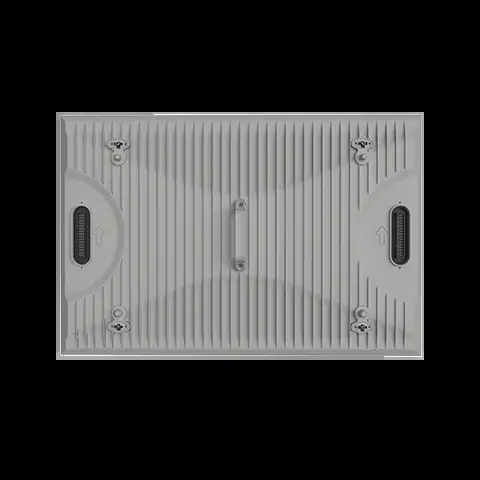

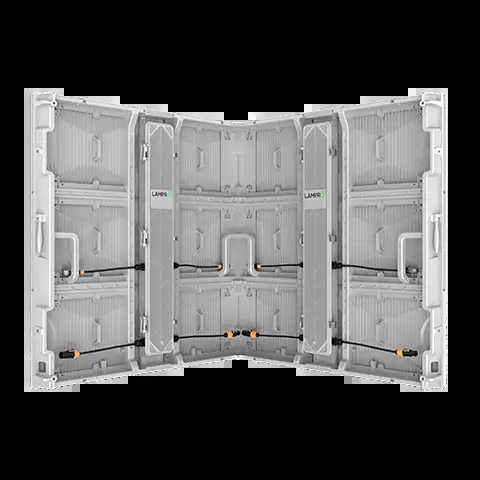

Die-Cast Aluminum Cabinet
| Parameter | P4.44 | P6.67 | P8 | P10 |
|---|---|---|---|---|
| Pixel Pitch | 4.44 mm | 6.67 mm | 8 mm | 10 mm |
| Brightness | 6,000–10,000 nits | 6,000–10,000 nits | 6,000–10,000 nits | 6,000–10,000 nits |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Refresh Rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Cabinet Size (mm) | 960 × 960 | 960 × 960 | 960 × 960 | 960 × 960 |
| Cabinet Weight | ≤ 25 kg | ≤ 25 kg | ≤ 25 kg | ≤ 25 kg |
| Cabinet Thickness | 91 mm | 91 mm | 91 mm | 91 mm |
| H. Viewing Angle | 150° | 150° | 150° | 150° |
| V. Viewing Angle | 110° | 110° | 110° | 110° |
| IP Rating | IP66 | IP66 | IP66 | IP66 |
| Higher Contrast | Optional | Optional | Optional | Optional |
In the Field
Trusted by DOOH Networks Worldwide
Real LST Series installations in demanding outdoor environments.
LST6+ W6X at BTS Sukhumvit BMN
LST10 Advertising Billboard Dubai
Spec your LST Series install
Tell us your venue and brightness needs — we'll confirm the right LST configuration.
