LED Lighting / Flood Lights

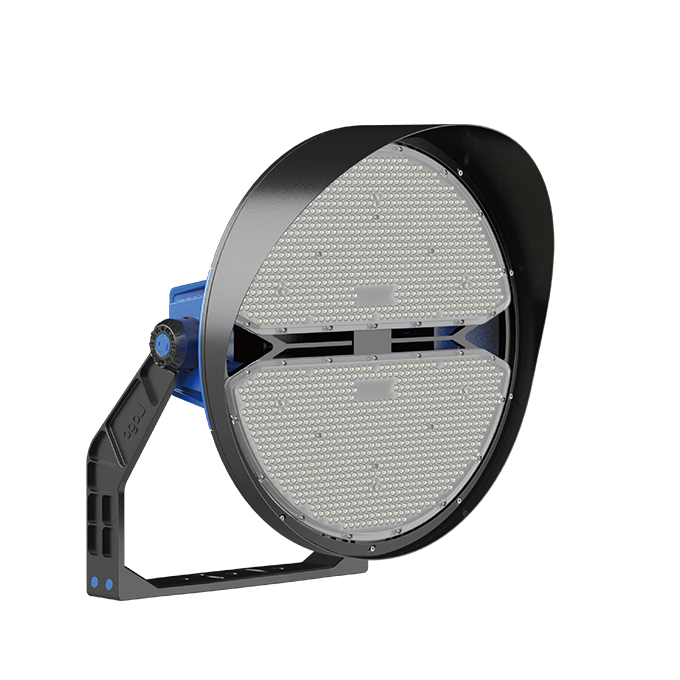

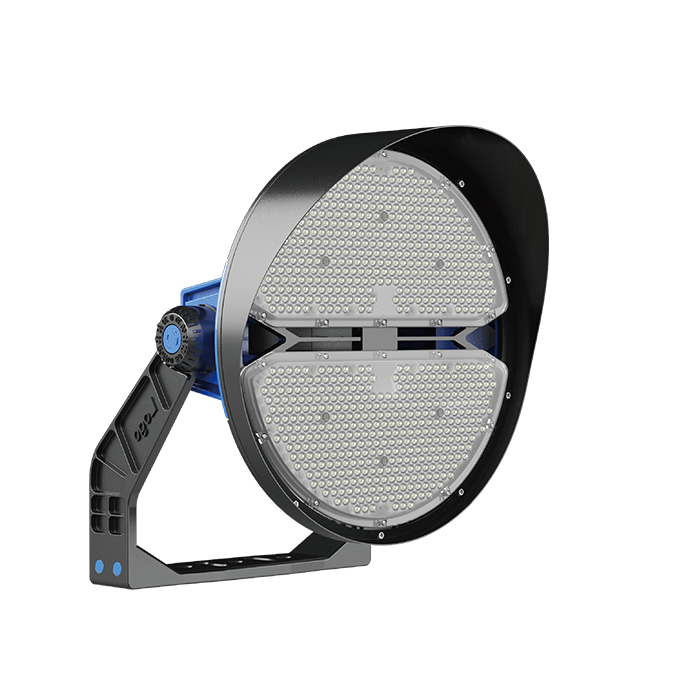

Bigeye Sports Light
Professional Optics, Efficient & Steady
- Feature summary — Power
- 400–1000 W
- Feature summary — Efficacy
- up to 140–150 lm/W
- Parameter table — Luminous flux
- 52,000–150,000 lm
- IP / IK
- IP66 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
Specifications
- Feature summary — Power
- 400–1000 W
- Feature summary — Efficacy
- up to 140–150 lm/W
- Parameter table — Luminous flux
- 52,000–150,000 lm
- IP / IK
- IP66 / IK08
- Parameter table — Lifetime
- 100,000 h @L70
- Power factor / input
- ≥0.95 / AC100–277 V, 50/60 Hz
- CCT / CRI
- 4000±300 / 5000±300 / 5700±500 K · Ra 70 / 80
- Optics
- Type I UNI-846; Type II UNI-595 / UNI-908; Type III UN-596; Type V UNI-518 / UNI-750
Applications
Widely Used in High-Mast LightingSports Stadiums of All LevelsParking Lots
Parameter table
Published model range
| Model | Power | Luminous flux |
|---|---|---|
| UNI-PRE6-1-400 | 400 W | 52,000–60,000 lm |
| UNI-PRE6-1-500 | 500 W | 65,000–75,000 lm |
| UNI-PRE6-1-800 | 800 W | 104,000–120,000 lm |
| UNI-PRE6-1-1000 | 1000 W | 130,000–150,000 lm |
Feature summary
Key features
- Heavy-duty design
- Quick-adjustable modules
- 400–1000 W coverage
- Optional light shield
- Beam angles 10° / 25° / 45° / 60° / 90° / 130° × 30° × 60°
- Up to 140–150 lm/W
- Die-cast U-bracket
- Optional 10 / 20 kV surge protection
