LED Lighting / Street Lights

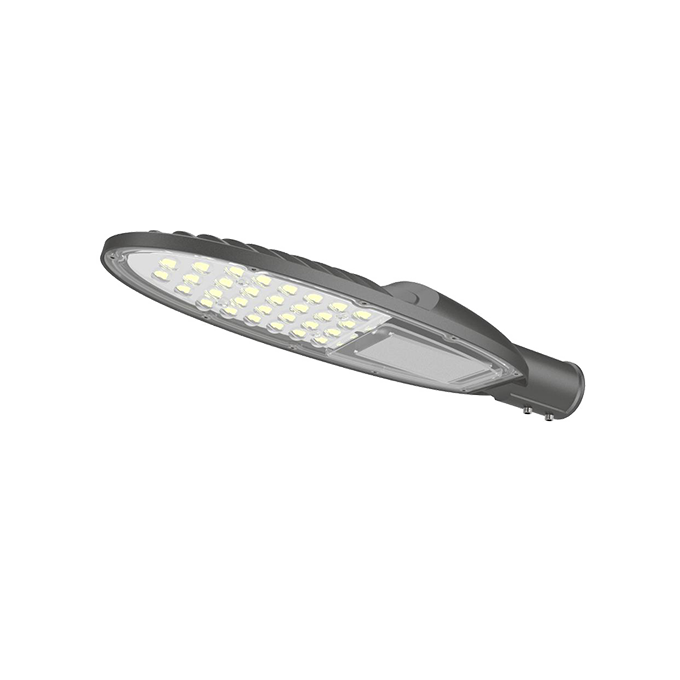

EconPlus Street Light
Smart Value, Professional Lighting
- Feature summary — power
- 20–50 W
- Feature summary — max output
- 7,500 lm
- Feature summary — efficacy
- up to 150 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 2,500–6,250 lm
- Parameter table — efficacy
- 125 lm/W at 4000K
Specifications
- Feature summary — power
- 20–50 W
- Feature summary — max output
- 7,500 lm
- Feature summary — efficacy
- up to 150 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — flux
- 2,500–6,250 lm
- Parameter table — efficacy
- 125 lm/W at 4000K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Protection
- IP66 · IK08
- Feature summary — lifetime
- >50,000 hours
- Parameter table — life
- 50,000 hrs
- Input / PF
- AC100–277V · 50/60Hz · PF ≥0.92
- Operating / storage
- −40 to 50°C / −40 to 55°C
- Humidity
- 10–90% RH
- Housing
- Die-casting aluminum
- Drivers / LED
- Inventronics / Philips / Moso / Sosen · Osram / Lumileds
- CRI
- 70
- EPA
- 0.03 / 0.03 / 0.045 / 0.045 m²
- Optics
- Led optic 782 / 783
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STB5-1 — 20 W | 20 W | 2,500 lm | 368 × 120 × 65 mm | 0.9±0.2 kg |
| UNI-STB5-1 — 30 W | 30 W | 3,750 lm | 368 × 120 × 65 mm | 0.9±0.2 kg |
| UNI-STB5-2 — 40 W | 40 W | 5,000 lm | 417 × 146 × 65 mm | 1.2±0.2 kg |
| UNI-STB5-2 — 50 W | 50 W | 6,250 lm | 417 × 146 × 65 mm | 1.2±0.2 kg |
Feature summary
Key features
- Anti-UV PC cover and anti-corrosion die-cast aluminum
- Side entry Φ42 mm
- IP66 and IK08
- Certifications: CE / CB / RoHS / IP66 / IK08
- Led optic 782 / 783
