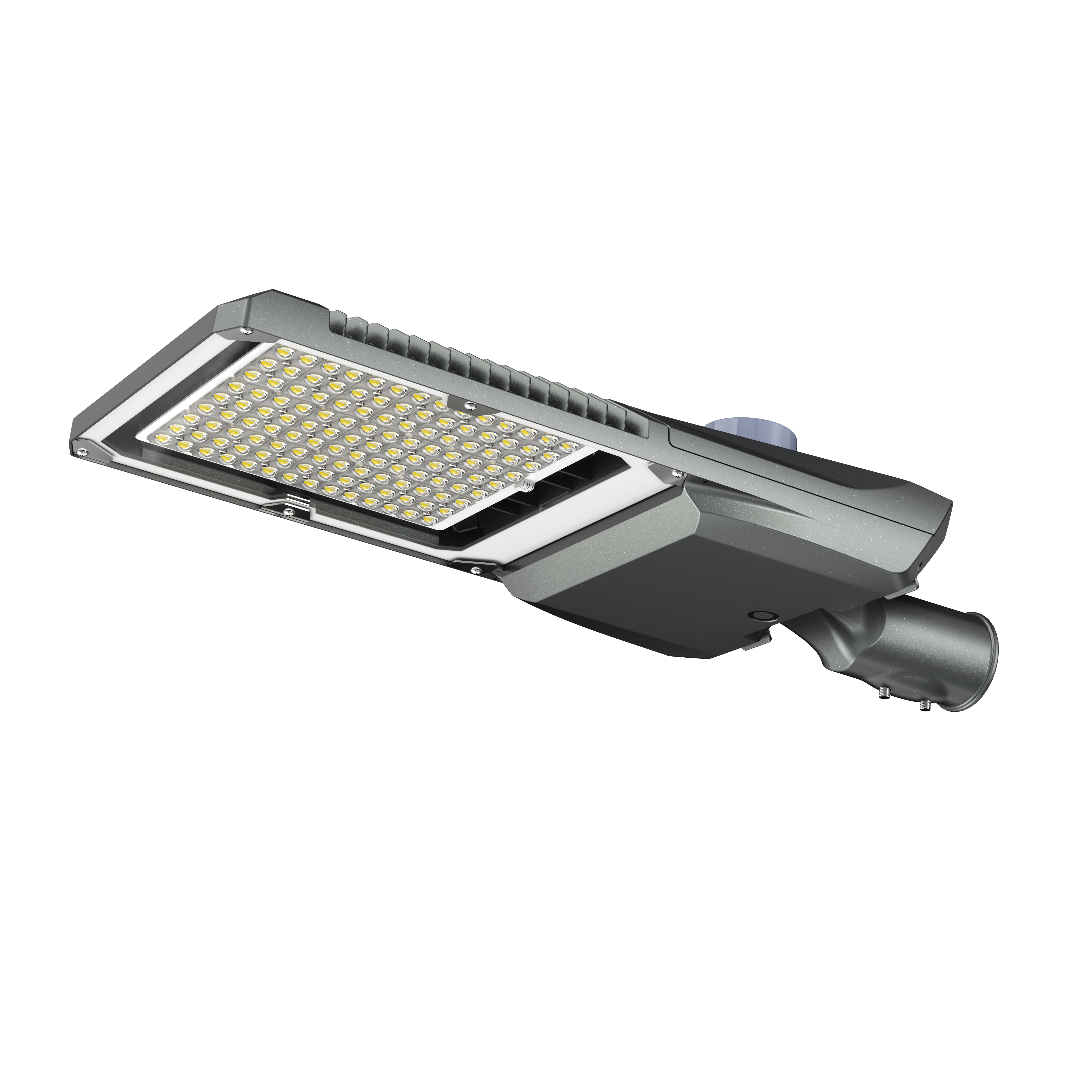

Mako Street Light
Zhaga PCB Design, All-in-One Reliability
- Feature summary — Series A power
- 15–350 W
- Feature summary — Series A output
- 63,000 lm max · up to 180 lm/W
- Feature summary — Series B power
- 20–350 W
- Feature summary — Series B efficacy
- up to 180 lm/W
- Series A CCT
- 1800K–6500K
- Series B CCT
- 2200K–6500K · DarkSky 2200K–3000K
Specifications
- Feature summary — Series A power
- 15–350 W
- Feature summary — Series A output
- 63,000 lm max · up to 180 lm/W
- Feature summary — Series B power
- 20–350 W
- Feature summary — Series B efficacy
- up to 180 lm/W
- Series A CCT
- 1800K–6500K
- Series B CCT
- 2200K–6500K · DarkSky 2200K–3000K
- Parameter table — Series A power
- 40–240 W across nine models
- Parameter table — Series A flux
- 7,200–43,200 lm
- Parameter table — Series A impact
- IK08
- Parameter table — Series B power
- 20–350 W across five models
- Parameter table — Series B impact
- IK09
- Protection
- IP66
- Input
- AC100–277V · 50/60Hz
- Operating / storage
- Series A −40 to 45°C / −40 to 55°C · Series B −40 to 55°C / −40 to 55°C
- Humidity
- 10–90% RH
- Parameter table — life
- 100,000 hrs
- Drivers
- Philips / Moso / Inventronics / Sosen
- LED
- Series A Domestic / 5050 · Series B SMD 5050
- Power factor
- Series A ≥0.92 for 40 W; ≥0.95 for remaining models
- Series A EPA
- 0.09 / 0.09 / 0.11 / 0.11 / 0.14 / 0.14 / 0.16 / 0.16 / 0.16 m²
Series A and Series B are separate Unilumin listings; their ranges and dimensions are shown separately.
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| Series A — UNI-STF8-1-40 | 40 W | 7,200 lm | 495 × 200 × 104 mm | 3.3±0.5 kg |
| Series A — UNI-STF8-1-60 | 60 W | 10,800 lm | 495 × 200 × 104 mm | 3.3±0.5 kg |
| Series A — UNI-STF8-2-90 | 90 W | 16,200 lm | 595 × 212 × 104 mm | 3.8±0.5 kg |
| Series A — UNI-STF8-2-100 | 100 W | 18,000 lm | 595 × 212 × 104 mm | 3.8±0.5 kg |
| Series A — UNI-STF8-3-120 | 120 W | 21,600 lm | 605 × 270 × 104 mm | 4.7±0.5 kg |
| Series A — UNI-STF8-3-150 | 150 W | 27,000 lm | 605 × 270 × 104 mm | 4.7±0.5 kg |
| Series A — UNI-STF8-4-180 | 180 W | 32,400 lm | 732 × 280 × 104 mm | 6.5±0.5 kg |
| Series A — UNI-STF8-4-200 | 200 W | 36,000 lm | 732 × 280 × 104 mm | 6.5±0.5 kg |
| Series A — UNI-STF8-4-240 | 240 W | 43,200 lm | 732 × 280 × 104 mm | 6.5±0.5 kg |
| Series B — UNI-STF7-1 | 20–60 W | — | 857 × 348 × 104 mm | — |
| Series B — UNI-STF7-2 | 61–100 W | — | 857 × 348 × 104 mm | — |
| Series B — UNI-STF7-3 | 101–150 W | — | 857 × 348 × 104 mm | — |
| Series B — UNI-STF7-4 | 151–240 W | — | 857 × 348 × 104 mm | — |
| Series B — UNI-STF7-5 | 241–350 W | — | 857 × 348 × 104 mm | — |
Feature summary
Key features
- Series A uses Zhaga PCBs with tempered glass, PMMA, and anti-corrosion die-cast aluminum

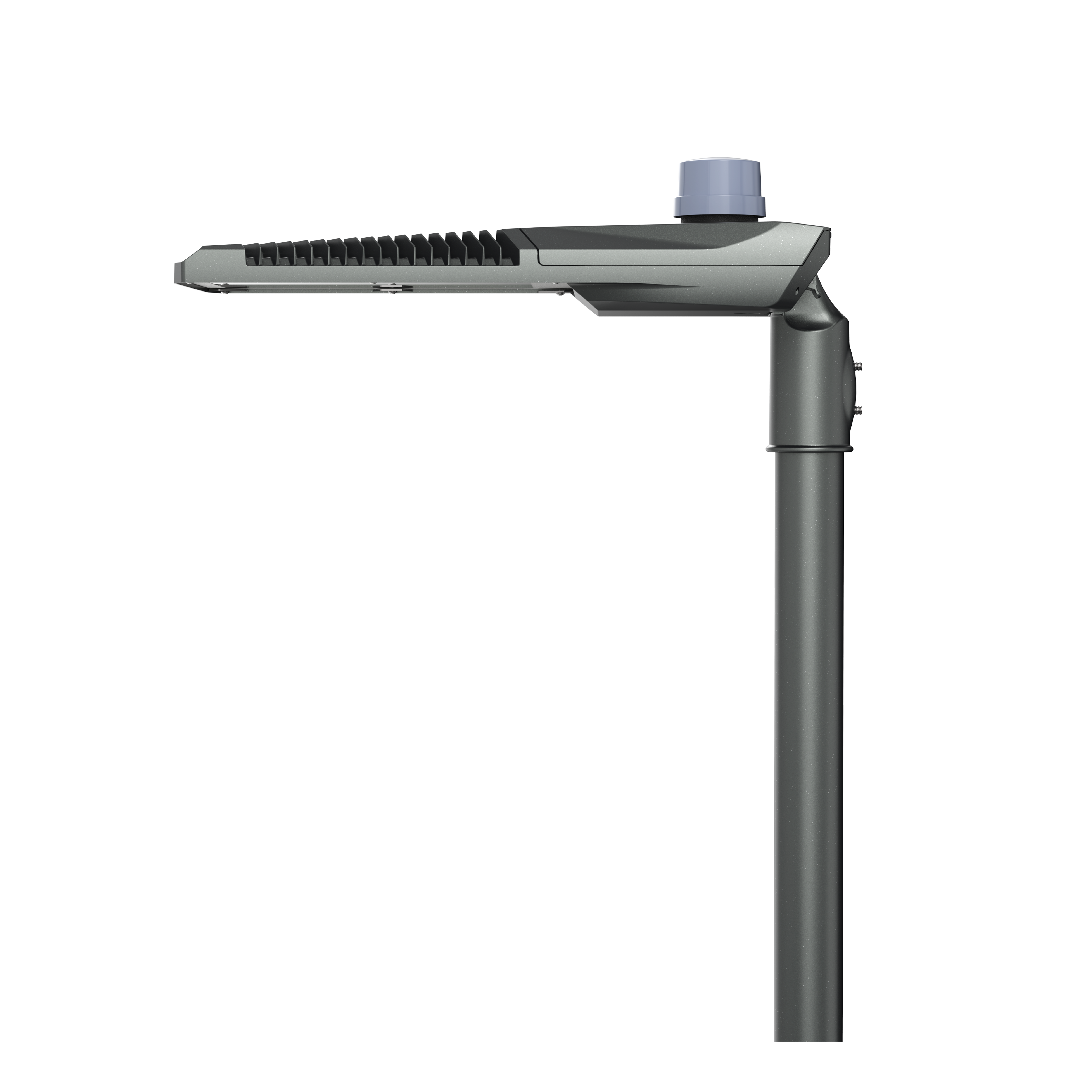

- Series A supports side entry or post top adjustment ±20° with Φ42 / 60 / 76 mm mounting
- Series A has a tool-free, detachable driver chamber and NEMA / Zhaga support
- Series A certifications: CE / CB / ENEC / ENEC+ / Darksky / RoHs / IP66 / IK09 / D4i
- Series B is rated for wind Level 17 and uses PMMA with ultra-clear tempered glass designed not to yellow for 10 years
- Series B has a tool-free top-opening chamber, +15° to −15° adjustment, auto power-off switch, and level gauge
- Series B offers optional NEMA and ZHAGA support
