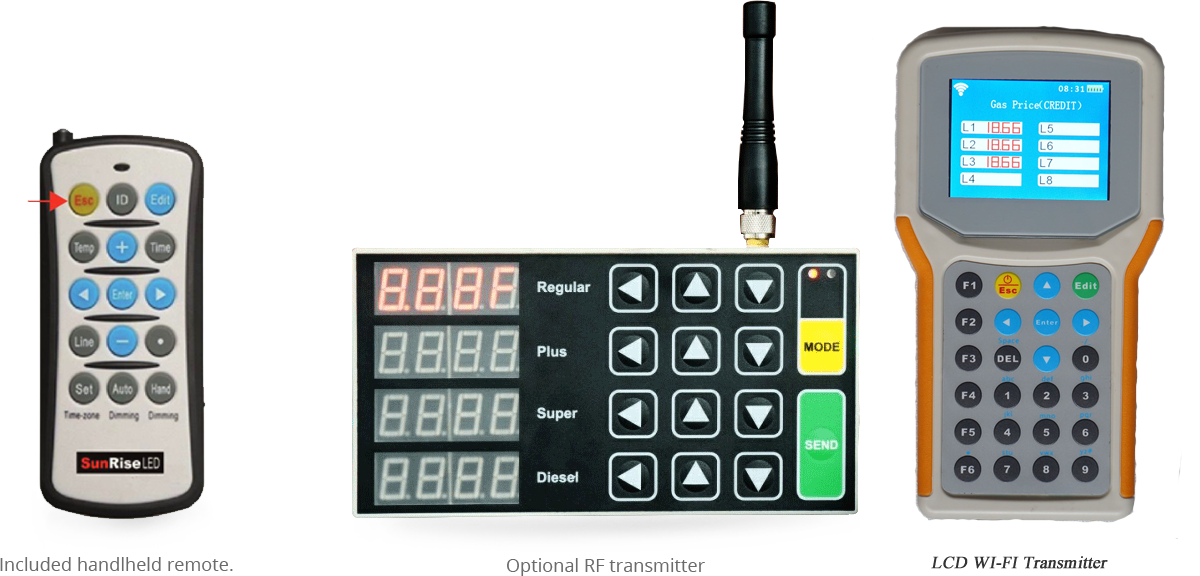

Computer or wireless remote control
Update prices instantly from a PC or handheld remote β no climbing the pylon required.
LED Displays / Gas Station Price Series
GS Series Outdoor Single Color
Big, bold, bright digital gas-price signs with computer or wireless remote control, up to 16 displays per location, 16-level brightness, and IP65 aluminum cabinets.
A modern, competitive forecourt in one upgrade
Update fuel prices instantly across every grade and pylon β from the back office or the parking lot.
Up to 16 displays per location
Manage multiple grades and price points across the entire site from a single controller.
16-level brightness control
Auto or manual brightness keeps prices readable from dawn through neon-bright nights.
IP65 outdoor protection
Sealed against rain, dust, and pressurized water for permanent forecourt installation.
Aluminum cabinet
Lightweight, corrosion-resistant aluminum housing built for years of outdoor service.
Big, bold, bright modern look
High-contrast LED digits give your forecourt a clean, competitive, modern presence.
1-year warranty
Backed by SunRise LED parts coverage and US-based technical support.
Red or Green (White optional)
Match your brand with red or green digits β white available on request.
GS Series β LED Gas Price Signs
The GS Series LED gas price signs are available in digit sizes from 6" to 32". Bright, weatherproof displays designed for fuel station roadside visibility.
Available Sizes
GS Series External
| Model | Cabinet Size |
|---|---|
| GS 06" | 7.5" Γ 19.7" |
| GS 08" | 10" Γ 26" |
| GS 10" | 12.2" Γ 32.3" |
| GS 12" | 14" Γ 37" |
| GS 16" | 19" Γ 42.5" |
| GS 20" | 24" Γ 53" |
| GS 24" | 27.5" Γ 65" |
| GS 32" | 35.5" Γ 84.4" |
GS Series Internal
| Model | Cabinet Size |
|---|---|
| GS-I 06" | 20.5" Γ 9.8" |
| GS-I 7.3" | 20.5" Γ 11" |
| GS-I 08" | 22.4" Γ 12" |
| GS-I 12" | 37" Γ 16.1" |
GS External Specifications
| Spec | GS-6 | GS-8 | GS-10 | GS-12 | GS-15 | GS-20 | GS-24 | GS-32 |
|---|---|---|---|---|---|---|---|---|
| LED Quantity | 149 | 348 | 544 | 634 | 857 | 1,178 | 2,130 | 3,636 |
| Operating Voltage | 12V DC | |||||||
| Max Current (R/Y) | 388mA | 1,088mA | 1,487mA | 2,190mA | 2,655mA | 3,885mA | 6,645mA | 11,385mA |
| Max Current (G/W) | 795mA | 1,595mA | 2,727mA | 3,375mA | 4,470mA | 6,015mA | 10,830mA | 18,570mA |
| Max Power (R/Y) | 4.6W | 13W | 17W | 26W | 32W | 47W | 80W | 137W |
| Max Power (G/W) | 9.6W | 19W | 33W | 40.5W | 53.6W | 72W | 130W | 223W |
| Waterproof Rating | IP65 | |||||||
| Brightness Control | 8 levels | |||||||
| Cabinet Size | 7.48"Γ19.7"Γ4.5" | 9.84"Γ26"Γ4.5" | 12.2"Γ32.3"Γ4.5" | 15.75"Γ36.6"Γ4.5" | 17.7"Γ42.5"Γ4.5" | 23.6"Γ53"Γ4.5" | 27.55"Γ65"Γ4.5" | 35.4"Γ84.7"Γ4.5" |
| Cabinet Material | Aluminum | |||||||
| Weight | 6.60 lb | 8.81 lb | 11 lb | 14.33 lb | 19.84 lb | 22.04 lb | 29.76 lb | 50.70 lb |
| Pixel Composition | Red or Green (Optional White) | |||||||
Service & Warranty
1 Year Parts / Factory Labor Warranty
For over 10 years, SunRise LED has been supporting products around the world. With more than 100 dealers in the US and globally, your GS Series display is well covered. Should a hardware failure occur within the plan's term, contact your distributor to report the issue. After basic troubleshooting, you will receive instruction for the necessary repairs. Optional Extended Warranty Plan available.
Modernize your forecourt
Tell us your number of grades, pylon size, and preferred color β we'll spec the right GS Series package for your station.
