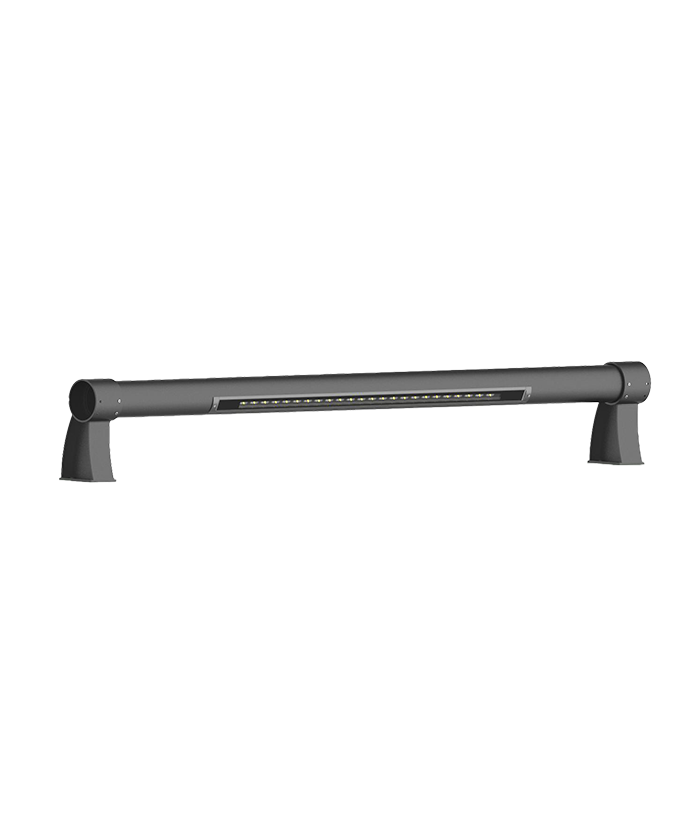

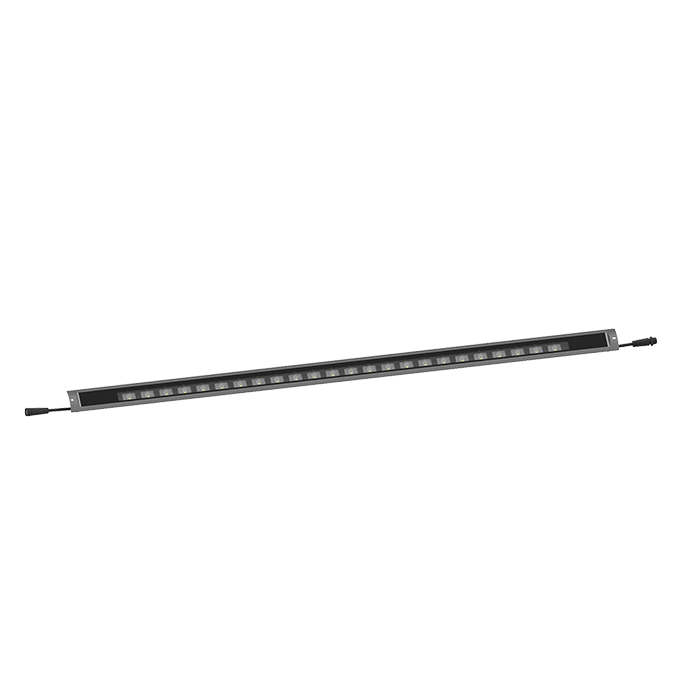

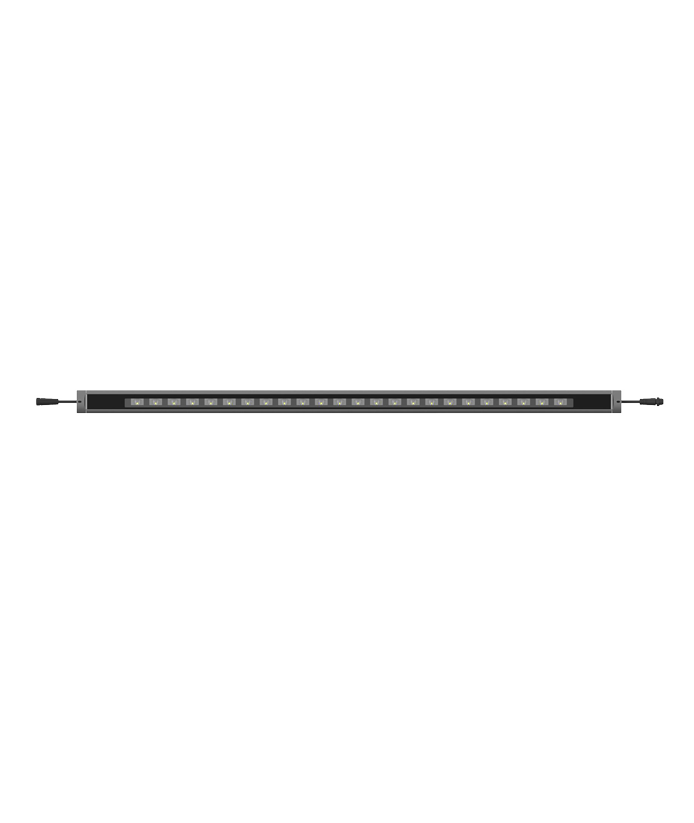

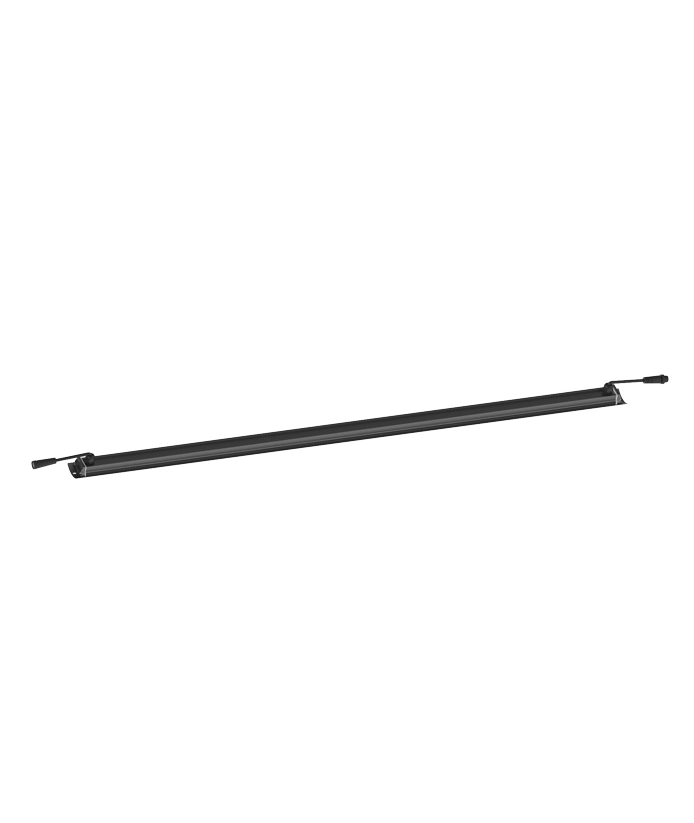

Guardlite LE Guardrail Light
4β24 W, Up to 100 lm/W
- Feature summary β Power
- 4β24 W
- Feature summary β Max output
- 2,400 lm
- Parameter table β Max output
- 1,680 lm
- Feature summary β Efficacy
- up to 100 lm/W
- Parameter table β Efficacy
- 70 lm/W
- Feature summary β CCT
- 1800Kβ6500K
Specifications
- Feature summary β Power
- 4β24 W
- Feature summary β Max output
- 2,400 lm
- Parameter table β Max output
- 1,680 lm
- Feature summary β Efficacy
- up to 100 lm/W
- Parameter table β Efficacy
- 70 lm/W
- Feature summary β CCT
- 1800Kβ6500K
- Parameter table β CCT
- 3000 / 4000 / 5000K
- Feature summary β IP / IK
- IP66, up to IK09
- Parameter table β IP
- IP66
- Feature summary β Lifetime
- >100,000 h
- Parameter table β Lifetime
- 50,000 h
- Input / CRI
- DC24 V / 70

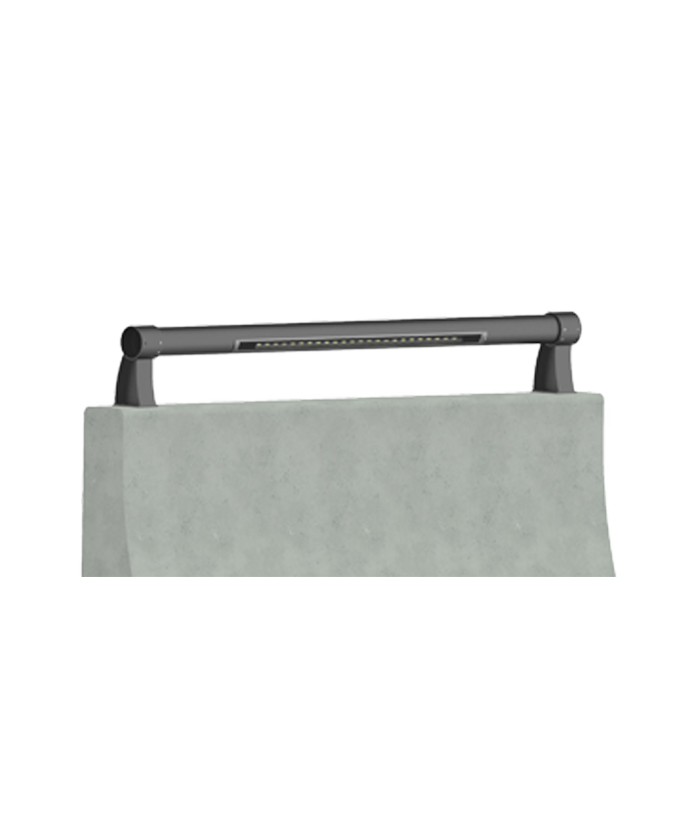

- Construction / mounting
- tempered glass + PMMA + die-cast / wall or bracket
- Light distribution
- unsymmetrical, TI <1%
Applications
BridgesInterchangesAirportsHigh-speed Rail StationsRamps
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| UNI-STC7-2-004 | 4 W | 280 lm | 1202 Γ 51 Γ 28 mm |
| UNI-STC7-2-006 | 6 W | 420 lm | 1202 Γ 51 Γ 28 mm |
| UNI-STC7-2-008 | 8 W | 560 lm | 1202 Γ 51 Γ 28 mm |
| UNI-STC7-2-012 | 12 W | 840 lm | 1202 Γ 51 Γ 28 mm |
| UNI-STC7-2-016 | 16 W | 1,120 lm | 1202 Γ 51 Γ 28 mm |
| UNI-STC7-2-024 | 24 W | 1,680 lm | 1202 Γ 51 Γ 28 mm |
Feature summary
Key features
- 4β24 W with maximum 2,400 lm
- Up to 100 lm/W
- CCT 1800Kβ6500K
- Unsymmetrical distribution with TI <1%
- Tempered glass, PMMA, and die-cast construction
- Wall or bracket mounting
- IP66, up to IK09
- Lifespan >100,000 h
