Versa Poster Outdoor
Outdoor Commercial Intelligent LED Poster
Versa Poster OUTDOOR is a small-sized outdoor integrated display poster. With simple yet elegant exterior design and vivid displaying effect, the poster can be more eye-catching thus to promote advertising effectiveness.
Pixel Pitch
3.9 / 5.2 / 6.25 mm
Display Size
1450 × 2300 × 230 mm
Brightness
≥ 5,500 cd/m²

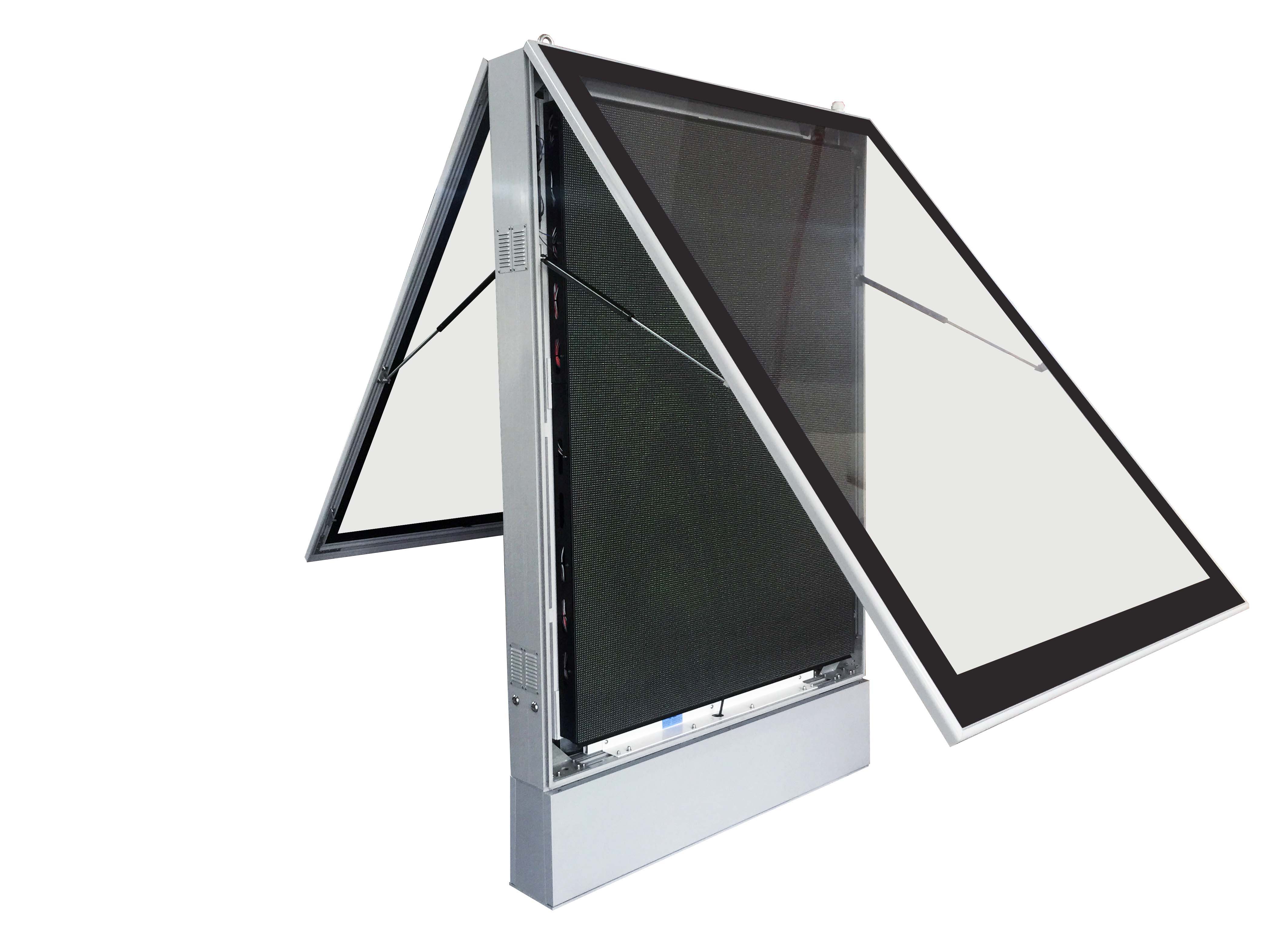

Dual-Cover Hydraulic Design
Versa Poster Outdoor
The Versa Poster Outdoor is a small-sized outdoor integrated display poster. With simple yet elegant exterior design and vivid displaying effect, the poster can be more eye catching thus promoting and increasing advertising effectiveness. A waterproof aluminum cabinet and an automatic ventilation system enables Versa Poster OUTDOOR to stand out in various working environments. The two-sided design offers customers more choices, because the poster can be customized into full color LED displays on both sides or a full color LED display on a front side and light box with backlight support on the backside. Besides, both sides can realize front maintenance through the hydraulic system, making operation easier.
Product Showcase
See It in Action

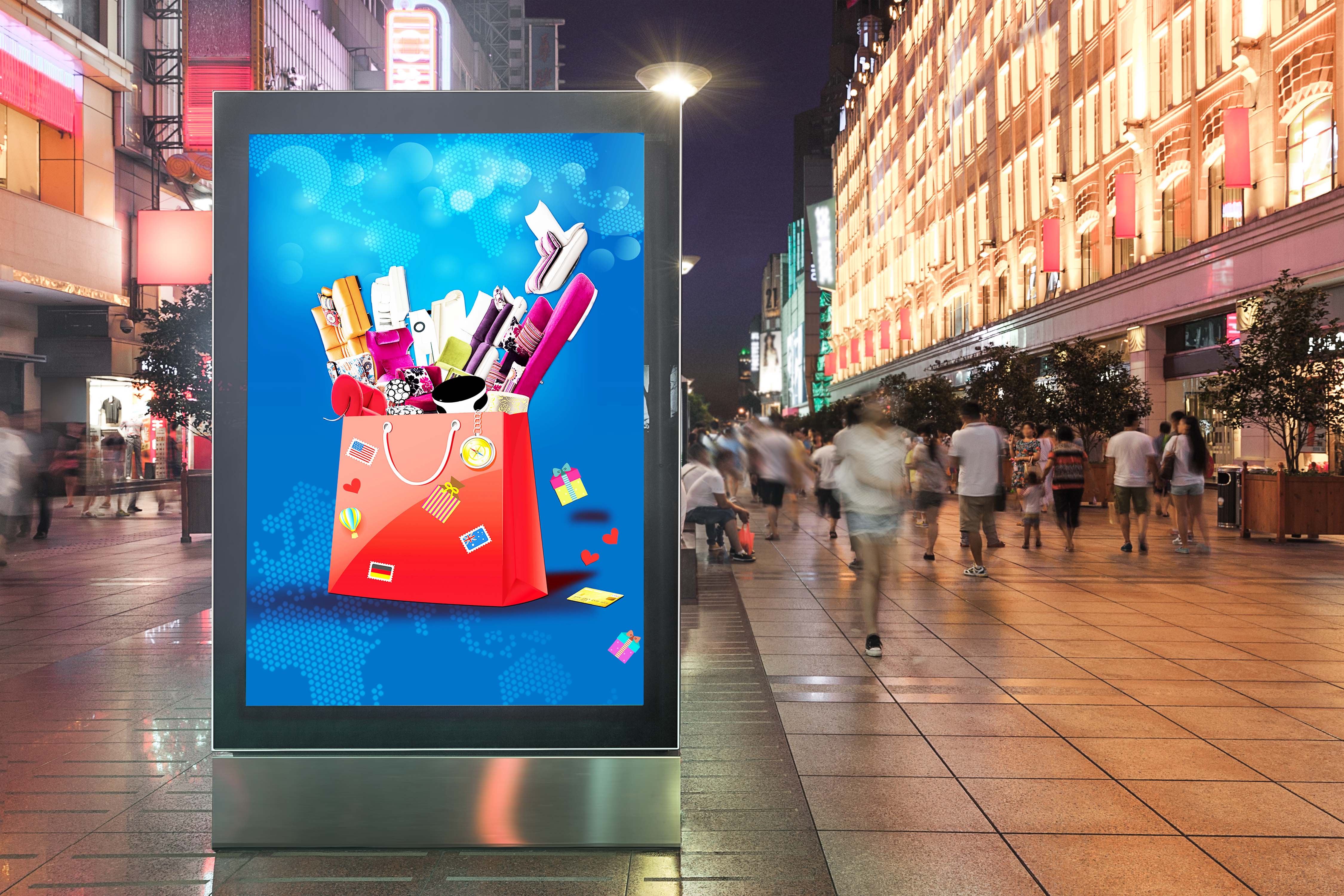

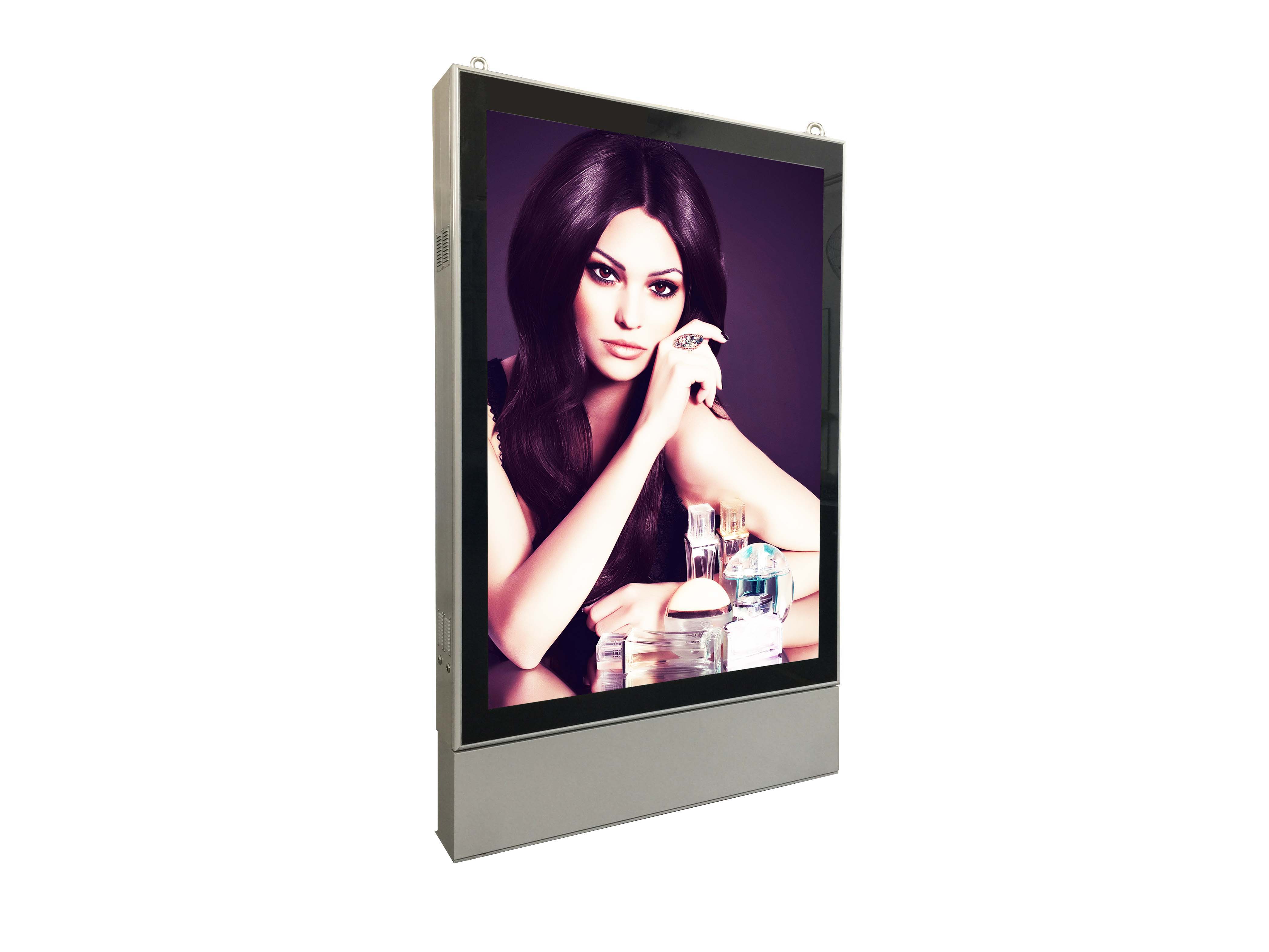

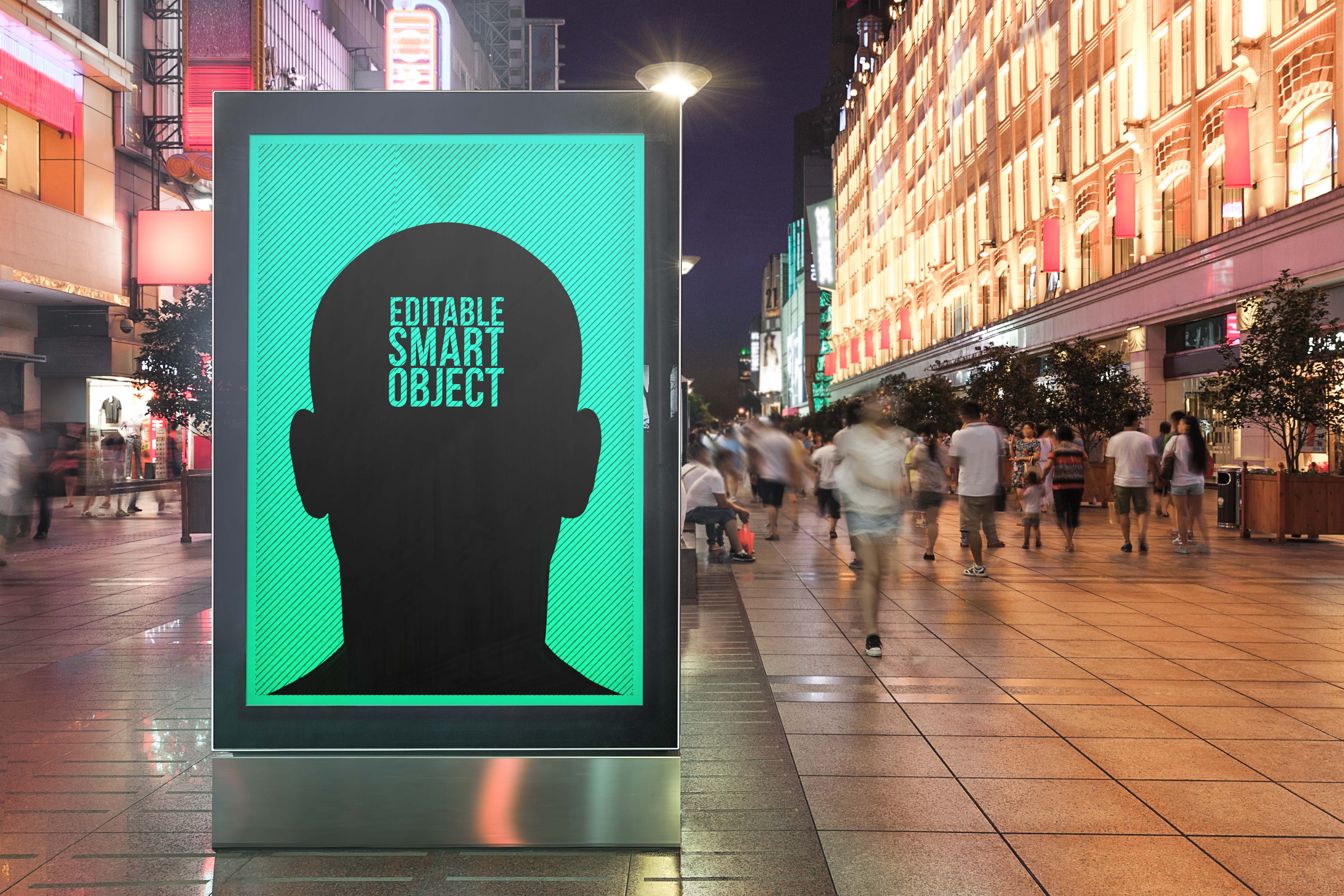

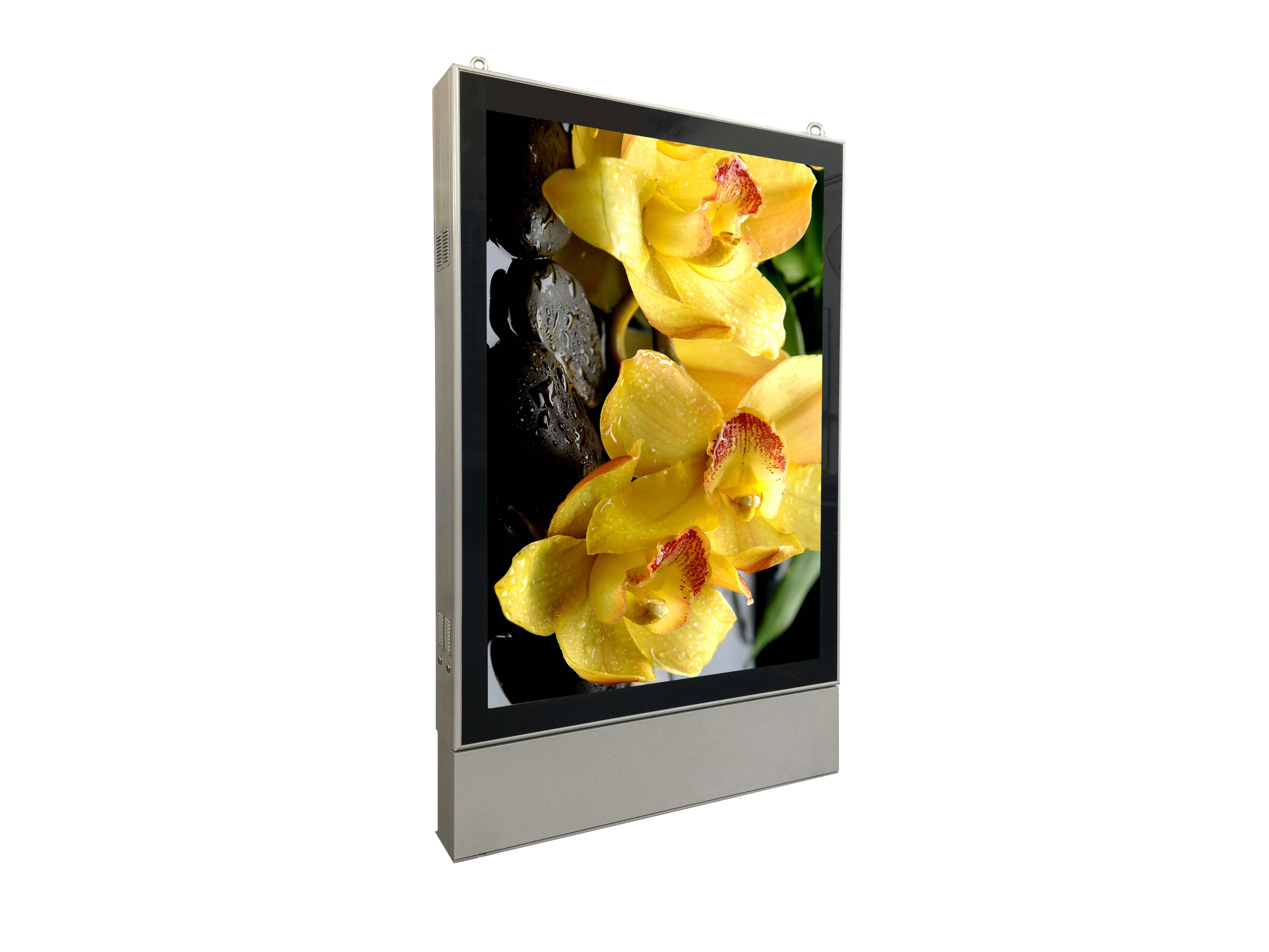

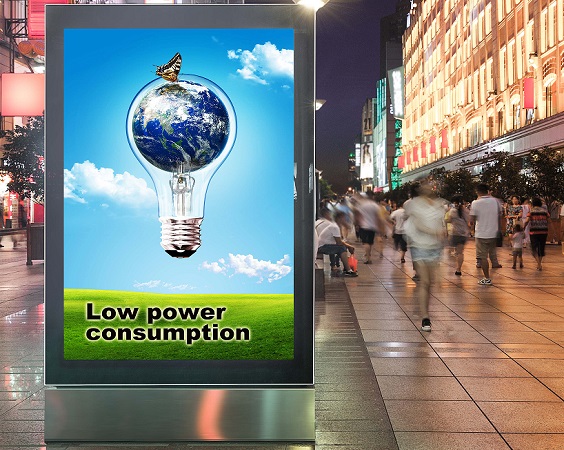

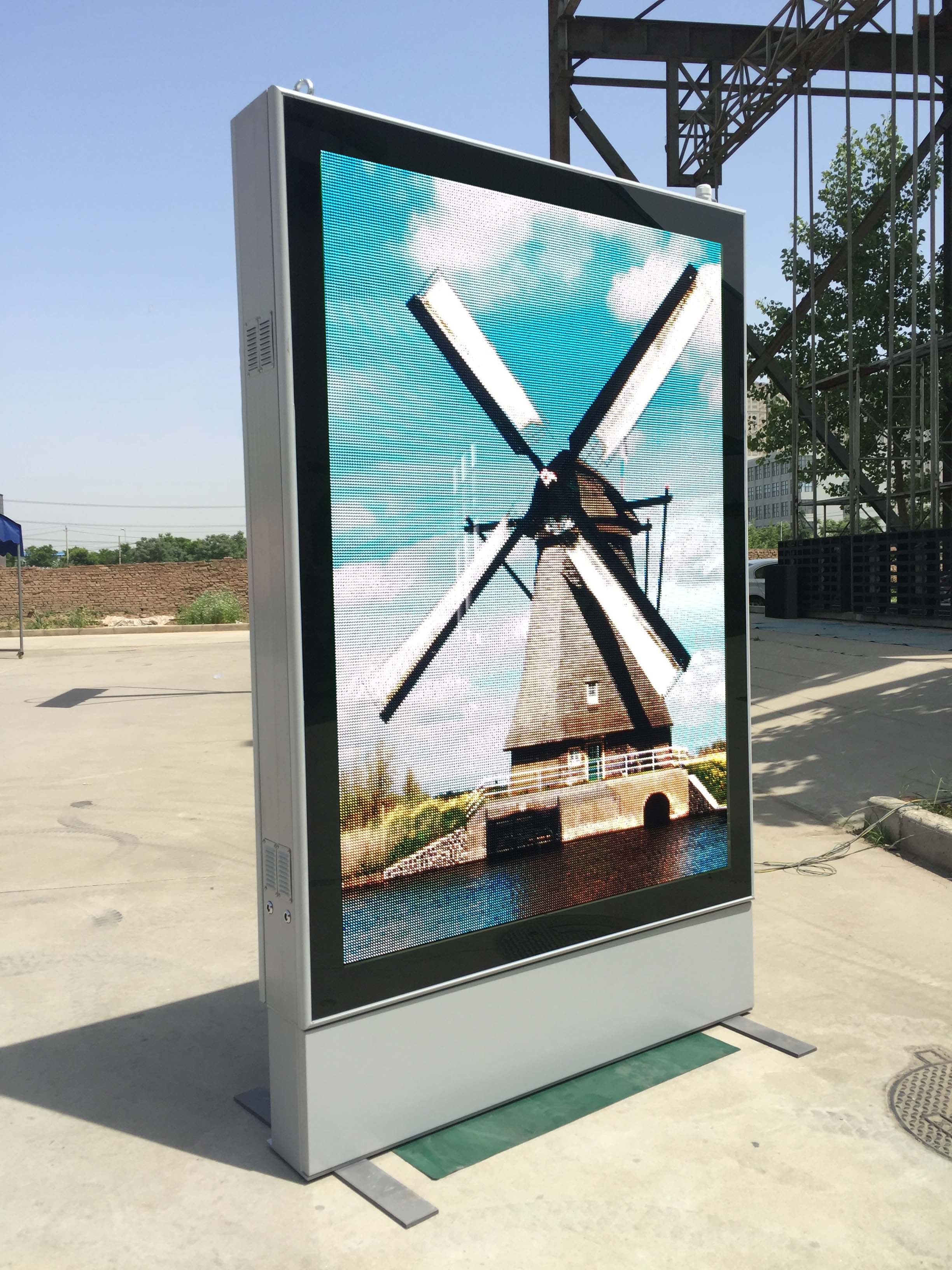

Real product photography demonstrating Versa Poster Outdoor in different configurations.
Key Features
Built for Demanding Outdoor Environments
Fanless & Noiseless
Near-zero dB operation with passive aluminum cabinet cooling.
Automatic Brightness Adjustment
Sensor adapts to changing sunlight conditions.
Tempered Glass Safeguard
Impact-resistant front panel protects every module.
Front Maintenance
Hydraulic dual-cover system gives full front service access.
IP54 Weather Resistant
Aluminum water-proof cabinet for outdoor deployment.
Two-Sided Display
Single column hosts independent content on both faces.

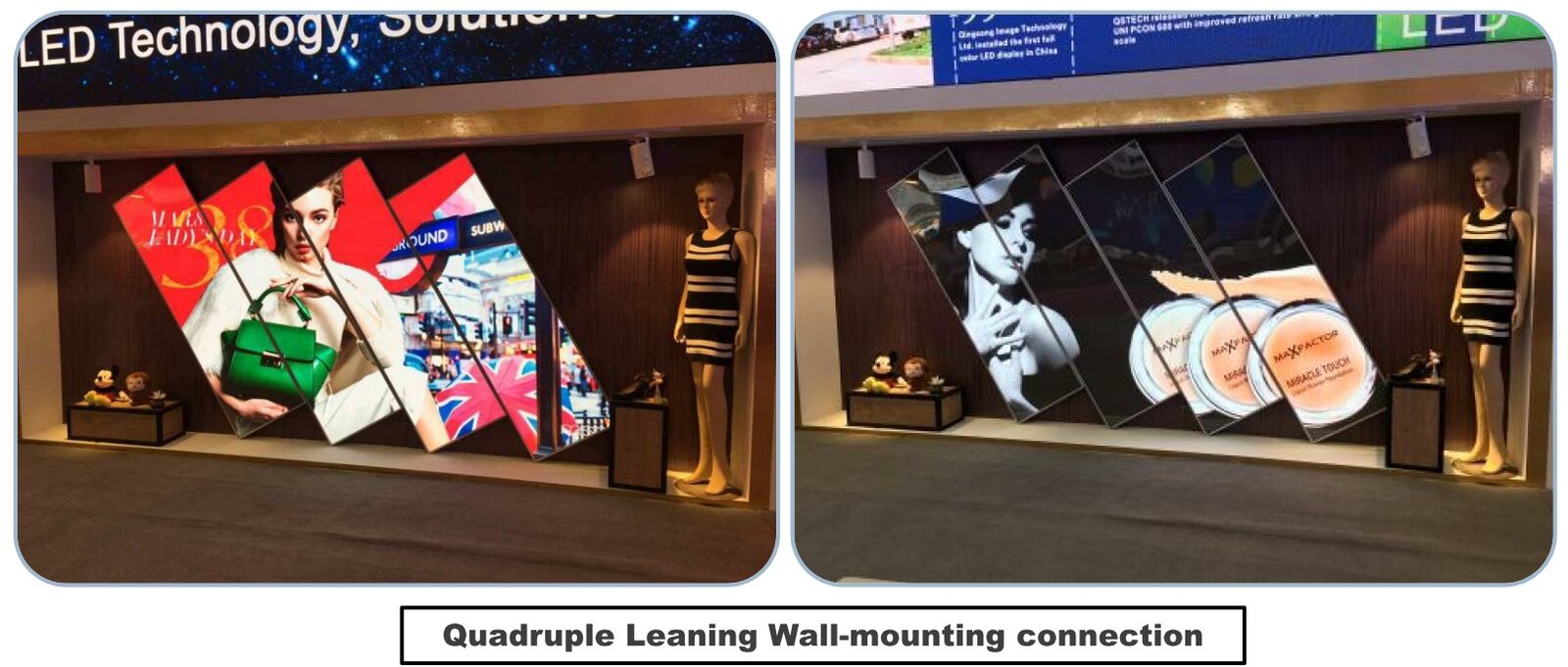

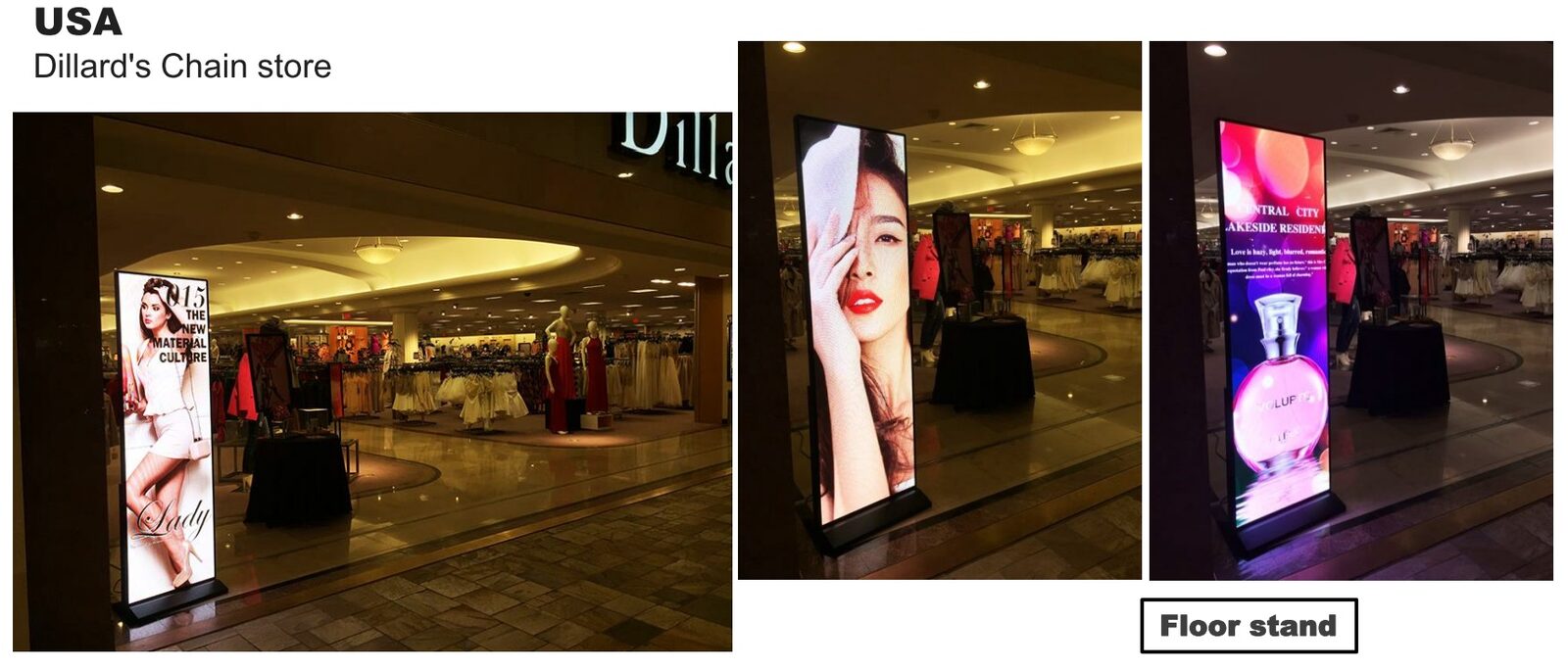

Real-World Installations
Where Versa Poster Outdoor Shines

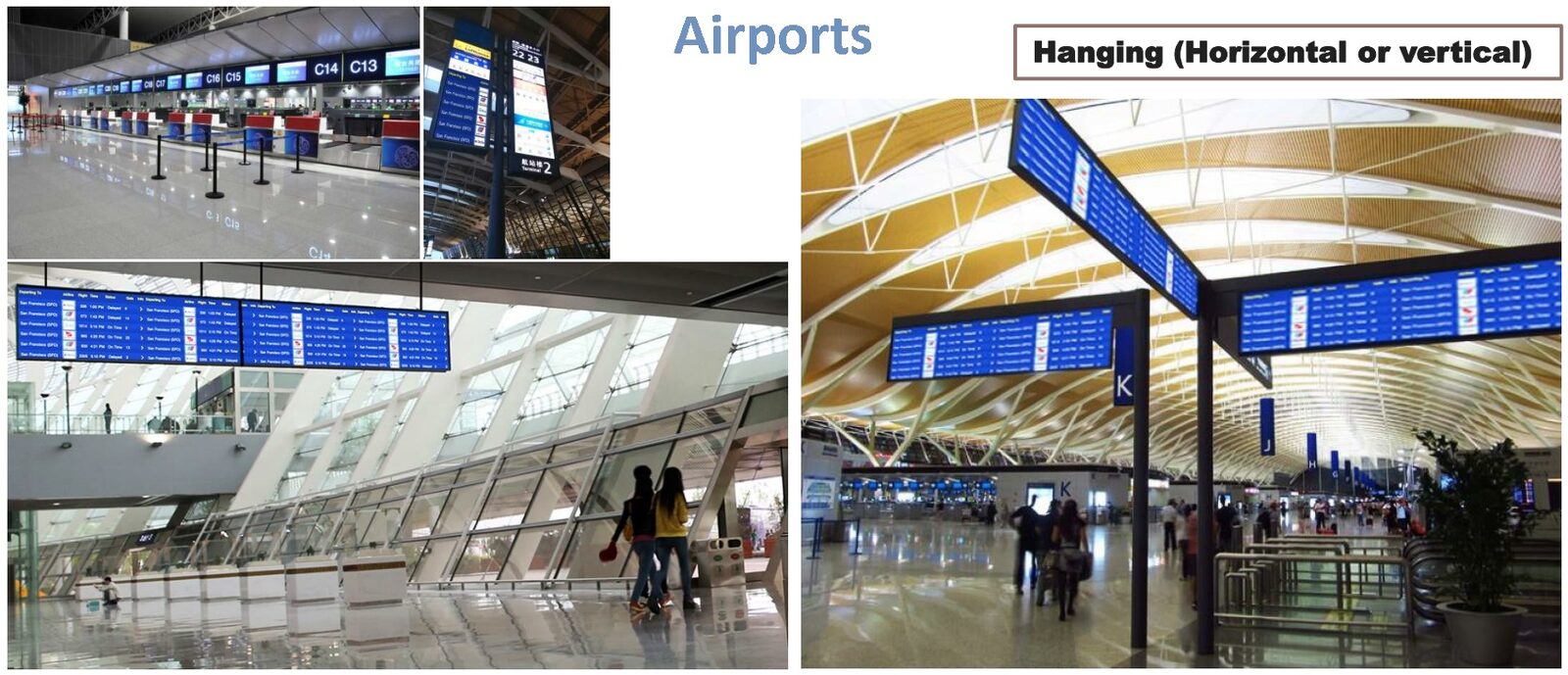

Perfect for hospitals, hotels, shopping malls, banks, libraries, restaurants, airports, train stations, government agencies, and trade shows.
Specifications
Versa Poster Outdoor Specifications
Three models available — P3.9 / P5.2 / P6.25.
| Spec | OUTDOOR 3.9 | OUTDOOR 5.2 | OUTDOOR 6.25 |
|---|---|---|---|
| Optical Parameter | |||
| Pixel Pitch (mm) | 3.9 | 5.2 | 6.25 |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Pixel Density (per m²) | 65,536 | 36,864 | 25,600 |
| Viewing Angle H/V | 140° / 140° | 140° / 140° | 140° / 140° |
| Brightness (cd/m²) | ≥ 5,500 | ≥ 5,500 | ≥ 5,500 |
| Refresh Rate (Hz) | ≥ 1,920 | ≥ 1,920 | ≥ 1,920 |
| Optimized Viewing Distance (m) | 3.9–60 | 5–75 | 6–90 |
| Electrical Parameter | |||
| Average Power Single/Double face (W) | 750 / 1,450 | 700 / 1,350 | 700 / 1,350 |
| Max Power Single/Double face (W) | 1,750 / 3,400 | 1,600 / 3,100 | 1,600 / 3,100 |
| Input Voltage | AC110V or AC220V ±10% 50/60Hz | AC110V or AC220V ±10% 50/60Hz | AC110V or AC220V ±10% 50/60Hz |
| Input Interface | Wifi / WAN / USB / HDMI | Wifi / WAN / USB / HDMI | Wifi / WAN / USB / HDMI |
| Ventilation | Active Ventilation by Fans Inside | Active Ventilation by Fans Inside | Active Ventilation by Fans Inside |
| Structure Parameter | |||
| Module Size (pixels W×H) | 64×64 | 48×48 | 40×40 |
| Display Size (pixels W×H) | 320×448 | 240×336 | 200×280 |
| Overall Dimension (mm W×H×D) | 1450 × 2300 × 230 | 1450 × 2300 × 230 | 1450 × 2300 × 230 |
| Weight Single/Double (kg) | 485 / 617 | 485 / 617 | 485 / 617 |
| IP Rating | IP54 | IP54 | IP54 |
| Processing Unit | 16 Bits Nova PBOX 150 System | 16 Bits Nova PBOX 150 System | 16 Bits Nova PBOX 150 System |
| Operation Parameter | |||
| Maintenance | Front | Front | Front |
| Operating Temperature | −30 to 50 °C | −30 to 50 °C | −30 to 50 °C |
| Operating Humidity | 10–90 RH% | 10–90 RH% | 10–90 RH% |
Ideal For
Designed for High-Traffic Public Spaces
Versa Poster Outdoor is perfect for hospitals, hotels, shopping malls, banks, libraries, restaurants, airports, train stations, government agencies, trade shows and much more.
Warranty
1 Year Free Parts and Factory Labor Warranty
For 15+ years, we have been supporting our products around the world. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered.
If you experience a hardware failure with a covered product during the plan term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.
