Versa Floor
SunRise LED VersaFloor
Colorful · Visual · High-Tech Sensory Experience
Innovative sensor integration provides a high-tech human and machine interaction. 2.6 pixel pitch and 8000:1 contrast ratio provides amazing High-Def technicolor.

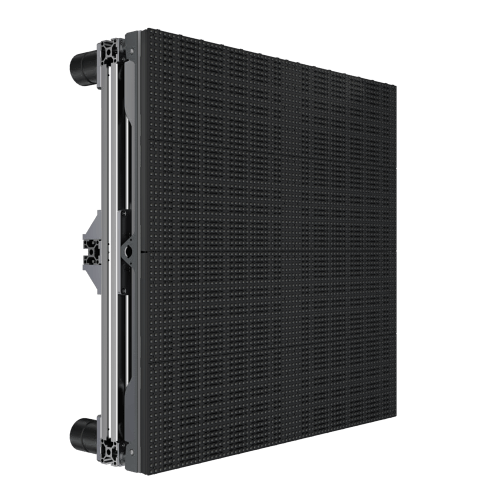

This LED Panel is designed to be used as a media floor with up to 800kg weight bearing capacity and 4 height adjustments to adapt to various environments.
Pixel Pitch
2.6 / 3.9 / 4.8 mm
Panel Size
500 × 500 × 68 mm
Panel Weight
6.5 kg
Product Showcase
An LED Floor That Holds Up Under Pressure
Key Features
Engineered for High-Traffic Performance
Lightweight yet structurally rigid, designed for fast deployment and reliable operation.

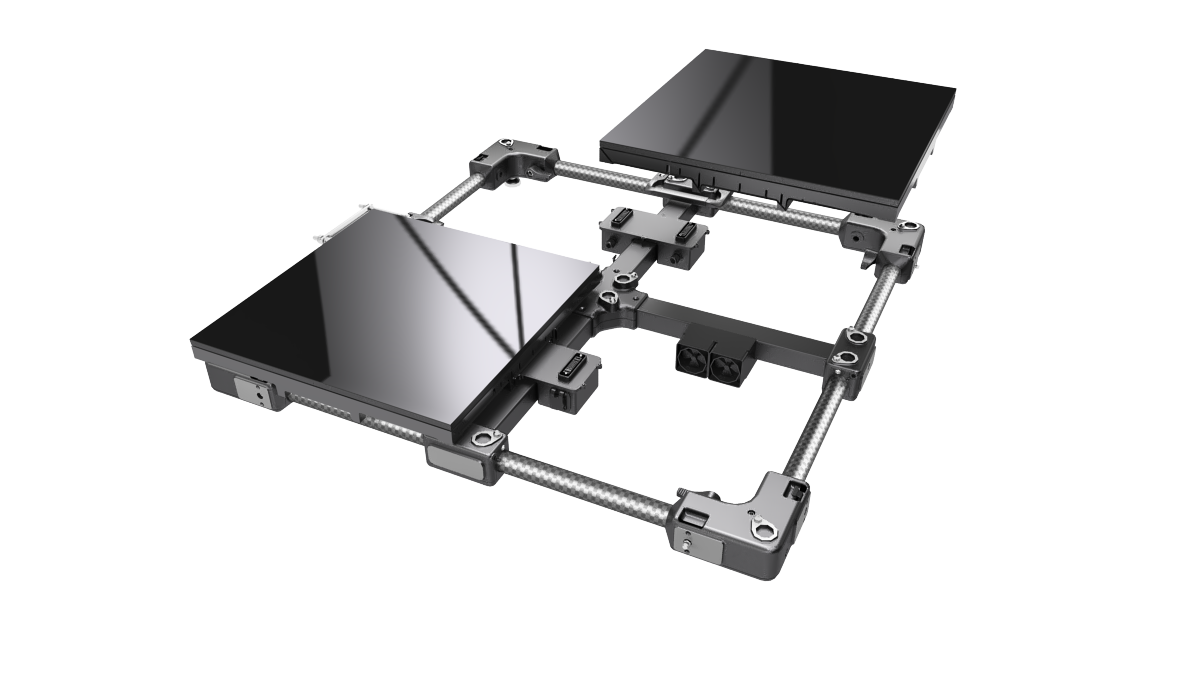

Fast and Easy Installation
Simple plug-in cabinet connection makes installation quick and convenient.

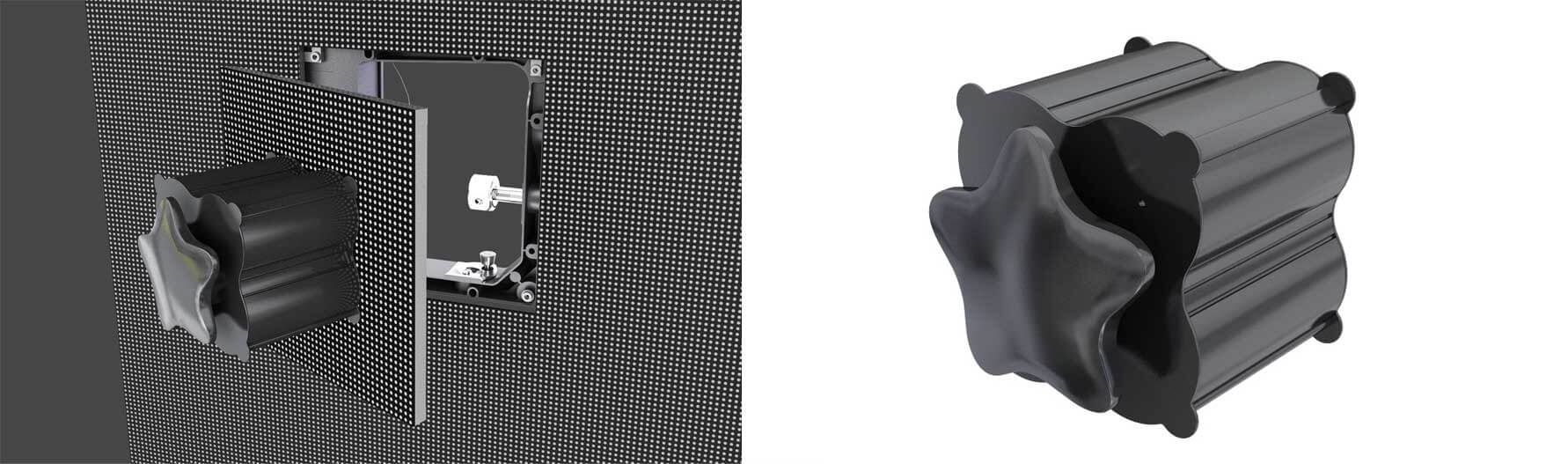

Easy to Maintain
Modules can be serviced from the front making for quick and easy maintenance.
Super Lightweight
A single cabinet weighs only 6.5 kg, 37 kg per m², total thickness down to 115 mm. Carbon fiber and extrude splice design build strength while reducing weight.
Sturdy Weight Bearing
Robust support frames between panels and height adjuster mechanism enhance the front-side loading limit up to 800 kg or 1760 lbs.
Durable and Waterproof
IP65 for both front and back. Ebony Technology surface does not require glass or acrylic overlay.

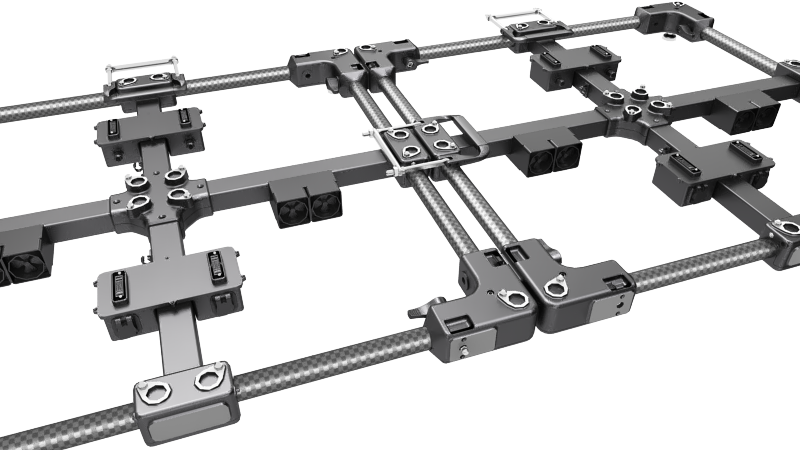

Height Adjustable
Four height adjusters at each corner adapt to uneven ground surfaces for a more level surface.

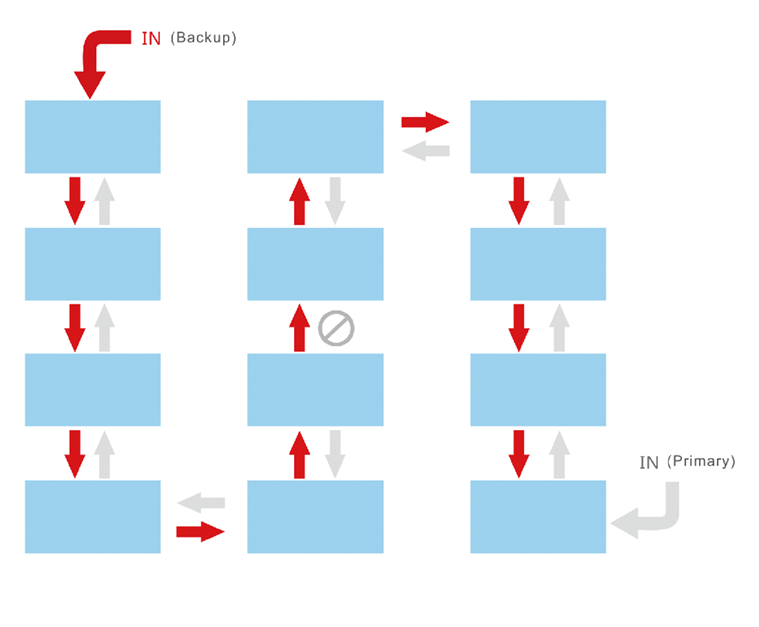

Dual Backup System
Each system has dual backup: power supply, signal cable, and control system.
High Color Fidelity
16-bit signal processing produces 281 trillion colors with smooth, crisp, vivid imagery.
Cabinet Design
Built Around the Cabinet
Carbon-fiber chassis, magnetic front-serviceable modules, dual-backup electronics.

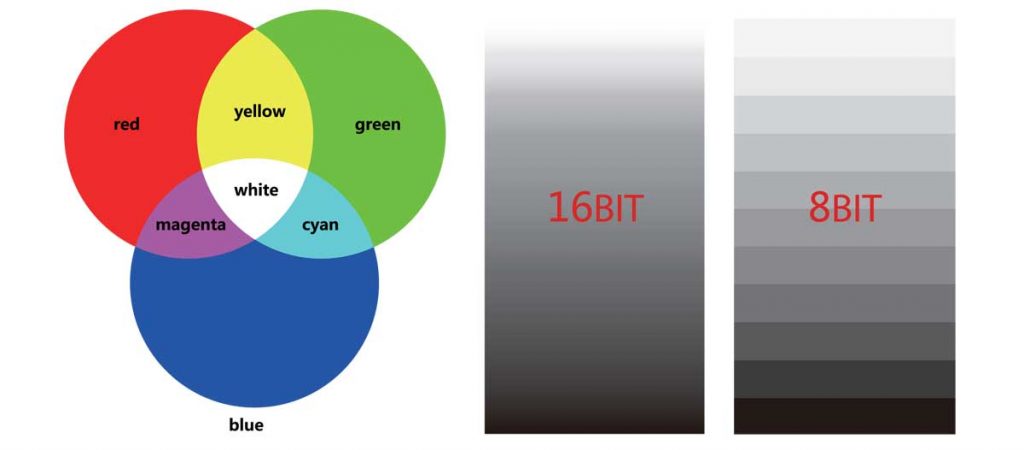

High Color Fidelity
281 Trillion Colors
Carefully screened LED lamps and 16-bit signal processing for cinematic-grade reproduction.
All LED lamps used in our displays are carefully screened to ensure compliance with our proprietary RGB wavelengths and stringent quality standards. This unique selection method during manufacturing ensures color uniformity and consistency by default. Using 16-bit signal processing, the SunRise LED display system produces 65,536 shades each of red, blue, and green (2 to the 16th = 65,536), resulting in 281 trillion possible colors. Smooth, crisp, vivid images displaying real color, is now a reality.
Specifications
Versa Floor Specifications
Three models available — P2.6 / P3.9 / P4.8.
| Spec | Versa FLOOR 2 (P2.6) | Versa FLOOR 3 (P3.9) | Versa FLOOR 4 (P4.8) |
|---|---|---|---|
| Physical Pitch | 2.6 mm | 3.9 mm | 4.8 mm |
| Pixel Configuration | SMD | SMD | SMD |
| Pixel Density (per m²) | 147,456 | 65,536 | 43,264 |
| Pixels per Panel | 36,864 | 16,384 | 10,816 |
| LED Module Dimensions (mm) | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions W×H×D (mm) | 500 × 500 × 68 | 500 × 500 × 68 | 500 × 500 × 68 |
| Panel Dimensions with bracket (mm) | 1000 × 1000 × 125 | 1000 × 1000 × 125 | 1000 × 1000 × 125 |
| Modules per Panel (W×H) | 2 × 2 | 2 × 2 | 2 × 2 |
| Module Resolution (W×H) | 96 × 96 | 64 × 64 | 52 × 52 |
| Panel Resolution (W×H) | 192 × 192 | 128 × 128 | 104 × 104 |
| Weight per Panel | 6.5 kg | 6.5 kg | 6.5 kg |
| Weight per m² (with bracket) | 37 kg | 37 kg | 37 kg |
| Processing | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 80,000:1 | 80,000:1 | 80,000:1 |
| Average Power | 50–80 W/panel | 50–80 W/panel | 50–80 W/panel |
| Max Power | 160 W/panel | 160 W/panel | 160 W/panel |
| Operating Temp/Humidity | -20 to 50 °C / 10 to 90% | -20 to 50 °C / 10 to 90% | -20 to 50 °C / 10 to 90% |
| Storage Temp/Humidity | -30 to 60 °C / 10 to 90% | -30 to 60 °C / 10 to 90% | -30 to 60 °C / 10 to 90% |
| Brightness | 600–1,000 nits | 600–1,000 nits | 600–1,000 nits |
| Refresh Rate | 1,920–3,840 Hz | 1,920–3,840 Hz | 1,920–3,840 Hz |
| Human-Machine Interaction | No | No | Yes |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected LED Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 12 panels | 12 panels | 12 panels |
| Max Hanging | 10 panels | 10 panels | 10 panels |
| Servicing | Front | Front | Front |
| IP Rating | IP65 | IP65 | IP65 |
| Certification | CE EMC Class A, ETL, RoHS | CE EMC Class A, ETL, RoHS | CE EMC Class A, ETL, RoHS |

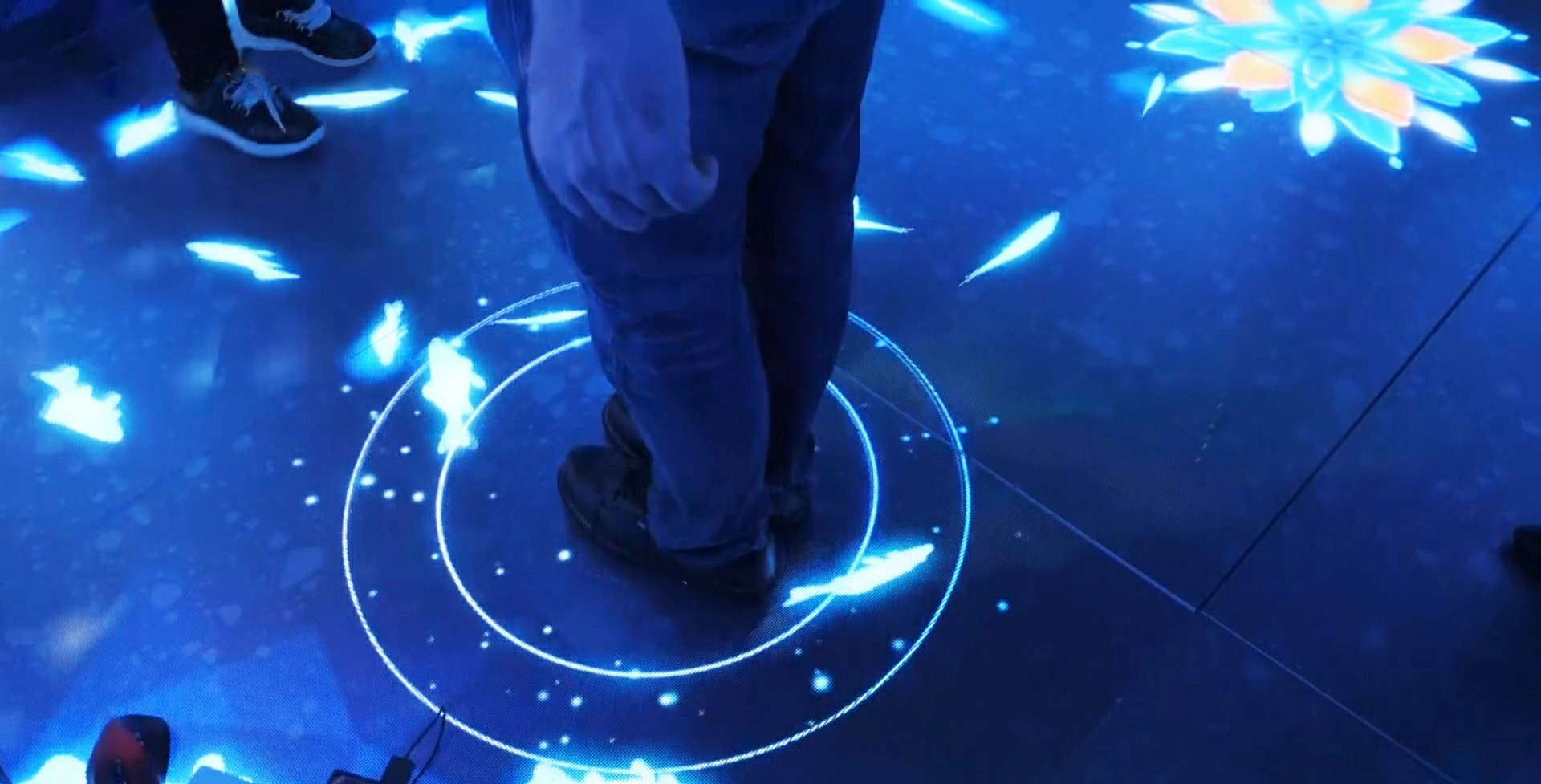

Application Market
Where Versa Floor Performs
Imagine all the places where Versa Floor can be used: stage shows, car shows, fashion shows, TV studios, weddings, exhibition halls, science and technology museums, hotels, nightclubs and much more. No matter where you use the Versa Floor, you are sure to make an unforgettable impression.
Warranty
1 Year Free Parts and Factory Labor Warranty
For 15+ years, we have been supporting our products around the world. With more than 100 dealers in the U.S. and around the globe, your SunRise LED display is well covered.
If you experience a hardware failure with a covered product during the plan term, simply contact your distributor to report the problem. If the issue cannot be resolved over the phone with your distributor, you will be given instructions for the next steps for making the necessary repairs.
Spec your Versa Floor install
Tell us your venue and content type — we'll confirm the right floor configuration.
