LED Lighting / Garden Lighting

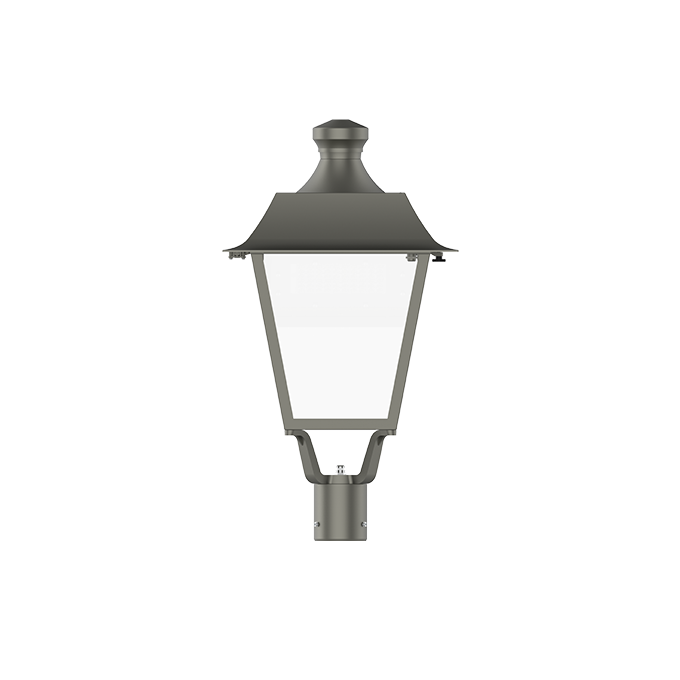

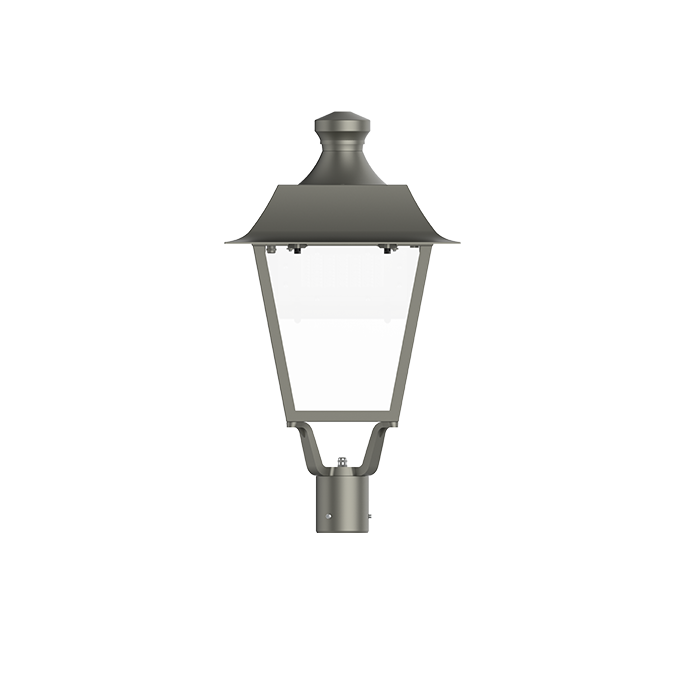

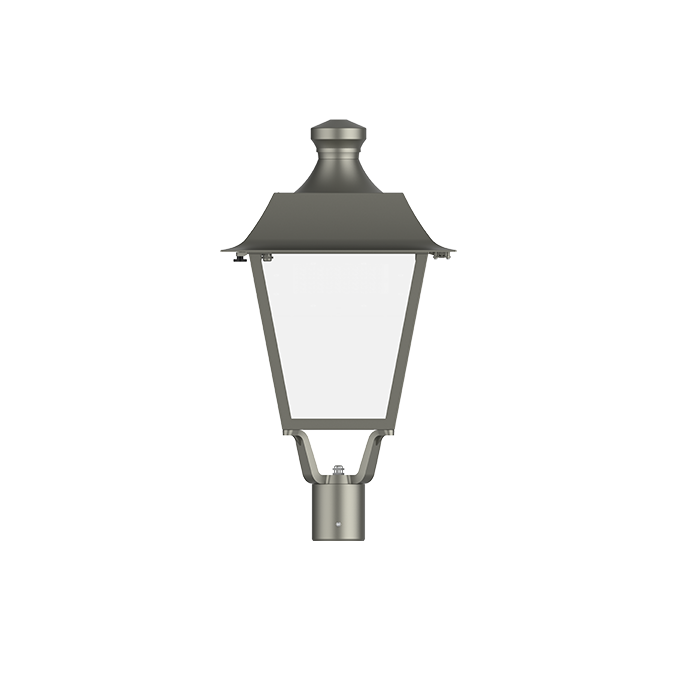

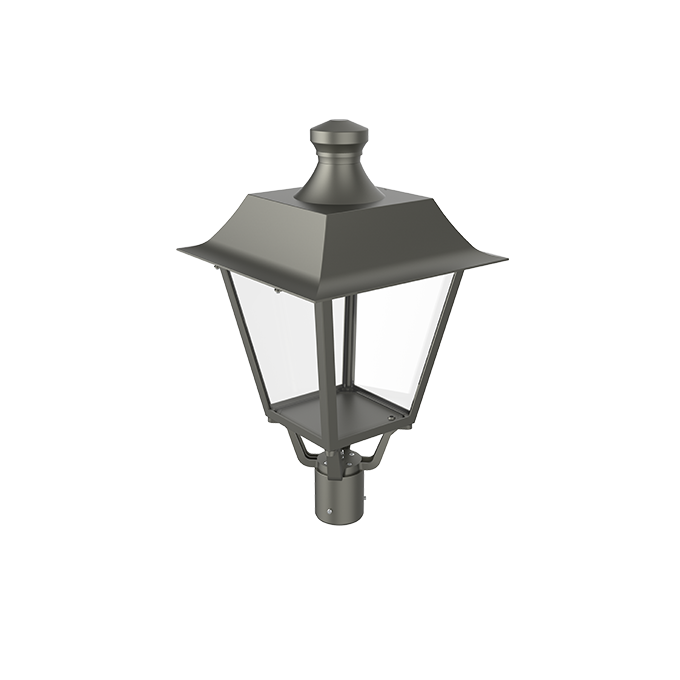

Villa Garden Light
Timeless Design, Smart Care
- Feature summary — Power
- 20–80 W
- Parameter table — Power
- 20 / 30 / 40 / 50 / 60 / 70 / 80 W
- Feature summary — Max output
- 11,200 lm
- Parameter table — Max output
- 10,800 lm
- Feature summary — Efficacy
- up to 140 lm/W
- Parameter table — Efficacy
- 125 or 135 lm/W
Specifications
- Feature summary — Power
- 20–80 W
- Parameter table — Power
- 20 / 30 / 40 / 50 / 60 / 70 / 80 W
- Feature summary — Max output
- 11,200 lm
- Parameter table — Max output
- 10,800 lm
- Feature summary — Efficacy
- up to 140 lm/W
- Parameter table — Efficacy
- 125 or 135 lm/W
- Feature summary — CCT
- 1800K–6500K
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- Feature summary — Lifetime
- >100,000 h
- Parameter table — Lifetime
- 50,000 h
- IP / IK
- IP66 / IK08
- Input / CRI
- AC100–277 V, 50/60 Hz / 70
- Optics
- Type II UNI-540 / 618 / 710 / 711
- Certifications
- CE / CB / ENEC / IP66 / IK08
Applications
Urban & Residential StreetPedestrian PathPark & SquareRural RoadBridge
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions |
|---|---|---|---|
| UNI-YA05-1 — 20 W | 20 W | 2,500 / 2,700 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 30 W | 30 W | 3,750 / 4,050 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 40 W | 40 W | 5,000 / 5,400 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 50 W | 50 W | 6,250 / 6,750 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 60 W | 60 W | 7,500 / 8,100 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 70 W | 70 W | 8,750 / 9,450 lm | 420 × 420 × 750 mm |
| UNI-YA05-1 — 80 W | 80 W | 10,000 / 10,800 lm | 420 × 420 × 750 mm |
Feature summary
Key features
- 20–80 W with maximum 11,200 lm
- Up to 140 lm/W
- CCT 1800K–6500K
- Tempered glass, PMMA, and die-cast construction
- Mast-arm and post-top mounting
- Tool-free access
- NEMA socket
- IP66 / IK08
- Lifespan >100,000 h
