LED Lighting / Street Lights

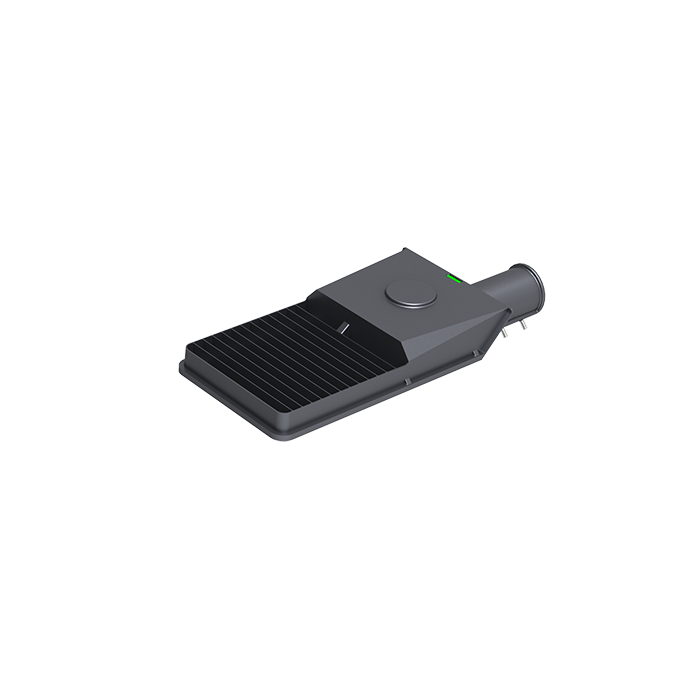

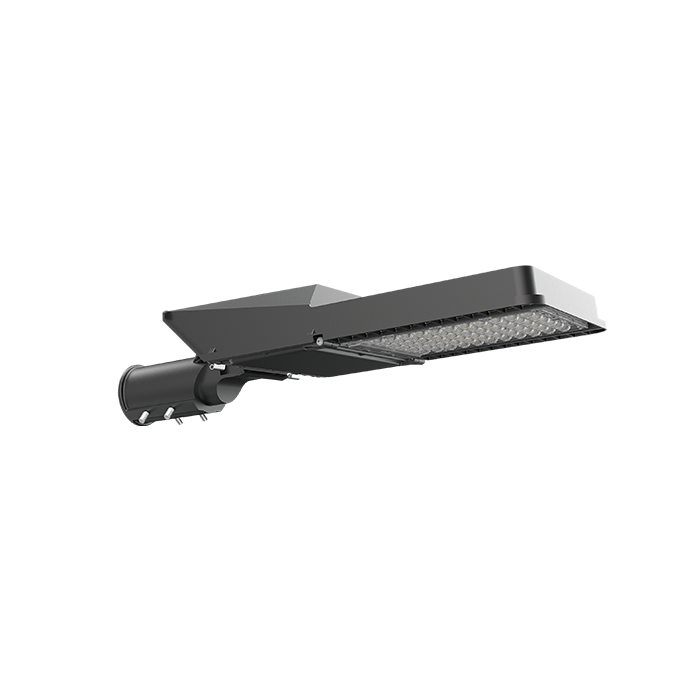

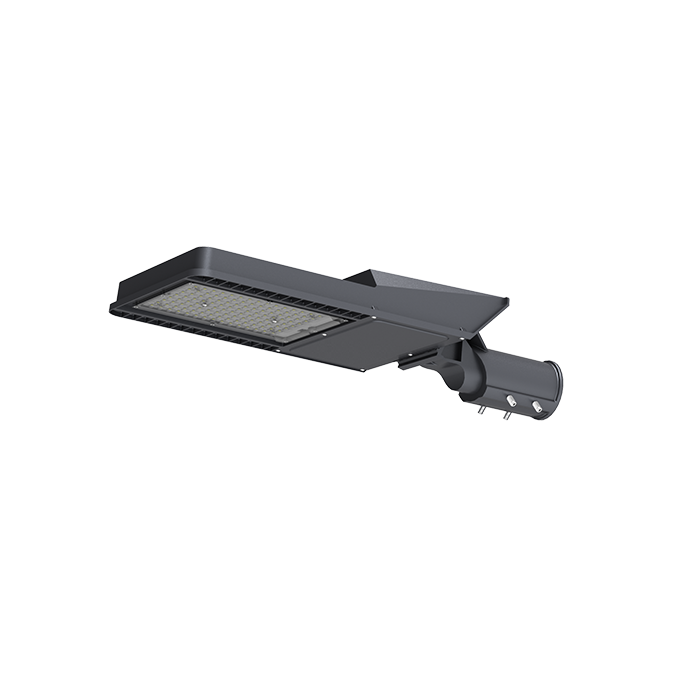

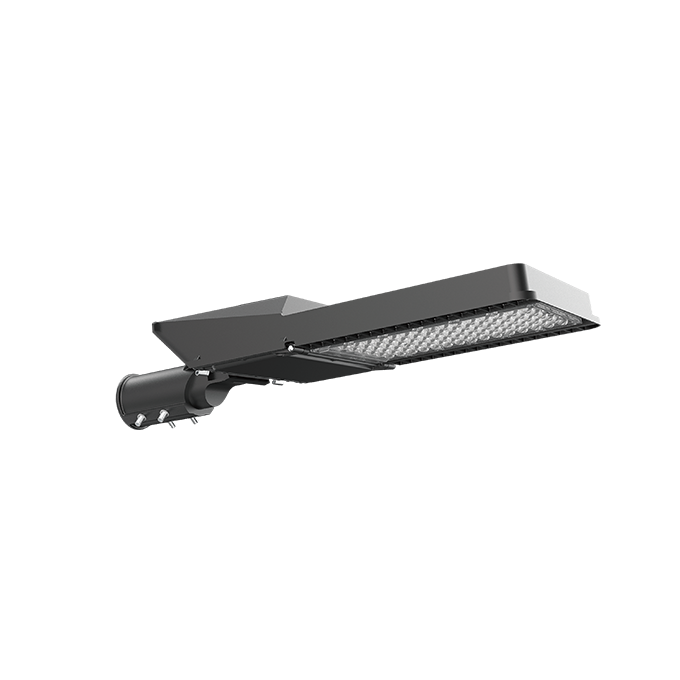

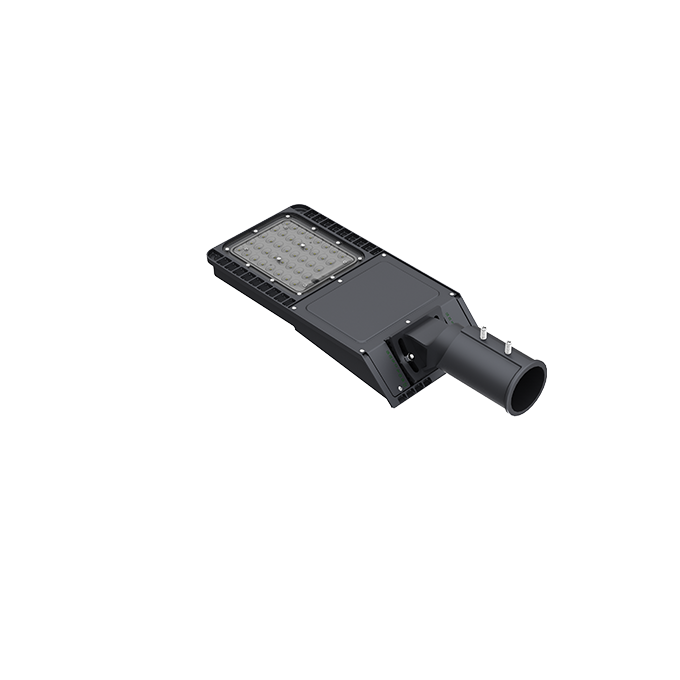

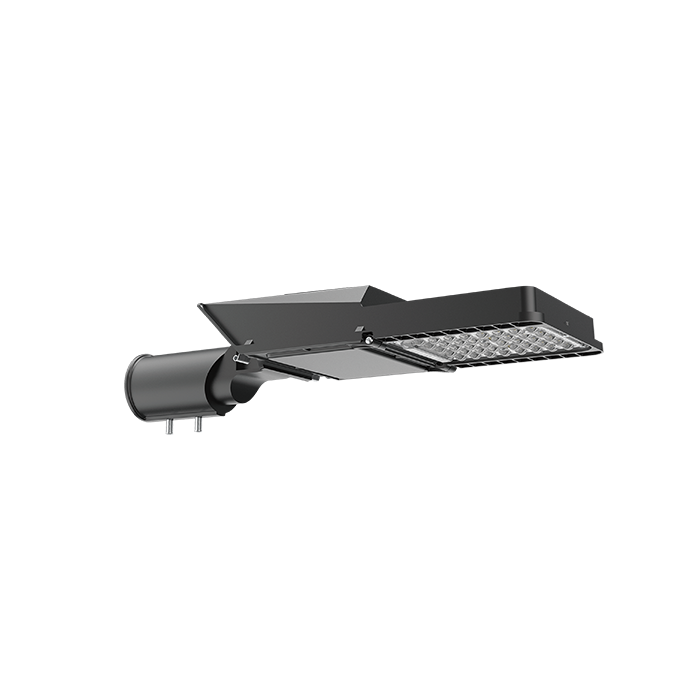

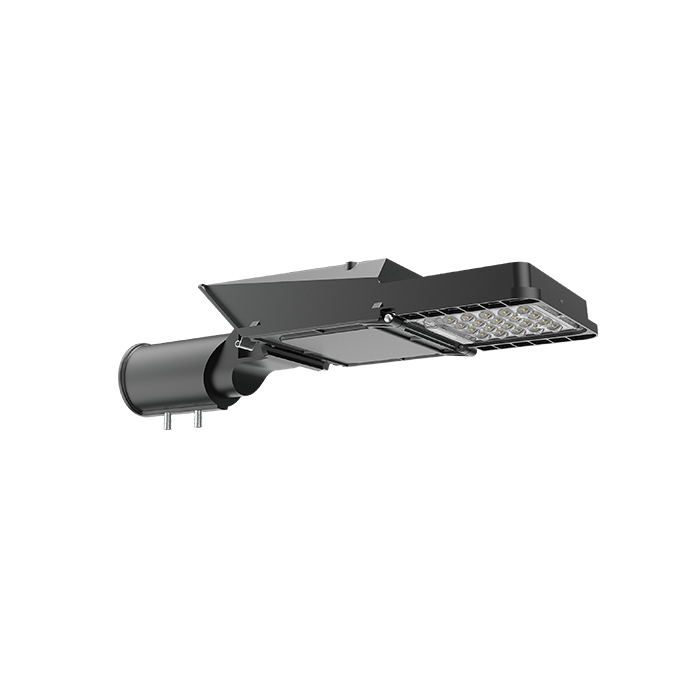

Guppy Street Light
Tool Free Open Maintenance, Reliable Choice
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK10
- Feature summary — lifespan
- >100,000 hours
Specifications
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK10
- Feature summary — lifespan
- >100,000 hours
- Parameter table — efficacy
- 130 or 150 lm/W at 4000K
- Parameter table — protection
- IP66 / IK08
- Parameter table — life
- 50,000 hrs
- Working temperature
- -40 to 45°C
- Storage temperature
- -40 to 85°C
- Humidity
- 10–90% RH
- Power factor
- ≥0.92 / ≥0.95 by model
- Input
- AC100–240V, 50/60Hz
- Driver
- Inventronics / Philips / Moso / Sosen
- LED
- Osram / Lumileds
- Parameter table — CCT
- 3000 / 4000 / 5000 / 5700 / 6500K
- CRI
- 70
- Housing
- Die-casting aluminum
- Mounting
- Side entry or post top, ±20°, Φ42/60/76 mm
- Optics
- Type II UNI-717 / UNI-732 / UNI-839 / UNI-677 / UNI-790 / UNI-840 / UNI-891
- Certifications & reports
- CE / CB / NOM / EPD / LM79 / TM21 / Salt spray / Vibration
Feature summary lists up to 180 lm/W, up to IK10, and over 100,000 hours; the parameter table lists 130 or 150 lm/W, IK08, and 50,000 hours.
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STB8-1/1A | 20–50 W | 2600–6500 / 3000–7500 lm | 456×168×103 mm | 2.5±0.2 kg |
| UNI-STB8-2/2A | 50–80 W | 6500–10400 / 7500–12000 lm | 506×185×102 mm | 2.9±0.2 kg |
| UNI-STB8-3/3A | 80–120 W | 10400–15600 / 12000–18000 lm | 558×225×102 mm | 4.0±0.2 kg |
| UNI-STB8-4/4A | 120–150 W | 15600–19500 / 18000–22500 lm | 578×250×110 mm | 4.4±0.2 kg |
| UNI-STB8-5/5A | 150–200 W | 19500–26000 / 22500–30000 lm | 639×260×112 mm | 5.2±0.2 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Tool-free opening
- NEMA and Zhaga smart-ready
- Side-entry or post-top mounting
