LED Lighting / Street Lights

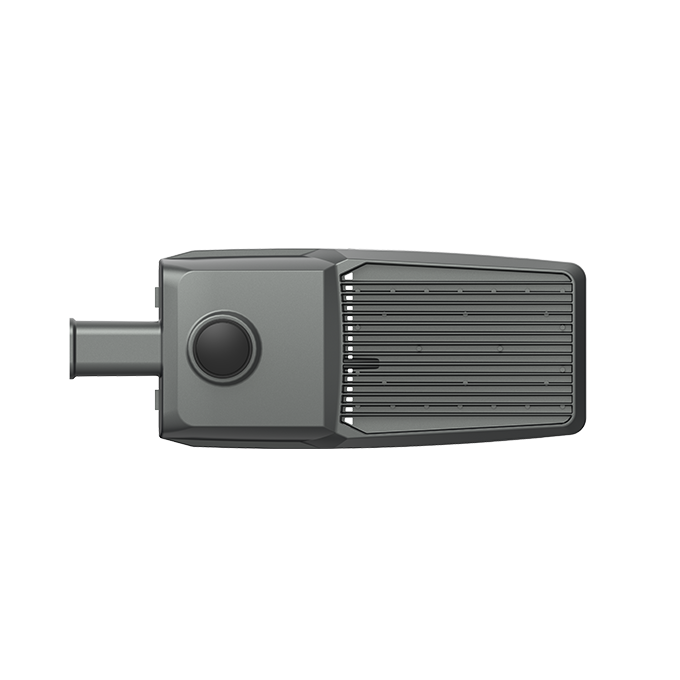

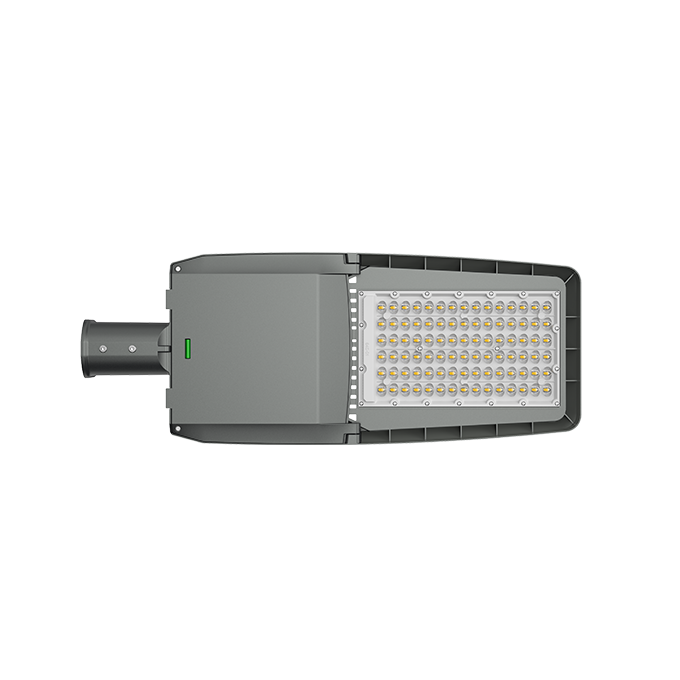

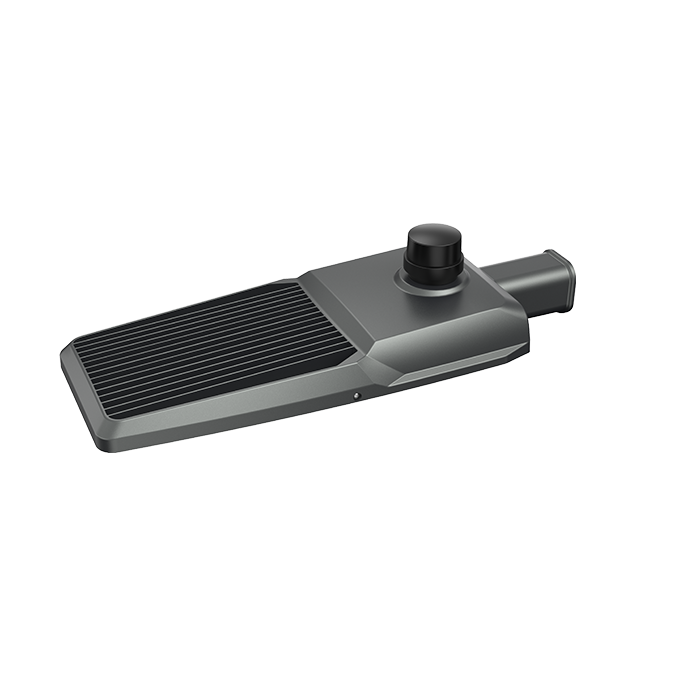

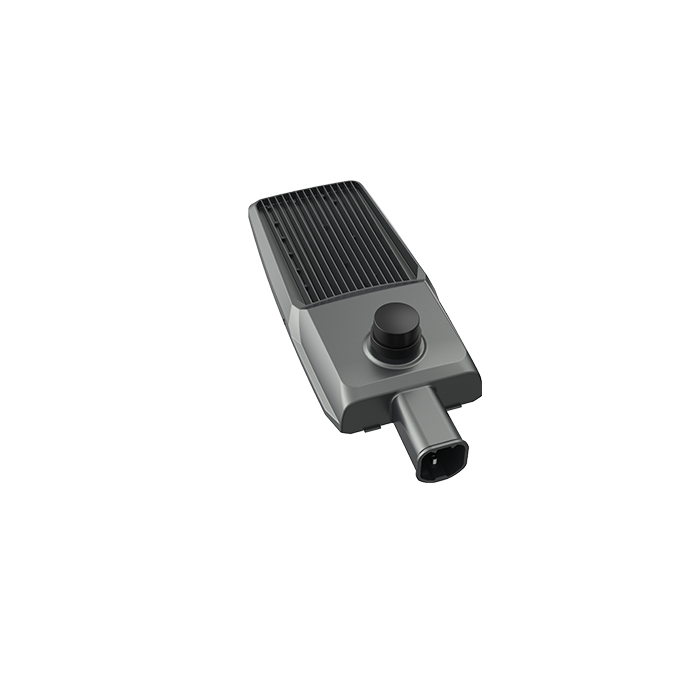

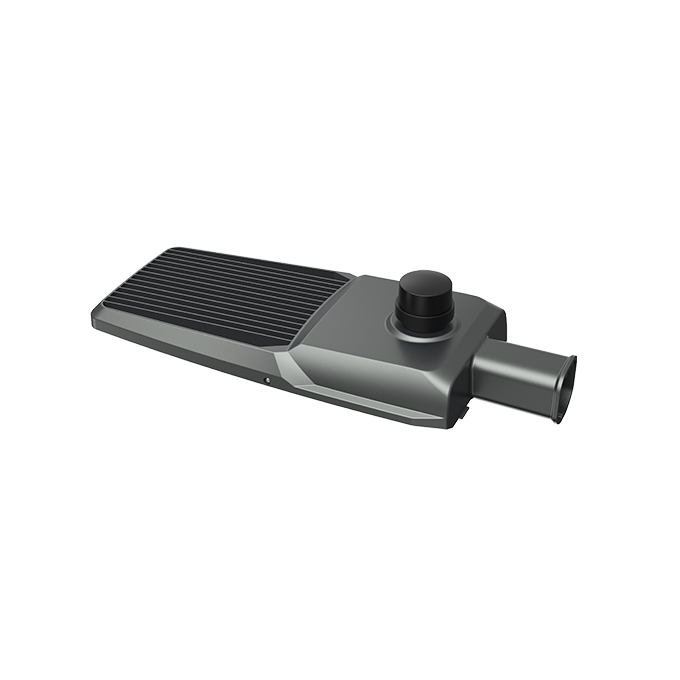

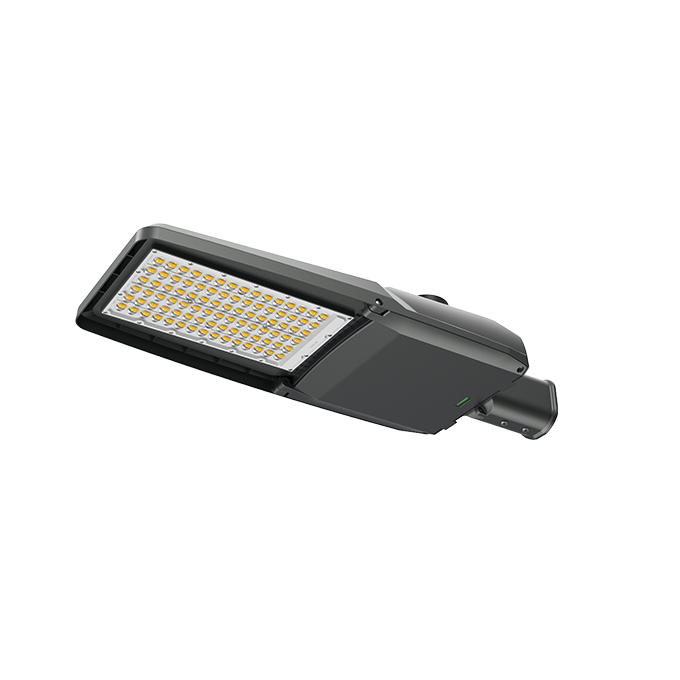

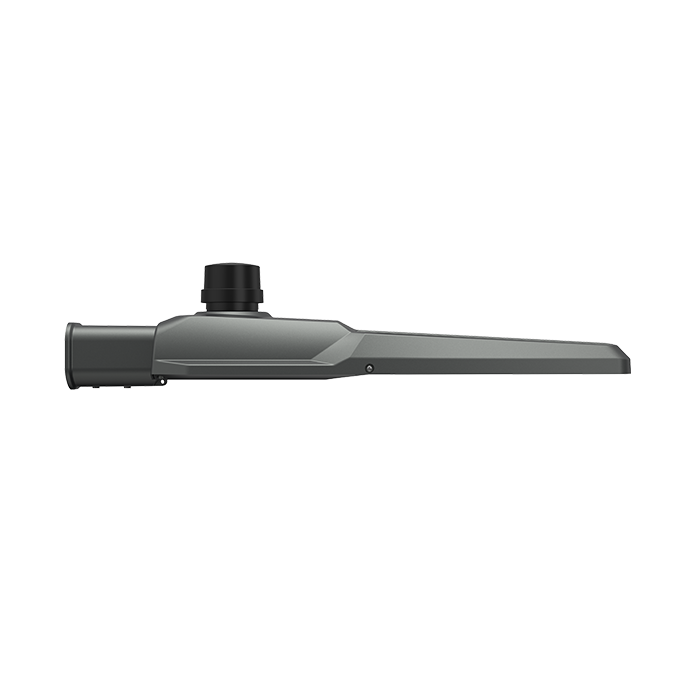

Orca Street Light
Smart Ready, Highly Efficient
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK10
- Feature summary — lifespan
- >100,000 hours
Specifications
- Feature summary — power
- 20–200 W
- Feature summary — max output
- 36,000 lm
- Feature summary — efficacy
- up to 180 lm/W
- Feature summary — CCT
- 1800K–6500K
- Feature summary — protection
- IP66, up to IK10
- Feature summary — lifespan
- >100,000 hours
- Parameter table — protection
- IP66 / IK08
- Parameter table — life
- 50,000 hrs
- Parameter table — efficacy
- 180 lm/W at 4000K
- Working temperature
- -40 to 50°C
- Storage temperature
- -40 to 55°C
- Humidity
- 10–90% RH
- Power factor
- ≥0.92 / ≥0.95 by model
- Input
- AC100–277V, 50/60Hz
- Driver
- Inventronics / Moso / Sosen
- LED
- Chinese brand 5050
- Parameter table — CCT
- 3000 / 4000 / 5000K
- CRI
- 70
- Housing
- Die-casting aluminum alloy
- Mounting
- Side entry, Φ33–60 mm
- Optics
- Type II M (UNI-1020-12/13); Type II M (UNI-1020-11/10)
- Certifications & reports
- CE / CB / NOM / RoHS / LM-80 / IP66 / IK10 / Vibration / Salt Spray
Feature summary lists up to IK10 and over 100,000 hours; the parameter table lists IK08 and 50,000 hours.
Applications
HighwaysArterialSecondaryBranch roadsMajor vehicle lanes
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-STD5-1 | 30 W | 5400 lm | 440×176×92 mm | 2.2±0.2 kg |
| UNI-STD5-2 | 60 W | 10800 lm | 502×202×95 mm | 2.6±0.2 kg |
| UNI-STD5-3 | 100 W | 18000 lm | 550×222×98 mm | 3.3±0.2 kg |
| UNI-STD5-4 | 150 W | 27000 lm | 619×243×110 mm | 4.3±0.2 kg |
| UNI-STD5-5 | 200 W | 36000 lm | 689×263×99 mm | 4.8±0.2 kg |
Feature summary
Key features
- Anti-UV PC lens and anti-corrosion die-cast aluminum
- Optional tool-free electrical compartment
- NEMA and Zhaga smart-ready
- Side-entry mounting
