RN SERIES
Lead the P1 Era of Indoor Rental
MIP / U-shield Dual-technology High-protection Product
Premium indoor rental LED display built on MIP and U-shield dual-protection technology. Fine pixel pitches from P1.5 to P2.6 deliver high contrast visuals; tool-free front and rear maintenance unlocks unmatched performance for events, stage productions, and immersive installations.
RN II Series
Lead P1 Era of Indoor Rental
MIP / U-shield Dual-technology High-protection Product
- Pixel Pitch (mm)
- 1.5|1.9|2.6
- Pixel density (pixels/sq.m.)
- 409,600|262,144|147,456
- Brightness (nit)
- 600|700|800
RN II P1.5
1.5 mm
- Pixel density
- 409,600 px/m²
- Brightness
- 600 nit
RN II P1.9
1.9 mm
- Pixel density
- 262,144 px/m²
- Brightness
- 700 nit
RN II P2.6
2.6 mm
- Pixel density
- 147,456 px/m²
- Brightness
- 800 nit
Five Key Features
Engineered for any immersive stage.
MIP Technology
Flip-chip LED offers high stability, brightness, low power use and strong contrast, with pixel-level bin mixing for 360-degree uniform viewing; large modules reduce seams (better flatness, easier installation) and COB treatment adds robust protection and comfortable viewing.
U-shield Technology
Superior visuals with wide viewing angles and exceptional color uniformity. U-shield 2.6 is 3 to 4 times stronger than regular SMD1515.
Excellent Performance
MIP's 0404 small package enables 15,000 to 1 high contrast, with greater than 99 percent wide-angle black-and-white consistency. U-shield adds high brightness, wide viewing angles, and 96 percent DCI-P3 color gamut.

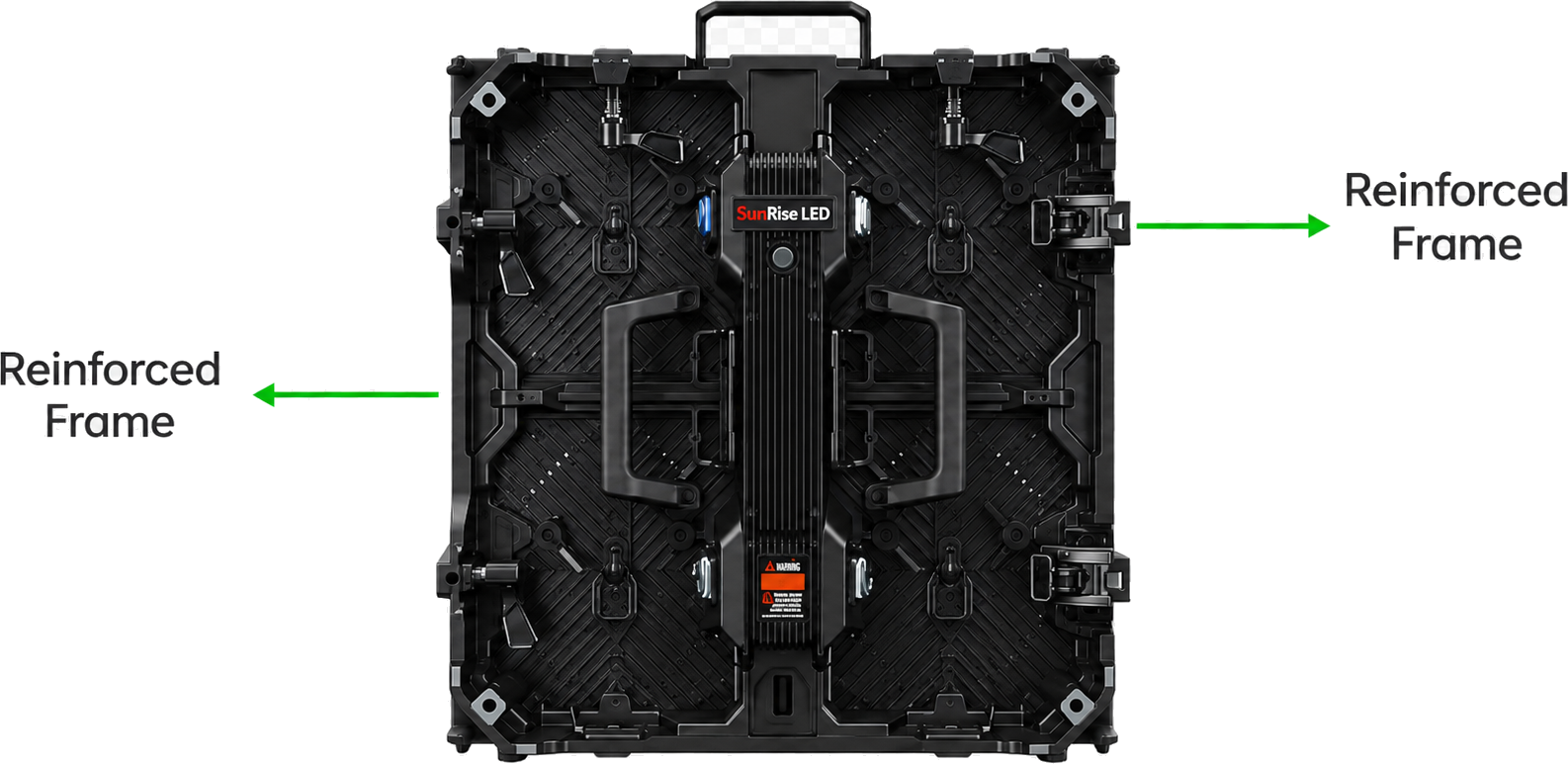

Unique Structural Design
Center-mounted handle for easy rear maintenance and a reinforced frame with optimized corners for quick module removal. Support-addable vertical frames ensure convenience and durability.
High Safety
Cabinet strength up to 17,000 N, with anti-drop and tools-free service design for LED modules, ensuring high safety during installation.

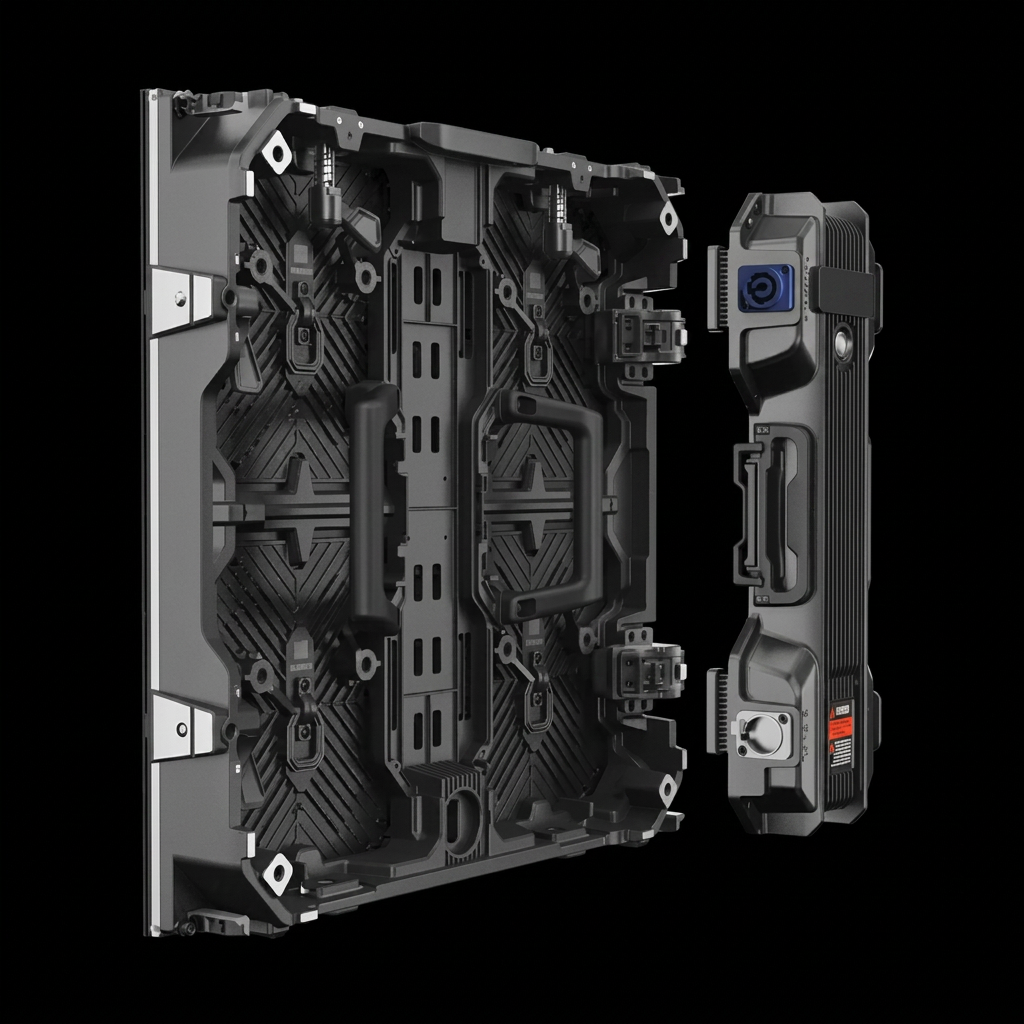

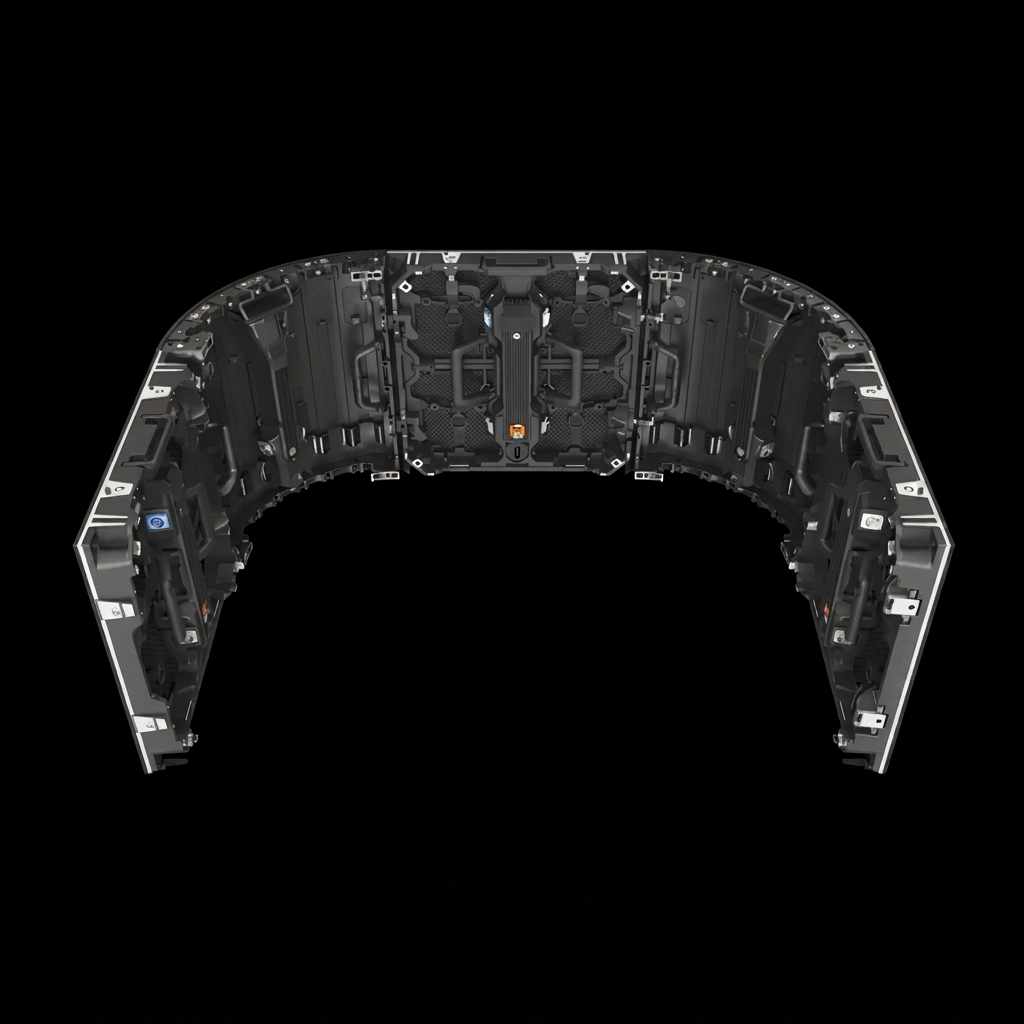

Cabinet profile · Internal layout · Creative splicing

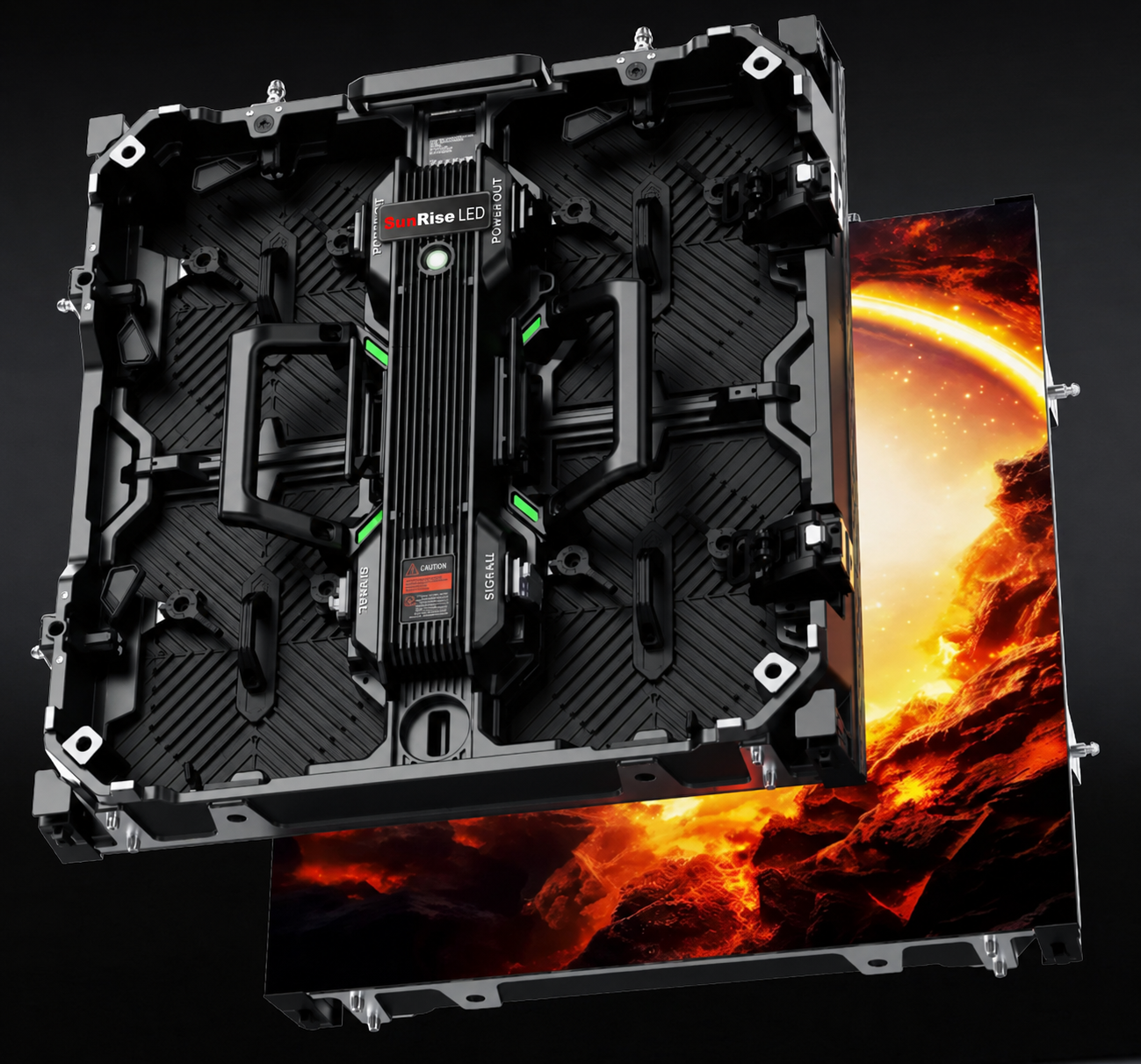

Unique Structural Design
The LED display features a center-mounted handle for easy rear maintenance and a reinforced frame with optimized corners for quick module removal, plus support-addable vertical frames — ensuring convenience and durability across every installation.
Anything is Possible — For any immersive stage.

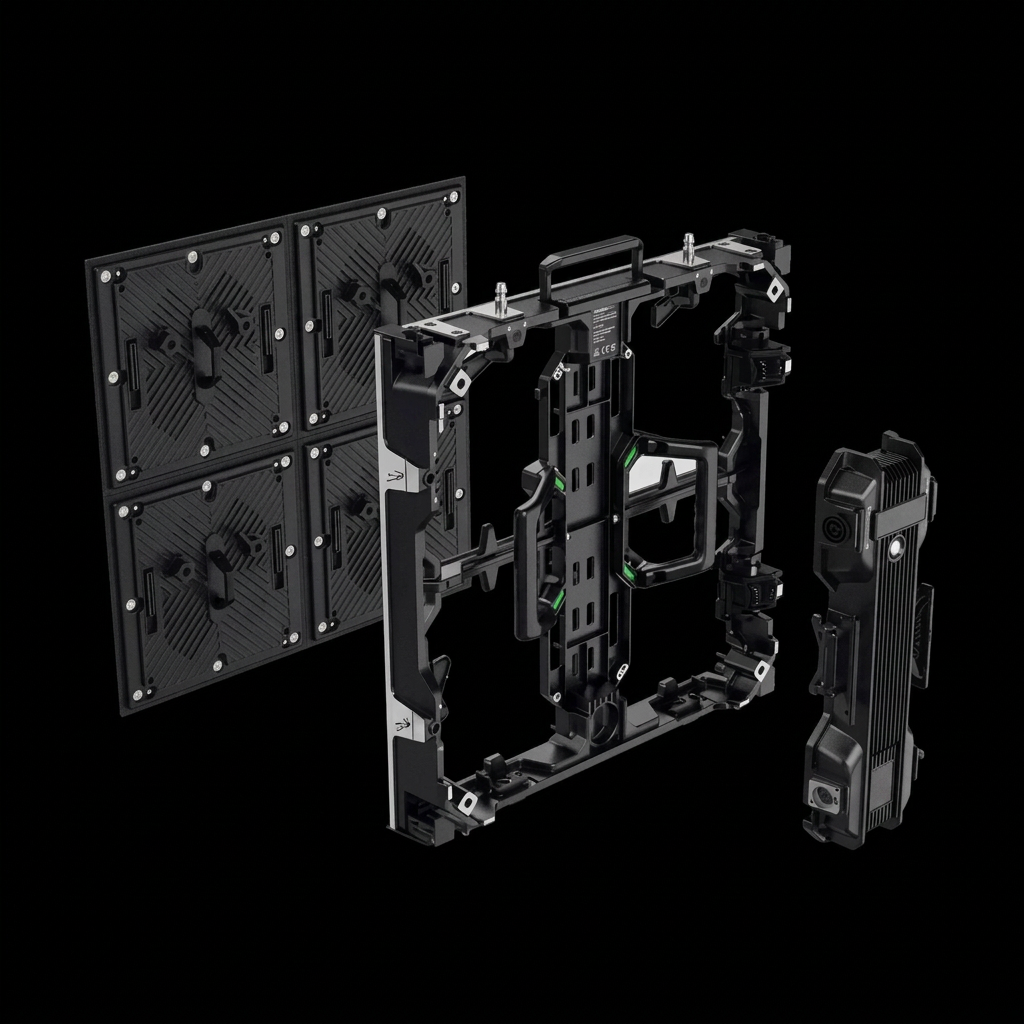

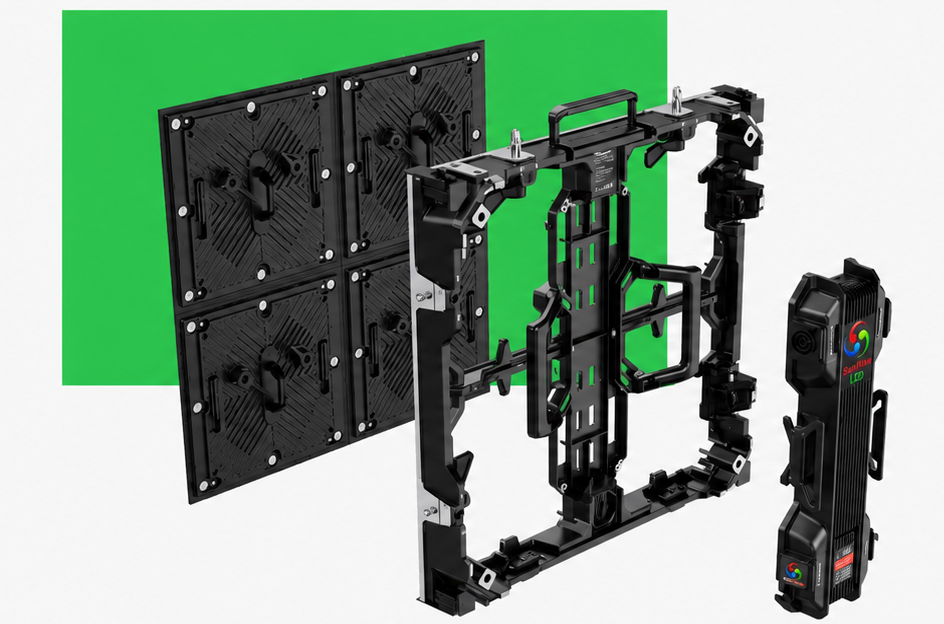

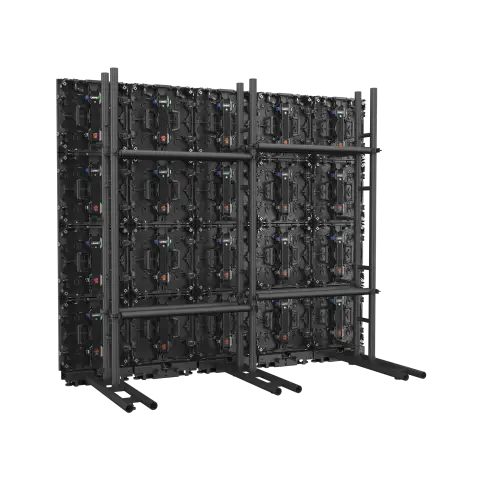

Front and Rear Maintenance

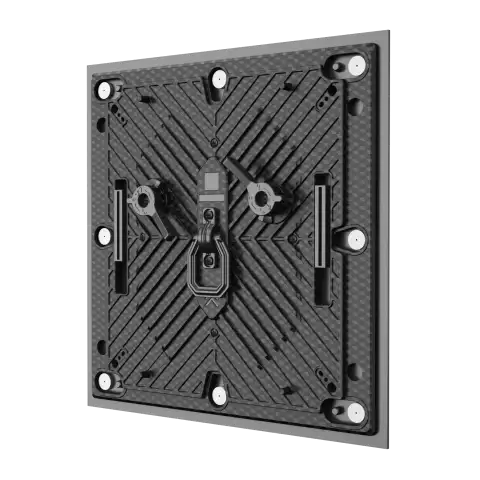

Modular cabinets plus magnetic LED modules deliver fully front and rear maintenance for any installation scenario.
Main Technical Specifications
Side-by-side reference values for the RN II P1.5, P1.9 and P2.6 panels. Final values may vary by configuration and software version — confirm the exact build with our team before order.
| Parameter | RN II P1.5 | RN II P1.9 | RN II P2.6 |
|---|---|---|---|
| Pixel Pitch | 1.5 mm | 1.9 mm | 2.6 mm |
| Pixel Density | 409,600 px/m² | 262,144 px/m² | 147,456 px/m² |
| Brightness | 600 nit | 700 nit | 800 nit |
| LED Type | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Pixels Per Panel | 320 × 320 | 256 × 256 | 192 × 192 |
| Module Size | 250 × 250 mm | 250 × 250 mm | 250 × 250 mm |
| Cabinet Size | 500 × 500 mm | 500 × 500 × 74 mm | 500 × 500 mm |
| Cabinet Weight | 7.5 kg | 7.5 kg | 7.3 kg |
| Contrast Ratio | 5,000:1 | 5,000:1 | 5,000:1 |
| Color Temperature | 2,000 – 9,300 K adjustable | 2,000 – 9,300 K adjustable | 2,000 – 9,300 K adjustable |
| Calibration | Brightness & chroma | Brightness & chroma | Brightness & chroma |
| Gray Scale | 14 bit | 14 bit | ≥ 14 bit |
| Viewing Angle (H / V) | 160° / 160° | 160° / 160° | 160° / 160° |
| Refresh Rate | ≥ 3,840 Hz | 3,840 Hz | ≥ 3,840 Hz |
| Input Power (Max.) | 480 ±10% W/m² | 480 ±10% W/m² | 480 ±10% W/m² |
| Input Power (Typical) | 160 ±10% W/m² | 160 ±10% W/m² | 160 ±10% W/m² |
| Input Voltage | 100 – 240 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Ingress Protection | IP30 | IP30 | Front IP40 / Rear IP20 |
| Maintenance | Front & rear | Front & rear | Rear & front (optional) |
| Cabinet Material | Die-cast aluminum | Die-cast aluminum | Die-cast aluminum |
| Operating Temp. / Humidity | -20 – +50 °C / 10 – 90% RH | -20 – +50 °C / 10 – 90% RH | -10 – +45 °C / 10 – 90% RH |
| Max. Stacking / Hanging | 12 / 20 pcs | 12 / 20 pcs | 12 / 20 pcs |
| Environment | Indoor | Indoor | Indoor |
| Certification | CE / CB / FCC / ETL / RoHS | CE / CB / FCC / ETL / RoHS | CE / CB / FCC / ETL / RoHS |
Applications
Where the RN II Series goes to work.
- Concert & event staging
- Broadcast & XR stages
- Corporate AGMs and product launches
- Trade shows & exhibitions
- Houses of worship touring rigs
- Award shows and live entertainment
Projects / Case Studies
Real-world indoor rental installations delivered around the world.

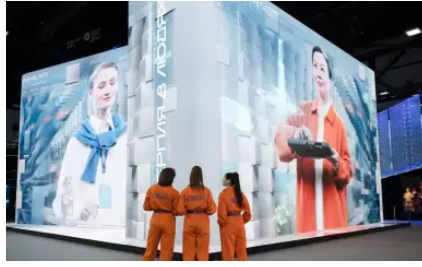

RN2.6 450SQM International Economic Forum, Russia
Russia
RN2.6 · 450 sqm

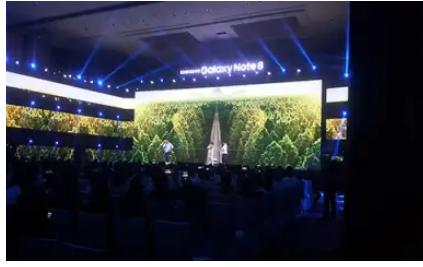

Samsung Galaxy Note 8 Launch
Thailand, Bangkok
GN3.9 · 200 sqm

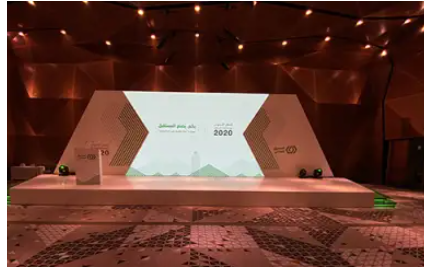

Company Annual Ceremony
Saudi Arabia
RN3.9S · 32 sqm
Spec your next rental rig with RN II
Tell us cabinet count, pixel pitch (P1.5 / P1.9 / P2.6), configuration (flat / curve / cube column), and processor preference — we'll send a quote with lead time.
