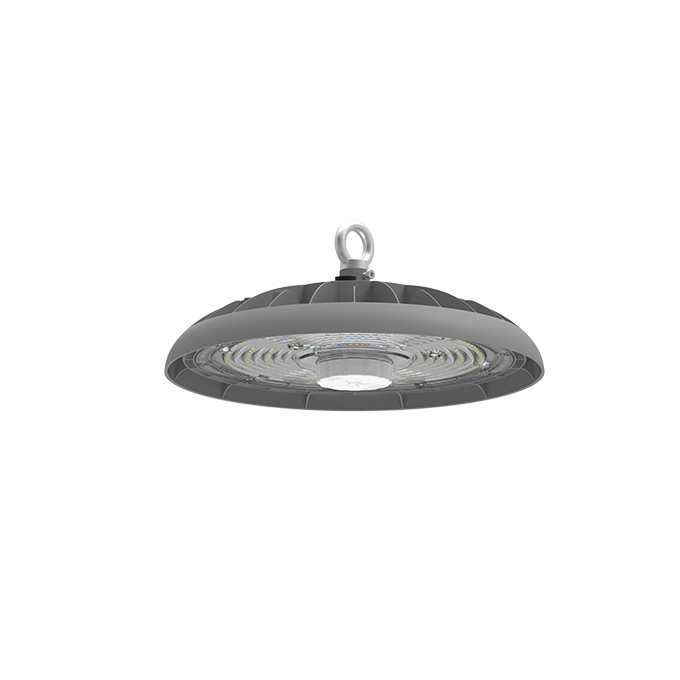

Lumibay High Bay
Sleek Design, Power by Choice
- Feature summary — Power
- 100–200 W
- Parameter table — Power
- 80 / 120 / 160 / 200 W; DIP variants published separately
- Feature summary — Max output
- 45,600 lm
- Parameter table — Max output
- 32,000 lm
- Feature summary — Efficacy
- up to 190 lm/W
- Parameter table — Efficacy
- 160 lm/W at 4000K, Ra80, 90°, 25°C
Specifications
- Feature summary — Power
- 100–200 W
- Parameter table — Power
- 80 / 120 / 160 / 200 W; DIP variants published separately
- Feature summary — Max output
- 45,600 lm
- Parameter table — Max output
- 32,000 lm
- Feature summary — Efficacy
- up to 190 lm/W
- Parameter table — Efficacy
- 160 lm/W at 4000K, Ra80, 90°, 25°C
- CCT
- 1800K–6500K
- IP / IK
- IP65 / IK08
- Feature summary — Working temperature
- −30°C to 50°C
- Parameter table — Working temperature
- −40°C to 40°C
- Feature summary — Lifetime
- >100,000 hours
- Parameter table — Lifetime
- 50,000 hours at 230 V, 40°C
- Feature summary — warranty
- Warranty 5
- Humidity / storage
- 10–90% RH / −40°C to 55°C
- Housing / color
- die-cast aluminum + PC / gray
- Surge / THD
- L-N 4 kV · L/N-G 6 kV / <15%
- Power factor / input
- ≥0.95 at full load / AC220–240 V, 50/60 Hz
- Parameter table — CCT / color tolerance / CRI
- 3000 / 4000 / 5000 / 5700 / 6500K · ≤6 SDCM · Ra≥80
- Optic caption
- 90°
- Accessory
- gourd buckle / microwave sensor / remote / surface mount bracket / AL visor
- Packing sizes
- 335 × 325 × 145 / 380 × 370 × 145 / 335 × 325 × 145 / 380 × 370 × 145 mm; published for the four fixed-power models only
Applications
FactoriesWarehousesLogistics CentersLarge SupermarketsIndoor Sports Venues
Parameter table
Published model range
| Model | Power | Luminous flux | Dimensions | Net weight |
|---|---|---|---|---|
| UNI-HB07-1-080 | 80 W | 12,800 lm | Φ265 × H108 mm | 1.4 kg |
| UNI-HB07-1-120 | 120 W | 19,200 lm | Φ310 × H114 mm | 2.1 kg |
| UNI-HB07-2-160 | 160 W | 25,600 lm | Φ265 × H116 mm | 1.4 kg |
| UNI-HB07-2-200 | 200 W | 32,000 lm | Φ310 × H122 mm | 2.1 kg |
| UNI-HB07-1S-080 | DIP 80 / 60 / 40 W | 4,000–12,800 lm | — | — |
| UNI-HB07-1S-120 | DIP 120 / 90 / 60 W | 5,800–19,200 lm | — | — |
| UNI-HB07-2S-160 | DIP 160 / 120 / 80 W | 8,000–25,600 lm | — | — |
| UNI-HB07-2S-200 | DIP 200 / 150 / 100 W | 10,000–32,000 lm | — | — |
Feature summary
Key features
- 100–200 W with up to 45,600 lm
- Up to 190 lm/W
- 60° / 90° / 120° PC optics

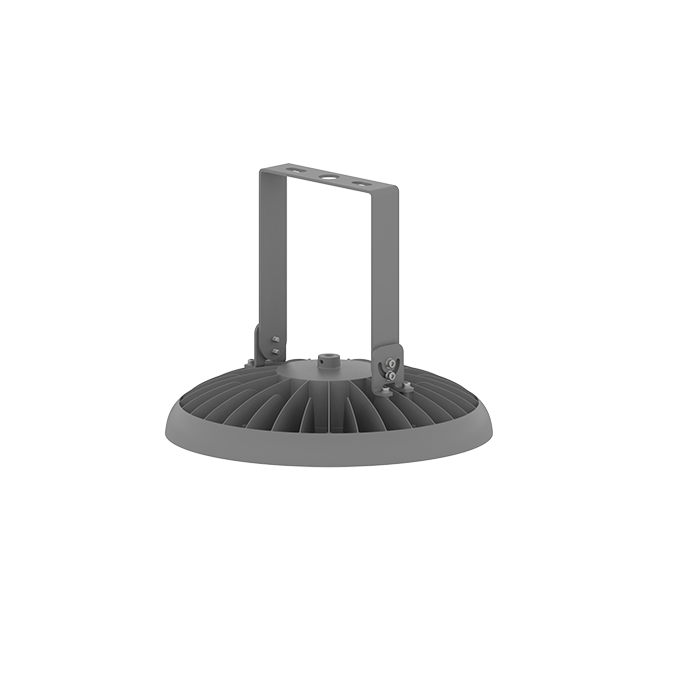

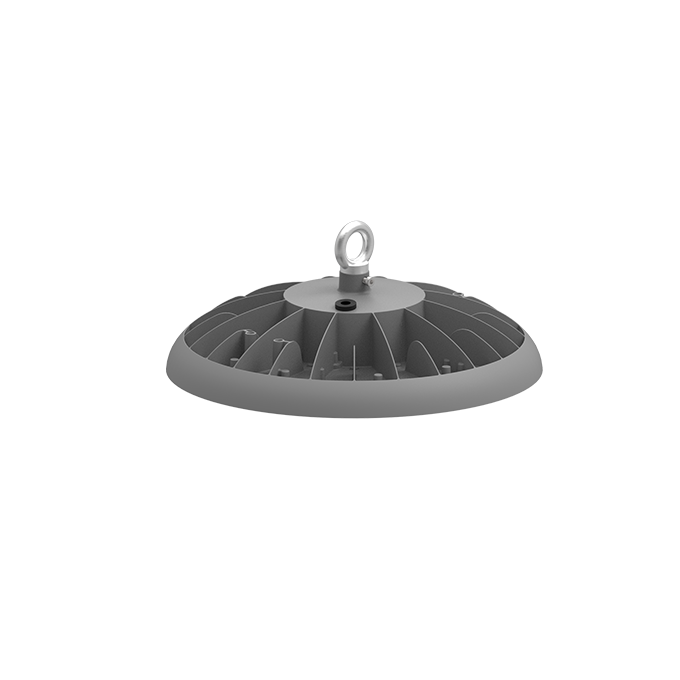

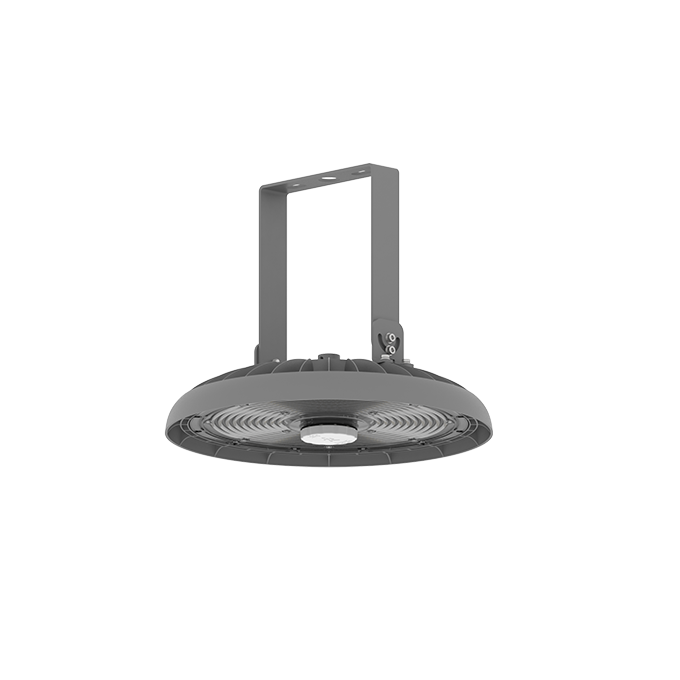

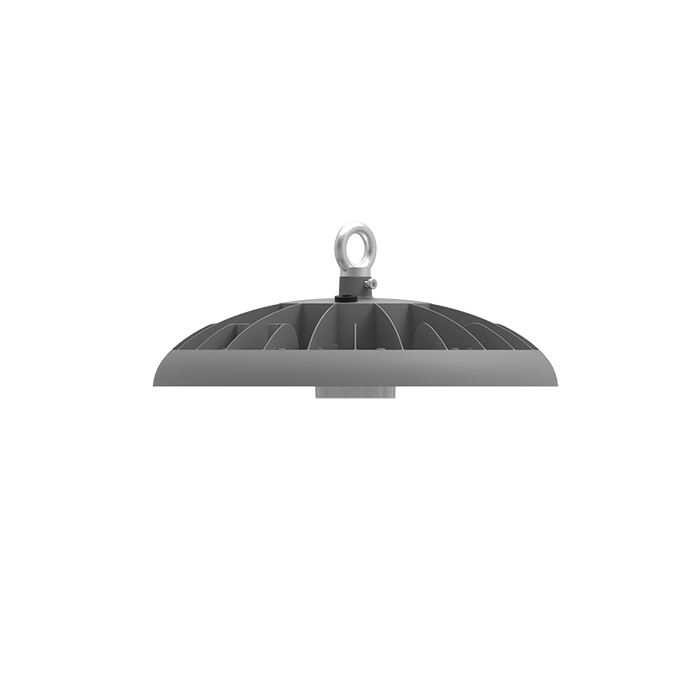

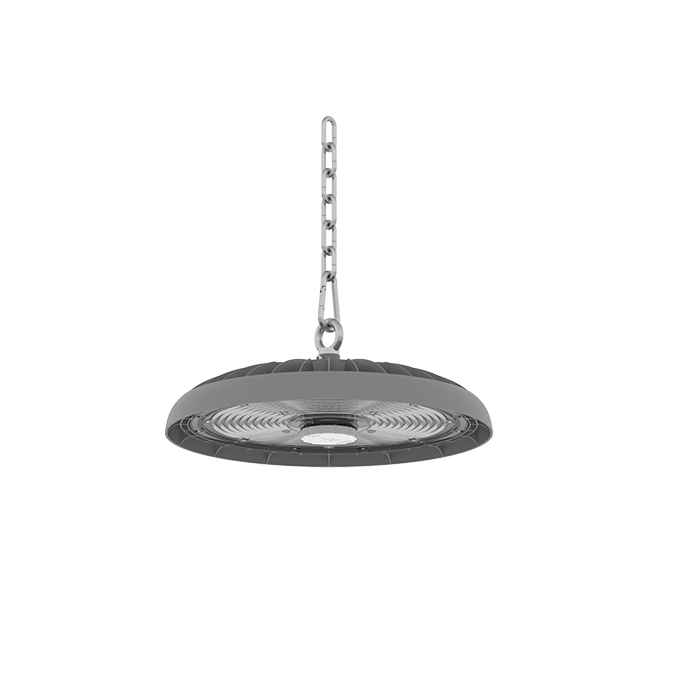

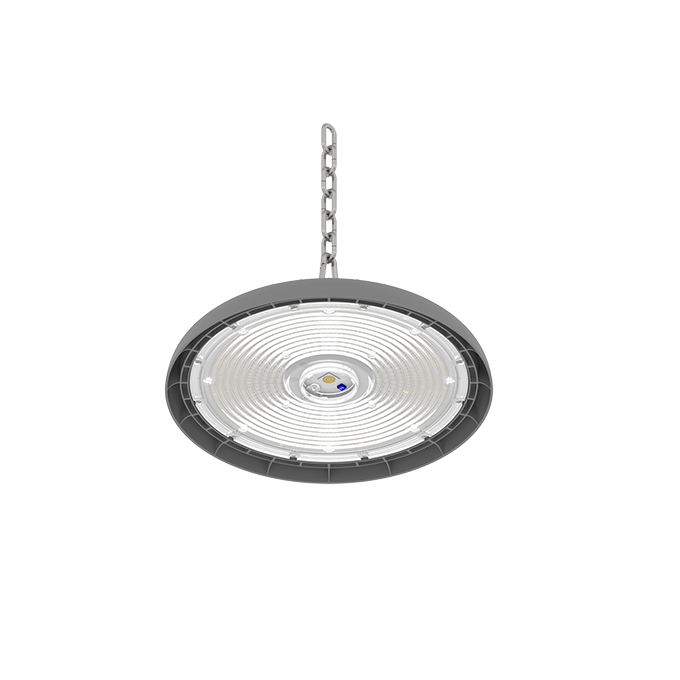

- Hanging chain, sag rod, or U-bracket mounting
- IP65 / IK08
- Lifespan >100,000 hours
